IBM Microprocessor Global Clock Directions

1

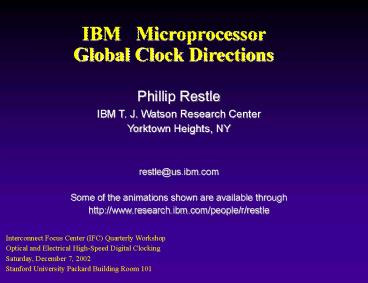

IBM Microprocessor Global Clock Directions
Phillip Restle IBM T. J. Watson Research
Center Yorktown Heights, NY restle_at_us.ibm.com S
ome of the animations shown are available
through http//www.research.ibm.com/people/r/restl
e
Interconnect Focus Center (IFC) Quarterly
Workshop Optical and Electrical High-Speed
Digital Clocking Saturday, December 7,
2002 Stanford University Packard Building Room 101
2
Outline

• Goals and Trends
• Interconnect Design and Modeling
• Past clock strategies issues
• Trees
• Grids
• Grid-Trees
• Future
• Major concerns with present methods
• Resonant?
• Optical?

3
Clock Distribution Goal Definitions

• Generate and distribute clock signal(s) to every
  latch and clocked dynamic gate
• (Most chips are still quite synchronous)
• Simultaneous everywhere (no skew)
• Periodic everywhere (no jitter)
• note David Harris skew my (skew jitter)
• Use minimum power and resources (wire tracks,
  cost)
• Impervious to ACLV and Vdd noise

4
Does Jitter Matter?

• Jitter (cycle compression) from a 4-cycle clock
  distribution is large, but may NOT impact
  performance of on-chip paths
• Assumes clock path and data paths track similarly
  with Vdd (O.K.)
• Assumes Vdd averaged over clock latency time does
  not vary across chip (not O.K. !)
• Vdd variations create skew

5
Does Skew Matter?

• Corner-to-corner skew across chip is now
  irrelevant
• Early-Mode (short-path) skew
• distance lt 10 of cycle
• Late-Mode (long-path) skew
• distance lt100 of cycle

Chip Size
early mode skew box
late mode skew box
6
Worst case long-path scenario
Clk

• Launching Clock late
• Logic slow done in low Vdd region
• Receiving Clk early
• Long path fails

late Clk
early Clk
Logic
High Vdd
Low Vdd
7
Basic structure of global clock wires Coplanar
Transmission Lines (fully shielded)
Gnd
Vdd
Vdd
Clock
Clock
Shield
Shield
Shield
1lm Cu
Orthogonal wiring
8
Current Voltage Visualizations

• Use Z axis for Voltage
• Use Diameter for Current (color for sign)

I
Volts (Vdd)
X
Y
9
Frames from animation
50 ps

• 1.6 um wide 1 cm long wire in good ground mesh

100 ps
(animation)
10
Return Path Discontinuity
1 cm long, 2.4lm wide (wafer)
Source
Need PEEC to analyze this complex 3D case
11
Discontinuous Power Grid (with L)
V
X
Y

• Return current must detour around cut

(Animation Frame)
12
Discontinuous Power Grid (no L)
V
X
Y

• RC-only model shows no such effects
• Current spread out much more uniformly

(Animation Frame)
13
1 very wide 18 lm clock wire
V overshoot
V
X
5 mm
Y

• Overshoot at far end of wide wire

(Animation Frame)
14
8 wires 18 lm total width

• Splitting wire into 8 parallel fingers eliminates
  overshoot at far end of wire
• Capacitance is increased

V
X
Y
No V overshoot
V
X
Y
(Animation Frame)
15
5 mm grid at 500 MHz (64 pF load)
V
X
Y

• Grid, with drivers at all 4 edges, switches
  nicely at 0.5 GHz

(Animation Frame)
c
16
At 4 GHz it doesn't work
V
X
Y

• More skew (center of grid 90 out of phase)

(Animation Frame)
17
Tree network driving non-uniform loads
V
X
Y
(Animation Frame)
18
Tree Tuning
Delay
Delay
(Animation Frame)
19
4 Trees Driving One Grid

• This "grid-tree" topology less suceptible to
  inductance problems.
• Better local skew
• This is untuned, still looks O.K., can be tuned
  for very small skew

V
X
Y
(Animation Frame)
20
Grid driven at 2 edges at 5 GHz

• Drivers not simultaneous
• 40 ps skew applied at drivers
• Strange Waveforms

(Animation Frame)
21
ACLV and Power Supply Noise

• Multi-cycle clock distribution amplifies ACLV
  effects
• 5 ACLV x 4 cycles Skew 20 of cycle
• Vdd not constant across chip
• Similar effect to ACLV, but it can change every
  cycle!
• If skew varies smoothly across chip, this skew
  may not matter
• Getting worse, but details unclear

22
Grid-Tree with 40 ps Driver Skew

• Skew "smoothed"
• Waveforms determined by interconnects
• (not FET's)

(Animation Frame)
23
Power4 Grid-Tree (smoothing skew from process
variations)

900
Delay (ps)
excess delay
Y
X
100
24
Using Inductance

• Inductance sharpens transitions
• Inductors also store energy (in B field)
• Capacitors store energy (in E field)
• Resonate!

25
Beyond the Hour Glass

• The first clocks were
• large
• inaccurate
• power-hungry
• (lossy)
• On-chip clock distribution still using this method

26
Beyond the Hour Glass

• Oscillator!
• Pendulum
• kinetic and potential
• Chip L and C
• (magnetic and electric)

27
Spiral Inductor
150 lm
7 lm
28
Spiral Inductors

• Steady state animation of spiral inductor
• (LC circuit)

(Animation Frame)
29
Distributed/Coupled Spiral Inductors
30
Distributed/Coupled Spiral Inductors

• Strongly coupled spiral inductors
• Could reduce Jitter, skew, and power

(Animation Frame)
31
Rotary Clock Scheme

• Make a "Moebius-like" differential
  transmission-line

J. Wood et. al. ISSCC '01
32
Rotary Clock Scheme

• Add restoring circuit, loads, inductance, and
  Stir
• Node travels around loop, recycling energy

33
Rotary Clock Scheme

• Animation frame

(Animation Frame)
34
Standing Waves

• By permission from Frank O'Mahony
• single SWO

35
Standing Waves

• By permission from Frank O'Mahony
• single SWO

(Animation Frame)
36
Standing Waves

• 4 coupled SWO's

(Animation Frame)
37
Standing Waves

• Harmonic Mode

(Animation Frame)
38
Summary of Present Art

• On-chip transmission lines support EM waves of
  1/2 speed of light for 5mm each
• Buffers needed to maintain edge-rate for longer
  distances
• Buffers also needed to provide gain of 105 from
  PLL to mesh
• ACLV is annoying, but solutions exist for
  constant or slowly varying skew sources (like
  temperature)

39
Major Concerns

• How do we
• get clock distribution and gain
• Without delay variations from power supply
  noise?
• Solve this, or hit brick wall
• Power is important Most techniques that reduce
  average chip power create even more power supply
  noise

40
Resonant Techniques?

• Need clock to run at various frequencies
• Some wafer level test capability (low freq. and
  variable freq. operation)
• Must be tunable for sorting and line tuning (30
  range)
• Minor issues with start-up, clock gating, sleep
  modes, etc..

41
Optical Techniques?

• Gain Optical power must be very large to help
  with "quiet gain" problem
• Cost chip, package, and laser
• Test Wafer test, temporary module test, burn-in

42
Final Thought

• Do we really want the same clock signal
  everywhere?
• We really want each core or unit to vary clock
  frequency asynchronously with local Vdd and/or
  workload
• Allows greatly reduced timing margins Run each
  part as fast as it can run, at every moment
• asynchronous overhead only between clock islands
