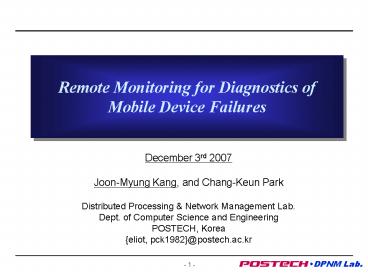

Remote Monitoring for Diagnostics of Mobile Device Failures

1
Remote Monitoring for Diagnostics of Mobile
Device Failures
December 3rd 2007 Joon-Myung Kang, and
Chang-Keun Park Distributed Processing Network
Management Lab. Dept. of Computer Science and
Engineering POSTECH, Korea eliot,
pck1982_at_postech.ac.kr
2
Presentation Outline

• Introduction
• Problem Definition and Goal
• Requirement Analysis
• Design
• Implementation
• Current Status

3
Introduction

• As mobile devices have many functions and provide
  the accessibility to the heterogeneous network,
  the end-users wish to use the more reliable and
  more quality services on their mobile devices
• the mobile device will have more failures because
  of its complexity
• The need on self-diagnostics of the mobile
  devices has been increasing

4
Problem Definition

• There is still little remote monitoring solution
  for diagnostics of mobile device failures
• Similar Related work
• general OS such as Window and UNIX
• Symbian OS

5
Goal

• Generic remote monitoring method to diagnose
  failures in mobile device based on OMA-DM
• Define generic management objects (MOs) for
  diagnostics of mobile device failures
• Design management operation
• Define device diagnostic functions and MOs for
  them
• Validation
• Development of remote monitoring system based on
  Mos
• Test on Battery Drain Problem

6
System Perspective
7
Requirement Analysis

• Functional Requirements

Use-case Diagram for Diagnostics and Monitoring
(OMA DM DiagMON Specification)
8
High-Level Design

• System Architecture
• DM and DiagMon

9
High-Level Design

• Battery Drain Problem

10
High-level Design

• MO Definition
• Root DM Tree

11
High-Level Design

• MO Definition
• DiagMon MO

12
High-Level Design

• DiagMon Node
• Battery Drain

13
High-Level Design

• Battery Drain Problem (Our Test Case)

14
Detail Design

• DM Agent

15
Detailed Design

• State Transition Diagram of Agent

16
Detailed Design

• Device Provisioning

17
Detail Design

• Battery Drain Problem

18
Detailed Design

• Battery Drain Problem

19
Implementation

• DM Client
• Development
• Based on open source project (mobile-control DM
  Client)
• J2ME, Eclipse 3.3.1.1
• Platform
• Sun Java Wireless Toolkit 2.5.2 Emulator
• Nokia S40 5th edition Emulator
• Sony Ericsson Emulator
• Samsung M620 Phone
• DM Server
• Development
• Based on open source project (Funambol DM Server)
• J2EE, Eclipse 3.3.1.1, JBoss 4.1, MySQL 5.0.45
• Web-based User Interface

20
Current Status

• DM Client

Sun Wireless Toolkit Emulator
Nokia S40 Emulator
Samsung M620 Phone
21
Current Status

• DM Server

Samsung M620 Phone
22
To do

• Client
• Implementing backend part for battery drain
  diagnostics
• Optimizing DM Tree
• Server
• Implementing monitoring process for battery drain
  diagnostics
• Saving and analyzing data
• Final report and paper

23
QnA
