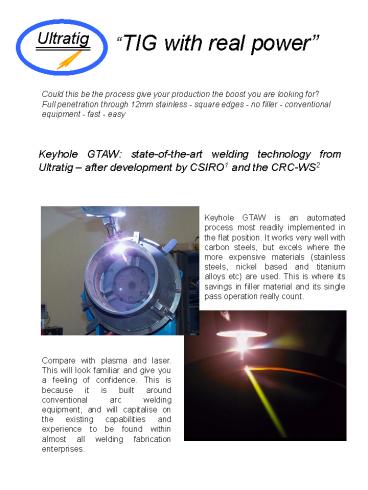

TIG with real power

1
TIG with real power
Could this be the process give your production
the boost you are looking for? Full penetration
through 12mm stainless - square edges - no filler
- conventional equipment - fast - easy
Keyhole GTAW state-of-the-art welding technology
from Ultratig after development by CSIRO1 and
the CRC-WS2
2
Keyhole GTAW state-of-the-art welding technology
Performance figures 12 mm AISI 304 at 300
mm/minute 8 mm C-Mn steel at 500 mm/min 6 mm
duplex stainless steel at 500 mm/min 3 mm
ferritic stainless steel at 1000 mm/minute
Note The process is not recommended for
material less than 3mm thick, or for highly
conductive materials such as copper and aluminium
alloys.

Applications include heavy transport (eg railway
wagon construction), spiral and seem welded pipe
manufacture and the welding of plate and
rotatable pipe products up to 12 mm in thickness.
How do you access this technology? Why not visit
our website at www.ultratig.com for a more
comprehensive presentation of this technology.
Obtain further details and a quotation by
emailing us at Laurie_at_ultratig.com or calling
61 88285 7000

• CSIRO is the Commonwealth Industrial and
  Scientific Research Organisation in Australia.
• CRC-WS is the Cooperative Research Centre for
  Welded Structures, also in Australia.
