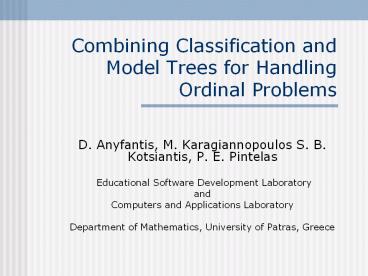

Combining Classification and Model Trees for Handling Ordinal Problems

1
Combining Classification and Model Trees for
Handling Ordinal Problems

• D. Anyfantis, M. Karagiannopoulos S. B.
  Kotsiantis, P. E. Pintelas
• Educational Software Development Laboratory
• and
• Computers and Applications Laboratory
• Department of Mathematics, University of Patras,
  Greece

2
Aim

• Handling the problem of learning to predict
  ordinal (i.e., ordered discrete) classes.
• To propose a technique that can be a more robust
  solution to the problem.

3
Contents

• Introduction
• Techniques for Dealing with Ordinal Problems
• Proposed Technique
• Experiments
• Conclusions

4
Ordinal Classification Problems

• A class of problems between classification and
  regression (discrete classes with a linear
  ordering)
• Given ordered classes, one is not only interested
  in maximizing the classification accuracy, but
  also in minimizing the distances between the
  actual and the predicted classes.

5
Simple Techniques for Dealing with Ordinal
Problems

• Classification algorithms by discarding the
  ordering information in the class attribute.
• Regression algorithms where each class is mapped
  to a numeric value.
• Reducing the multi-class ordinal classification
  problem to a set of binary classification
  problems using the one-against-all approach.

6
Another more Sophisticated Technique (ORD)

• Converting the original ordinal class problem
  into a series of binary problems that encode the
  ordering of the original classes, too. However,
  to predict the class value of an unseen instance
  this variant algorithm needs to estimate the
  probabilities of the k original ordinal classes
  using k - 1 models.
• For a three class ordinal problem, estimation of
  the probability for the first ordinal class value
  depends on a single classifier P(Target lt second
  value) as well as for the last ordinal class
  P(Target gt second value). However, for class
  value in the middle of the range, the probability
  depends on a pair of classifiers and is given by
• P(Target gt first value) (1 - P(Target gt second
  value))

7
Proposed Technique (1)

• Combines the predictions of a classification tree
  and a model tree algorithm.
• When learners are combined using a voting
  methodology, we expect to obtain good results
  based on the belief that the majority of
  classifiers are more likely to be correct in
  their decision when they agree in their opinion.

8
Proposed Technique (2)
9
Proposed Technique (3)

• In the proposed ensemble the sum rule is used -
  each voter gives the probability of its
  prediction for each candidate.
• Next all confidence values are added for each
  candidate and the candidate with the highest sum
  wins the election.

10
Experiments (1)

• To test the hypothesis that the above method
  improves the generalization performance on
  ordinal prediction problems, we performed
  experiments on real-world ordinal datasets
  donated by Dr. Arie Ben David (http//www.cs.waika
  to.ac.nz/ml/weka/).
• We also used datasets from UCI repository because
  of the lack of numerous benchmark datasets
  involving ordinal class values. These datasets
  represented numeric prediction problems. We
  converted the numeric target values into ordinal
  quantities using equal-size binning (three equal
  size intervals).

11
Experiments (2)

• All accuracy estimates were obtained by averaging
  the results from 10 separate runs of stratified
  10-fold cross-validation.
• 26 datasets

12
Experiments (3)

• For each data set the algorithms are compared
  according to
• classification accuracy (the rate of correct
  predictions)
• mean absolute error
• where p predicted values and a actual values.

13
Results (1)

• Table shows the summary results for the proposed
  technique in comparison with
• C4.5 without any modification
• in conjunction with the ordinal classification
  method (C4.5-ORD)
• using classification via regression (M5?)

Datasets Vote-C4.5-M5? M5? C4.5 C4.5-ORD
AVERAGE accuracy 75.44 74.59 75.06 75.33
AVERAGE MeanError 0.28 0.29 0.30 0.30
14
Statistical Results (as far as root mean square
error)

• The presented ensemble is significantly more
  accurate than M5? in 4 out of the 26 datasets,
  whilst it has significantly higher root mean
  square error in none dataset.
• The presented ensemble has also significantly
  lower root mean square error in 8 out of the 26
  datasets than both C4.5 and C4.5-ORD, whereas it
  is significantly less accurate in none dataset.

15
Statistical Results (as far as classification
accuracy)

• The presented ensemble is significantly more
  accurate than M5? in 4 out of the 26 datasets,
  whilst it has significantly higher error rate in
  2 datasets.
• The presented ensemble has also significantly
  lower error rate in 3 out of the 26 datasets than
  C4.5-ORD, whereas it is significantly less
  accurate in 1 dataset.
• The proposed method is significantly more
  accurate than C4.5 in 1 out of the 26 data-sets,
  whilst it has significantly higher error rate in
  none dataset.

16
Discussion

• If the ranking problem is posed as a
  classification problem then the inherent
  structure present in ranked data is not made use
  of and hence generalization ability of such
  classifiers is severely limited.
• On the other hand, posing the task of sorting as
  a regression problem leads to a highly
  constrained problem.

17
Conclusion

• According to our experiments in synthetic and
  real ordinal data sets, the proposed method
  manages to minimize the distances between the
  actual and the predicted classes, without harming
  but actually slightly improving the
  classification accuracy.

18
Future work

• More extensive experiments with real ordinal data
  sets from diverse areas will be needed to
  establish the precise capabilities and relative
  advantages of this methodology.

19
Thank you

• Any question?
