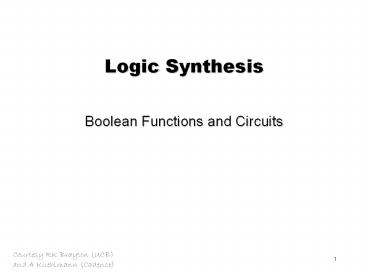

Logic Synthesis

1
Logic Synthesis

• Boolean Functions and Circuits

2
Remember What is Logic Synthesis?
Given Finite-State Machine F(X,Y,Z, , )
where
X
Y
X Input alphabet Y Output alphabet Z Set of
internal states X x Z Z (next state
function) X x Z Y (output function)
D
These are Boolean Functions!!
Target Circuit C(G, W) where G set of
circuit components g Boolean gates,

flip-flops, etc W set of wires connecting G
3
The Boolean Space Bn

• B 0,1
• B2 0,1 X 0,1 00, 01, 10, 11

Karnaugh Maps
Boolean Cubes
B0
B1
B2
B3
B4
4
Boolean Functions
x2
x1
5
Boolean Functions
Literal x1 represents the logic function f, where
f x x1 1 Literal x1 represents the logic
function g where g x x1 0
f x1
f x1
x3
x3
x2
x2
x1
x1
6
Set of Boolean Functions

• Truth Table or Function table

x1x2x3 0 0 0 1 0 0 1 0 0 1 0 1 0 1 1
0 1 0 0 ? 1 1 0 1 0 1 1 0 1 1 1 1
0
x3
x2
x1

• There are 2n vertices in input space Bn
• There are 22n distinct logic functions.
• Each subset of vertices is a distinct logic
  function
• f ? Bn

7
Boolean Operations - AND, OR, COMPLEMENT

• Given two Boolean functions
• f Bn ? B
• g Bn ? B
• The AND operation h f g is defined as
• h x f(x)1 Ù g(x)1
• The OR operation h f g is defined as
• h x f(x)1 Ú g(x)1
• The COMPLEMENT operation h f is defined as
• h x f(x) 0

8
Cofactor and Quantification

• Given a Boolean function
• f Bn ? B, with the input variable
  (x1,x2,,xi,,xn)
• The positive cofactor h fxi is defined as
• h x f(x1,x2,,1,,xn)1
• The negative cofactor h fxi is defined as
• h x f(x1,x2,,0,,xn)1
• The existential quantification of variable xi h
  xi . f is defined as
• h x f(x1,x2,,0,,xn)1 Ú
  f(x1,x2,,1,,xn)1
• The universal quantification of variable xi h "
  xi . f is defined as
• h x f(x1,x2,,0,,xn)1 Ù
  f(x1,x2,,1,,xn)1

9
Representation of Boolean Functions

• We need representations for Boolean Functions for
  two reasons
• to represent and manipulate the actual circuit we
  are synthesizing
• as mechanism to do efficient Boolean reasoning
• Forms to represent Boolean Functions
• Truth table
• List of cubes (Sum of Products, Disjunctive
  Normal Form (DNF))
• List of conjuncts (Product of Sums, Conjunctive
  Normal Form (CNF))
• Boolean formula
• Binary Decision Tree, Binary Decision Diagram
• Circuit (network of Boolean primitives)

10
Truth Table

• Truth table (Function Table)
• The truth table of a function f Bn ? B is a
  tabulation of its value at each of the 2n
  vertices of Bn.
• In other words the truth table lists all mintems
• Example f abcd abcd abcd
• abcd abcd abcd
• abcd abcd
• The truth table representation is
• - intractable for large n
• - canonical
• Canonical means that if two functions are the
  same, then the
• canonical representations of each are isomorphic.

abcd f 0 0000 0 1 0001 1 2 0010 0 3 0011 1 4 0100
0 5 0101 1 6 0110 0 7 0111 0
abcd f 8 1000 0 9 1001 1 10 1010 0 11 1011
1 12 1100 0 13 1101 1 14 1110 1 15 1111 1
11
Boolean Formula

• A Boolean formula is defined as an expression
  with the following syntax

formula ( formula )
ltvariablegt formula formula (OR
operator) formula formula (AND
operator) formula (complement)
Example f (x1x2) (x3) (x4
(x1)) typically the is omitted and the (
and are simply reduced by priority, e.g. f
x1x2 x3 x4x1
12
Cubes

• A cube is defined as the AND of a set of literal
  functions (conjunction of literals).
• Example
• C x1x2x3
• represents the following function
• f (x11)(x20)(x31)

c x1
f x1x2
f x1x2x3
x3
x3
x3
x2
x2
x2
x1
x1
x1
13
Cubes

• If C ? f, C a cube, then C is an implicant of f.
• If C ? Bn, and C has k literals, then C covers
  2n-k vertices.
• Example
• C xy ? B3
• k 2 , n 3 gt C 2 23-2.
• C 100, 101
• An implicant with n literals is a minterm.

14
List of Cubes

• Sum of Products
• A function can be represented by a sum of cubes
  (products)
• f ab ac bc
• Since each cube is a product of literals, this
  is a sum of products (SOP) representation
• A SOP can be thought of as a set of cubes F
• F ab, ac, bc
• A set of cubes that represents f is called a
  cover of f.
• F1ab, ac, bc and F2abc,abc,abc,abc
• are covers of
• f ab ac bc.

15
Binary Decision Diagram (BDD)
f abacabd
Graph representation of a Boolean function f -
vertices represent decision nodes for variables
- two children represent the two
subfunctions f(x 0) and f(x 1) (cofactors)
- restrictions on ordering and reduction rules
can make a BDD representation canonical
root node
a
b
cbd
b
b
c
cd
c
c
1
d
d
0
0
1
16
Boolean Circuits

• Used for two main purposes
• as representation for Boolean reasoning engine
• as target structure for logic implementation
  which gets restructured
• in a series of logic synthesis steps until
  result is acceptable
• Efficient representation for most Boolean
  problems we have in CAD
• memory complexity is same as the size of circuits
  we are actually building
• Close to input representation and output
  representation in logic synthesis

17
Definitions

• Definition
• A Boolean circuit is a directed graph C(G,N)
  where G are the gates and N Í GG is the set of
  directed edges (nets) connecting the gates.
• Some of the vertices are designated
• Inputs I Í G
• Outputs O Í G, I Ç O Æ
• Each gate g is assigned a Boolean function fg
  which computes the output of the gate in terms of
  its inputs.

18
Definitions

• The fanin FI(g) of a gate g are all predecessor
  vertices of g
• FI(g) g (g,g) Î N
• The fanout FO(g) of a gate g are all successor
  vertices of g
• FO(g) g (g,g) Î N
• The cone CONE(g) of a gate g is the transitive
  fanin of g and g itself.
• The support SUPPORT(g) of a gate g are all
  inputs in its cone
• SUPPORT(g) CONE(g) Ç I

19
Example
8
1
7
4
6
2
9
5
3
O
FI(6) 2,4 FO(6) 7,9 CONE(6)
1,2,4,6 SUPPORT(6) 1,2
I
20
Circuit Function

• Circuit functions are defined recursively
• If G is implemented using physical gates that
  have positive (bounded) delays for their
  evaluation, the computation of hg depends in
  general on those delays.
• Definition
• A circuit C is called combinational if for each
  input assignment of C for t the evaluation of
  hg for all outputs is independent of the internal
  state of C.
• Proposition
• A circuit C is combinational if it is acyclic.

21
Cyclic Circuits

• Definition
• A circuit C is called cyclic if it contains at
  least one loop of the form
• ((g,g1),(g1,g2),,(gn-1,gn),(gn,g)).
• In order to check whether the loop is
  combinational or sequential, we need to derive
  the loop function hloop by cutting the loop at
  gate g

...
g
...
22
Cyclic Circuits
hloop
...
...
v
g
g
...
...
23
Cyclic Circuits
xi
hloop
v

• The following equation computes the sensitivity
  of h
• with respect to v
• For any solution x, hloop will toggle if v
  toggles.
• negative feedback - oscillator (astable
  multivibrator)
• positive feedback - flip-flop (bistable
  multivibrator)

24
Cyclic Circuits
Theorem A circuit loop involving gate g is
combinational if
Theorem Output y of a circuit containing a loop
with gate g is combinational if Either
the loop is combinational or the output does not
depend on the loop value.
25
Circuit Representations

• For general circuit manipulation (e.g.
  synthesis)
• Vertices have an arbitrary number of inputs and
  outputs
• Vertices can represent any Boolean function
  stored in different ways, such as
• other circuits (hierarchical representation)
• Truth tables or cube representation (e.g. SIS)
• Boolean expressions read from a library
  description
• BDDs
• Data structure allow very general mechanisms for
  insertion and deletion of vertices, pins
  (connections to vertices), and nets
• general but far too slow for Boolean reasoning

26
Circuit Representations

• For efficient Boolean reasoning (e.g. a SAT
  engine)
• Circuits are non-canonical
• computational effort is in the checking part of
  the reasoning engine (in contrast to BDDs)
• Vertices have fixed number of inputs (e.g. two)
• Vertex function is stored as label, well defined
  set of possible function labels (e.g. OR, AND,OR)
• on-the-fly compaction of circuit structure
• allows incremental, subsequent reasoning on
  multiple problems

27
Boolean Reasoning Engine
Engine application - traverse problem data
structure and build Boolean problem using the
interface - call SAT to make decision
Engine Interface void INIT() void QUIT() Edge
VAR() Edge AND(Edge p1, Edge p2) Edge
NOT(Edge p1) Edge OR(Edge p1 Edge
p2) ... int SAT(Edge p1)
28
Basic Approaches

• Boolean reasoning engines need
• a mechanism to build a data structure that
  represents the problem
• a decision procedure to decide about SAT or UNSAT
• Fundamental trade-off
• canonical data structure
• data structure uniquely represents function
• decision procedure is trivial (e.g., just pointer
  comparison)
• example Reduced Ordered Binary Decision Diagrams
• Problem Size of data structure is in general
  exponential
• non-canonical data structure
• systematic search for satisfying assignment
• size of data structure is linear
• Problem decision may take an exponential amount
  of time

29
AND-INVERTER Circuits

• Base data structure uses two-input AND function
  for vertices and INVERTER attributes at the edges
  (individual bit)
• use DeMorgans law to convert OR operation etc.
• Hash table to identify and reuse structurally
  isomorphic circuits

f
f
g
g
30
Data Representation

• Vertex
• pointers (integer indices) to left and right
  child and fanout vertices
• collision chain pointer
• other data
• Edge
• pointer or index into array
• one bit to represent inversion
• Global hash table holds each vertex to identify
  isomorphic structures
• Garbage collection to regularly free
  un-referenced vertices

31
Data Representation
Hash Table
one
8456
...
.
0455
0456
0456
zero
Constant One Vertex
left
0
0457
...
right
1
next
fanout
hash value
left pointer
complement bits
right pointer
0456
left
0
next in collision chain
right
0
array of fanout pointers
next
fanout
32
Hash Table
Algorithm HASH_LOOKUP(Edge p1, Edge p2) index
HASH_FUNCTION(p1,p2) p
hash_tableindex while(p ! NULL)
if(p-gtleft p1 p-gtright p2) return p
p p-gtnext return NULL Tricks -
keep collision chain sorted by the address (or
index) of p - that reduces the search
through the list by 1/2 - use memory locations
(or array indices) in topological order of
circuit - that results in better cache
performance
33
Basic Construction Operations
Algorithm AND(Edge p1,Edge p2) if(p1
const1) return p2 if(p2 const1) return p1
if(p1 p2) return p1 if(p1 p2)
return const0 if(p1 const0 p2 const0)
return const0 if(RANK(p1) gt RANK(p2))
SWAP(p1,p2) if((p HASH_LOOKUP(p1,p2)) return
p return CREATE_AND_VERTEX(p1,p2)
34
Basic Construction Operations
Algorithm NOT(Edge p) return
TOOGLE_COMPLEMENT_BIT(p)
Algorithm OR(Edge p1,Edge p2) return
(NOT(AND(NOT(p1),NOT(p2))))
35
Cofactor Operation
Algorithm POSITIVE_COFACTOR(Edge p,Edge v)
if(IS_VAR(p)) if(p v)
if(IS_INVERTED(v) IS_INVERTED(p)) return
const1 else
return const0 else
return p if((c
GET_COFACTOR(p)) NULL) left
POSITIVE_COFACTOR(p-gtleft, v) right
POSITIVE_COFACTOR(p-gtright, v) c
AND(left,right) SET_COFACTOR(p,c)
if(IS_INVERTED(p)) return NOT(c) else
return c
36
Cofactor Operation

• - similar algorithm for NEGATIVE_COFACTOR
• existential and universal quantification build
  from AND, OR and COFACTORS
• Question What is the complexity of the circuits
  resulting from quantification?

37
SAT and Tautology

• Tautology
• Find an assignment to the inputs that evaluate a
  given vertex to 0.
• SAT
• Find an assignment to the inputs that evaluate a
  given vertex to 1.
• Identical to Tautology on the inverted vertex
• SAT on circuits is identical to the justification
  part in ATPG
• First half of ATPG justify a particular circuit
  vertex to 1
• Second half of ATPG (propagate a potential change
  to an output) can be easily formulated as SAT
  (will be covered later)
• Basic SAT algorithms
• branch and bound algorithm as seen before
• branching on the assignments of primary inputs
  only (Podem algorithm)
• branching on the assignments of all vertices
  (more efficient)

38
General Davis-Putnam Procedure

• search for consistent assignment to entire cone
  of requested vertex by systematically trying all
  combinations (may be partial!!!)
• keep a queue of vertices that remain to be
  justified
• pick decision vertex from the queue and case
  split on possible assignments
• for each case
• propagate as many implications as possible
• generate more vertices to be justified
• if conflicting assignment encountered
• undo all implications and backtrack
• recur to next vertex from queue
• Algorithm SAT(Edge p)
• queue INIT_QUEUE()
• if(IMPLY(p) return TRUE
• return JUSTIFY(queue)

39
General Davis-Putnam Procedure

• Algorithm JUSTIFY(queue)
• if(QUEUE_EMPTY(queue)) return TRUE
• mark ASSIGNMENT_MARK()
• v QUEUE_NEXT(queue) // decision vertex
• if(IMPLY(NOT(v-gtleft))
• if(JUSTIFY(queue)) return TRUE
• // conflict
• UNDO_ASSIGNMENTS(mark)
• if(IMPLY(v-gtleft)
• if(JUSTIFY(queue)) return TRUE
• // conflict
• UNDO_ASSIGNMENTS(mark)
• return FALSE

40
Example
Queue
Assignments
SAT(NOT(9))??
4
9
9
1
7
9
2
5
0
8
6
3
First case for 9
1
1
4
9
9 7 4 5 1 2
1
1
0
7
1
0
1
9
2
5
0
8
6
3
Conflict!! - undo all assignments - backtrack
41
Example
Assignments
Queue
Second case for 9
4
5 6
9 7 8 5 6
1
0
1
7
0
9
Note - vertex 7 is justified by 8-gt5-gt7
2
5
0
8
0
1
6
3
0
First case for 5
4
9 7 8 5 6 2 3
1
0
1
7
0
0
9
2
5
0
8
0
1
6
3
0
0
Solution cube 1 x, 2 0, 3 0
42
Implication Procedure

• Fast implication procedure is key for efficient
  SAT solver!!!
• dont move into circuit parts that are not
  sensitized to current SAT problem
• detect conflicts as early as possible
• Table lookup implementation (27 cases)
• No implications
• Implications

43
Implication Procedure

• Implications
• Conflicts
• Case Split

44
Ordering of Case Splits

• various heuristics work differently well for
  particular problem classes
• often depth-first heuristic good because it
  generates conflicts quickly
• mixture of depth-first and breadth-first schedule
• other heuristics
• pick the vertex with the largest fanout
• count the polarities of the fanout separately and
  pick the vertex with the highest count in either
  one
• run a full implication phase on all outstanding
  case splits and count the number of implications
  one would get
• some cases may already generate conflicts, the
  other case is immediately implied
• pick vertices that are involved in small cut of
  the circuit

0?
small cut
45
Learning

• Learning is the process of adding shortcuts to
  the circuit structure that avoids case splits
• static learning
• global implications are learned
• dynamic learning
• learned implications only hold in current part of
  the search tree
• Learned implications are stores as additional
  network
• Back to example
• First case for vertex 9 lead to conflict
• If we were to try the same assignment again (e.g.
  for the next SAT call), we would get the same
  conflict gt merge vertex 7 with Zero-vertex

Zero Vertex
1
- if rehashing is invoked vertex 9 is
simplified and and merged with vertex 8
1
4
1
1
0
7
1
0
1
2
5
9
0
8
6
3
46
Static Learning

• Implications that can be learned structurally
  from the circuit
• Example
• Add learned structure as circuit

Use hash table to find structure in
circuit Algorithm CREATE_AND(p1,p2) . . . //
create new vertex p if((pHASH_LOOKUP(p1,NOT(p2
))) LEARN((p0)(p0)Þ(p10))
if((pHASH_LOOKUP(NOT(p1),p2))
LEARN((p0)(p0)Þ(p20))
47
Back to Example
Assignments
Queue
Original second case for 9
4
5 6
9 7 8 5 6
1
0
1
7
0
9
2
5
0
8
0
1
6
3
0
Second case for 9 with static learning
4
9 7 8 5 6 a 3
1
0
1
7
0
9
2
5
0
8
0
1
6
3
0
0
a
1
Zero Vertex
Solution cube 1 x, 2 x, 3 0
b
48
Static Learning

• Socrates algorithm based on contra-positive
• foreach vertex v
• mark ASSIGNMENT_MARK()
• IMPLY(v)
• LEARN_IMPLICATIONS(v)
• UNDO_ASSIGNMENTS(mark)
• IMPLY(NOT(v))
• LEARN_IMPLICATIONS(NOT(v))
• UNDO_ASSIGNMENTS(mark)
• Problem learned implications are far too many
• solution restrict learning to non-trivial
  implications
• mask redundant implications

0
0
x
y
1
0
1
y
x
0
0
0
Zero Vertex
49
Recursive Learning

• Compute set of all implications for both cases on
  level i
• static implications (y0/1)
• equivalence relations (yz)
• Intersection of both sets can be learned for
  level i-1
• Apply learning recursively until all case splits
  exhausted
• recursive learning is complete but very expensive
  in practice for levels gt 2,3
• restrict learning level to fixed number -gt
  becomes incomplete

1
1
1
x
1
0
1
x
1
50
Recursive Learning
Algorithm RECURSIVE_LEARN(int level) if(v
PICK_SPLITTING_VERTEX()) mark
ASSIGNMENT_MARK() IMPLY(v) IMPL1
RECURSIVE_LEARN(level1) UNDO_ASSIGNMENTS(mark
) IMPLY(NOT(v)) IMPL0
RECURSIVE_LEARN(level1) UNDO_ASSIGNMENTS(mark
) return IMPL1 Ç IMPL0 else //
completely justified return IMPLICATIONS
51
Dynamic Learning

• Learn implications in sub-tree of search
• cannot simply add permanent structure because not
  globally valid
• add and remove learned structure (expensive)
• add the branching condition to the learned
  implication
• of no use unless we prune the condition (conflict
  learning)
• use implication and assignment mechanism to
  assign and undo assigns
• e.g. dynamic recursive learning with fixed
  recursion level
• Dynamic learning of equivalence relations
  (Stalmarck procedure)
• learn equivalence relations by dynamically
  rewriting the formula

52
Dynamic Learning

• Efficient implementation of dynamic recursive
  learning with level 1
• consider both sub-cases in parallel
• use 27-valued logic in the IMPLY routine
• level0-value level1-choice1 level1-choice2
• 0,1,x 0,1,x 0,1,x
• automatically set learned values for level0 if
  both level1 choices agree

x
x,1,0
1,1,1
1
0
0
x,x,1
x
53
Conflict-based Learning

• Idea Learn the situation under which a
  particular conflict occurred and assert it to
  0
• imply will use this shortcut to detect similar
  conflict earlier
• Definition
• An implication graph is a directed Graph
  I(G,D), G Í G are the gates of C with assigned
  values vg¹x, D Í G G are the edges, where each
  edge (gi,gj) ÎD reflects an implication for which
  an assignment of gate gi lead to the assignment
  of gate gj.

Circuit
Implication graph
0 (decision vertex)
1
0
1
2
2
3
0 (decision vertex)
3
4
1
4
54
Conflict-based Learning

• The roots of the implication graph correspond to
  the decision vertices, the leafs corresponds to
  the implication frontier
• There is a strict implication order in the graph
  from the roots to the leafs
• We can completely cut the graph at any point and
  identical value assignments to the cut vertices,
  we result in identical implications toward the
  leafs
• C1 Þ C2 Þ . . . Þ Cn-1 Þ Cn (C1
  Decision vertices)

Cut assignment (Ci)
55
Conflict-based Learning

• If an implication leads to a conflict, any cut
  assignment in the implication graph between the
  decision vertices and the conflict will result in
  the same conflict!
• (Ci Þ Conflict) Þ (NOT(Conflict) Þ NOT(Ci))
• We can learn the complement of the cut assignment
  as circuit
• find minimal cut in I (costs less to learn)
• find dominator vertex if exists
• restrict size of cuts to be learned, otherwise
  exponential blow-up

56
Non-chronological Backtracking

• If we learned only cuts on decision vertices,
  only the decision vertices that are in the
  support of the conflict are needed
• The conflict is fully symmetric with respect to
  the unrelated decision vertices!!
• Learning the conflict would prevent checking the
  symmetric parts again
• BUT It is too expensive to learn all conflicts

Decision Tree
Decision levels
1
5
2
4
3
1
4
3
5
6
6
2
57
Non-chronological Backtracking

• We can still avoid exploring symmetric parts of
  the decision tree by tracking the supporting
  decision vertices for all conflicts.
• If no conflict of the first choice on a decision
  vertex depends on that vertex, the other
  choice(s) will result in symmetric conflicts and
  their evaluation can be skipped!!
• By tracking the implications of the decision
  vertices we can skip decision levels during
  backtrack

0
1
2
2,0
3
4
2,3
4,0
4,3
2,4
2,4,0
58
Modified Justify Algorithm

• Algorithm JUSTIFY(queue)
• ...
• if((decision_levels0 IMPLY(NOT(v-gtleft)))
  Æ)
• if((decision_levels0 JUSTIFY(queue)) Æ)
  return Æ
• // conflict
• UNDO_ASSIGNMENTS(mark)
• if((decision_levels1 IMPLY(v-gtleft)) Æ)
• if((decision_levels1 JUSTIFY(queue)) Æ)
  return Æ
• // conflict
• UNDO_ASSIGNMENTS(mark)
• decision_levels decision_levels0 È
  decision_levels1
• return decision_levels

59
D-Algorithm

• In addition to controllability, we need to check
  observability of a possible signal change at a
  vertex
• Two implementations
• D-algorithm using five-valued logic 0,1,x,D,D
• inject D at internal vertex
• expect D or D at one of the circuit outputs
• regular SAT problem based on replicated fanout
  structure

vertex need to be justified to 1 (0)
value change must be observable at the output
60
Five-Valued Implication Rules
