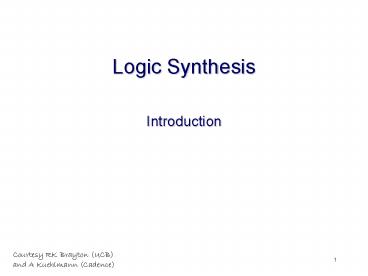

Logic Synthesis

1
Logic Synthesis

• Introduction

2
Organization
Instructor Adnan Aziz ACE 6.120
Email adnan AT ece utexas edu
Web www.ece.utexas.edu/adnan GPS Longitude
30.287253, Latitude -97.736832 Office Hours
MW, 1000am 1100am
3
Grading

• Homework ( 8 homeworks)
• purpose is to solidify material and make you
  think deeper about concepts
• team work allowed, but each problem solution
  should be stated in your own words
• Midterms
• 1 after first half
• 1 after 75
• Course project
• will start about halfway through course
• final report (like conference paper)
• Grader
• TBD
• Website
• http//www.ece.utexas/edu/adnan/syn-07

4
Homework

• About two-thirds written
• theoretical problems
• hand calculations
• One third programming assignments
• to be written in C in SIS environment
• assignment is typically
• write some application (e.g., build a particular
  circuit representation)
• run some benchmarks on it
• code and results (e.g. table of statistics) is to
  be turned in as .tar file in to grader

5
Design of Integrated Systems
Design
Verification
6
System Level

• Abstract algorithmic description of high-level
  behavior
• e.g. C-Programming language
• abstract because it does not contain any
  implementation details for timing or data
• efficient to get a compact execution model as
  first design draft
• difficult to maintain throughout project because
  no link to implementation

Port compute_optimal_route_for_packet(Packet_t
packet, Channel_t channel)
static Queue_t packet_queue packet_queue
add_packet(packet_queue, packet) ...
7
RTL Level

• Cycle accurate model close to the hardware
  implementation
• bit-vector data types and operations as
  abstraction from bit-level implementation
• sequential constructs (e.g. if - then - else,
  while loops) to support modeling of complex
  control flow

module mark1 reg 310 m08192 reg 120
pc reg 310 acc reg150 ir always
begin ir mpc if(ir1513
3b000) pc mir120 else if
(ir1513 3b010) acc
-mir120 ... end endmodule
8
Gate Level

• Model on finite-state machine level
• models function in Boolean logic using registers
  and gates
• various delay models for gates and wires
• in this lecture we will mostly deal with gate
  level

1ns
9
Transistor Level

• Model on CMOS transistor level
• depending on application function modeled as
  resistive switches
• used in functional equivalence checking
• or full differential equations for circuit
  simulation
• used in detailed timing analysis

10
Layout Level

• Transistors and wires are laid out as polygons in
  different technology layers such as diffusion,
  poly-silicon, metal, etc.

11
Design of Integrated Systems
- Design phases overlap to large degrees -
Parallel changes on multiple levels, multiple
teams - Tight scheduling constraints for product
Logic
Relative Effort
Transistor
RTL
System
Project Time
12
Design Challenges

• Systems are becoming huge, design schedules are
  getting tighter
• gt 100 Mio gates becoming common for ASICs
• gt 0.4 Mio lines of C-code to describe system
  behavior
• gt 5 Mio lines of RLT code
• Design teams are getting very large for big
  projects
• several hundred people
• differences in skills
• concurrent work on multiple levels
• management of design complexity and communication
  very difficult
• Design tools are becoming more complex but still
  inadequate
• typical designer has to run 50 tools on each
  component
• tools have lots of bugs, interfaces do not line
  up etc.

13
Design Challenges

• Decision about design point very difficult
• compromise between performance / costs /
  time-to-market
• decision has to be made 2-3 years before design
  finished
• design points are difficult to predict without
  actually doing the design
• scheduling of product cycles
• Functional verification
• simulation still main vehicle for functional
  verification but inadequate because of size of
  design space
• results in bugs in released hardware that is very
  expensive to recover from (different in software
  -)

14
Design Challenges

• Fundamental tradeoffs between different modeling
  levels
• modeling detail and team size to maintain model
• high-level models can be maintained by one or two
  people
• detailed models need to be partitioned which
  results in a significant communication overhead
• modeling accuracy versus modeling compactness
• compact models omit details and give only crude
  estimations for implementation
• detailed models are lengthy and difficult to
  adopt for major changes in design points
• simulation speed versus hardware performance
• high-level models can be simulated fast but
  cannot be implemented efficiently with automatic
  means
• low-level models can be made to have a fast
  implementation but cannot be simulated very fast

15
General Design Approach

• How do engineers build a bridge?
• Divide and conquer !!!!
• partition design problem into many sub-problems
  which are manageable
• define mathematical model for sub-problem and
  find an algorithmic solution
• beware of model limitations and check them
  !!!!!!!
• implement algorithm in individual design tools,
  define and implement general interfaces between
  the tools
• implement checking tools for boundary conditions
• concatenate design tools to general design flows
  which can be managed
• see what doesnt work and start over

16
Design Automation

• Design Automation is one of the most advanced
  areas in practical computer science
• many problems require sophisticated mathematical
  modeling
• many algorithms are computationally hard and
  require advanced and fine-tuned heuristics to
  work on realistic problem sizes
• boundary conditions need to be well declared and
  synchronized between different tools (patchwork
  to cover all wholes)
• Two common pitfalls in CAD research
• problem is looking for a solution
• problem scope is too big, makes modeling
  difficult or algorithms dont scale
• problem scope is too small, solutions are not
  good enough
• solution is looking for a problem
• model was oversimplified because real problem was
  too complex with too many boundary conditions

17
Key to Success

• Fine-tuned combination of Design Methodology and
  Tools
• addresses algorithmic complexity by requiring
• manual partitioning of the problem
• manual input of hints/suggestions
• manual iterations to drive tool application to
  best solution
• makes CAD systems and design flows very complex
  and difficult to manage

Problem space
Tools applicable
Practical combination through design methodology
18
Examples of Divide and Conquer

• RLT cycle simulation does only evaluate the next
  state logic of the circuits, timing is assumed to
  be correct
• combination of static timing analysis, formal
  equivalence checking, and cycle simulation allows
  separation of issues
• cycle simulation avoids expensive event
  scheduling and processing and performs
  significantly faster
• However
• timing analysis is conservative with respect to
  the achievable clock cycle time

19
Examples of Divide and Conquer

• Static timing analysis assumed simple gate delay
  models
• complexity of static timing analysis becomes
  linear (simple longest and shortest paths
  analysis in circuit implementation)
• very efficient implementation of incremental
  static timing analysis which is needed in the
  inner loop of the technology dependent part of
  logic synthesis
• However
• actual gate delay varies a lot in reality
• models often assume average fan-out rather than
  actual gate load
• delay model assumes ideal signals
• slew dependency ignored

20
Examples of Divide and Conquer

• Logic synthesis assumes ideal gates which are
  independent of physical environment
• standard cell place and route technology has made
  logic synthesis possible
• gates are heavily over-designed to be functional
  in a wide variety of combinations (e.g. range of
  fan-out gates possible, different wire loads
• layout placement and route done in standard rows
  that minimize latch-up effects and optimize power
  and clock wiring
• However
• layout implementation remains sub-optimal because
  cells are designed for worst case application and
  with large safety margins with respect to
  environment

21
Examples of Divide and Conquer

• Logic synthesis uses crude model to estimate
  circuit area
• literal count or simple table-lookup for gates
  sizes allows fast comparison of different
  implementation choices
• However
• actual gate size can vary to a very large degree
  depending on load and timing requirement
• area for wiring completely ignored

22
Examples of Divide and Conquer

• Formal equivalence checking assumes identical
  state encoding of the two designs to be compared
• reduces the general equivalence checking problem
  to combinational equivalence checking which is
  computationally less complex
• exploitation of structural similarities between
  designs to be compared makes tools applicable for
  huge (multi-million gate) designs
• automatic algorithms for identifying register
  correspondence compensate to some extent for
  limited model
• However
• combinational verification model cannot handle
  sequential verification problems

23
Full Custom Design Flow

• Application ultra-high performance designs
• general-purpose processors, DSPs, graphic chips,
  internet routers, games processors etc.
• Target very large markets with high profit
  margins
• e.g. PC business
• Complexity very complex and labor intense
• involving large teams
• high up-front investments and relatively high
  risks
• Role of Logic Synthesis
• limited to components that are not performance
  critical or that might change late in design
  cycle (due to designs bugs found late)
• control logic
• non-critical data paths logic
• bulk of data-path components and fast control
  logic are manually crafted for optimal performance

24
Full Custom Design Flow

• Incomplete picture

ISA Specification
Simulation
Logic Synthesis
RTL Spec
Simulation
Formal Equivalence Checking
Gate Level Netlist
Transistor Level Circuit
Circuit Simulation
ExtractCompare
Layout
Design Rule Checker
Manual or semi-automatic Design
25
ASIC Design Flow

• Application general IC market
• peripheral chips in PCs, toys, handheld devices
  etc.
• Target small to medium markets, tight design
  schedules
• e.g. consumer electronics
• Complexity of design standard design style,
  quite predictable
• standard flows, standard off-the-shelf tools
• Role of Logic Synthesis
• used on large fraction of design except for
  special blocks such as RAMs, ROMs, analog
  components

26
ASIC Design Flow

• Incomplete picture

Informal Specification
Logic Synthesis
RTL Spec
Simulation
Formal Equivalence Checking
Gate Level Netlist
Modifies Gate Level Netlist
Static Timing Analysis
Manual Changes to fix timing
Test Logic Insertion
ASIC Foundry
27
What is Logic Synthesis?
Given Finite-State Machine F(X,Y,Z, , )
where
X
Y
X Input alphabet Y Output alphabet Z Set of
internal states X x Z Z (next state
function) X x Z Y (output function)
D
Target Circuit C(G, W) where G set of
circuit components g Boolean gates,

flip-flops, etc W set of wires connecting G
28
Objective Function for Synthesis

• Minimize area
• in terms of literal count, cell count, register
  count, etc.
• Minimize power
• in terms of switching activity in individual
  gates, deactivated circuit blocks, etc.
• Maximize performance
• in terms of maximal clock frequency of
  synchronous systems, throughput for asynchronous
  systems
• Any combination of the above
• combined with different weights
• formulated as a constraint problem
• minimize area for a clock speed gt 300MHz
• More global objectives
• feedback from layout
• actual physical sizes, delays, placement and
  routing

29
Constraints on Synthesis

• Given implementation style
• two-level implementation (PLA, CAMs)
• multi-level logic
• FPGAs
• Given performance requirements
• minimal clock speed requirement
• minimal latency, throughput
• Given cell library
• set of cells in standard cell library
• fan-out constraints (maximum number of gates
  connected to another gate)
• cell generators

30
Instability of Logic Synthesis
Experiment to write out netlist in middle of
synthesis run and read back in w/o change
31
Brief History of Logic Synthesis

• 1960s first work on automatic test pattern
  generation used for Boolean reasoning
• D-Algorithm
• 1978 Formal Equivalence checking introduced at
  IBM in production for designing mainframe
  computers
• SAS tool based on the DBA algorithm
• 1979 IBM introduced logic synthesis for gate
  array based main frame designed
• LSS, next generation is BooleDozer
• End 1986 Synopsys founded
• first product remapper between standard cell
  libraries
• later extended to full blown RTL synthesis
• 1990s other synthesis companies enter the marker
• Ambit, Compass, Synplicity. Magma, Monterey, ...

32
Why learning about Logic Synthesis?

• Logic synthesis is the core of today's CAD flows
  for IC and system design
• course covers many algorithms that are used in a
  broad range of CAD tools
• basis for other optimization techniques, e.g.
  embedded software
• basis for functional verification techniques
• Most algorithms are computationally hard
• covered algorithms and flows are good example for
  approaching hard algorithmic problems
• course covers theory as well as implementation
  details
• demonstrates an engineering approaches based on
  theoretical solid but also practical solutions
• very few research areas can offer this combination

33
Course Outline

• Representation of Boolean functions and basic
  algorithms
• Boolean functions, formulas, circuits, cube
  representations, BDDs
• efficient data structures and algorithms for
  manipulation and Boolean reasoning
• SAT
• Functional optimization of combinational
  circuits
• two-level circuits
• Quine McCluskey
• Espresso
• multi-level circuits
• algebraic methods
• structural transformation-based methods
• technology mapping

34
Course Outline

• Timing
• timing models and timing analysis
• timing optimization
• Functional Optimization of Sequential Circuits
• retiming
• synchronous versus asynchronous circuits
• state assignment and state minimization
• reachability analysis
• clock skew optimization
• Low-power Synthesis
• power analysis
• low-power synthesis

35
Course Outline

• Testing
• testing problem and test models
• automatic test pattern generation (ATPG)
• Verification
• formal equivalence checking
• verification planning
