Magento 2 Coinqvest Crypto Payments - PowerPoint PPT Presentation

About This Presentation
Title:

Magento 2 Coinqvest Crypto Payments

Description:

Magento 2 Coinqvest Crypto Payments extension allows customers to pay easily and securely with cryptocurrency during the checkout by integrating Magento 2 store with Coinqvest crypto payment processor. – PowerPoint PPT presentation

Number of Views:1
Slides: 12
Provided by: meetanshiinc
Tags:

less

Transcript and Presenter's Notes

Title: Magento 2 Coinqvest Crypto Payments


1

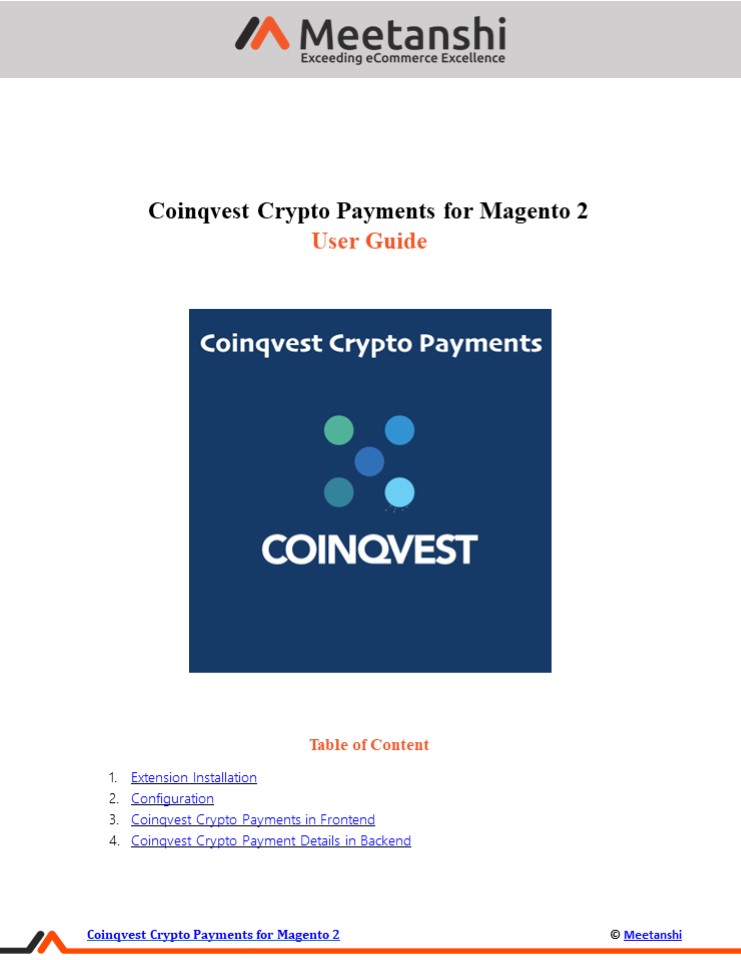

Coinqvest Crypto Payments for Magento 2 User
Guide
  • Table of Content
  • Extension Installation
  • Configuration
  • Coinqvest Crypto Payments in Frontend
  • Coinqvest Crypto Payment Details in Backend

Coinqvest Crypto Payments for Magento 2
Meetanshi
2
  • Extension Installation
  • For Magento Marketplace Customers
  • Create a folder structure in Magento root as
    app/code/Meetanshi/Coinqvest
  • Download and extract the zip folder and upload
    our extension files to the app/code/Meetanshi/Coi
    nqvest via FTP.
  • Login to your SSH and run below commands step by
    step
  • php bin/magento setupupgrade
  • For Magento version 2.0.x to 2.1.x - php
    bin/magento setupstatic-contentdeploy
  • For Magento version 2.2.x above - php
    bin/magento setupstatic-contentdeploy f
  • php bin/magento cacheflush
  • For Meetanshi Customers
  • Extract the zip folder and upload our extension
    to the root of your Magento 2 directory via FTP.
  • Login to your SSH and run below commands step by
    step
  • php bin/magento setupupgrade
  • For Magento version 2.0.x to 2.1.x - php
    bin/magento setupstatic-contentdeploy
  • For Magento version 2.2.x above - php
    bin/magento setupstatic-contentdeploy f
  • php bin/magento cacheflush

Coinqvest Crypto Payments for Magento 2
Meetanshi
3
  • Configuration
  • For configuring the extension, login to Magento
    2, move to Sales ? Payments Methods ? Meetanshi
    Coinqvest Crypto Payments where you can find
    various settings to enable the extension.
  • Enabled Set YES to enable the payment method.
  • Title Set the title for the payment method to be
    displayed in the frontend.
  • Show Coinqvest Logo Select YES to show Coinqvest
    logo on the checkout page along with the payment
    method.
  • API Key Enter the API key provided by Coinqvest
    payment gateway during registration.
  • API Secret Enter the API secret provided by
    Coinqvest payment gateway during registration.
  • o To get the API key and API Secret, login to
    Coinqvest and move to Merchant API gt API
    Settings gt API Credentials where you can find
    both the API key and API secret.
  • Settlement Currency The extension avails the
    facility to convert crypto currency payment of
    customers and accept payments in one of the fiat
    currencies.
  • Checkout Language Select one of the languages to
    display checkout page in.
  • Auto Invoice Select YES to allow generating auto
    invoice for the orders paid using KNET.
  • Payment From Applicable Countries Select
    countries to allow using this payment method.
  • Additional Information Enter additional
    information to show on the checkout page along
    with the payment method.
  • Sort Order Enter Sort Order of the payment
    method display in frontend.

Coinqvest Crypto Payments for Magento 2
Meetanshi
4
Coinqvest Crypto Payments for Magento 2
Meetanshi
5
3. Coinqvest Crypto Payments in Frontend One the
extension is configured, customers can add
products to the cart and select Pay with
Bitcoin or Other Cryptocurrencies - Coinqvest
payment method from the checkout page. On click
of Continue to Payment, customers get
redirected to the hosted payment page to
make payment.
  • Coinqvest Hosted Payment Page
  • After redirection to the Coinqvest hosted payment
    page, select the payment method. Click to get
    the deposit address.

Coinqvest Crypto Payments for Magento 2
Meetanshi
6
  • Get Payment Details
  • Once you get the payment details like stellar
    memo and deposit address, open your crypto
    wallet to make payment. Click I made the
    payment once you have paid using any crypto
  • wallet.

Coinqvest Crypto Payments for Magento 2
Meetanshi
7
  • Payment Using Any Crypto Wallet
  • o Crypto Wallet (Exodus) Dashboard
  • Open the crypto wallet dashboard and click on
    Send to add the payment details and make the
    payment.

o Add Payment Details in Your Wallet Add the
payment details like stellar memo, deposit
address and payment amount in your crypto wallet
and click Send.
Coinqvest Crypto Payments for Magento 2
Meetanshi
8
o Payment Confirmation in Crypto wallet After
adding the payment details in your crypto wallet,
click Send to confirm the payment.
o Payment Success Message in Crypto Wallet Once
the payment is successful, you can see payment
success message in your crypto wallet.
Coinqvest Crypto Payments for Magento 2
Meetanshi
9
  • Payment Success Message in Coinqvest Hosted Page
  • Once you have paid for the order successfully,
    clicking I made the payment will check for
  • the status and shows payment success message on
    the Coinqvest hosted page.

Coinqvest Crypto Payments for Magento 2
Meetanshi
10
  • Coinqvest Crypto Payments in My Account section
  • Once the order is placed, the payment method
    details is shown in the Account dashboard, in
  • My Orders tab which includes method title,
    checkout ID, and state.

Coinqvest Crypto Payments for Magento 2
Meetanshi
11
4. Coinqvest Crypto Payment Details in the
Backend Apart from the My Account section, the
admin can see the order view details in the
backend. Go to Sales gt Orders gt Order view to
view the Coinqvest payment details which include
method title, checkout ID and state.
Coinqvest Crypto Payments for Magento 2
Meetanshi
