Corso di Geometria della Nave

1

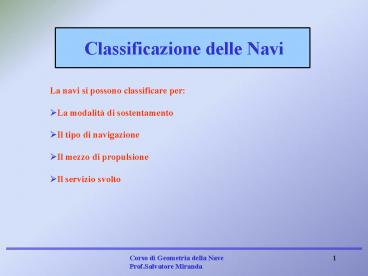

Classificazione delle Navi

• La navi si possono classificare per
• La modalità di sostentamento
• Il tipo di navigazione
• Il mezzo di propulsione
• Il servizio svolto

2
Classificazione delle Navi(sostentamento)

• In base al sostentamento, si hanno
• Navi dislocanti
• Navi veloci (High Sped Craft HSC)
• Unità subacquee
• Unità sommergibili
• Unità semisommergibili.

3
Classificazione delle Navi(navigazione)

• In base alla navigazione, si hanno navi
• A navigazione illimitata
• A navigazione costiera
• Navigazione in acque protette
• Navigazione per pescherecci.

4
Classificazione delle Navi(mezzo di propulsione)
In base al mezzo di propulsione, le navi si
suddividono in

• Galleggianti
• Natanti
• Piroscafi

• Motonave
• Motoscafo
• Motobarca

• Turbonave
• Veliero
• Motoveliero.

5
Classificazione delle Navi(servizio)

• In base alla servizio, si hanno
• Navi da trasporto
• Navi speciali
• Navi militari.

6
Classificazione delle Navi(navi da trasporto)

• LPG\LNG carrier
• Chemical tanker
• Tanker
• Passenger ship
• Ro-Ro passenger ship

• Bulk carrier
• Ore carrier
• Combined carrier
• Oil tanker
• FLS tanker

• General cargo ship
• Refrigerated cargo ship
• Ro-Ro cargo ship
• Container ship
• Livestock carrier

7
Classificazione delle Navi(navi speciali)

• Pleasure vessel
• Race sailing boat
• Floating units
• Supply vessel.

• Non-propelled ship
• Special service ship
• Fixed platform
• MODU

• Tug
• Dredger
• Fire-fighting ship
• Cable lying ship

8
Esempio 1General cargo
LPP 63.3 m B 11 m T
3.77 m V 10 kn DWT 1087 t
Capacità di carico
Container 32x20 oppure 11x40
8x20 Superficie totale sui ponti 1295 m2
9
Esempio 2General cargo
Length o.a. 190.20 m Length b.p. 181.80 m Breatdh
mld m Depth to main deck 18.50 m Design
draught 12.00 m Scantling draught 12.80 m Service
speed 14.2 knots Deadweight at Design
draught 43800 t Scantling draught 48000 t
Propulsion Number 1 Screw Propeller Motore MAN
BW Type 5S60MC MCR 8900 kW rpm 101
10
Esempio 3 Bulk carrier
Length o.a. 283.00 m Length b.p. 271.00 m Breatdh
mld 44.90 m Depth to main deck 25.40 m Design
draught 16.70 m Scantling draught 17.80 m Service
speed 14.6 knots Deadweight at Design
draught 150000 t Scantling draught 165000 t
Tanks capacities (100) fuel oil 4450 m3 Diesel
oil 370 m3 Lub oil 120 m3 Fresh water 680
m3 Ballast water 80000 m3
Propulsion Number 1 Screw Propeller Motore
SULZER Type 6RTA72U MCR 14500 kW rpm
90 Cruising range 25000 nm
11
Esempio 4 LPG
This vessel is a large and high-speed LPG carrier
that is acceptable at most Japanese LPG
terminals at full draft condition with about
45,000mt cargo, also equipped with special
instruments that enable her to call at
high-pressured LPG terminals prevailing in
mainland China where import volume of LPG is
rapidly expanding in recent years. With this new
deployment, K LINEs LPG fleet consists of 3
VLGC (Very Large Gas Carrier), which will provide
our customers with a competitive and reliable LPG
transport service with maximum safety.
12
Esempio 5 LNG
LNG tankers are double-hulled ships specially
designed and insulated to prevent leakage or
rupture in an accident. The LNG is stored in a
special containment system within the inner hull
where it is kept at atmospheric pressure and
-256F. Three types of cargo containment systems
have evolved as modern standards. These
are      The spherical (Moss) design      The
membrane design      The structural prismatic
design Most LNG ships use spherical (Moss)
tanks, and they are easily identifiable as LNG
ships because the top half of the tanks are
visible above the deck. The typical LNG carrier
can transport about 125,000 - 138,000 cubic
meters of LNG, 17 which will provide about 2.6 -
2.8 billion standard cubic feet of natural gas.
The typical carrier measures some 900 feet in
length, about 140 feet in width and 36 feet in
water draft, and costs about 160 million. This
ship size is similar to that of an aircraft
carrier but significantly smaller than that of a
Very Large Crude oil Carrier (VLCC). LNG tankers
are generally less CMS polluting than other
shipping vessels because they burn natural gas in
addition to fuel oil as a fuel source for
propulsion.
13
Esempio 6 LNG
LOA 290m. Lpp -. B 46m. D 25,50m. G.T.
110.000. DWT 67.300. 2002 Mitsubishi Heavy
Industries Ltd. Yard No. 252. GALLINA, 2002
(Nombre Original/Original Name).
14
Esempio 7Refrigerated cargo
Ship designed with a multi deck hull which
includes an arrangement of refrigerated holds and
tween  decks specifically for the carriage of
perishable cargoes. The cargo handing mode is
lift on/lift off to and from the holds (and
tween decks) by way of weather deck (and tween
deck) hatches
15
Esempio 8 Chemical tanker
Purpose Carriage of crude oil or up to five
brands of petroleum products simultaneously
without restriction on flash point, including
those requiring heating, as well as chemical
products.PrincipalparticularsL Length o. a., m
133.9Breadth molded, m 16.5Depth, m 7.7Draught,
m    river 3.7   sea 5.2Deadweight, t    river
4060   sea 7200Cruising range, mi 4000Speed, kn
11Endurance, day 15Grew/berths 11/16Capacity,
m3    total 8100   cargo tanks 7900Design
features Double bottom, double sides, tanks of
segregated ballast and slop tanks. Submerged
pumps.Power plant Fuel oil of viscosity 380 cSt
at 50COutput, kW 2190
Electric power plant Diesel-generator, kW
3x220Emergency diesel-generator, kW 100 Boiler
plant Boiler set, t/h 2x2.5Exhaust-heat boiler,
t/h 0.4Distilling plant, t/day 3.0 Shipboard
arrangements Electric/hydraulic steering engine
(torque), kNm 185Anchor-mooring winches (drum
pull), kN 3x50Bow thruster, kW 200Lifeboat, pers.
1x16Rescue boat, pers. 1x6Inflatable liferafts,
pers.    davit launched 1x16   dropping type
1x16   dropping type 1x6Hose handling crane, t/m
3/13
