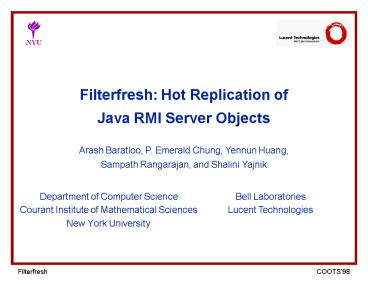

Filterfresh Hot Replication of Java RMI Server
Objects Arash Baratloo, P. Emerald Chung, Yennun
Huang, Sampath Rangarajan, and Shalini Yajnik

• Department of Computer Science
• Courant Institute of Mathematical Sciences
• New York University

Bell Laboratories Lucent Technologies
2
Filterfresh Goals

• Support highly-available RMI services in presence
  of failures
• Handle crash failures
• Transparent failure masking
• Easily integrate into Java RMI

3
Roadmap

• Goals
• RMI Registry architecture crash failures
• RMI architecture crash failures
• Process group approach to fault tolerance
• Highly available registry service
• Reverse lookup for masking (state-less) servers
  failures
• Towards highly available servers
• Conclusions

4
RMI in a nutshell

• Step 1 a server object registers with the RMI
  registry running on the local host
• Steps 2-3 Clients get servers remote reference
  by performing a lookup operation at a known
  registry
• Step 4 Given a remote reference, clients invoke
  servers methods through RMI

5
Limitations of RMI Registry

• Single point of failure
• Clients need to know a priori which registry to
  contact
• Does not allow multiple RMI servers to register
  under the same service name
• Not suited for replicated highly-available RMI
  server objects

6
Desirable properties of RMI Registry

• Distributed to remove the single point of failure
• Ability to dynamically add registries, and to
  detect and remove failed processes
• Highly available
• Replicated to remove the a priori requirement
• Replication strategy to maintain a consistent
  global state
• Support for multiple RMI servers to register
  under the same service name
• Thus, to provide high-availability to RMI server
  objects we need a highly-available registry
  service!

7
RMI Architecture

• The programmer writes the client and server
  application codes
• The RMI compiler (rmic) generates the client stub
  and server skeleton
• The RMI package implements the RRL and transport
  layers
• Transparent masking of failures must occur below
  the stub/skeleton levels

8
A unified solution

• Fault-tolerance based on process group approach
• Non-faulty processes form a logical group
• Members interact using a set of group primitives
• Group primitives are guaranteed to be reliable --
  all or nothing
• Group primitives are guaranteed to be ordered
• Group members have a consistent view of other
  group members
• Applications built on process groups view events
  in a synchronous fashion
• The group view changes for all members as though
  it is instantaneous -- synchronous
• Events (e.g, send receive of multicasts) occur
  in a logical order, within the same view
• Members have the same view of the group

9
Strong Virtual Synchrony

• Progress a joining process will eventually
  become part of the group view (or be suspected of
  failures)
• Failure detection a crashed process will
  eventually be detected and removed form the group
  view
• Reliability messages sent by a member that
  remains in the group view will be delivered by
  others
• Order messages will be delivered by others in
  the view it was sent
• Consistency all surviving members of a view
  agree on the set of messages delivered within
  that view
• Synchrony between two consecutive views, no
  message is delivered

10
Fortunately

• Process group approach is
• Well studied
• Well defined protocols
• Process group approach has been used in building
  general purpose fault-tolerant
• Middle-ware systems, such as Horus/Ensemble,
  Transis, etc.
• Services, such as FT directory and file servers
• OO systems, such as ISISORBIX, Electra, Orca
• Java middle-ware systems such as iBus
• Seems a good candidate for FT RMI services

11
Unfortunately

• Process Group Membership is
• As hard as distributed consensus
• Impossible in purely asynchronous systems with
  crash failures
• Our implementation
• Based on the timeout assumption
• Correctness is guaranteed once terminates
• Ack-based protocol for simplicity

12
Basis for process groups

• A GroupManager Class
• 100 Pure Java
• built on top of UDP/IP
• Implements
• Group creation
• Join operation (with atomic state transfer)
• Leave operation
• Group multicast operation
• Failure detection and recovery
• All events are reliable and totally ordered

13
Performance of group multicast

• PentiumPro 200, Linux 2.030, Fast Ethernet
  connected by a hub
• JDK1.1.1
• Thread and object serialization influenced the
  performance?

14
Roadmap

• Goals
• RMI Registry architecture crash failures
• RMI architecture crash failures
• Process group approach to fault tolerance
• Highly available registry service
• Reverse lookup for masking (state-less) servers
  failures
• Towards highly available servers
• Conclusions

15
FT Registry architecture

• Embedded a GroupManager class to ensure reliable
  ordered events
• Reliable and ordered group operations ensure
  consistent state
• Replicated registry service for high availability
• Supports dynamic joins w/state transfer
• Detects and removes failed registry servers

16
Bind operation

• Bind operations are sent to every replica
• Reliable multicast ensures every replica receives
  the event
• Ordered group operation ensures consistency even
  if a new replica joins

17
Lookup operation

• Lookup operations are handled locally
• Provides location transparency to clients
• able to locate servers registered at unknown
  hosts
• no need to have a priori knowledge of servers
  host

18
Performance of FT Registry

• PentiumPro 200, Linux 2.030, Fast Ethernet
  connected by a hub
• JDK1.1.1

19
Roadmap

• Goals
• RMI Registry architecture crash failures
• RMI architecture crash failures
• Process group approach to fault tolerance
• Highly available registry service
• Reverse lookup for masking (state-less) servers
  failures
• Towards highly available servers
• Conclusions

20
RMI FT Registry

• Supports multiple replicated servers to register
  under the same service name
• Object references remain valid after the
  associated object has failed

21
In the event of server failure

• The failure is detected below the stub level, and
  ...

22
Failure recovery forstate-less servers

• A reverse lookup returns the name of a given
  wire connection
• The old connection is patched with a connection
  to a non-faulty server
• The operation is re-attempted
• Transparent to the client illusion of a valid
  object reference

23
FT server Architecture

• Client has the illusion of a single server
• In reality, a group of servers process clients
  requests
• Operations are performed at each server, in the
  same order for consistency
• Replicated servers for high availability

24
Highly available server objects

• GroupManager ensures reliable ordering of events
  across all servers
• Guarantee consistent server state
• Automatic detection and removal of failed server
  objects
• State transfer provide the ability to dynamically
  add new server objects
• In combination with FT Registry and reverse
  lookup, clients have the illusion of a single
  reliable server object

25
Conclusions and future work

• To provide high availability there is need for
• A reliable registry service
• A reliable RMI architecture
• Showed suitability of process group approach by
• Transparently masking failures
• Easily integrated our services into Java RMI
• Future work
• Complete work on general-purpose FT services
• Address nested RMI calls for replicated servers
