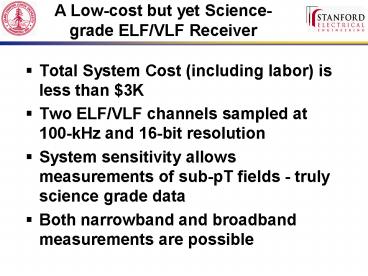

A Low-cost but yet Science-grade ELF/VLF Receiver

• Total System Cost (including labor) is less than
  3K
• Two ELF/VLF channels sampled at 100-kHz and
  16-bit resolution
• System sensitivity allows measurements of sub-pT
  fields - truly science grade data
• Both narrowband and broadband measurements are
  possible

2
VLF Data from Firat University in Elazig, Turkey
3
Natural and HAARP-injected ELF/VLF Signals
4
Antenna, Preamp Line Receiver
5
System Sensitivity
6
Computer and Line Receiver
7
Typical System Setup (Inside)
8
Preamplifier Box Open
9
Preamplifier Box Closed
10
Line Receiver Front
11
Line Receiver Front
12
Line Receiver Guts
13
GPS Antenna Card
14
Small Triangular Antenna and Preamplifier
15
Dummy Loop Antenna for Calibration
16
VLF Sensing of Ionospheric Disturbances over
Europe
17
VLF Data from Firat University in Elazig, Turkey
18
Natural and HAARP-injected ELF/VLF Signals
19
Stanford Program at Palmer Station, Antarctica
20
Lightning-generated Whistlers

• Very Low Frequency (VLF) waves launched by
  lightning propagate in the Earth-ionosphere
  waveguide (vpc)
• Wave energy also couples upward to the radiation
  belts, propagating along
  filamentary ducts of
  enhanced ionization
• The magnetospheric plasma is a dispersive slow
  wave medium (vp0.01 c)
• Signal arriving at the
  conjugate region sounds like a whistler

21
The Science of the VLF Receiver
Stuff We Care About
Storage Media
VLF Receiver
Antenna
22
The Art of the VLF Receiver

• Ultra Sensitive/Low Noise
• Broadband
• Precision Timing/Phase Accuracy
• Reliable
• Easy to Build, Set-up, Use, Repair
• Fully Documented
• Low Cost

23
The Starting Line

• HAIL/HAARP Receiver
• Problems
• Outdated parts
• Failed too often
• Size and construction
• Expensive GPS clock
• Designed for narrowband
• Incomplete documentation
• Unnecessarily complicated

24
The VLF Groups Needs

• Repair existing receivers
• Redesign receiver
• Build, test, deploy
• Deploy
• Deploy
• Deploy
• Deploy

25
Enter Solar Physics Group

• CISM Educational Outreach
• Professor Phil Scherrer
• High School Outreach
• Low Cost
• Easy to Use
• Dual use system
• Daytime monitor solar activity
• Nighttime monitor VLF

26
The Big Picture
B-Field Antenna
GPS Antenna
Computer
Long Cable
Line Receiver
Analog to Digital
Preamp
27
The Big Picture
B-Field Antenna
GPS Antenna
Computer
Long Cable
Line Receiver
Analog to Digital
Preamp
28
Antenna Design

• B-Field, Magnetic Loop
• Orthogonal Pair
• 1.0 O, 1.0 mH
• Various sizes
• Cuts off at 318 Hz

29
The Big Picture
B-Field Antenna
GPS Antenna
Computer
Long Cable
Line Receiver
Analog to Digital
Preamp
30
Preamplifier

• Impedence matched
• Paschal amplifier
• 3 cutoff modes
• Gain selectable
• Calibration circuit
• Weatherproof

31
The Big Picture
B-Field Antenna
GPS Antenna
Computer
Long Cable
Line Receiver
Analog to Digital
Preamp
32
Preamp to Line Receiver

• Long cabling
• Belden 1217B
• Four twisted pairs, shielded
• Provides /- 15V
• Calibration enable
• Line Transformer
• Stancor A-4096
• Better low frequency response

33
The Big Picture
B-Field Antenna
GPS Antenna
Computer
Long Cable
Line Receiver
Analog to Digital
Preamp
34
Line Receiver

• Power supply
• PowerOne Had15
• Anti-aliasing filter
• GPS synchronization

35
Anti-Aliasing Filter

• LTC1562
• 12th order lowpass
• Elliptical filter
• 47 kHz cutoff
• 100dB attenuation at 55 kHz
• 50 us relative delay

36
Line Receiver GPS

• Motorola M12 OnCore
• Provides 1 PPS signal
• 200 ns accuracy
• FPGA generates 100 kPPS
• Divides down 10 MHz
• Feedback trims block
• Time synched to 1 PPS
• 100 ns maximum draft
• Phase error 2.7 at 25 kHz

37
The Big Picture
B-Field Antenna
GPS Antenna
Computer
Long Cable
Line Receiver
Analog to Digital
Preamp
38
Digitizing

• National Instruments 6034E
• Plugs into PCI slot
• PCMCIA laptop version available
• 200 kS/second, 16-bit
• 100 kHz sampling each channel

39
The Big Picture
B-Field Antenna
GPS Antenna
Computer
Long Cable
Line Receiver
Analog to Digital
Preamp
40
Software

• Two channel narrowband/broadband
• Adapted from Robb Moores software
• Daily schedule
• Works in conjunction w/Matlab

41
Dummy Loop

• 1.0 O, 1.0 mH
• Two inputs/outputs
• Useful for calibration
• Takes minutes to build

42
Calibration

• 8.1592 MHz clock
• PIC generates random sequence
• Applied to front end
• Output series of frequency spikes

43
WHY ISNT IT WORKING?
44
Bumps in the Road

• Schematic/layout errors
• Acquiring parts
• Preamp box
• Line transformers
• GPS failure
• Anti-aliasing troubles
• ADC triggering

45
The Immaculate VLF Reception
July 21, 2004, 4PM, Packard roof
46
The Immaculate VLF Reception V2
47
System Testing

• Packard 012 - June
• Packard roof July
• Stanford Dish August
• Puerto Rico August
• Alaska September

48
Lightning(Whistler)-Induced Electron
Precipitation
49
VLF Remote Sensing of Lower Ionospheric
Disturbances
50
(No Transcript)
51
Holographic Imaging of the Lower Ionosphere
VLF receivers at 13 high schools Provides
excellent opportunities for outreach
