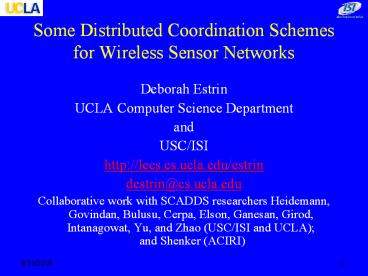

Some Distributed Coordination Schemes for Wireless Sensor Networks

1
Some Distributed Coordination Schemes for
Wireless Sensor Networks

• Deborah Estrin
• UCLA Computer Science Department
• and
• USC/ISI
• http//lecs.cs.ucla.edu/estrin
• destrin_at_cs.ucla.edu
• Collaborative work with SCADDS researchers
  Heidemann, Govindan, Bulusu, Cerpa, Elson,
  Ganesan, Girod, Intanagowat, Yu, and Zhao
  (USC/ISI and UCLA) and Shenker (ACIRI)

2
I. Motivation
Embed numerous distributed devices to monitor and
interact with physical world work-spaces,
hospitals, homes, vehicles, and the environment
Network these devices so that they can coordinate
to perform higher-level tasks. Requires robust
distributed systems of hundreds or thousands of
devices.
3
Motivating Applications
4
Theme New Constraints

• Tight coupling to the physical world
• Need better physical models
• More experimentation
• Designing for energy constraints
• Coping with apparent loss of layering

5
Theme New Design Goals

• Designing for long-lived (and often
  energy-constrained) systems
• Exploiting redundancy
• Low-duty cycle operation
• Tiered architectures
• Self configuring systems
• Measure and adapt to unpredictable environment
• Exploit spatial diversity of sensor/actuator
  nodes
• Localization and Time synchronization are key
  building blocks

6
Implications for Wireless Sensor Network Design

• Achieve desired global behavior through localized
  interactions, without global state
• Avoid communication over long distances Pottie
  2000
• Energy propagation loss E a R4 (10 m 5000
  ops/transmitted bit 100 m 50,000,000
  ops/transmitted bit)
• Empirically adapt to observed environment
• Dynamic, messy, environments preclude
  pre-configured behavior
• Leverage data processing/aggregation inside the
  network

7
Roadmap

• Motivation
• Directed Diffusion
• Other enabling schemes time synch, localization,
  self configuration
• Wrap up tiered architecture, future work

8
II. Example Directed Diffusion

• In-network data processing (e.g., aggregation,
  caching)
• Application-aware communication primitives
• expressed in terms of named data (not in terms of
  the nodes generating or requesting data)
• Distributed algorithms using localized
  interactions and measurement based adaptation

9
Basic Directed Diffusion
Setting up gradients
Source
Sink
Interest Interrogation in terms of data
attributes
Gradient direction and strength
10
Basic Directed Diffusion
Sending data and Reinforcing the best path
Source
Sink
Low rate event
Reinforcement Increased interest
11
Directed Diffusion and Dynamics
Source
Sink
Recovering from node failure
Low rate event
Reinforcement
High rate event
12
Directed Diffusion and Dynamics
Source
Sink
Stable path
Low rate event
High rate event
13
Local Behavior Choices

• For propagating interests
• In our example, flood
• More sophisticated behaviors possible e.g. based
  on cached information, GPS

• For data transmission
• Multi-path delivery with selective quality along
  different paths
• probabilistic forwarding
• single-path delivery, etc.

• For setting up gradients
• data-rate gradients are set up towards neighbors
  who send an interest.
• Others possible probabilistic gradients, energy
  gradients, etc.

• For reinforcement
• reinforce paths, or parts thereof, based on
  observed delays, losses, variances etc.
• other variants inhibit certain paths because
  resource levels are low

14
Initial simulation study of diffusion

• Key metric
• Average Dissipated Energy per event delivered
• indicates energy efficiency and network lifetime
• Compare diffusion to
• flooding
• centrally computed tree (omniscient multicast)

15
Diffusion Simulation Details

• Simulator ns-2
• Network Size 50-250 Nodes
• Transmission Range 40m
• Constant Density 1.95x10-3 nodes/m2 (9.8 nodes
  in radius)
• MAC Modified Contention-based MAC
• Energy Model Mimic a realistic sensor radio
  Pottie 2000
• 660 mW in transmission, 395 mW in reception, and
  35 mw in idle

16
Diffusion Simulation

• Surveillance application
• 5 sources are randomly selected within a 70m x
  70m corner in the field
• 5 sinks are randomly selected across the field
• High data rate is 2 events/sec
• Low data rate is 0.02 events/sec
• Event size 64 bytes
• Interest size 36 bytes
• All sources send the same location estimate for
  base experiments

17
Average Dissipated Energy (Standard 802.11 energy
model)
0.14
Diffusion
0.12
Omniscient Multicast
Flooding
0.1
0.08
Average Dissipated Energy
(Joules/Node/Received Event)
0.06
0.04
0.02
0
0
50
100
150
200
250
300
Network Size
Standard 802.11 is dominated by idle energy
18
Average Dissipated Energy (Sensor radio energy
model)
0.018
0.016
Flooding
0.014
0.012
0.01
0.008
(Joules/Node/Received Event)
Omniscient Multicast
Average Dissipated Energy
0.006
Diffusion
0.004
0.002
0
0
50
100
150
200
250
300
Network Size
Diffusion can outperform flooding and even
omniscient multicast. WHY ?
19
Impact of In-network Processing
0.025
Diffusion Without Suppression
0.02
0.015
(Joules/Node/Received Event)
Average Dissipated Energy
0.01
Diffusion With Suppression
0.005
0
0
50
100
150
200
250
300
Network Size
Application-level suppression allows diffusion to
reduce traffic and to surpass omniscient
multicast.
20
Impact of Negative Reinforcement
0.012
0.01
Diffusion Without Negative Reinforcement
0.008
Average Dissipated Energy
(Joules/Node/Received Event)
0.006
0.004
Diffusion With Negative Reinforcement
0.002
0
0
50
100
150
200
250
300
Network Size
Reducing high-rate paths in steady state is
critical
21
Summary of Diffusion Results

• Under the investigated scenarios, diffusion
  outperformed omniscient multicast and flooding
• Application-level data dissemination has the
  potential to improve energy efficiency
  significantly
• Duplicate suppression is only one simple example
  out of many possible ways.
• Aggregation (in progress)
• All layers have to be carefully designed
• Not only network layer but also MAC and
  application level
• Experimentation on our testbed in progress

22
Implied direction hierarchical queries

• Create processing points in the network
• High level interests/queries for activity
  triggers lower level local queries for particular
  data modalities and signatures (e.g. acoustic and
  vibration patterns that are mapped to the
  activity of interest)
• As opposed to generating detailed queries at sink
  points and relying on opportunistic aggregation
  alone.

Acoustic?
Source
Large animal?
Sink
23
Ongoing work in Diffusion

• Multipath reinforcing multiple upstream
  neighbors for load balancing and robustness
• Braided vs. Disjoint paths
• Opportunistic aggregation of source data
• Managing gradients/resources
• Tiny diffusion for Motes
• Diffusion under mobility objects, nodes

24
III. Enabling Sensor Networksworks in progress

• Time synchronization
• Localization
• Self-configuration

25
Time Synchronization

• Critical at many layers
• TDMA guard bands
• Data aggregation, collaborative processing
• Localization
• But time sync needs are non-uniform
• Precision
• Lifetime
• Scope Availability
• Cost and form factor
• And time sync can be expensive in terms of
  communicationsenergy
• No single method optimal on all axes

26
Pulse Synchronization

• External node generates pulse. Synchronizing
  nodes compare reception times.
• Create locality of synchronized nodes, quickly
  and energy-efficiently
• NTP good at correcting frequency
• Local pulse good at correcting phase
• Use combination
• Initial experiment using wired stimulus sent to
  10 nodesevaluated precision of achievable
  timestamp
• 1 usec clock resolution achieved (vs 100 usec
  with NTP alone)
• Combination is 10x better than either solution
  alone multimodal is good
• Do as well when NTP used in pre-training!

27
(No Transcript)
28
Localization

• Needed for coordination of many 3-space related
  tasks
• Coordination/scoping of network operation as well
• Multi-modal ranging and localization
• RF RSSI inadequate for most environments due to
  multi-path, shadowing
• Acoustic ranging measure time of flight of
  chirp, using RF for synchronization
• Non Line of Site propagation effects distort
  measurements
• Hard to determine source of geometrical
  inconsistencies
• Investigating imaging to identify NLOS sources
  and combine with acoustic

29
Results
This graph shows the results of a series of tests
in a noisy machine room. Each point represents
about 10 trials. The tests were conducted at 1 m
intervals. The data in each point ranges about
?1.5 cm. The variance is about 0.01 cm
30
Self-configuration

• Each node assesses its connectivity and signals
  or actuates when it detects a depleted
  (BW/fidelity) region.
• 'Healing' is collaborative self-organized
  deployment of nodes
• Activate more/fewer nodes
• Mobilize more/fewer nodes
• Adjust duty cycle/power level of existing nodes
• Assumptions
• No centralized processing all nodes act based on
  locally available information.
• A very large solution space not seeking unique
  optimal solution.
• Some links have high packet loss..

31
IV. Wrapping upTiered Architecture

• We are implementing a sensor net hierarchy
  PC-104s, tags, motes, ephemeral one-shot sensors
• Save energy by
• Running the lower power and more numerous nodes
  at higher duty cycles than larger ones
• Having low-power pre-processors activate higher
  power nodes or components (Sensoria approach)
• Components within a node can be tiered too
• Our tags are a stack of loosely coupled boards
• Interrupts active high-energy assets only on
  demand

32
Tiered Platform for experimentation with SCADDS
algorithms

• Embedded PC
• COTS PC104 CPU module
• AMD ELANSC400, 16MB RAM16MB FlashDisk, 4
  serial/1 parallel ports
• Phasing out current radio 418Mhz RPC from
  Radiometrix
• Moving to RFM
• OS Slimmed Redhat 6.1. (2.2.x/Libc6)
• Incoporating PC104 for higher end processing,
  image capture, etc
• Tags and Motes
• 8 bit proc (ATMEL/PIC)
• RFM Radio
• Mote nicely packaged
• Tag for more experimentation
• Cullers TOS

ISI PC-104
UCB Mote (Pister)
UCLA Tag (Girod)
33
Technical challenges

• Ad hoc, self organizing, adaptive systems with
  predictable behavior
• Collaborative processing, data fusion, multiple
  sensory modalities
• Data analysis/mining to identify collaborative
  sensing, triggering thresholds, etc
• Combining experimentation, simulation, and
  analysis
• Engaging theory community (Algorithms? Controls?)

34
Enormous Potential Impact
Disaster Recovery and Urban Rescue
Earth Science Exploration
Condition Based Maintenance
Wearable computing
Medical monitoring
Networked Embedded Systems
Smart spaces
Transportation
EnvironmentalMonitoring
Active Structures
Biological Monitoring
Bio-Tank
Strand Stand
?-scaled Tethered Robot
Algae
Sensors
2 meters
35
More information

• UCLA Laboratory for Embedded Collaborative
  Systems (LECS)
• http//lecs.cs.ucla.edu
• UCLA Distributed Embedded Systems Program (DESP)
• http//desp.cs.ucla.edu (joint EE and CS)
• SCADDS project
• http//www.isi.edu/scadds
• ns-2 network simulator (with diffusion supports)
• http//www.isi.edu/nsnam/dist/ns-src-snapshot.tar.
  gz
• Our testbed and software
• http//www.isi.edu/scadds/testbeds.html

36
Some Other Related Work(NOT complete)

• Sensor networks
• www.isi.edu/scadds
• www.janet.ucla.edu/WINS
• wins.rsc.rockwell.com
• wind.lcs.mit.edu/hari
• www.nesl.ee.ucla.edu/people/mbs
• tinyos.millennium.berkeley.edu
• Smart Matter
• www.parc.xerox.com/spl/projects/smart-matter
• www-swiss.ai.mit.edu/projects/amorphous
• Internet design inspiration
• irl.cs.ucla.edu/AWC/
• www-mash.cs.berkeley.edu/mash
