Assignment 2 XML Validation

1

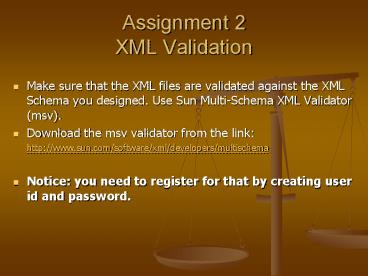

Assignment 2XML Validation

• Make sure that the XML files are validated
  against the XML Schema you designed. Use Sun
  Multi-Schema XML Validator (msv).
• Download the msv validator from the link
• http//www.sun.com/software/xml/developers/multis
  chema
• Notice you need to register for that by creating
  user id and password.

2
XML Validation

• Download/extract the sun multi-scheme XML (msv)
  validator.
• To test the validator, please use the
  xsd_example.xsd, and xml_example.xml
• For more help, have a look at the file
  command.html comes with the extract.
• Use the strict options

3
XML Validation/Example

• Download the files xsd_example.xsd and
  xml_example.xml from
• utdallas.edu/maa013600/cs6360/common/xsd_example.
  xsd
• utdallas.edu/maa013600/cs6360/common/xml_example.
  xml
• Run the command
• Cjava -jar ./msv-20030225/msv.jar strict
  xsd_example.xsd xml_example.xml

4
Using Batch file
Using Command line
5
Batch File Contents
6
XML Validation/ExampleError produced by msv
Error produced by msv as a result of invalid
types. I just changed the string type to sstring
and date type to ddate Just for the purpose of
showing you how msv produce errors.
7
XML Validation/Java setup

• Note that you need to setup java.exe. Please look
  it up in your machine and add it to your path.
• Here is a screen shot showing that java is set on
  your machine. You can see basically the help of
  java command.

8
XML Validation/Example

• In case java is not set you will have an error
  message saying
• 'java' is not recognized as an internal or
  external command, operable program or batch file.
• In order to set java, search for java.exe in you
  machine, and add the directory java.exe resides
  in your path.
• For example if java.exe is in the director
  c\program files\jsdk1.4\bin in your machine,
  then set your path by typing
• promptset path pathc\program
  files\jsdk1.4\bin

9
Can I Use Online XML Validator?

• Finally, you can use any other XML validators.
• There are plenty online, but be sure that the
  one you use is following the standards.
• If you use different validator from msv, you need
  to submit a screen shot of the validation results.

10
Common Mistakes

• Defining every thing as string.
• Trying to define Date type.
• Special characters such as ,, etc..
• Escape it.
• http//www.utdallas.edu/maa013600/cs6360/hw2_summ
  er04/faq.html
• Dont just replace it with words (ATT is
  replaced by ATandT or ATT)

11
Common Mistakes continue

• Primary keys not defined.
• Trying to define Foreign keys.
• Not Testing your keys
• Inconsistent data.
• One file has ATT another has ATT
• Record will not show in the xquery.

12
XQuery/QuiP

• You need t o download the QuiP from
• http//www.softwareag.com/developer/quip/
• For help/FAQ, please have a look at the file
  \QuiP-2.2.1.1\QuiP\doc\index.htm in the download.
• Linux and Windows plateforms

13
Using the command line

• Please notice
• The files needed to run the coming example, and,
• Useful examples of writing xquery functions
• Can be found at
• http//www.utdallas.edu/maa013600/cs6360/common/x
  queries/example.zip

14
Using the command line

• Down the zip file mentioned in the previous
  slide, then extract it.
• Make sure that the xml and the xquery files are
  in the same directory.
• Have a look at the functions that I wrote in the
  xqeury file to accommodate your need.

15
Using the command line

• Use the quip.exe, which comes with the quip
  extract, command to run any xquery from the
  command prompt.
• Please have a look at the zip file and the
  following tutorials regarding writing xquery
• http//www.w3.org/TR/xmlschema-0/
• http//www.w3.org/TR/2002/WD-xquery-operators-2002
  0816/
• http//cafeconleche.org/slides/xmlsig/xquery/XQuer
  y.html

16
Running an XQuery from the command line
17
Using the GUI

• To install the QUIP-GUI, please follow the
  instructions at
• http//www.utdallas.edu/maa013600/cs6360/hw2_summ
  er04/faq.htmlquipGui
• Please be aware that if you want to use the GUI,
  then you are on your own. Because I do not have
  time to spare to make it work for you.

18
QUIP Issues

• Sorting number might not be working.
• 1,3,10,4 sorted as 10,1,3,4
• Solution 01,03,10,04 ? 01,03,04,10
• Try to use built in functions.
• Get familiar with Quip.
