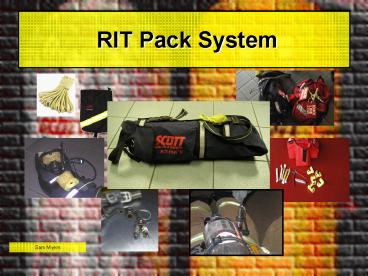

RIT Pack System

1
RIT Pack System
Sam Myers
2
RIT System Highlights
3
SCOTT RIT-PAK II

• Scott SCBA RIT-PAK II (Scott Part 200223-04)
• RIT-PAK includes
• Pressure reducer assembly
• 20 low pressure line assembly
• 5 Universal Air Connection Hose assembly
• Duel EBSS Manifold
• Carrying Bag

4
RIT Air Bag

• Drag-U-Safe (7, 1 tubular webbing in a fast
  access pouch)
• Kevlar Aramid Strap
• Streamline design
• 20 Low pressure line with dual EBSS connection

5
RIT Air Bag

• 1 Hour Cylinder
• Single stage pressure reducer
• Low pressure Dual EBSS line
• High pressure UAC line

6
RIT Air Bag

• Different color strobes for Air Bag, Low pressure
  Line and Rope bag
• Air Bag-Blue Strobe
• Low pressure Line- Green Strobe
• Rope Bag-Red Strobe

7
RIT Air Bag

• Scott regulator with Quick connect fitting
• SCBA mask (Scott AV3000, Large)
• 5 line with UAC connection

8
RIT Air Bag

• Additional Items
• 2 Carabiners
• Drag-U-Safe (7, 1 tubular webbing in a fast
  access pouch)
• Strobe Light

9
Dual EBSS
Additional fitting for EBSS to Low pressure
line
10
Air Options

• The UAC Connect the 5 ft. quick air line from
  the RIT Pack to the UAC of the downed firefighter
• The Dual EBSS Connection 1 use the male end of
  the dual connector to supply the downed
  firefighters EBSS line
• The Dual EBSS Connection 2 use the female end of
  the dual connector to supply the downed
  firefighters face piece mounted regulator

11
Air Options Cont

• Other options include
• Complete transition to RIT Air bag using
  face-piece and regulator.
• Preferred method would be to connect to downed
  FFs regulator/face-piece via the dual EBSSs
  female connection.
• Note When connecting via downed FFs
  buddy-breather System must be bled down prior
  to connecting if you want to remove cylinder for
  reduced profile

12
UAC
Option One
UAC FITTING The UAC is found on the lower left
side of the back of the SCBA assembly.
13
UAC

• The quick connect allows for the trans-fill of
  air from the RIT air supply cylinder to the
  target cylinder.

14
UAC CONNECTION
UAC RELIEF VALVE
UNIVERAL AIR CONNECTION
15
UAC

• The system takes advantage of the fact the areas
  of high pressure move towards areas of low
  pressure until the pressures equalize.

16
UAC

• When the pressures in the RIT air cylinder and
  the victims cylinder equalize the trans-filling
  is done.
• This process takes about 30 seconds.

17
UAC CONNECTION
UNIVERAL AIR CONNECTION
18
UAC
Connect the 5 foot, quick connect air line to
the UAC on the back of the SCBA harness
19
DUAL EBSS

• The dual EBSS connection adapted by the SCBA
  shop.
• It replaces the old system shown to the left.

20
DUAL EBSS

• The new set-up allows you to charge the RIT Air
  cylinder before entering the structure as
  preparation for RIT Ops.

Remember with the old system if you charged the
cylinder before you hooked up to the downed
firefighter all of your air bled out through the
double male connection.
21
DUAL EBSS

• OPTION TWO
• Connect the male portion of the RIT Air line to
  the female buddy Breather end of the downed
  Firefighter

22
DUAL EBSS

• OPTION Three
• Connect the face piece mounted regulator of the
  downed fire fighter to the female EBSS connection

23
RIT FF Packaging Options

• Connect RIT Air Bag to FFs SCBA via Carabiners.
• Connect RIT Air Bag to FF legs via pack strap.
• One FF follows behind with bag while team pulls
  downed FF to safety (20 foot airline allows for
  the separation).
• Other options are limited by your imagination.

24
RIT Rope Bag

• 200 ft 6.8mm RIT 900 Rope (rope rated at 4,200
  lbs and has a temperature rating of 932 degrees
  F.)
• Tools and extra carabiners
• 2-50 ft search bags
• Can clip to main RIT bag
• 200 ft search line with tag to be anchored off
  prior to entering search area

25
Tools
200 6.8mm RIT 900 Rope
5 Glow Sticks
20ft 2 Webbing
3 Carabiners
Lineman Cutters
Wedges
Box Knife
26
Search Bags
27
Search Bags
50 6.8mm RIT 900 Rope

• Same rope as 200 foot main line (6.8 mm RIT 900
  rope).
• Has capability to go 50 feet, though butterfly
  knot at 25 foot (ideal for use with Large Area
  Search).
• Two bags used for conducting secured search

28
Search Bags

• If full 50 feet is needed, simply unhook from
  search bag (clip on inside of bag).
• When using with L.A.S., wrap bag/rope around
  wrist, may connect to SCBA but not recommended

29
Search Bags

• Main search line has metal ring at every 25ft
  increment
• Each increment is denoted with knots just prior
  to the ring. 1 knot 25ft, 2 knots 50ft, 3
  knots 75ft, etc
• 50 ft search lines can be locked into rings for
  sweeps on either side of the main search line.

30
Large Area Search Technique

• Red RIT Auxillary bag is used when conducting a
  large area search.
• System designed to work optimally with 4 members,
  though if only 3 are available the system will
  still work (positions explained later).
• Recommended tools to carry along with RED and
  BLUE Rit bags are
• - Flashlights
• - Handtools (to include a haligan bar)
• - Thermal Imager with Officer
• - Portable radios (monitor Tac. Channel, RIT
  channel, L.A.S. channel.)

31
L.A.S. Technique

• 4 member team position (preferred).
• Officer TIC, RED bag, radio, flashlight.
  Monitors conditions, finds best entry point,
  connects rope to outside fixed object, provides
  reports as necessary.
• 1st FF Hand tool, flashlight, radio, BLUE bag.
  Follows behind Officer, will search to left,
  leaves BLUE bag with Officer.
• 2nd FF Hand tool, flashlight, radio. Follows
  behind 1st FF, will search to right.
• Driver (or 4th member) stays at Rescue Teams
  entry point, monitors radio (may act as a
  repeater to command), full PPE in case needed
  inside, tracks team time and air supply using
  LCFR control board. Provides light at entry point
  also.

32
L.A.S. Initial Operations
33
L.A.S. Initial Operations

• Coordinate with the Incident Commander.
• Find fixed point to attach at entry
• Control Person tracks entry time, air supply,
  full PPE, and provides light at entry point

34
Control Board
35
L.A.S. Initial Operations

• Officer hangs bag over front of body to control
  rope as it is deployed (can also feel for the
  knots and rings)
• Members follow behind Officer on line

36
L.A.S. Entry Operations
37
L.A.S. Entry Operations

• Officer monitors conditions (TIC aids in process)
• Once search area is determined (hears PASS device
  of downed FF, sees possible location of victim,
  etc), BLUE bag is staged with Officer

38
L.A.S. Entry Operations

• line pulled tight, and searchers attach to ring
• Searchers may connect search bag to body, though
  recommendation is to hold with one hand or simple
  wrap around wrist

39
L.A.S. Search Operations
40
L.A.S. Search Operations

• Officer ensures main line is low to ground and
  pulled tight.

41
L.A.S. Search Operations

• Search members (going left and right), follow
  straight back on main line and then search out
  (half moon search)
• Rope will snag on object, making the searcher
  follow rope to object and investigate

42
L.A.S. Search Operations

• Must keep tag line pulled tight and low to
  ground. Rope will snag on object, making the
  searcher follow rope to object and investigate
• Correct
• In-Correct

43
L.A.S. Misc. Info
44
L.A.S. Misc. Info

• Once search members complete half moon search,
  stay on main line, Officer will disconnect from
  ring and stretch main line to their position and
  reattach

45
L.A.S. Misc. Info

• Various ways to remove downed FF once located.
  Photos shown are using main line as a haul line
  to remove FF (pulling rope through carabiner,
  making 21 mech. Advantage)

46
L.A.S. Misc. Info

• Search conducted same way every time. Officer
  needs to ensure search members are following main
  line straight back and fanning out each time
  (prevents snowman effect).
• If allotted time for search team expires and they
  must leave area, leave BLUE and RED bag in
  location where search last ended (new team will
  starts from this point).

47
RIT Pack System
Questions???
