Design Specification Principles

1

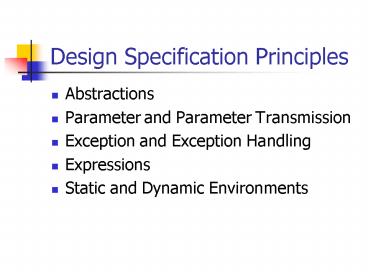

Design Specification Principles

• Abstractions
• Parameter and Parameter Transmission
• Exception and Exception Handling
• Expressions
• Static and Dynamic Environments

2
Abstraction

• A representation of an object that ignores what
  could be considered as irrelevant details of that
  object, thus making the use of that object
  easier.
• User/Logical/Conceptual/High-level view
• Programming language abstraction falls into two
  general categories data abstraction and control
  abstraction

3
Abstraction

• With data abstraction, you can work more
  effectively. With procedural abstraction, you can
  concentrate on good design practices and
  modularity.
• Basic Abstraction
• Structured Abstraction
• Unit Abstraction

4
Data Abstraction

• Deal with program components that are subject to
  computation.
• Based on the properties of the data objects and
  operations on those objects.
• Leads consideration of abstract data types, which
  allow development of programs that are
  independent of how data are represented in them.

5
Abstract Data Type

• ADT chosen data representation and set of
  procedures.
• Only this procedures can direct access to the
  data.
• Representation independence client code is
  independent of data representation if
  representation is changed, only the ADT
  procedure is affected.

6
Basic Data Abstraction

• Refers to the internal representation of common
  data values in a computer system.
• Declaration statement specify the variables
  name and data type.
• int x
• float y
• char z

7
Structured Data Abstraction

• The principal method for abstraction collections
  of data values that are related.
• Example personal record/struct, poker-card
  record/struct
• Useful when you want to assign one entire record
  to another or pass an entire record as a
  parameter.
• Permits the user to manipulate a record by name,
  ignoring such details as component names and
  types.

8
Structured Data Abstraction

• typedef struct
• char grade
• int course
• Card
• Card deck52
• typedef does not create new type, it simply
  creates a new type name, which may be used as an
  alias for an existing type name.

9
Unit Data Abstraction

• The principal method for collecting all the
  information needed to create and use a particular
  data type in one unit location. ??????????
  ???????????????????.
• The typical scope of unit data abstraction is a
  module.
• Unit data abstraction ensures that changes in the
  structure of the data type do not affect other
  areas of the program.
• Modula-2 supports module
• Ada supports package

10
Advantages of using Unit Data Abstraction

• Page 50Page 51
• Program units are easier to read, write, and
  modify.
• This property is crucial to the top-down design
  approach to programming languages.
• Program units are reusable.
• Eliminates redundant programming effort and
  reduces the number of errors.
• A program based on the unit data abstraction is
  not affected by the details of its implementation.

11
Unit Abstraction in Turbo Pascal

• We can combine all of the const, type, and
  variable definitions and the stack-processing
  procedures and functions into a single unit.
• Unit heading unit unitname
• File nameconsist of the first 8 characters of
  the unit name and ended with .PAS
• Compiled object file name with extension .TPU

12
Unit Abstraction in Turbo Pascal

• Interface part begin with reserved word
  interface may contain a use clause to import
  items from other units and a declaration
  part(const, type, variable, procedure heading,
  function heading)
• Implementation part begin with reserved word
  implementation followed by an optional use
  clause, a declaration part, and an initialization
  part.
• Initializationmay consist only the reserved word
  end or some some statements.

13
Unit Abstraction in Turbo Pascal

• After a unit has been compiled, the constants,
  types, functions, and procedures defined in its
  interface part can then be imported into and used
  in any program by simply inserting a use clause
  after the program heading.
• The statements in the initialization part are
  executed before those in any program or other
  unit in which this unit is used.

14
Turbo Pascal Unit Abstraction xample

• unit StackADT
• Interface
• Const StackMAX
• type StackItemType
• StackArrayType
• StackTyperecord
• top 0..StackMAX
• Items StackArrayType
• end
• Var StackError boolean
• Procedure CreateStack(var StackStackType)

15
Turbo Pascal Unit Abstraction Example

• Function EmptyStack(stackStackType)boolean
• Procedure Pop(var StackStackType var
  ItemStackItemType)
• Procedure Push(var StackStackType
  ItemStackItemType)
• Implementation ( ???????????? )
• ( ???StackError?? )
• Function EmptyStack(StackStackType)boolean
• begin EmptyStack (Stack.Top 0)
• StackError false end
• end.(????????)

16
Unit Abstraction in Modula-2

• Modules
• A MODULA-2 program consists of a program module
  and other modules from which the program module
  imports.
• The other modules are split into two parts
  definition module and implementation module.
• DEFINITION MODULE StackModule
• EXPORT QUALIFIED push,pop,empty
• PROCEDURE push(chCHAR)
• PROCEDURE pop(VAR chCHAR)
• PROCEDURE empty()BOOLEAN
• END StackModule.

17
Unit Abstraction in Modula-2

• MODULE Reverse
• FROM InOut IMPORT Read,Write,WriteLn, EOL,
  Writestring
• FROM StackModule IMPORT push,pop,Empty
• VAR chCHAR
• BEGIN
• Writestring(Enter string) Read(ch)
• WHILE chltgtEOL Do push(ch) read(ch) END
• Writestring(The reversal is)
• WHILE NOT empty() Do pop(ch) Write(ch) END
• WriteLn
• END Reverse.

18
Unit Abstraction in Modula-2

• IMPLIMENTATION MODULE StackModule
• CONST Max100
• VAR StackArrayARRAY1..MAX OF CHAR
• Top0..MAX
• PROCEDURE push(chCHAR)
• BEGIN INC(Top) StackArrayTopch END push
• PROCEDURE pop(VAR chCHAR)
• BEGIN chStackArrayTop DEC(top) END pop
• PROCEDURE empty()BOOLEAN
• BEGIN RETURN Top0 END empty
• BEGIN Top0 END StackModule. (initialization
  code)

19
Separate Compilation in Modula-2

• In Module-2, before a module can be compiled, all
  definition modules that it imports from must have
  been compiled previously this allows the
  Modula-2 compiler to check that each imported
  object is used in the manner that its definition
  module specifies. Similarly, each definition
  module is compiled before its corresponding
  implementation module, since the definition
  module forms a preface to the implementation
  module.
• Version checkingensures consistent interface,
  but does not ensure an up-to-date interface.

20
Separate Compilation in Modula-2
.def file
.sym file ?version
Compiling
.sym file
( for modules imported from )
Containing information about the objects exported
by the module.
.mod file
Compiling
.lnk file ?object ?version
.sym file
object code
( for modules imported from )
.lnk file
Linking
.lod file
21
Separate Compilation in Modula-2

• A module(program or implementation) or procedure
  can declare five kinds of objectsconstants,
  types, variables, procedures,and modules.
• A module that is declared inside another module
  or procedure is called a local module.
• Although local modules do not have the advantage
  of separate compilation, they retain the other
  advantage of modulesobjects within a local
  module that are not exported are hidden from the
  rest.

22
Control Abstraction

• Describes the order in which statements or groups
  of statements (program blocks) are to be
  executed.
• Deals with the components of the program that
  transfer control (e.g. loops, conditional
  statements, procedure calls)
• Can be thought of as modification of a programs
  execution path.

23
Basic Control Abstraction

• Assignment is a basic control abstraction
• Assignment statement abstracts the computation
  and storage of a value to the location given by a
  variable.
• Two mechanisms can be used to accomplish the flow
  of control over individual instructions
• sequencing and branching
• Sequencing is accomplished by automatically
  increasing the program counter. Branching can be
  represented by a jump or goto instruction.

24
Structured Control Abstraction

• Selection
• While-loop, for-loop, do-while loop, repeat loop,
  loop-exit .
• Subprogram definition and invocation allows one
  to consider a sequence of actives as a single
  action and to control the instruction of these
  actions with other parts of the program.
• Subprogram calls are more complex than selection
  or looping.
• Structured control abstractions can be nested to
  any desired depth.

25
Unit Control Abstraction

• Represents a collection of procedures that
  provide logically related services to other parts
  of a program.
• Statistical terms computation mean, median,
  standard deviation
• Ada provides this feature.

26
Parameter and Parameter Transmission

• Refers to the mechanisms that send data to and
  return data from subprograms.
• Parameter transmission is the major alternative
  method for sharing data objects among
  subprograms.
• Subprogram heading list the name and declare the
  type of the formal parameter.
• A formal parameter is the specification of the
  parameter within the called subprogram.

27
Parameter and Parameter Transmission

• Actual parameter is the specification of the
  parameter in the caller subprogram. It is a data
  object that is shared with the called
  subprogram.(?)
• Actual parameter can be classified as
• local data object of the caller, formal
  parameter of the caller, nonloacl data object
  visible to the caller, a result returned by a
  subprogram invoked by the caller.
• Example page 55

28
Semantics Models of Parameter Passing

• Relation between formal parameter and actual
  parameters can be characterized by one of the
  distinct semantic models
• In mode,
• Out mode,
• InOut mode.
• Language designers have developed a variety of
  models to guide the implementation of the
  parameter passing.

29
Parameter Passing by Constant-Value

• The argument expressions are evaluated by the
  time of the call, and their values become the
  values of the parameters while the subprogram
  runs.
• Is an implementation of the In Mode semantics
  model.
• The formal parameter acts as a local constant
  during execution of the subprogram (no
  modification in the value of the actual parameter
  is possible ).

30
Parameter Passing by Constant-Value

• Example Max (10,23)
• Need additional memory space and physical data
  transfer, but the access is more efficient.
• Default parameter passing mechanism of Ada,
  Pascal, Modula-2 and C

31
Parameter Passing by Reference

• The most common parameter passing mechanism.
• Evaluate the address of the actual argument at
  calling point Pass the address and the local
  storage location for the formal parameter holds
  the address Formal parameter becomes an alias
  for the actual parameter.
• An Implementation of the InOut semantics model.

32
Parameter Passing by Reference

• procedure change (VAR X integer )
• Begin XX1 End
• change(Y)
• void change (int X) X
• change(Y)
• void change (int X) (X)
• change(Y)

33
Parameter Passing by Reference

• Advantages storage and time savings for
  aggregate types of actual arguments.
• Disadvantages slower access, error-prone in
  one-way communication, aliasing.

34
Parameter Passing by Name

• The most difficult parameter-passing mechanism.
• Views a subprogram call as a substitution for the
  entire body of the subprogram.
• An implementation for the InOut Mode semantics
  model.
• The actual parameter is textually substituted for
  the corresponding formal parameter in all its
  occurrences in the called subprogram.

35
Parameter Passing by Name

• void change (int A, int B)
• int temp
• tempA AB Btemp
• caller change (i, Xi)
• effect tempi
• iXi
• Xitemp
• let before call i3, X34
• after call i4, x43,
  x34unaffected!!

36
27

• The formal parameter is bound to an access method
  (a parameter-less subprogram, called thunk, to
  evaluate the value or value of the actual
  argument) at the time of the subprogram call, but
  the actual binding to a value or an address is
  delayed until the formal parameter is assigned or
  referenced.
• Disadvantage Can easily lead to programs that
  are hard to read and understand. Run time calls
  to thunks are costly.
• Advantage Flexibility (Can be a powerful
  mechanism in certain circumstances. F-g. apply an
  operation to an entire array).

37
28

• include ltstdio.hgt
• main()
• int Sum(int, int, int, int)
• int I0, Total0
• int X101,2,3,4,5,6,7,8,9,10
• Total Sum(X,I,0,10)
• printf(the sum of all emements is d,
  Total)
• int Sum(int A, int Index, int Lower, int
  Upper)
• int Temp0
• for(IndexLower IndexltUpper Index)
• TempTempAIndex
• return Temp

38
Parameter Passing by Result

• An Implementation for the Out Mode semantics
  model.
• Formal parameter acts as a local variable and
  does not transfer back its value to the
  corresponding actual argument upon exit the
  subprogram.
• Need local storage and data transfer.
• Transfer back order is usually implementation
  dependent. this causes portability problem.

39
Parameter Passing by Result

• include ltstdio.hgt
• main()
• void Init(int, int, int)
• int Index, A5
• Init(A,0,5)
• for(Index0 Indexlt5 Index)
• printf(d, AIndex)
• void Init(int A, int Lower, int Upper)
• int I
• for(ILower IltUpper I)
• xII2

40
Parameter Passing by Value-Result

• A combination of pass by value and pass by
  result.
• An implementation for the InOut Mode semantics
  mode.
• Also known as call by copy.
• Share the same advantages/disadvantage of pass by
  value and pass by result.

41
Parameter Passing by Value-Result

• (calling subprogram)
• void Change(int)
• int A10
• Change(A)
• printf(d,A)
• (called subprogram) Change(int X)
• X5
• A2

42
Expressions

• Formed from operators and operands.
• Operators are known as functions, operands are
  known as arguments or parameters.
• Predefined operators or user-defined operators
• Monadic or unary operators, dyadic or binary
  operators, ternary operators
• Function can have different number of operands

43
Infix Notation

• Operand1, Operator Operand2
• Tree RepresentationPage83 Figure3-3
• Suitable for binary operations.
• With implicit precedence and associativity rules
  and explicit use of parentheses provides a
  natural representation for most arithmetic,
  relational,and logical expressions.

44
Prefix Notation

• Also know as Polish Prefix
• Operator Operand1 operand2
• Parenthesis-free
• Cambridge Polish A variant of prefix notation
  used in LISP. All operators and operands must be
  enclosed in parentheses .
• ( (- 5 3) ( 2 4) )
• The decoding of prefix notation extends to
  operators with kgt1 operands

45
Prefix Notation

• Also known as Suffix or Reverse Polish notation.
• Operand1 operand2 operator
• Parentheses free
• Can be evaluated easily by use of a stack
  structure.
• The decoding of postfix notation extends to
  operators with kgt1 operands.

46
Mixfix Notation

• The operations are defined as a combination of
  prefix, postfix,and infix notations.
• If agtb then a 25 else b 35
• While (agtb) a b5
• For(a25 alt10 aa1) b b5
• refer to page 85

47
Applicative Order Evaluation
48
Normal Order Evaluation
49
Short Circuit Evaluation
50
Lazy Evaluation
51
Block Order Evaluation
