EEL 4930 6 5930 5, Spring 06 Physical Limits of Computing

1

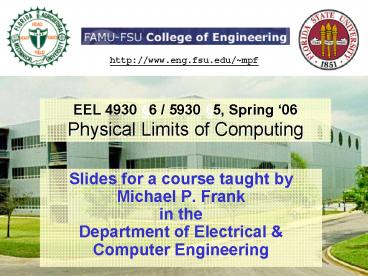

EEL 4930 6 / 5930 5, Spring 06Physical Limits
of Computing
http//www.eng.fsu.edu/mpf

• Slides for a course taught byMichael P. Frankin
  the Department of Electrical Computer
  Engineering

2
Physical Limits of ComputingCourse Outline
Currently I am working on writing up a set of
course notes based on this outline,intended to
someday evolve into a textbook

• Course Introduction
• Moores Law vs. Modern Physics
• Foundations
• Required Background Material in Computing
  Physics
• Fundamentals
• The Deep Relationships between Physics and
  Computation

• IV. Core Principles
• The two Revolutionary Paradigms of Physical
  Computation
• V. Technologies
• Present and Future Physical Mechanisms for the
  Practical Realization of Information Processing
• VI. Conclusion

3
Part II. Foundations

• This first part of the course quickly reviews
  some key background knowledge that you will need
  to be familiar with in order to follow the later
  material.
• You may have seen some of this material before.
• Part II is divided into two chapters
• Chapter II.A. The Theory of Information and
  Computation
• Chapter II.B. Required Physics Background

4
Chapter II.A. The Theory of Information and
Computation

• In this chapter of the course, we review a few
  important things that you need to know about
• II.A.1. Combinatorics, Probability, Statistics
• II.A.2. Information Communication Theory
• II.A.3. The Theory of Computation

5
Section II.A.2. The Theory of Information and
Communication

• This section is a gentle introduction to some of
  the basic concepts of information theory
• also known as communication theory.
• Sections
• (a) Basic Concepts of Information
• (b) Quantifying Information
• (c) Information vs. Entropy
• (d) Communication Channels
• Later in the course, we will describe Shannons
  famous theorems concerning the fundamental limits
  of channel capacity.
• As well as some newer, more general quantum
  limits on classical and quantum communication.

6
Subsection II.A.2.a Basic Concepts of
Information

• Etymology of InformationVarious Senses of
  InformationInformation-Related Concepts

7
Etymology of Information

• Earliest historical usage in English (from Oxford
  English Dictionary)
• The act of informing,
• As in education, instruction, training.
• Five books come down from Heaven for information
  of mankind. (1387)
• Or a particular item of training, i.e., a
  particular instruction.
• Melibee had heard the great skills and reasons
  of Dame Prudence, and her wise informations and
  techniques. (1386)
• Derived by adding the action noun ending ation
  (descended from Latins tio) to the
  pre-existing verb to inform,
• Meaning to give form (shape) to the mind
• to discipline, instruct, teach
• Men so wise should go and inform their kings.
  (1330)
• And inform comes from Latin informare, derived
  from noun forma (form),
• Informare means to give form to, or to form an
  idea of.
• Latin also even already contained the derived
  word informatio,
• meaning concept or idea.
• Note The Greek words e?d?? (eídos) and µ??f?
  (morphé),
• Meaning form, or shape,
• were famously used by Plato ( later Aristotle)
  in a technical philosophical sense, to denote the
  true identity or ideal essence of something.
• Well see that our modern concept of physical
  information is not too dissimilar!

8
Information Our Definition

• Information is that which distinguishes one thing
  (entity) from another.
• It is (all or part of) an identification or
  description of the thing.
• It is a specification of (some or all of) the
  things properties or characteristics.
• We can consider that every thing carries or
  embodies a complete description of itself.
• It does this simply in virtue of its own being,
  its own existence.
• In philosophy, this inherent description is
  called the entitys form or constitutive essence.

9
Specific Senses of Information

• But, let us also take care to distinguish between
  the following uses of information
• A form or pattern of information
• An abstract configuration of information, as
  opposed to a specific instantiation.
• Many separate instances of information contained
  in separate objects may have identical patterns,
  or content.
• We may say that those instances are copies of
  each other.
• An instance or copy of information
• A specific instantiation (i.e., as found in a
  specific entity) of some general form.
• A holder or slot or location for storing
  information
• An indefinite or variable (mutable) instance of
  information (or place where instances may be)
  that may take on different forms at different
  times or in different situations.
• A wraith (pulse? cloud?) of information
• A physical state or set of states, dynamically
  changing over time.
• A moving, constantly-mutating instance of
  information, where the container of that
  information may even transition from one physical
  system to another.
• A stream of information
• An indefinitely large instance of information,
  extended over time
• A piece of information
• All or a portion of a pattern, instance, wraith,
  or stream of information.
• A nugget of information
• A piece of information, together with an
  associated semantic interpretation of that
  information.
• A nugget is often implicitly a valuable,
  important fact (the meaning of a fact is a true
  statement).

10
Information-related concepts

• It will also be convenient to discuss the
  following
• A container or embodiment of information
• A physical system that contains some particular
  instance of, placeholder for, or pulse of
  information. (An embodiment contains nothing but
  that.)
• A symbol or message
• A form or instance of information or its
  embodiment produced with the intent that it
  should convey some specific meaning, or semantic
  content.
• A message is typically a compound object
  containing a number of symbols.
• An interpretation or meaning of information
• A particular semantic interpretation of a form
  (pattern of information), tying it to potentially
  useful facts of interest.
• May or may not be the originally intended
  meaning!
• A representation of information
• An encoding of one pattern of information within
  some other (frequently larger) pattern.
• The representation goes according to some
  particular language or code.
• A subject of information
• An entity that is identified or described by a
  given pattern of information.
• May be abstract or concrete, mathematical or
  physical

11
Information Concept Map
Meaning (interpretationof information)
Nugget (valuablepiece of information)
Has a
Describes, identifies
Interpretedto get
Representedby
Has a
Measures
Quantity ofinformation
Thing (subjector embodiment)
Form (pattern ofinformation)
Measures size of
Has a
Measures
Instantiatedby/in
Maybe a
Instantiates,has
Measures
Forms, composes
Contains, carries, embodies
Has a changing
Wraith (dynamic body of information,changing
cloud of states)
Physicalentity orsystem
Instance (copyof a form)
Can move from one to another
12
Example A Byte in a Register

• The bit-sequence 01000001 is a particular form.
• Suppose there is an instance of this particular
  pattern of bits in a certain machine register in
  the computer on my desk.
• The register hardware is a physical system that
  is a container of this particular instance.
• The physical subsystem delimited by the high and
  low ranges of voltage levels on the registers
  storage nodes embodies this sequence of bits.
• The register could hold other forms as well it
  provides a holder that can contain an instance of
  any form that is a sequence of 8 bits.
• When the register is erased later, the specific
  wraith of information that it contained will not
  be destroyed, but will only be released into the
  environment.
• Although in an altered form which is scrambled
  beyond all hope of recognition.
• The instance of 01000001 contained in the
  register at this moment happens to be intended to
  represent the letter A (which is another form,
  and is a symbol)
• The meaning of this particular instance of the
  letter A is that a particular students grade in
  this class (say, Joe Smiths) is an A.
• The valuable nugget of information which is the
  fact that Joe has an A is also represented in
  this register.
• The subject of this particular piece of
  information is Joes grade in the class.
• The quantity of information contained in the
  machine register is Log(256) 1 byte 8 bits,
  because the slot could hold any of 256 different
  forms (bit patterns).
• But in the context of my grading application, the
  quantity of information contained in the message
  A is only Log(5) 2.32 bits, since only 5
  grades (A,B,C,D,F) are allowed.
• The size of the form A is 8 bits in the context
  of the encoding being used.

13
Subsection II.A.2.b Quantifying Information

• Capacity of Compound Holders
• Logarithmic Information Measures
• Indefinite Logarithms
• Logarithmic Units

14
Quantifying Information

• One way to quantify forms of information is to
  try to count how many distinct ones there are.
• Unfortunately, the number of all conceivable
  forms is infinite.
• However, we can count the forms in particular
  finite subsets
• Consider a situation defined in such a way that a
  given information holder (in the context of that
  situation) can only take on forms that are chosen
  from among some definite, finite number N of
  possible distinct forms.
• One way to try to characterize the informational
  size or capacity of the holder (the amount of
  information in it) would then be to simply
  specify the value of N, the number of forms it
  could have.
• This would describe the amount of variability of
  its form.
• However, the raw number N by itself does not seem
  to have the right mathematical properties to
  characterize the size of the holder in an
  intuitive way
• Intuition tells us that the capacity of holders
  should be additive
• E.g., it is intuitively clear that two pages of a
  book should be able to hold twice as much
  information as one page.

15
Compound Holders

• Consider a holder of information C that is
  composed by taking two separate and independent
  holders of information A, B, and considering them
  together as constituting a single compound holder
  of information.
• Suppose now also that A has N possible forms, and
  that B has M possible forms.
• Clearly then, due to the product rule of
  combinatorics, C as a whole has NM possible
  distinct forms.
• Each is obtained by assigning a form to A and a
  form to B independently.
• But should the size of the holder C be the
  product of the sizes of A and B?
• It would seem more natural to say sum,so that
  the whole is the sum of the parts.
• How can we arrange for this to be true?

Holder C Has NM forms
Holder A
Holder B
N possibleforms
M possibleforms
16
Measuring Information with Logarithms

• Fortunately, we can convert the product to a sum
  by using logarithmic units for measuring
  information.
• Due to the rule about logarithms that log(NM)
  log(N) log(M).
• So, if we declare that the size or capacity or
  amount of information in a holder of information
  is defined to be the logarithm of the number of
  different forms it can have,
• Then we can say, the size of the compound holder
  C is the sum of the sizes of the sub-holders A
  and B that it comprises.
• Only problem What base do we use for the
  logarithm here?
• Different bases would give different numeric
  answers.
• Any base could be chosen by convention, but would
  be arbitrary.
• A choice of a particular base amounts to choosing
  an information unit.
• Arguably, the most elegant answer is
• Leave the base unspecified, and declare that an
  amount of information is not a number, but rather
  is a dimensioned indefinite logarithm quantity.

17
Indefinite Logarithms

• Definition. Indefinite logarithm. For any real
  number xgt0, let the indefinite logarithm of x,
  written Logx, be defined as
• Logx ?b.logbx
• In other words, the value of Logx is a function
  object with one argument (b), where this function
  takes any value of the base b (gt1) and returns
  the resulting value of logb x.
• E.g., Log256 ?b.logb 256 (a function of 1
  argument),
• So for example, Log256(2) 8 and Log256(16)
  2
• Sums, negations, and scalar multiples of
  indefinite logarithm objects can be defined quite
  naturally,
• by simply operating on the value of the
  lambda-function in the corresponding way.
• See the paper The Indefinite Logarithm,
  Logarithmic Units, and the Nature of Entropy in
  the readings for details.

(using lambda- calculus notation)
18
Indefinite Logarithms as Curves

• The object LogN can also be identified with the
  entire curve or graph (point set) (b, logb N)
  b gt 1.

Note The Log1curve is 0 every-where, the
Log4curve is twice ashigh as the
Log2curve, Log10 isLog2Log5 andis
also equal to (log210)?Log2 3.322?Log2 In
general, each curve is just some constant
multiple of each other curve!
Larger valuesof the argument N
Log10
Log4
Log3
Log2
Log1
19
Indefinite Exponential

• The inverse of the indefinite logarithm function
  could be called the indefinite exponential.
• Definition. Indefinite exponential. Given any
  indefinite logarithm object L, the indefinite
  exponential of L, written ExpL, is defined
  by ExpL bL(b)
• where b gt 0 may be any real number.
• This definition is meaningful because all values
  of b will give the same result x, since for any
  b, we have that
• where x is the unique real number such that
  LLogx.
• Thus, ExpLogx x and LogExpL L always.

20
Logarithmic Quantities Units

• Theorem. Any given indefinite-logarithm quantity
  Logx is equal to a scalar multiple of any fixed
  indefinite-logarithm quantity, called a
  logarithmic unit Lu Logu, where u can be any
  standard chosen base gt0, and where the scalar
  coefficient is logu x. Or, in symbols,
• Logx (logu x)Lu.
• Example Let the logarithmic unit b L2
  Log2 be called the bit (binary digit).
• Then Log16 4 Log2 4b (4 bits).

21
Some Common Logarithmic Units

• Decibel dB L1.2589 Log100.1
• Binary digit or bit b L2 Log2
• A.k.a. the octave when used to measure tonal
  intervals in music.
• Neper or nat n Le Loge
• A.k.a. Boltzmanns constant k in physics, as we
  will see!
• Octal digit o L8 3L2 Log8
• Bel or decimal digit d L10 10 dB Log10
• A.k.a. order of magnitude, power of ten, decade,
  Richter-scale point.
• Nibble or hex digit h L16 4L2 Log16
• Byte or octet B L256 8L2 Log256
• Kilobit or really kibibit kb Log21,024
• Joule per Kelvin J/K Log103.14558e22
  (roughly)
• Units of physical entropy are equivalent to
  indefinite-logarithm units!

22
Conversions Between Different Logarithmic Units

• Suppose we are given a logarithmic quantity Q
  expressed as a multiple of some logarithmic unit
  La (that is, QcaLa where ca is a number),
• and suppose that we wish to re-express Q in terms
  of some other logarithmic unit Lb, i.e., as Q
  cbLb.
• The ratio between the two logarithmic units
  LaLoga and LbLogb is La/Lb logba.
• So, cb Q/Lb caLa/Lb calogba.
• And so Q (calogba) Lb.
• Example. How many nats are there in a byte?
• The quantity to convert is 8 bits, Q 1B 8b
  8L2.
• The answer should be in units of nats, n Le.
• Thus, Q (8loge 2)Le (80.693) n 5.55 nats.

23
Capacity of a Holder of Information

• After all of that, we can now make the following
  definition
• Definition. The (information) capacity C of (or
  the amount of information I contained in) a
  holder of information H that has N possible forms
  is defined to be the indefinite logarithm of N,
  that is, CH LogN.
• Like any indefinite logarithm quantity, CH can be
  expressed in any of the units previously
  discussed bits, nats, etc.
• Example. A memory chip manufacturer develops a
  memory technology in which each memory cell
  (capacitor) can reliably hold any of 16
  distinguishable logic voltage levels. (For
  example, 0V, 0.1V, 0.2V, , 1.5V.) Therefore,
  what is the information capacity of each cell
  (that is, of its logical macrostate, as defined
  by this set of levels), when expressed both in
  bits, and in kB units (nats)?
• Answer. N16, so Ccell Log16
• Log16 (log2 16)Log2 4Log2 4 bits
• Log16 (loge 16)Loge 2.77Loge 2.8 kB

24
Subsection II.A.2.c Information and Entropy

• Complexity of a Form
• Optimal Encoding of a Form
• Entropy of a Probability Distribution
• Marginal Conditional Entropy
• Mutual Information

25
Quantifying The Size of a Form

• In the previous subsection, we managed to
  quantify the size or capacity of a holder of
  information, as the indefinite logarithm of the
  number of different forms that it could have.
• But, that doesnt tell us how we might quantify
  the size or complexity of a specific form, by
  itself.
• What about saying The size of a given form is
  the capacity of the smallest holder that could
  have that form?
• The problem with that definition is
• We can always imagine a holder constrained to
  only have that form and no other.
• Its capacity would be Log1 0.
• So, with this definition the size of all forms
  would be 0.
• Another idea Lets measure the size of a form
  in terms of the number of small, unit-size pieces
  of information that it takes to describe it.
• To do this, we need some language that we can use
  to represent forms, e.g., an encoding of forms in
  terms of sequences of symbols.
• Given a language, we can then say that the size
  or informational complexity K of a given form is
  the length of the shortest symbol string that
  represents it in our chosen language.
• Its maximally compressed description.
• At first, this definition seems pretty ambiguous,
  but

26
Why Complexity is Meaningful

• In their algorithmic information theory,
  Kolmogorov and Chaitin showed that informational
  complexity is almost language-independent, up to
  a fixed (language-dependent) additive constant.
• In the case of universal (Turing-complete)
  languages.
• Also, whenever we have a probability distribution
  over a set of possible forms, Shannon showed us
  how to choose an encoding of the forms that
  minimizes the expected size of the codeword
  instance that is needed.
• This choice of encoding then minimizes the
  expected complexity of the forms under the given
  distribution.
• If such a probability distribution is available,
  we can then assume that the language has been
  chosen appropriately so as to minimize the
  expected length of the forms shortest
  description.
• We define this minimized expected complexity to
  be the entropy of the system under the given
  distribution.

27
Definition of Entropy

• The definition of entropy which we just stated is
  very important, and well worth repeating.
• Definition. Entropy. Given a probability
  distribution over a set of forms, the entropy of
  that distribution is the expected form
  complexity, according to whatever encoding of
  forms yields the smallest expected complexity.
• The definition can be applied to also define the
  entropy of information holders, wraiths, etc.
  that have given probability distributions over
  their possible forms.

28
The Optimal Encoding

• Suppose a specific form F has probability p.
• Thus, it has improbability i 1/p.
• Note that this is the same probability that F
  would have if it were one of i equally-likely
  forms.
• We saw earlier that a holder of information
  having i possible forms is characterized as
  containing a quantity of information Logi.
• So, it seems reasonable to declare that the
  complexity K of the form F itself is, in fact,
  K(F) Logi Log1/p -Logp.
• This suggests that in the optimal encoding
  language, the description of the form F could be
  held in a holder of that capacity.
• In his Mathematical Theory of Communication
  (1949) Claude Shannon showed that in fact this is
  exactly correct,
• In an asymptotic limit where we permit ourselves
  to consider encodings in which many similar
  systems (whose forms are chosen from the same
  distribution) are described together.
• Modern block-coding schemes (turbo codes, etc.)
  in fact closely approach Shannons ideal encoding
  efficiency.

29
Optimal Encoding Example

• Suppose a system has four forms A, B, C, D with
  the following probabilities
• p(A)½, p(B)¼, p(C)p(D)1/8.
• Note that the probabilities sum to 1, as they
  must.
• Then the corresponding improbabilities are
• i(A)2, i(B)4, i(C)i(D)8.
• And the form sizes (log-improbabilities) are
• K(A) Log2 1 bit, K(B) Log4 2 Log2
  2 bits, K(C) K(D) Log8 3 Log2 3
  bits.
• Indeed, in this example, we can encode the forms
  using bit-strings of exactly these lengths, as
  follows
• A0, B10, C110, D111.
• Note that this code is self-delimiting
• the symbols can be concatenated together without
  ambiguity.

0
1
A
1
0
B
1
0
C
D
30
The Entropy Formula

• Naturally, if we have a probability distribution
  over the possible forms F of some system (holder
  of information),
• We can easily calculate the expected complexity K
  of the systems form, which is the entropy S of
  the system.
• This is possible since K itself is a random
  variable,
• a function of the event that the system has a
  specific form F.
• The entropy S of the system is then
• We can also view this formula as a simple
  additive sum of the entropy contributions s pK
  pLogp-1 arising from the individual forms.
• The largest single contribution to entropy comes
  from individual forms that have probability p
  1/e, in which case s Loge/e .531 bits.
• The entropy formula is often credited to Shannon,
  but it was already known was being used by
  Boltzmann in the 1800s.

31
Visualizing the Contributions toEntropy in a
Probability Distribution
Contribution to
s in
32
Known vs. Unknown Information

• We can consider the informational capacity I
  LogN of a holder that is defined as having N
  possible forms as telling us the total amount of
  information that the holder contains.
• Meanwhile, we can consider its entropy S
  ?Logi(f)? as telling us how much of the total
  information that it contains is unknown to us.
• How much unknown information the holder contains,
  In the perspective specified by the distribution
  p().
• Since S I, we can also define the amount of
  known information (hereby dubbed extropy)
  contained in the holder as X I - S.
• Note that our probability distribution p() over
  the holders form could change (if we gain or
  lose knowledge about it),
• Thus, the holders entropy S and extropy X may
  also change.
• However, note that the total informational size
  of a given holder, I LogN X S, always
  still remains a constant.
• Entropy and extropy can be viewed as two forms of
  information, which can be converted to each
  other, but whose total amount is conserved.

33
Information/Entropy Example

• Consider a tetrahedral die which maylie on any
  of its 4 faces labeled 1,2,3,4
• We say that the answer to the question Which
  side is down? is a holder of information having
  4 possible forms.
• Thus, the total amount of information contained
  in this holder, and in the orientation of the
  physical die itself, is Log4 2 bits.
• Now, suppose the die is weighted so that p(1)½,
  p(2)¼, and p(3)p(4)1/8 for its post-throw
  state.
• Then K(1)1b, K(2)2b, and K(3)S(4)3b.
• The entropy of the holder is then S 1.75 bits.
• This much, this much information remains unknown
  to us before we have taken a look at the thrown
  die.
• The extropy (known information) is already X
  0.25 bits.
• Exactly one-fourth of a bits worth of knowledge
  about the outcome is already expressed by this
  specific probability distribution p().
• This much information about the dies state is
  already known to us even before we have looked at
  it.

34
HolderVariable, FormValue, and Types of Events.

• A holder corresponds to a variable V.
• Also associated with a set of possible values
  v1,v2,.
• Meanwhile, a form corresponds to a value v of
  that variable.
• A primitive event is a proposition that assigns a
  specific form v to a specific holder, Vv.
• I.e., a specific value to a specific variable.
• A compound event is a conjunctive proposition
  that assigns forms to multiple holders,
• E.g., Vv, Uu, Ww.
• A general event is a disjunctive set of primitive
  and/or compound events.
• Essentially equivalent to a Boolean combination
  of assignment propositions.

35
Four Concepts to Distinguish

• A set corresponds to (is a)
• System, state space, sample space, situation
  space, outcome space.
• A partitioning of the set is a
• Subsystem, state variable, mutex/ex set of
  events
• A section of the partitioning, or a subset of the
  set, is a
• Subsystem state, macrostate, value of variable,
  event, abstract proposition
• An individual element is
• System configuration, microstate, primitive
  event, complete outcome.

36
Entropy of a Binary Variable
Below, little s of an individual form or
probability denotesthe contribution to the total
entropy of a form with that probability.
Maximum s(p) (1/e) nat (lg e)/e bits .531
bits _at_ p 1/e .368
37
Proof that a form w. improbability econtributes
the most to the entropy

• Lets find the slope of the s curve
• Take the derivative, using standard calculus
• But now, whats the derivative of an indefinite
  logarithm quantity like Logp-1?
• Lets rewrite Logp-1 as k ln p-1 (where the
  constant k Le Loge is the indefinite log of
  e), so then
• Plugging this is to the earlier equation, we get
• Now just set this to 0 and solve for p

38
Joint Distributions over Two Holders

• Let X, Y be two holders, each with many forms
  x1, x2, and y1, y2, .
• Let xy represent the compound event Xx,Yy.
• Note the set of all xys is a mutually exclusive
  and exhaustive set.
• Suppose we have available a joint probability
  distribution p(xy) over the compound holder XY.
• This then implies the reduced or marginal
  distributions p(x)?y p(xy) and p(y)?x p(xy).
• We also thus have conditional probabilities
  p(xy) and p(yx), according to the usual
  definitions.
• And we have mutual probability ratios r(xy).

39
Joint, Marginal, Conditional Entropyand Mutual
Information

• The joint entropy S(XY) ?Logi(xy)?.
• The (prior, marginal or reduced) entropy S(X)
  S(p(x)) ?Logi(x)?. Likewise for S(Y).
• The entropy of each subsystem, taken by itself.
• Entropy is subadditive S(XY) S(X) S(Y).
• The conditional entropy S(XY) ExyS(p(xy))
• The expected entropy after Y is observed.
• Theorem S(XY) S(XY) - S(Y). Joint entropy
  minus that of Y.
• The mutual information I(XY) ?Logr(xy)?.
• We will also prove Theorem I(XY) S(X) -
  S(XY).
• Thus the mutual information is the expected
  reduction of entropy in either subsystem as a
  result of observing the other.

40
Conditional Entropy Theorem
The conditional entropy of X given Y is the joint
entropy of XY minus the entropy of Y.
41
Mutual Information is Mutual Reduction in Entropy
And likewise, we also have I(XY) S(Y) -
S(YX), since the definition of I is symmetric.
I(XY) S(X) S(Y) - S(XY)
Also,
42
Visualization of Mutual Information

• Let the total length of the bar below represent
  the total amount of entropy in the system XY.

S(YX) conditional entropy of Y given X
S(X) entropy of X
S(XY) joint entropy of X and Y
S(XY) conditional entropy of X given Y
S(Y) entropy of Y
43
Example 1

• Suppose the sample space of primitive events
  consists of 5-bit strings Bb1b2b3b4b5.
• Chosen at random with equal probability (1/32).
• Let variable Xb1b2b3b4, and Yb3b4b5.
• Then S(X) ___ bits, and S(Y) ___ b.
• Meanwhile S(XY) ___ b.
• Thus S(XY) ___ b, and S(YX) ___ b
• And so I(XY) ___ b.

4
3
5
2
1
2
44
Example 2

• Let the sample space A consist of the 8 letters
  a,b,c,d,e,f,g,h. (All equally likely.)
• Let X partition A into x1a,b,c,d and
  x2e,f,g,h.
• Y partitions A into y1a,b,e, y2c,f,
  y3d,g,h.
• Then we have
• S(X) 1 bit.
• S(Y) 2(3/8 log 8/3) (1/4 log 4) 1.561278
  bits
• S(YX) (1/2 log 2) 2(1/4 log 4) 1.5 bits.
• I(XY) 1.561278b - 1.5b .061278 b.
• S(XY) 1b 1.5b 2.5 b.
• S(XY) 1b - .061278b .938722 b.

Y
a
b
c
d
X
e
f
g
h
(Meanwhile, the total information content of the
sample space log 8 3 bits)
45
Effective Entropy?

• In many situations, using the ideal Shannon
  compression may not be feasible in practice.
• E.g., too few instances, block coding not
  available, no source model
• Or, a short algorithmic description of a given
  form might exist, but it might be infeasible to
  compute it
• However, given the following
• A holder with an associated set of forms
• A probability distribution over the forms
• A particular encoding strategy
• E.g., an effective (short run-time) compression
  algorithm
• we can define the effective entropy of the holder
  in this situation to be the expected compressed
  size of its encoded form, as compressed by the
  available algorithm.
• This then is the definition of what the entropy
  can be considered to be for practical purposes
  given the capabilities in that situation.

46
Subsection II.A.2.d Communication Channels

• Shannons Paradigm
• Channel Capacity
• Shannons Theorems

47
Communication Theory

• Shannons Ph.D. thesis Mathematical Theory of
  Communication (1948) is the seminal work that
  established the field of Communication Theory.
• a.k.a. Information Theory.
• It deals with the theory of noiseless and noisy
  communication channels for transmitting messages
  consisting of sequences of symbols chosen from a
  probability distribution.
• Where the channel can be any medium or process
  for communicating information through space
  and/or time.
• Shannon proves (among other things) that every
  channel has a certain capacity for transmitting
  information, and that this capacity is related to
  the entropy of the source and channel probability
  distributions.
• At rates less than the channels capacity, coding
  schemes exist that can transmit information with
  an arbitrarily small probability of error.

48
Shannons Paradigm

• A communication system is any system intended for
  communicating messages (nuggets of information)
• Selected from among some set of possible
  messages.
• Often, the set of possible messages must be
  astronomically large
• In general, such a system will include the
  following six basic components
• (1) Information Source (4) Noise Source
• (2) Transmitter (5) Receiver
• (3) Channel (6) Destination

Noise Source
Destination
Information Source
Receiver
Transmitter
Noise
Channel
Re-ceivedSignal
Message
Signal
Message
49
Discrete Noiseless Channels

• A channel is simply any medium for the
  communication of signals, which carry messages.
• Meaningful instances of information.
• A discrete channel supports the communication of
  discrete signals consisting of sequences (or
  other kinds of patterns) made up of discrete
  (distinguishable) symbols.
• There may be constraints on what sequences are
  allowed
• If the channel is noiseless, we can assume that
  the signals are communicated exactly from
  transmitter to receiver.
• Noisy channels will be addressed in a later part
  of the theory
• The information transmission capacity C of a
  discrete noiseless channel can be defined as
• where t is the duration of the signal (in time)
  and N(t) is the number of mutually
  distinguishable signals of duration t.
• This is just the asymptotic information capacity
  of the channel (considered as a container of
  information) per unit time.

50
Ergodic Information Sources

• In general, we can consider the information
  source to be producing a stream of information of
  unbounded length.
• Even if the individual messages are short, we can
  always consider situations where there are
  unbounded sequences of such messages.
• For the theory to apply, we must consider the
  source to be produced by an ergodic process.
• This is a process for which all streams look
  statistically similar in the long run
• In the limit of sufficiently long streams
• A discrete ergodic process can be modeled by a
  Hidden Markov Model (HMM) with a unique
  stationary distribution.
• An HMM is essentially just a Finite State Machine
  with nondeterministic transitions between states,
  and no input
• But with output, which may be nondeterministic
  also
• A stationary distribution is just a probability
  distribution over states that is an eigenfunction
  of the HMMs transition probability matrix.

51
Example Ergodic Source

• This Markov model qualifies as an ergodic source
• The equilibrium distribution for this particular
  Markov process is pA1/6, pB5/6.
• A typical long output string will be 1/6 As, 5/6
  Bs.
• Also, a B is more likely immediately following
  another B
• Since the machine has memory (more than 1 state),
  note that successive symbols are in general not
  independent of each other!

.5
A
B
A
A
B
.9
.5
B
.1
Transition matrix
52
Noiseless Coding Theorem

• For a given discrete ergodic process, let pi be
  the distribution of symbol probabilities, in the
  stationary (equilibrium) distribution. this is
  not quite right
• And let H be the entropy of this distribution.
• With a probability that approaches 1 as n??, a
  typical sequence of n symbols produced by the
  process will have improbability i ? ExpnH,
• And therefore, we can represent this block of
  symbols by a codeword with size S Log i
  nH.
• As n gets large, the relative inefficiency that
  results from using codewords that are integer
  multiples of some fixed unit (e.g. a bit) in size
  approaches 0.

53
Formal Version of Theorem

• Theorem. Shannons Noiseless Coding Theorem. For
  any e,d gt 0, there is an n0 such that for any
  length ngtn0, the sequences of length n all fall
  into two sets
• Atypical sequences whose total probability is
  less than e.
• Typical sequences, each of whose probability
  satisfies
• Where K log i log p-1 is the particular
  sequences complexity
• Due to the theorem, codewords of size S nH will
  be within nd of the optimal code length (the
  sequence complexity) K, for all of the typical
  sequences.
• The atypical sequences will require longer
  codewords (or cause errors), but they can be made
  as rare as desired.
• The efficiency of such a code approaches optimal.

54
Existence of Near-Optimal Code

• Let Nn(e) be the number of sequences of length n,
  except for as many of the least-probable
  sequences as we can gather but still have total
  probability lte.
• Theorem For all values of e in the range 0ltelt1,
• Implication For large values of n, the number of
  likely sequences Nn(e) roughly matches the
  number ExpnH of different codewords of size nH.
• Thus, there are not too many such sequences for
  us to be able to code for each one with a unique
  codeword.

55
Noiseless Coding Example

• In the previous example, the entropy turns out to
  be H 0.650022422 bits.
• Thus, for example, an average sequence of, say, n
  20 symbols will be encoded with 20H
  13.00044843 bits (almost exactly 13 bits) in an
  ideal code.
• Here is a fairly typical sequence of 20 symbols
  (here there are 3/20 1/6 As)
• BBBBBABBBABBBBBBABBB
• Probability 2.6478?10-5 Improbability (1 in)
  37767 Complexity 15.205 bits
• Here is an atypical sequence of 20 symbols
  (17/20 ? 1/6 As)
• AAAABAAAAAAABAAAAAAB
• Probability 1.2716?10-8 Improbability (1 in)
  78,643,200 Complexity 26.229 bits
• So, e.g., one fairly efficient encoding for this
  particular ergodic source would be
• Chop the data stream into 20-symbol blocks.
• Sort all 220 of the possible 20-symbol sequences
  by order of their probability.
• Assign the 213 8,192 most-likely sequences (the
  typical sequences) unique binary codewords
  consisting of a 1, followed by a 13-bit sequence
  number.
• Assign the other 220-213 1,040,384 sequences
  (the atypical sequences) longer codewords
  consisting of, say, a 0 followed by all 20 bits
  of the full symbol string.
• Shannons theorem tells us that all of the
  atypical sequences put together have some
  relatively small total probability e.
• And if e is not small enough to be ignored, we
  can simply choose a larger block size n.
• Assuming eltlt1, the expected encoding size of each
  block will be 14 bits
• Note this is only one bit larger than the ideal
  size of of 13 bits.
• The extra bit needed to mark the sequence as
  typical becomes negligible for large n.

56
Actual Data Relating to Example
57
Roulette Wheel Coding

• An algorithm for coding continuous data streams
  from known ergodic information sources.
• Doesnt require data blocking!
• We imagine that a single spin of a very large
  roulette wheel generates theentire infinite
  input data sequence
• As the wheel slowly comes to a halt,infinitely
  many symbols are generated
• Each possible initial subsequence maps to a
  region of the wheel orientations having an
  angular size that is proportional to the
  subsequences probability
• Simultaneously, the sequences encoding is
  generated in the same way
• But with a different symbol distribution that
  lends itself toward efficient transmission (e.g.,
  equiprobable 0s and 1s)

58
Roulette Wheel Example

• Here is how the roulette wheel is marked for the
  particular ergodic process described earlier
• This is the mapping from input code sequences to
  wheel positions.
• The wheel region for each sequence is
  proportional to its probability.

0
360
A(1/6)
B (5/6)
1stsymbol
A
B
A
B (5/6 x 9/10)
2ndsymbol
A
B
A
B
A
B
A
B
3rdsymbol

59
Roulette Wheel Output Code

• The output codespace divides up the wheel
  similarly to (but more regularly than) the input
  one
• Note Output sequencelengths areexactly
  theirLogi values!
• This is whythe code isso efficient

0
360
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
60
Roulette Wheel Algorithm

• Main variable in the algorithm
• A current range R of possible roulette wheel
  positions, initially 0,1.
• Representing wheel pointer angles in the range
  from 0 to 360.
• Places on the wheel where the pointer might end
  up pointing (or ball bouncing)
• Encoding algorithm
• 1. When the first input symbol is received,
  initialize R to a sub-region of 0,1
  corresponding to the symbol, of size equal to its
  probability.
• E.g., for our example, initially A ? 0, 1/6, B
  ? 1/6, 1
• 2. Whenever R becomes a sub-range of 0, ½ or
  ½, 1,
• output 0 or 1 respectively,
• And re-map R from its respective size-1/2
  sub-range back up into the whole 0,1 region.
  (I.e., translate it appropriately and double it
  in size.)
• 3. When the next symbol is received, narrow R
  down to a corresponding subrange of size
  proportional to the probability of that
  transition.
• E.g., if B was just received, then an A takes the
  present range down to its first 1/10, and a B
  takes it to its last 9/10.
• 4. Repeat steps 2 and 3 indefinitely (or include
  a special stop symbol).
• The decoding algorithm is very similar.

61
Pros and Cons of the Algorithm

• Pros
• Handles continuous data streams
• Doesnt require knowing length of stream in
  advance, or blocking
• Its an on-line algorithm
• It doesnt require a preprocessing phase to
  construct the code
• It only requires tracking the range, the last
  symbol seen
• Extremely simple to implement can do it in HW,
  low latency
• Yields an asymptotically optimal code (prove
  this!)
• In the case of sources modeled by (non-hidden)
  Markov chains
• Cons
• Not adaptive Requires knowing the source model
• Although this could be fixed in a more
  sophisticated version
• Its only optimal for non-hidden Markov models
• To do more optimally for cases where a full HMM
  is needed, the algorithm would need to remember
  more past symbols
• Requires unbounded precision in arithmetic!
• Otherwise, rounding errors accumulate and are
  rapidly magnified

62
Additional Communication Theory Topics to Include
Eventually

• I dont yet have slides dealing with
• Noisy channel coding theorems
• Error correcting codes
• Continuous channels
• Quantum channels
• To save time, we wont cover these topics right
  now,
• Though we will hopefully get to some basic
  elements of quantum communication theory later on
  in the course
