Multiprotocol Label Switching The future of IP Backbone Technology

1

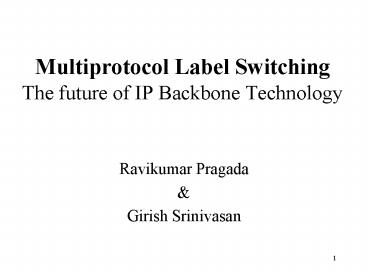

Multiprotocol Label SwitchingThe future of IP
Backbone Technology

• Ravikumar Pragada
• Girish Srinivasan

2
Overview

• Need for MPLS
• MPLS Basics
• Benefits
• Label Switched Path
• Label Distribution Protocol
• Hierarchy in MPLS
• Explicit Routing
• Loop Detection
• Traffic Engineering
• Constraint Based Routing
• Tag Switching
• IP Switching

3
Conventional IP Networks Routing

• Client networks are connected to backbone via
  edge routers
• LAN, PSTN, ADSL
• Data packets are routed based on IP address and
  other information in the header
• Functional components
• Forwarding
• responsible for actual forwarding across a router
• consists of set of procedures to make forwarding
  decisions
• Control
• responsible for construction and maintenance of
  the forwarding table
• consists of routing protocols such as OSPF, BGP
  and PIM

4
Need for Multiprotocol Label Switching (MPLS)

• Forwarding function of a conventional router
• a capacity demanding procedure
• constitutes a bottle neck with increase in line
  speed
• MPLS simplifies forwarding function by taking a
  totally different approach by introducing a
  connection oriented mechanism inside the
  connectionless IP networks

5
Label Switching

• Decomposition of network layer routing into
  control and forwarding components applicable
• Label switching forwarding component algorithm
  uses
• forwarding table
• label carried in the packet
• What is a Label ?
• Short fixed length entity

6
MPLS Basics

• A Label Switched Path (LSP) is set up for each
  route
• A LSP for a particular packet P is a sequence of
  routers,
• ltR1,R2..Rngtfor all i, 1lt i lt n Ri
  transmits P to Ri1 by means
• of a label
• Edge routers
• analyze the IP header to decide which LSP to use
• add a corresponding local Label Switched Path
  Identifier, in the form of a label
• forward the packet to the next hop

7
MPLS Basics contd..

• Subsequent nodes
• just forward the packet along the LSP
• simplify the forwarding function greatly
• increase performance and scalability dramatically
• New advanced functionality for QoS,
  differentiated services can be introduced in the
  edge routers
• Backbone can focus on capacity and performance
• Routing information obtained using a common intra
  domain routing protocol such as OSPF

8
Basic Model for MPLS Network
MPLS
LSR Label Switched Router LER Label Edge
Router
9
MPLS Benefits

• Comparing MPLS with existing IP core and IP/ATM
  technologies, MPLS has many advantages and
  benefits
• The performance characteristics of layer 2
  networks
• The connectivity and network services of layer 3
  networks
• Improves the price/performance of network layer
  routing
• Improved scalability

10
MPLS Benefits contd..

• Improves the possibilities for traffic
  engineering
• Supports the delivery of services with QoS
  guarantees
• Avoids need for coordination of IP and ATM
  address allocation and routing information

11
Necessity of L3 Forwarding

• For security
• To allow packet filtering at firewalls
• Requires examination of packet contents,
  including the IP header
• For forwarding at the initial router - used when
  hosts dont do MPLS
• For Scaling
• Forward on a finer granularity than the labels
  can provide

12
Carrying a Label

• Certain link layer technologies can carry label
  as a part of their link layer header
• e.g ATM Frame Relay
• Link layers that do not support labels in their
  header carry them in a shim label header

13
Establishing Label Switched Path

• LSPs are generated and maintained in a
  distributed fashion
• Each LSR negotiates a label for each Forwarding
  Equivalence Class (FEC) with its upstream and
  downstream neighbors using a distribution method
• Label Information Base (LIB) - Result of
  negotiation

14
LDP - Terminology

• Label Distribution Protocol (LDP)
• set of procedures by which LSRs establish LSPs
• mapping between network-layer routing information
  directly to data-link layer switched paths
• LDP peers
• two LSRs which use LDP to exchange label/stream
  mapping
• information exchange known as LDP Session

15
LDP Message Exchange

• Discovery messages - used to announce and
  maintain the presence of an LSR
• Session messages - used to establish, maintain
  and terminate sessions between LDP peers
• Advertisement messages - used to create, change,
  and delete label mappings
• Notification messages - used to provide advisory
  information and to signal error information

16
LDP Message Format
17
LDP Protocol Data Units (PDUs)

• LDP message exchanges are accomplished by sending
  LDP PDUs
• Each LDP PDU is an LDP header followed by LDP
  message
• The LDP header is

18
Forwarding Equivalence Class (FEC)

• Introduced in MPLS standards to denote packet
  forwarding classes
• Comprises traffic
• to a particular destination
• to destination with distinct service requirements
• Why FEC?
• To precisely specify which IP packets are mapped
  to each LSP
• Done by providing a FEC specification for each
  LSP

19
LSP - FEC Mapping

• FEC specified as a set of two elements
  (currently) 1. IP Address Prefix - any length
  from 0 - 32
• 2. Host Address - 32 bit IP address
• A given packet matches a particular LSP if and
  only if IP Address Prefix FEC element matches
  packets IP destination address

20
Rules for Mapping packet to a LSP

• If exactly one LSPs Host Address FEC element
  packets IP destination address, packet is mapped
  to that LSP
• If there are multiple LSPs satisfying the above
  condition, then the packet is mapped to one of
  those LSPs
• If a packet matches exactly one LSP, packet is
  mapped to that LSP
• If packet matches multiple LSPs, mapped to one
  with the longest prefix match
• Which LSP to be chosen - outside the scope of
  this presentation

21
Label Spaces

• Useful for assignment and distribution of labels
• Two types of label spaces
• Per interface label space Interface-specific
  labels used for interfaces that use interface
  resources for labels
• Per platform label space Platform-wide incoming
  labels used for interfaces that can share the
  same label space

22
LDP Identifiers

• A six octet quantity
• used to identify specific label space within an
  LSR
• First four octets encode LSRs IP address
• Last two octets identify specific label space
• Representation ltIP addressgt ltlabel space idgt
• e.g., 171.32.27.280, 192.0.3.52
• Last two octets for platform-wide label spaces
  are always both zero

23
LDP Discovery

• A mechanism that enables an LSR to discover
  potential LDP peers
• Avoids unnecessary explicit configuration of LSR
  label switching peers
• Two variants of the discovery mechanism
• basic discovery mechanism used to discover LSR
  neighbors that are directly connected at the link
  level
• extended discovery mechanism used to locate LSRs
  that are not directly connected at the link level

24
LDP Discovery contd..

• Basic discovery mechanism
• To engage - send LDP Hellos periodically
• LDP Hellos sent as UDP packets for all routers on
  that subnet
• Extended discovery mechanism
• To engage - send LDP targeted Hellos periodically
• Targeted Hellos are sent to a specific address
• Targeted LSR decides whether to respond or to
  ignore the targeted Hello
• LDP Link Hello sent by an LSR
• carries the LDP identifier for the label space
  the LSR intends to use for the interface

25
Session establishment

• Exchange of LDP discovery Hellos triggers session
  establishment
• Two step process
• Transport connection establishment
• If LSR1 does not already have a LDP session for
  the exchange of label spaces LSR1a and LSR2b,
  it attempts to open a TCP connection with LSR2
• LSR1 determines the transport addresses at its
  end (A1) and LSR2s end (A2) of the TCP
  connection
• If A1gtA2, LSR1 plays the active role otherwise
  it is passive
• Session initialization
• Negotiate session parameters by exchanging LDP
  initialization messages

26
Session Initialization State Transition Diagram
Rx - Receive Tx - Transmit
27
Session Initialization State Transition Table
28
Session Initialization State Transition Table
(cont.)
29
Label Distribution and Management

• Two label distribution techniques
• Downstream on demand label distribution
• An LSR can distribute a FEC label binding in
  response to an explicit request
• Downstream Unsolicited label distribution
• Allows an LSR to distribute label bindings to
  LSRs that have not explicitly requested them
• Both can be used in the same network at the same
  time however, each LSR must be aware of the
  distribution method used by its peer

30
Label Distribution Control Mode

• Independent Label Distribution Control
• Each LSR may advertise label mappings to its
  neighbors at any time
• In independent Downstream on Demand mode - LSR
  answers without waiting for a label mapping from
  next hop
• In independent Downstream Unsolicited mode - LSR
  advertises label mapping for a FEC whenever it is
  prepared
• Consequence upstream label can be advertised
  before a downstream label is received

31
Label Distribution Control Mode contd..

• Ordered Label Distribution Control
• Initiates transmission of label mapping for a FEC
  only if it has next FEC next hop or is the egress
• If not, the LSR waits till it gets a label from
  downstream LSR
• LSR acts as an egress for a particular FEC, if
• next hop router for FEC is outside of label
  switching network
• FEC elements are reachable by crossing a domain
  boundary

32
Label Retention Mode

• Conservative Label Retention Mode
• Advertised label mappings are retained only if
  they are used for forwarding packets
• Downstream on Demand Mode typically used with
  Conservative Label Retention Mode
• Advantage only labels required are maintained
• Disadvantage a change in routing causes delay
• Liberal Retention Mode
• All label mappings are retained regardless of
  whether LSR is next hop or not
• reaction to routing changes will be quick

33
Label Information Base

• LSR maintains learned labels in Label Information
  Base (LIB)
• Each entry of LIB associates an FEC with an (LDP
  Identifier, label) pair
• When next hop changes for a FEC, LSR will
  retrieve the label for the new next hop from the
  LIB

34
Hierarchical Operation in MPLS
Example

• External Routers A,B,C,D,E,F - Talk BGP
• Internal Routers 1,2,3,4,5,6 - Talk OSPF

Domain 2
C
D
1
Domain 3
Domain 1
6
2
3
4
5
B
F
E
A
Note Internal routers in domains 1 and 3 not
shown
35
Hierarchical Operation contd..

• When IP packet traverses domain 2, it will
  contain two labels, encoded as a label stack
• Higher level label used between routers C and D,
  which is encapsulated inside a lower level label
  used within Domain 2
• Operation at C
• C needs to swap BGP label to put label that D
  expects
• C also needs to add an OSPF label that 1 expects
• C therefore pushes down the BGP label and adds a
  lower level label

36
Label Stack

• Multiple labels are carried in data packets
• e.g. data packet carried across Domain 2
• Concept of stacking
• provides a mechanism to segregate streams within
  a switched path
• one useful application of this technique is in
  Virtual Private Networks
• Advantage of Hierarchical MPLS is that the
  internal routers need not know about higher level
  (BGP) routing

37
Multipath

• Many IP routing protocols support the notion of
  equal-cost multipath routes
• Few possible approaches for handling multipath
  within MPLS
• First approach
• separate switched path from each ingress node to
  the merge point
• preserves switching performance, but at the cost
  of proliferating the number of switched paths

38
Multipath contd..

• Second approach
• Only one switched path from one ingress node to a
  destination
• Conserves switched paths but cannot balance loads
  across downstream links as well as other
  approaches
• LSP may be different from the normal L3 path
• Third approach
• Allows single stream to be split into multiple
  streams, by using L3 forwarding
• e.g. might use a hash function on source and
  destination IP addresses
• Conserves paths at the cost of switching
  performance

39
Explicit Routing in MPLS

• Two options for route selection
• Hop by hop routing
• Explicit routing
• Explicit Routing (aka Source Routing) is a very
  powerful technique
• With pure datagram routing overhead of carrying
  complete explicit route is prohibitive
• MPLS allows explicit route to be carried only at
  the time the LSP is setup, and not with each
  packet
• MPLS makes explicit routing practical

40
Explicit Routing in MPLS contd..

• In an explicitly routed LSP
• the LSP next hop is not chosen by the local node
• selected by a single node, usually the ingress
• The sequence of LSRs may be chosen by
• configuration (e.g., by an operator or by a
  centralized server)
• an algorithm (e.g., the ingress node may make use
  of topological information learned from a link
  state routing protocol)

41
Loops and Loop Handling

• Routing protocols used in conjunction with MPLS
  are based on distributed computation which may
  contain loops
• Loops handling - 3 categories
• Loop Survival
• Loop Detection
• Loop Prevention

42
Loop Survival

• Minimizes the impact of loops by limiting the
  amount of resources consumed by the loop
• Method
• based on use of TTL field which is decrement at
  each hop
• Use of dynamic routing protocol converging
  rapidly to non-looping paths
• Use of fair queuing

43
Loop Detection

• Loops may be setup but they are subsequently
  detected
• The detected loop is then broken by dropping
  label relationship
• Broken loops now necessitates packets to be
  forwarded using L3 forwarding

44
Loop Detection (cont.)

• Method is based on transmitting a Loop Detection
  Control Packet (LDCP) whenever a route changes
• LDCP is forwarded towards the destination until
• last MPLS node along the path is reached
• TTL of the LDCP expires
• it returns to the node which originated it

45
Loop Prevention

• Ensures that loops are never set up
• labels are not used until it is sure to be loop
  free
• Methods
• labels are propagated starting at the egress
  switch
• use source routing to set up label bindings from
  the egress switch to each ingress switch

46
(No Transcript)
47
Traffic Engineering and Performance Objectives

• Traffic Engineering (TE) is concerned with
  performance optimization of operational networks
• The key performance objectives
• traffic oriented - aspects that enhance the QoS
  of traffic streams e.g minimization of packet
  loss
• resource oriented - aspects that pertain to the
  optimization of resource utilization e.g
  efficient management of bandwidth

48
Performance Objectives (cont.)

• Minimizing congestion is a major traffic and
  resource oriented performance objective
• Congestion manifest under two scenarios
• network resources are insufficient or inadequate
• can be solved by capacity expansion or classical
  congestion control techniques
• traffic streams are inefficiently mapped onto
  available resources
• can be reduced by adopting load balancing policies

49
Traffic and Resource Control

• The traffic engineer acts as the controller in an
  adaptive feedback control system which includes
• a set of interconnected network elements
• a network performance monitoring system
• network configuration management tools
• The traffic engineer formulates control policies,
  observes the state of the network, characterizes
  the traffic and applies the control actions in
  accordance to the control policy

50
MPLS and Traffic Engineering

• Main components used
• Traffic Trunk - aggregation of traffic flows of
  the same class which are placed inside a Label
  Switched Path
• Induced MPLS Graph
• analogous to a virtual topology in an overlay
  model
• logically mapped onto the physical network
  through the selections o LSPs for traffic trunk
• comprises a set of LSRs which act as nodes of the
  graph and a set of LSPs which provide logical
  point to point connectivity between LSRs and thus
  act as edges of the graph

51
Augmented Capabilities

• Set of attributes associated with traffic trunks
  which collectively specify their behavioral
  characteristics
• Set of attributes associated with resources which
  constrain the placement of traffic trunks through
  them
• A constraint based routing framework which is
  used to select paths for traffic trunks subject
  to constraints imposed

52
Basic operation on traffic trunks

• Establish - create an instance of a traffic trunk
• Activate - cause to start passing traffic
• Deactivate - stop passing traffic
• Modify Attributes
• Reroute - administratively or by underlying
  protocols
• Destroy - reclaim all resources such as label
  space and bandwidth

53
Basic attributes of traffic trunk

• Traffic parameter attribute - capture the
  characteristics of the traffic streams
• Generic Path selection and maintenance attributes
  - defines rules for selecting route taken by
  traffic trunk and rules of maintaining the paths
• Priority attribute
• Preemption attribute
• Resilience attribute
• Policing attribute

54
Resource Attributes

• Part of the topology state parameters used to
  constrain the routing of traffic trunks through
  specific resources
• Main components
• Maximum Allocation Multiplier (MAM) -
  administratively configured to determine the
  proportion of resource available for allocation
• Resource Class Attribute - administratively
  assigned parameters which express some notion of
  Class for resources

55
Constraint Based Routing

• Enables a demand driven, resource reservation
  aware, routing paradigm to co-exist with current
  topology driven protocols
• uses the following inputs
• traffic trunk attributes
• resource attributes
• other topology state information
• Basic features
• prune the resources that do not meet the
  requirements of the traffic trunk attribute
• run a shortest path algorithm on the residual
  graph

56
Constraint Based Routing (cont.)

• Strict Loose Explicit Routes
• Constraint Based LSP (CRLSP) is calculated at one
  point at the edge of the network based on certain
  criteria
• special char. such as assigning certain bandwidth
  can be supported
• The route is encoded as a series of Explicit
  routed hops contained in a CR based route TLV

57
Constraint Based Routing (cont.)

• Traffic Characteristics
• Described in the Traffic Parameter TLV in terms
  of peak rate, committed rate and service
  granularity
• Preemption
• Setup and Holding priorities are used to rank new
  and existing paths respectively to determine if
  new paths can preempt existing paths
• Allocation of these priorities is a network
  policy

58
Constraint Based Routing (cont.)

• Route Pinning
• applicable to segments of an LSP that are loosely
  routed i.e the next hop is an abstract node
• used if the LSP need not be changed
• Resource Class
• While setup , indication must be given as to
  which class the CRLSP can draw resources from

59
Implementation Consideration
Management Interface
MPLS
Constraint Based Routing Process
Conventional IGP Process
Resource Attribute Availability Database
Link State Database
60
Quality of Service using CRLSP

• Delay Sensitive Service
• the network commits to deliver with high
  probability, user datagrams at a rate of PDR with
  minimum delay and delay requirements
• Datagrams in excess of PDR will be discarded
• Throughput Sensitive Service
• the network commits to deliver at a rate of at
  least CDR
• Datagrams with higher CDR have lower probability
  of being delivered
• Best Effort Service
• No expected service is guaranteed

61
Tag Switching
62
Destination Based Routing

• A TSR participates in unicast routing protocols
  to construct its mapping between FECs and next
  hops
• This mapping is used by the Tag Switching Control
  component for constructing the TFIB which is used
  for actual packet forwarding

63
Destination Based forwarding model of Tag
Switching
192.16/16
64
Information for constructing TFIB

• A local binding between the FEC and a tag
• takes a tag from the pool of free tags and uses
  it as an index in the TFIB to set the incoming
  tag entry
• A mapping between the FEC and the next hop for
  that FEC (provided by the routing protocol(s)
  running on the TSR)
• A remote binding between the FEC and a tag that
  is received from the next hop

65
Initial TFIB Entries
66
TFIB Entries after Tag Distribution
67
Behavior during routing change
Link Down
68
Updated TFIB
69
Hierarchy of Routing Knowledge

• All TSRs within a routing domain participate in a
  common intra-domain routing protocol and
  construct TFIB corresponding to destinations
  within the domain
• All border TSRs or TERs within a domain and
  directly connected TERs from other domains also
  exchange Tag binding information via inter-domain
  routing protocol

70
Hierarchy of Routing Knowledge (cont.)

• To support forwarding in the presence of
  hierarchy of routing knowledge, Tag switching
  allows a packet to carry several tags organized
  as a tag stack
• At the ingress a tag is pushed onto the tag
  stack, and at the egress a tag is popped off a
  the stack

71
Hierarchy of Routing knowledge model
72
TFIB Entries in Routing Domain A
73
Label Stack During Hierarchical Routing
TSR Z distributes label 2 to TSR W and TSR W
gives label 5 to TSR T for the purpose of
inter-domain routing
74
Multicast in Tag Switching

• Selects the distribution tree based only on
• tag carried in a packet
• interface on which the packet arrives
• TSR maintains its TFIB on a per interface basis
• TSRs connected to a common sub-network agree
  among themselves on a common tag associated with
  a particular multicast tree

75
Multicast in Tag Switching (cont.)

• Procedures are used to partition the set of tags
  for use with multicast into disjoint subsets and
  care is taken to avoid overlapping with the help
  of HELLO packets
• TSR connected to a common sub-network and those
  which are a part of the same distribution tree
  elect one TSR that will create the tag bindings
  and distribute them and any TSR can join the
  group using the JOIN command

76
Multicast model in Tag Switching
77
RSVP with Tag Switching

• RSVP is supported by the help of a RSVP object -
  the tag Object
• The tag object binding information for an RSVP
  flow is carried in the RSVP RESV message
• The RESV message carries the tag object
  containing the tag given by a TSR and also
  information about the local resources to be used
• The reservation state is refreshed once the flow
  is set up using the RESV message

78
Explicit Routes

• Tag switching supports explicit routes with the
  help of a RSVP object - the Explicit Route Object
• The object is carried in the RSVP PATH message
• The tag information is carried in the Tag Object
  by the RSVP RESV

79
IP Switching

• Introduced by Ipsilon
• Already been tested in the field
• Significant Innovation Defined a switch
  management protocol (GSMP) along with label
  binding protocol called Ipsilon Flow Management
  Protocol (IFMP)
• General Switch Management Protocol (GSMP) -
  allows an ATM switch to be controlled by an IP
  switch controller

80
IP Switching Overview

• IP over ATM models are complex and inefficient -
  involve running two control planes
• ATM Forum signaling and routing
• IP routing and address resolution on top
• In contrast IP Switching uses
• IP component plus label binding protocol
• completely removes ATM control plane
• Goal To integrate ATM switches and IP routing in
  a simple and efficient way

81
Removing ATM Control Plane
IP IFMP
ATM hardware
(a)
(b)

• (a) IP over Standard ATM
• (b) IP Switching

82
IP Switching Architecture

• Switch controller
• control processor of the system
• uses GSMP to communicate with ATM switch itself
• runs IP routing and forwarding code
• Default VC
• defined to get control traffic before IP
  Switching is performed
• uses well known VCI/VPI value
• also used for data that doesnt yet have a label

83
IP Switch Architecture
84
IP Switching Basics

• IP Switching relies on IP protocols
• to establish routing information
• to determine next hop
• Flow classification and control module selects
  flows from incoming traffic
• IP flow refers to a sequence of datagrams
• from one source to one destination, identified by
  the ordered pair ltsource address, destination
  addressgt
• can also refer to a flow at finer granularity,
  e.g., different applications between same pair of
  machines, identified by lt source address, source
  port, destination address, destination portgt

85
Flow Redirection

• Redirection Process of binding labels to flows
  and establishing label switched paths
• Example
• data is flowing from A via B to C on default VC
• B sends a redirect to A specifying flow y and the
  label (VPI/VCI) on which it expects to receive
• If C issues a redirect to B for flow y, B
  forwards y on the VPI/VCI specified by C
• Since same flow y enters B on one VC and leaves
  on another, B uses GSMP to inform its switching
  element to set up the appropriate switching path

86
Flow Redirection
87
Ipsilon Flow Management Protocol (IFMP)

• Designed to communicate flow to label binding
  information
• IFMP is a soft state protocol
• IFMPs Adjacency Protocol
• Used to communicate and discover information
  about neighbors
• Adjacency message sent as limited broadcast
• IFMPs Redirection Protocol
• used to send appropriate messages for flow-label
  bindings

88
IFMPs Redirection Protocol

• Different message types defined
• REDIRECT used to bind label to a flow
• RECLAIM enables label to be unbound for
  subsequent re-use
• RECLAIM ACK Acknowledgement for RECLAIM message
• ERROR Used to deal with various error conditions
• Common header format

89
IFMP Redirect Protocol Message Format
IFMP REDIRECT message body
90
Encapsulation of Redirected Flows
91
General Switch Management Protocol (GSMP)

• GSMP is a master/slave protocol
• ATM switch is the slave
• Master could be any general purpose computer
• The protocol allows the master to
• Establish and release VC connections across the
  switch
• Perform port management (Up, Down, Reset,
  Loopback)
• Request Data (configuration information,
  statistics)
• Allows slave to inform master if something
  interesting, such as link failure, happens on the
  switch

92
GSMP contd..

• GSMP packets are LLC/SNAP encapsulated and sent
  over ATM link using AAL5
• GSMP Adjacency Protocol
• used to gain information about the system at the
  other end of the link and
• to monitor link status
• GSMP Connection Management Protocol
• used to ensure consistency between the GSMP
  master and slave
• also specifies the QoS using a priority field

93
Implementations Contributions

• IP Switching products
• available since 1996
• Ipsilon product family uses Intel Pentium-based
  PC as the switch controller
• Also offers a number of ATM switches that are
  controlled by the switch controller
• IP Switching made the following significant
  contributions to label switching effort
• first to deliver real products and caused
  activity that resulted in the development of Tag
  Switching and ultimately the formation of MPLS
  working group
• contributed GSMP
