Fast Computation of Generalized Voronoi Diagrams Using Graphics Hardware

1

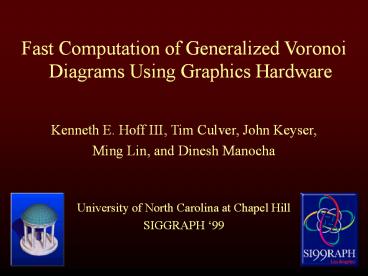

• Fast Computation of Generalized Voronoi Diagrams
  Using Graphics Hardware
• Kenneth E. Hoff III, Tim Culver, John Keyser,
• Ming Lin, and Dinesh Manocha
• University of North Carolina at Chapel Hill
• SIGGRAPH 99

2
What is a Voronoi Diagram?

• Given a collection of geometric primitives, it is
  a subdivision of space into cells such that all
  points in a cell are closer to one primitive than
  to any other

Voronoi Site
Voronoi Region
3

• Ordinary
• Point sites
• Nearest Euclidean distance

• Generalized
• Higher-order site geometry
• Varying distance metrics

Higher-orderSites
2.0
0.5
Weighted Distances
4
Why Should We Compute Them?

• It is a fundamental concept
• Descartes Astronomy 1644 Heavens
• Dirichlet Math 1850 Dirichlet tesselation
• Voronoi Math 1908 Voronoi diagram
• Boldyrev Geology 1909 area of influence
  polygons
• Thiessen Meteorology 1911 Theissen polygons
• Niggli Crystallography 1927 domains of action
• Wigner Seitz Physics 1933 Wigner-Seitz
  regions
• Frank Casper Physics 1958 atom domains
• Brown Ecology 1965 areas potentially available
• Mead Ecology 1966 plant polygons
• Hoofd et al. Anatomy 1985 capillary domains
• Icke Astronomy 1987 Voronoi diagram

5
Why Should We Compute Them?

• Useful in a wide variety of applications
• Collision Detection
• Surface Reconstruction
• Robot Motion Planning
• Non-Photorealistic Rendering
• Surface Simplification
• Mesh Generation
• Shape Analysis

6
What Makes Them Useful?

• Ultimate Proximity Information

Nearest Site
Maximally Clear Path
Density Estimation
Nearest Neighbors
7
Outline

• Generalized Voronoi Diagram Computation
• Exact and Approximate Algorithms
• Previous Work
• Our Goal
• Basic Idea
• Our Approach
• Basic Queries
• Applications
• Conclusion

8
Generalized Voronoi Diagram ComputationExact
Algorithms

• Previous work
• Lee82
• Chiang92
• Okabe92
• Dutta93
• Milenkovic93
• Hoffmann94
• Sherbrooke95
• Held97
• Culver99

Computes Analytic Boundary
9
Previous Work Exact Algorithms

• Compute analytic boundaries
• but...
• Boundaries composed of high-degree curves and
  surfaces and their intersections
• Complex and difficult to implement
• Robustness and accuracy problems

10
Generalized Voronoi Diagram Computation
Approximate Algorithms
Exact Algorithm
Analytic Boundary
Discretize Sites
Discretize Space
Previous work Lavender92, Sheehy95, Vleugels 95
96, Teichmann97
11
Previous Work Approximate Algorithms

• Provide practical solutions
• but...
• Difficult to error-bound
• Restricted to static geometry
• Relatively slow

12
Our Goal
Approximate generalized Voronoi diagram
computation that is

• Simple to understand and implement
• Easily generalized
• Efficient and practical

with all sources of error fully enumerated
13
Outline

• Generalized Voronoi Diagram Computation
• Basic Idea
• Brute-force Algorithm
• Cone Drawing
• Graphics Hardware Acceleration
• Our Approach
• Basic Queries
• Applications
• Conclusion

14
Brute-force Algorithm
Record ID of the closest site to each sample point
Coarsepoint-samplingresult
Finerpoint-samplingresult
15
Cone Drawing

• To visualize Voronoi diagram for points in 2D

Perspective, 3/4 view
Parallel, top view
Dirichlet 1850 Voronoi 1908
16
Graphics Hardware Acceleration
Our 2-part discrete Voronoidiagram representation
Simply rasterize the cones using graphics hardware
Depth Buffer
Color Buffer
Distance
Site IDs
Haeberli90, Woo97
17
Outline

• Generalized Voronoi Diagram Computation
• Basic Idea
• Our Approach
• Meshing Distance Function
• Generalizations
• 3D
• Sources of Error
• Basic Queries
• Applications
• Conclusion

18
The Distance Function
Evaluate distance at each pixel for all
sitesAccelerate using graphics hardware
Point
Line
Triangle
19
Approximating the Distance Function

• Avoid per-pixel distance evaluationPoint-sample
  the distance functionReconstruct by rendering
  polygonal mesh

Point
Line
Triangle
20
The Error Bound
Error bound is determined by the pixel
resolution ? ? farthest distance a point can be
from a pixel sample point
Close-up of pixel grid
21
Meshing the Distance Function
Shape of distance function for a 2D point is a
cone
Need a bounded-error tessellation of the cone
22
Shape of Distance Functions
Sweep apex of cone along higher-order site to
obtain the shape of the distance function
23
Example Distance Meshes
24
Curves
Tessellate curve into a polylineTessellation
error is added to meshing error
25
Weighted and Farthest Distance
Nearest
Farthest
Weighted
26
3D Voronoi Diagrams
Graphics hardware can generate one 2D slice at a
time
Point sites
27
3D Voronoi Diagrams
Slices of the distance function for a 3D point
site
Distance meshes used to approximate slices
28
3D Voronoi Diagrams
Point
Line segment
Triangle
1 sheet of a hyperboloid
Elliptical cone
Plane
29
3D Voronoi Diagrams
Points and a triangle
Polygonal model
30
Sources of Error

• Distance Error
• Meshing
• Tessellation
• Hardware Precision
• Combinatorial Error
• Distance
• Pixel Resolution
• Z-buffer Precision

31
Adaptive Resolution
Zoom in to reduce resolution error...
32
Outline

• Generalized Voronoi Diagram Computation
• Basic Idea
• Our Approach
• Basic Queries
• Nearest Site
• Boundary Finding
• Nearest-Neighbor Finding
• Maximally Clear Point
• Applications
• Conclusion

33
Nearest Site

• Table lookup on query point

34
Boundary Finding

• Isosurface extraction boundary walking
• Offset difference image to mark boundary pixels

35
Nearest-Neighbor Finding

• Which colors touch in the image?
• Walk the boundaries (like boundary finding)

36
Maximally Clear Point

• Point with the largest depth value (greatest
  distance)

37
Outline

• Generalized Voronoi Diagram Computation
• Basic Idea
• Our Approach
• Basic Operations
• Applications
• Motion Planning
• Medial Axis Computation
• Dynamic Mosaics
• Conclusion

38
Real-time Motion Planning Static Scene
Plan motion of piano (arrow) through 100K
triangle model
Distance buffer of floorplan used as potential
field
39
Real-time Motion Planning Dynamic Scene
Plan motion of music stand around moving furniture
Distance buffer of floor-plan used as potential
field
40
Medial Axis Computation
Per-featureVoronoi diagram
Per-feature-colordistance mesh
Internal Voronoi diagram
41
Dynamic Mosaics
1000 moving points
Source image
Dynamic Mosaic Tiling
Static mosaics by Paul Haeberli in SIGGRAPH 90
42
Outline

• Generalized Voronoi Diagram Computation
• Basic Idea
• Our Approach
• Basic Operations
• Applications
• Conclusion

43
Conclusion

• Meshing Distance Functions
• Graphics Hardware Acceleration
• Brute-force Approach

Fast and Simple, Approximate Generalized Voronoi
Diagrams Bounded Error
44
Future Work

• Improve distance meshing for 3D primitives
• More applications
• Motion planning with more degrees of freedom
• Accelerate exact Voronoi diagram computation
• Surface reconstruction
• Medical imaging segmentation and registration
• Finite-element mesh generation

45
Acknowledgements

• Sarah Hoff
• Chris Weigle
• Stefan Gottschalk
• Mark Peercy
• UNC Computer Science
• SGI Advanced Graphics
• Berkeley Walkthrough Group

46
Acknowledgements

• Army Research Office
• National Institute of Health
• National Science Foundation
• Office of Naval Research
• Intel

47

• Live Demo...
