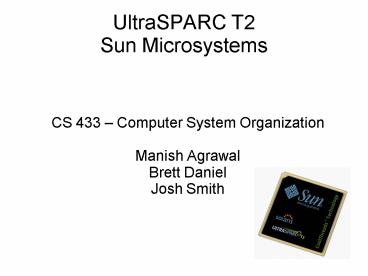

UltraSPARC T2 Sun Microsystems

1
UltraSPARC T2Sun Microsystems

• CS 433 Computer System Organization
• Manish Agrawal
• Brett Daniel
• Josh Smith

2
Overview of the UltraSPARC T2

• Multi-threaded(8), multi-core(8) CPU
• Frequency ranges from 900MHz to 1.4GHz
• Powered by less than 95 watts (nominal) with less
  than 2 watts per thread
• Integrated
• 10 Gb Ethernet networking
• PCI Express I/O expansion
• FPU and cryptographic processing units per core

3
History

• Codename Niagara2
• Member of SPARC family
• 2 previous multi-core processors
• UltraSPARC IV
• UltraSPARC IV
• UltraSPARC T1 (first multi-core and
  multi-threaded)
• Released 14 November 2005
• 4, 6, or 8 cores with 4 threads each
• UltraSPARC T2 Released 7 August 2007
• Now 8 threads per core (instead of 4)

4
Motivation

• Instead of optimizing each core, overall goal was
  running as many concurrent threads as possible
  maximizing and utilizing each cores pipeline
• Each core is less complex than those of current
  high end processor, allowing 8 cores to fit on
  the same die.
• Does not feature out-of-order execution, or a
  sizable amount of cache
• Each core is a barrel processor

5
Components

• 8 Fully pipelined FPUs
• 8 SPUs
• 2 integer ALUs per core, each one shared by a
  group of four threads
• 4MB L2 Cache (8-banks, 16-way associative)
• 8 KB data cache and 16 KB instruction cache
• Two 10Gb Ethernet ports and one PCIe port

Source http//www.sun.com/processors/UltraSPARC-T
2/datasheet.pdf
6
Chip
Source http//www.opensparc.net/images/stories/t2
/ultrasparc-t2-layout.png
7
For a single thread Memory is THE bottleneck
to improving performance Commercial server
workloads exhibit poor memory locality Only a
modest throughput speedup is possible by reducing
compute time Conventional single-thread
processors optimized for ILP have
low Utilizations With many threads Its
possible to find something to execute every
cycle Significant throughput speedups are
possible Processor utilization is much higher
Source Golla R, Niagara2 A Highly Threaded
Server-on-a-Chip, Oct. 2006, http//www.opensparc
.net/pubs/preszo//06/04-Sun-Golla.pdf
8
Engineering Solutions

• Goals of the T2 project were
• Double UltraSparc T1's throughput and
  throughput/watt
• Improve UltraSparc T1's FP single-thread (T1 was
  unable to handle workloads with more than 1-3
  FP instructions)
• throughput performance
• Minimize required area for these improvements
• Considered doubling number of UltraSparc T1
  cores
• 16 cores of 4 threads each
• Takes too much die area
• No area left for improving FP performance

9
Core Architecture
Source http//realworldtech.com/page.cfm?ArticleI
DRWT090406012516p2
10
Core Architecture
Source http//blogs.sun.com/sprack/resource/N2_An
nounce_Breakout_final.pdf
11
Efficient in-order single issue pipeline

• Eight-stage integer pipeline
• Pick is for selecting 2 threads for execution
  (Added this stage for T2)
• In the bypass stage, the load/store unit (LSU)
  forwards data to the integer register files
  (IRFs) with sufficient write timing margin. All
  integer operations pass through the bypass stage.
• 12-stage floating point pipeline

• 6-cycle latency for dependent FP ops
• Integer multiplies are pipelined between
  different threads. Integer multiplies block
  within the same thread.
• Integer divide is a long latency operation.
  Integer divides are not pipelined between
  different threads.

12
Server on a chip

• Two 10/1 Gigabit ethernet ports
• Integrated PCI-Express
• Embedded cryptography

http//www.podtech.net/home/1293/niagara-2-server-
on-a-chip/
13
Comparison Against AMD Opteron

• 4 cores max
• Allows multiprocessors
• Hypertransport between cores
• Shared execution units

14
Comparison Against Intel Core

• 4 cores6 in development8 in Nehalem
• Allows multiprocessors
• Shared FSB

15
OpenSPARC

• Open source release under GNU GPL
• Verilog, verification/tests, simulation/modeling
  tools
• ISA specification
• http//www.opensparc.net/

"We truly believe OpenSparc will blossom in the
future because it is open." Naxin Zhang, Polaris
Micro
16
Future

• Niagra III Victoria Falls
• "Pushing up threads and cores"
• Retain simplicity In-order processing
• Target multiprocessor servers

17
Video

• http//www.sun.com/processors/
• UltraSPARC-T2/gallery/index.xml?p1s1

18
Sources

• http//www.sun.com/processors/UltraSPARC-T2/
• http//www.opensparc.net/
• http//www.opensparc.net/pubs/preszo/06/04-Sun-Gol
  la.pdf
• http//realworldtech.com/page.cfm?ArticleIDRWT090
  406012516
• http//www.news.com/2100-1006_3-6127137.html
• http//www.news.com/2100-7344_3-6183562.html
