Mining Unusual Patterns in Data Streams: Methodologies and Research Problems

1

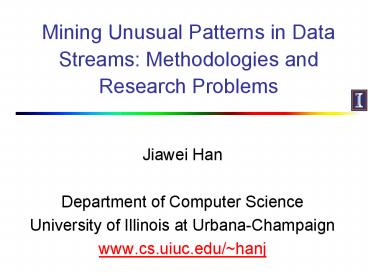

Mining Unusual Patterns in Data Streams
Methodologies and Research Problems

• Jiawei Han
• Department of Computer Science
• University of Illinois at Urbana-Champaign
• www.cs.uiuc.edu/hanj

2
Outline

• Characteristics of stream data
• Architecture and models for SDMS and stream query
  processing
• Why mining unusual patterns in stream data?
• Essentials for mining unusual patterns in stream
  data
• Stream cubing and stream OLAP methods
• Stream mining methods
• Research problems
• Conclusions

3
Characteristics of Data Streams

• Data Streams
• Data streamscontinuous, ordered, changing, fast,
  huge amount
• Traditional DBMSdata stored in finite,
  persistent data sets
• Characteristics
• Huge volumes of continuous data, possibly
  infinite
• Fast changing and requires fast, real-time
  response
• Data stream captures nicely our data processing
  needs of today
• Random access is expensivesingle linear scan
  algorithm (can only have one look)
• Store only the summary of the data seen thus far
• Most stream data are at pretty low-level or
  multi-dimensional in nature, needs multi-level
  and multi-dimensional processing

4
Stream Data Applications

• Telecommunication calling records
• Business credit card transaction flows
• Network monitoring and traffic engineering
• Financial market stock exchange
• Engineering industrial processes power supply
  manufacturing
• Sensor, monitoring surveillance video streams
• Security monitoring
• Web logs and Web page click streams
• Massive data sets (even saved but random access
  is too expensive)

5
DBMS versus DSMS

• Persistent relations
• One-time queries
• Random access
• Unbounded disk store
• Only current state matters
• No real-time services
• Relatively low update rate
• Data at any granularity
• Assume precise data
• Access plan determined by query processor,
  physical DB design

• Transient streams
• Continuous queries
• Sequential access
• Bounded main memory
• Historical data is important
• Real-time requirements
• Possibly multi-GB arrival rate
• Data at fine granularity
• Data stale/imprecise
• Unpredictable/variable data arrival and
  characteristics

Ack. From Motwanis PODS tutorial slides
6
Architecture Stream Query Processing
User/Application
SDMS (Stream Data Management System)
Results
Multiple streams
Stream Query Processor
Scratch Space (Main memory and/or Disk)
7
Challenges of Stream Data Processing

• Multiple, continuous, rapid, time-varying,
  ordered streams
• Main memory computations
• Queries are often continuous
• Evaluated continuously as stream data arrives
• Answer updated over time
• Queries are often complex
• Beyond element-at-a-time processing
• Beyond stream-at-a-time processing
• Beyond relational queries (scientific, data
  mining, OLAP)
• Multi-level/multi-dimensional processing and data
  mining
• Most stream data are at pretty low-level or
  multi-dimensional in nature

8
Processing Stream Queries

• Query types
• One-time query vs. continuous query (being
  evaluated continuously as stream continues to
  arrive)
• Predefined query vs. ad-hoc query (issued
  on-line)
• Unbounded memory requirements
• For real-time response, main memory algorithm
  should be used
• Memory requirement is unbounded if one will join
  future tuples
• Approximate query answering
• With bounded memory, it is not always possible to
  produce exact answers
• High-quality approximate answers are desired
• Data reduction and synopsis construction methods
• Sketches, random sampling, histograms, wavelets,
  etc.

9
Methods for Approximate Query Answering

• Sliding windows
• Only over sliding windows of recent stream data
• Approximation but often more desirable in
  applications
• Batched processing, sampling and synopses
• Batched if update is fast but computing is slow
• Compute periodically, not very timely
• Sampling if update is slow but computing is fast
• Compute using sample data, but not good for
  joins, etc.
• Synopsis data structures
• Maintain a small synopsis or sketch of data
• Good for querying historical data
• Blocking operators, e.g., sorting, avg, min, etc.
• Blocking if unable to produce the first output
  until seeing the entire input

10
Projects on DSMS (Data Stream Management System)

• Research projects and system prototypes
• STREAM (Stanford) A general-purpose DSMS
• Cougar (Cornell) sensors
• Aurora (Brown/MIT) sensor monitoring, dataflow
• Hancock (ATT) telecom streams
• Niagara (OGI/Wisconsin) Internet XML databases
• OpenCQ (Georgia Tech) triggers, incr. view
  maintenance
• Tapestry (Xerox) pub/sub content-based filtering
• Telegraph (Berkeley) adaptive engine for sensors
• Tradebot (www.tradebot.com) stock tickers
  streams
• Tribeca (Bellcore) network monitoring
• Streaminer (UIUC) new project for stream data
  mining

11
Stream Data Mining vs. Stream Querying

• Stream miningA more challenging task
• It shares most of the difficulties with stream
  querying
• Patterns are hidden and more general than
  querying
• It may require exploratory analysis
• Not necessarily continuous queries
• Stream data mining tasks
• Multi-dimensional on-line analysis of streams
• Mining outliers and unusual patterns in stream
  data
• Clustering data streams
• Classification of stream data

12
Challenges for Mining Unusual Patterns in Data
Streams

• Most stream data are at pretty low-level or
  multi-dimensional in nature needs ML/MD
  processing
• Analysis requirements
• Multi-dimensional trends and unusual patterns
• Capturing important changes at multi-dimensions/le
  vels
• Fast, real-time detection and response
• Comparing with data cube Similarity and
  differences
• Stream (data) cube or stream OLAP Is this
  feasible?
• Can we implement it efficiently?

13
Multi-Dimensional Stream Analysis Examples

• Analysis of Web click streams
• Raw data at low levels seconds, web page
  addresses, user IP addresses,
• Analysts want changes, trends, unusual patterns,
  at reasonable levels of details
• E.g., Average clicking traffic in North America
  on sports in the last 15 minutes is 40 higher
  than that in the last 24 hours.
• Analysis of power consumption streams
• Raw data power consumption flow for every
  household, every minute
• Patterns one may find average hourly power
  consumption surges up 30 for manufacturing
  companies in Chicago in the last 2 hours today
  than that of the same day a week ago

14
A Key StepStream Data Reduction

• Challenges of OLAPing stream data
• Raw data cannot be stored
• Simple aggregates are not powerful enough
• History shape and patterns at different levels
  are desirable multi-dimensional regression
  analysis
• Proposal
• A scalable multi-dimensional stream data cube
  that can aggregate regression model of stream
  data efficiently without accessing the raw data
• Stream data compression
• Compress the stream data to support memory- and
  time-efficient multi-dimensional regression
  analysis

15
Basics of General Linear Regression

• n tuples in one cell (xi , yi), i 1..n, where
  yi is the measure attribute to be analyzed
• For sample i , a vector of k user-defined
  predictors ui
• The linear regression model
• where ? is a k 1 vector of regression
  parameters

16
Theory of General Linear Regression

• Collect into the model matrix U
• The ordinary least square (OLS) estimate of
  is the argument that minimizes the residue sum of
  squares function
• Main theorem to determine the OLS regression
  parameters

17
Linearly Compressed Representation (LCR)

• Stream data compression for multi-dimensional
  regression analysis
• Define, for i, j 0,,k-1
• The linearly compressed representation (LCR) of
  one cell
• Size of LCR of one cell
• quadratic in k, independent of the number of
  tuples n in one cell

18
Matrix Form of LCR

• LCR consists of and , where
• and
• where
• provides OLS regression parameters essential for
  regression analysis
• is an auxiliary matrix that facilitates
  aggregations of LCR in standard and regression
  dimensions in a data cube environment
• LCR only stores
  the upper triangle of

19
Aggregation in Standard Dimensions

• Given LCR of m cells that differ in one standard
  dimension, what is the LCR of the cell aggregated
  in that dimension?
• for m base cells
• for an aggregated cell
• The lossless aggregation formula

20
Stock Price ExampleAggregation in Standard
Dimensions

• Simple linear regression on time series data
• Cells of two companies
• After aggregation

21
Aggregation in Regression Dimensions

• Given LCR of m cells that differ in one
  regression dimension, what is the LCR of the cell
  aggregated in that dimension?
•
  for m base cells
• for the aggregated
  cell
• The lossless aggregation formula

22
Stock Price ExampleAggregation in Time Dimension

• Cells of two adjacent
• time intervals
• After aggregation

23
Feasibility of Stream Regression Analysis

• Efficient storage and scalable (independent of
  the number of tuples in data cells)
• Lossless aggregation without accessing the raw
  data
• Fast aggregation computationally efficient
• Regression models of data cells at all levels
• General results covered a large and the most
  popular class of regression
• Including quadratic, polynomial, and nonlinear
  models

24
A Stream Cube Architecture

• A tilt time frame
• Different time granularities
• second, minute, quarter, hour, day, week,
• Critical layers
• Minimum interest layer (m-layer)
• Observation layer (o-layer)
• User watches at o-layer and occasionally needs
  to drill-down down to m-layer
• Partial materialization of stream cubes
• Full materialization too space and time
  consuming
• No materialization slow response at query time
• Partial materialization what do we mean
  partial?

25
A Tilt Time-Frame Model
Up to 7 days
Up to a year
26
Benefits of Tilt Time-Frame Model

• Each cell stores the measures according to
  tilt-time-frame
• Limited memory space Impossible to store the
  history in full scale
• Emphasis more on recent data
• Most applications emphasize on recent data (slide
  window)
• Natural partition on different time granularities
• Putting different weights on remote data
• Useful even for uniform weight
• Tilt time-frame forms a new time dimension
• for mining changes and evolutions
• Essential for mining unusual patterns or outliers
• Finding those with dramatic changes
• E.g., exceptional stocksnot following the trends

27
Two Critical Layers in the Stream Cube
(, theme, quarter)
o-layer (observation)
(user-group, URL-group, minute)
m-layer (minimal interest)
(individual-user, URL, second)
(primitive) stream data layer
28
On-Line Materialization vs. On-Line Computation

• On-line materialization
• Materialization takes precious resources and time
• Only incremental materialization (with slide
  window)
• Only materialize cuboids of the critical
  layers?
• Some intermediate cells that should be
  materialized
• Popular path approach vs. exception cell approach
• Materialize intermediate cells along the popular
  paths
• Exception cells how to set up exception
  thresholds?
• Notice exceptions do not have monotonic behaviour
• Computation problem
• How to compute and store stream cubes
  efficiently?
• How to discover unusual cells between the
  critical layer?

29
Stream Cube Structure from m-layer to o-layer
(A1, , C1)
(A1, , C2)
(A1, , C2)
(A1, , C2)
(A2, B1, C1)
(A1, B1, C2)
(A1, B2, C1)
(A2, , C2)
(A2, B1, C2)
A2, B2, C1)
(A1, B2, C2)
(A2, B2, C2)
30
Stream Cube Computation

• Cube structure from m-layer to o-layer
• Three approaches
• All cuboids approach
• Materializing all cells (too much in both space
  and time)
• Exceptional cells approach
• Materializing only exceptional cells (saves space
  but not time to compute and definition of
  exception is not flexible)
• Popular path approach
• Computing and materializing cells only along a
  popular path
• Using H-tree structure to store computed cells
  (which form the stream cubea selectively
  materialized cube)

31
An H-Tree Cubing Structure
root
Observation layer
sports
politics
entertainment
uiuc
uic
uic
uiuc
Minimal int. layer
jeff
Jim
jeff
mary
Q.I.
Q.I.
Q.I.
32
Benefits of H-Tree and H-Cubing

• H-tree and H-cubing
• Developed for computing data cubes and ice-berg
  cubes
• J. Han, J. Pei, G. Dong, and K. Wang, Efficient
  Computation of Iceberg Cubes with Complex
  Measures, SIGMOD'01
• Compressed database
• Fast cubing
• Space preserving in cube computation
• Using H-tree for stream cubing
• Space preserving
• Intermediate aggregates can be computed
  incrementally and saved in tree nodes
• Facilitate computing other cells and
  multi-dimensional analysis
• H-tree with computed cells can be viewed as
  stream cube

33
Time and Space vs. Number of Tuples at the
m-Layer (Dataset D3L3C10T400K)
a) Time vs. m-layer size
b) Space vs. m-layer size
34
Time and Space vs. the Number of Levels
a) Time vs. levels
b) Space vs. levels
35
Other Approaches for Mining Unusual Patterns in
Stream Data

• Beyond multi-dimensional regression analysis
• Other approaches can be effective for mining
  unusual patterns
• Multi-dimensional gradient analysis of multiple
  streams
• Gradient analysis finding substantial changes
  (notable gradients) in relevance to other
  dimensions
• E.g., those stocks that increase over 10 in the
  last hour
• Clustering and outlier analysis for stream mining
• Clustering data streams (Guha, Motwani et al.
  2000-2002)
• History-sensitive, high-quality incremental
  clustering
• Decision tree analysis of stream data
• Evolution of decision trees Domingos et al.
  (2000, 2001)
• Incremental integration of new streams in
  decision-tree induction

36
What Is Gradient Analysis?

• Gradient analysis Analysis of notable changes
  (gradients) of sophisticated measures in
  multi-dimensional space
• Changes in dimensions ? changes in measures
• Drill-down (descendants), roll-up (ancestors),
  and mutation (siblings)
• Query Notable changes of average house price in
  Champaign in 02 comparing against 01
• Answer Townhouse in Southwest Champaign West
  went down 5, houses in Urbana went up 10
• Originated from CubeGrade problem
• First proposed by Imielinski et al. (DAMI 2002)
  as Cubegrade
• Efficient pushing of constraints for complex
  measures (such as avg) in constrained gradient
  analysis by Dong et al. (VLDB 2001)

37
Multi-Dimensional Gradient Analysis of Multiple
Streams

• Stream gradient analysis
• Analysis of notable changes of sophisticated
  measures in multi-dimensional space in relevance
  to time for stream data
• Changes in time ? changes in measures (possibly
  comparing with sibling streams)
• Drill-down (descendants), roll-up (ancestors),
  and mutation (siblings)
• Query Find exceptionally promising stocks in the
  last hour
• E.g., Tech sector goes down sharply but IBM goes
  down only slightly
• How to solve it in a stream environment?
• Find surrounding average gradients, and then find
  stocks whose gradients are substantially
  different from average
• Analysis should be performed in multi-dimensional
  space

38
Clustering for Stream Data Mining

• What is cluster analysis?
• Grouping a set of data objects into a set of
  classes (clusters)
• The intra-class similarity is high and the
  inter-class similarity is low
• Applications Pattern recognition, spatial data
  analysis, image processing, market research, Web
  document and click stream analysis
• Clustering Another data reduction technique in
  stream analysis
• New requirements in stream data clustering
• Generate overall high-quality clusters without
  seeing the old data
• High quality, efficient incremental clustering
  algorithms
• Analysis should take care of multi-dimensional
  space

39
Major Clustering Approaches in Traditional
Cluster Analysis

• Partitioning algorithms Construct various
  partitions and then evaluate them by some
  criterion
• E.g., k-means, k-medoids, etc.
• Hierarchy algorithms Create a hierarchical
  decomposition of the set of data (or objects)
  using some criterion
• Often needs to integrate with other clustering
  methods, e.g., BIRCH
• Density-based based on connectivity and density
  functions
• Finding clusters of arbitrary shapes, e.g.,
  DBSCAN, OPTICS, etc.
• Grid-based based on a multiple-level granularity
  structure
• View space as grid structures, e.g., STING,
  CLIQUE
• Model-based find the best fit of the model to
  all the clusters
• Good for conceptual clustering, e.g., COBWEB, SOM

40
The K-Means Clustering Process

• Example

10
9
8
7
6
5
Update the cluster means
Assign each objects to most similar center
4
3
2
1
0
0
1
2
3
4
5
6
7
8
9
10
reassign
reassign
K2 Arbitrarily choose K object as initial
cluster center
Update the cluster means
41
Clustering Data Streams

• Only the most popular clustering algorithm,
  k-means, is examined in stream clustering (Guha,
  Motwani, et al. 2000-2002)
• The K-Means Clustering Method (MacQueen67) Each
  cluster is represented by the center of the
  cluster
• Data stream with points from metric space
• Find k centers in the stream such that the sum of
  distances from data points to their closest
  center is minimized.
• Clustering data streams
• Only the k centroids (representing the clustering
  results) retain when new data comes
• Only use the new data set to perform incremental
  clustering
• The previous data carries weights of the previous
  many points
• The error is bounded by continuous incremental
  updates
• The simple algorithm yields constant factor
  approximation

42
An Incremental Clustering Method

• Only the k centroids (representing the clustering
  results) retain when new data comes
• Only use the new data set to perform incremental
  clustering
• The previous data carries weights of the previous
  many points
• The Incremental algorithm (GMM01)
• Assign each object to the cluster with the
  nearest seed point
• Compute new seed points as the centroids of the
  clusters of the current partition
• Repeat steps 2-3 until no change, the cluster is
  formed by a set of k new centroids
• The error is bounded by continuous incremental
  updates
• The simple algorithm yields constant factor
  approximation

43
Research Problems in Stream Clustering

• Better quality but still efficient clustering
  algorithms?
• Simple k-means clustering by preserving only k
  centroids may loose too much information
• Keeping additional information may lead to better
  clustering quality
• Multi-dimensional clustering analysis?
• Cluster not confined to 2-D metric space, how to
  incorporate other features, especially
  non-numerical properties
• Finding outliers as a by-product of cluster
  analysis?
• Efficient detection of outliers (far away from
  majority) in data streams
• Weighted by history of the data?
• Mining evolutions and changes of clusters?
• Stream clustering with other clustering
  approaches?
• Constraint-based cluster analysis with data
  streams?

44
Major Classification Methods

• Popular classification methods
• Decision tree induction
• ID3, C4.5, Regression trees, decision lists, etc.
• Bayesian classification
• Neural networks
• Support Vector Machines (SVM)
• Associative classification
• k-nearest neighbor classifier and case-based
  reasoning
• Genetic algorithms
• Rough set and fuzzy set approaches
• Most of theses methods are not re-examined in the
  context of stream data

45
Decision Tree Analysis in Stream Data

• What is decision-tree analysis?
• Building a compact tree from data to guide
  decision making
• One of the most popular classification method in
  data mining
• Applications market analysis, Web document
  classification, etc.
• Decision-tree Another data reduction technique
  in stream analysis
• New requirements in stream data decision-tree
  analysis
• Generate high-quality up-to-date decision-trees
  without seeing the old data
• High quality, efficient incremental decision-tree
  induction
• Analysis should take care of multi-dimensional
  space

46
Classical Example Play Tennis?

• Training data set from Quinlans

47
Decision Tree Obtained with ID3 (Quinlan 86)
48
Algorithm for Decision Tree Induction

• Basic algorithm (a greedy algorithm)
• Tree is constructed in a top-down recursive
  divide-and-conquer manner
• At start, all the training examples are at the
  root
• Attributes are categorical (if continuous-valued,
  they are discretized in advanceC4.5 handles
  continuous value splitting)
• Examples are partitioned recursively based on
  selected attributes
• Test attributes are selected on the basis of a
  heuristic or statistical measure (e.g.,
  information gain, Gini index)
• Conditions for stopping partitioning
• All samples for a given node belong to the same
  class
• There are no remaining attributes for further
  partitioning majority voting is employed for
  classifying the leaf
• There are no samples left

49
Decision Tree Induction with Stream Data

• VFDT/CVFDT
• P. Domingos and G. Hulten, Mining high-speed
  data streams, KDD'00
• G. Hulten, L. Spencer, and P. Domingos, Mining
  time-changing data streams,KDD'01
• VFDT (Very Fast Decision Tree) (Domingos and
  Hulten00)
• With high probability, constructs an identical
  model that a traditional (greedy) method would
  learn
• If it cannot be inserted into the same branch,
  construct shadow branches as preparation for
  changes
• If the shadow becomes dominant, switch of tree
  branches occur
• CVFDT Extension to time changing data

50
Decision Tree Induction with Stream Data

• For each record in stream
• Traverse T to determine appropriate leaf L for
  record
• Update (attribute, class) counts in L and compute
  best split function ?phi(s,X,L) for each
  attribute Xi
• If there exists i ?phi(s,X,L) - ?phi(si,Xi,L)
  e for all Xi neq X --- (1)
• split L using attribute X
• Compute value for e using Hoeffding Bound
• Hoeffding Bound If ?phi(s,X,L) takes values in
  range R, and L contains m records, then with
  probability 1-d, the computed value of
  ?phi(s,X,L) (using m records in L) differs from
  the true value by at most e
• Hoeffding Bound guarantees that if (1) holds,
  then Xi is correct choice for split with
  probability 1-d

51
Single-Pass Algorithm (An Example)
Packets 10
Data Stream
yes
no
Protocol http
SP(Bytes) - SP(Packets)
Packets 10
Data Stream
yes
no
Bytes 60K
Protocol http
yes
Protocol ftp
Ack. From Gehrkes SIGMOD tutorial slides
52
Research Problems in Stream Classification

• What about decision tree may need dramatic
  restructuring?
• Especially when new data is rather different from
  the existing model
• Efficient detection of outliers (far away from
  majority) using constructed models
• Weighted by history of the data pay more
  attention to new data?
• Mining evolutions and changes of models?
• Multi-dimensional decision tree analysis?
• Stream classification with other classification
  approaches?
• Constraint-based classification with data streams?

53
Other Research Problems in Stream Data Mining

• Stream data mining should it be a general
  approach or application-specific ones?
• Do stream mining applications share common core
  requirements and features?
• Killer applications in stream data mining
• General architectures and mining language
• Multi-dimensional, multi-level stream data mining
• Algorithms and applications
• How will stream mining make good use of
  user-specified constraints?
• Stream association and correlation analysis
• Measures approximation? Without seeing the
  global picture?
• How to mine changes of associations?

54
Conclusions

• Stream data analysis A rich and largely
  unexplored field
• Current research focus in database community
  DSMS system architecture, continuous query
  processing, supporting mechanisms
• Stream data mining and stream OLAP analysis
• Powerful tools for finding general and unusual
  patterns
• Largely unexplored current studies only touched
  the surface
• Our recent study A multi-dimensional stream
  analysis framework
• Tilt time frame
• Critical layers
• Popular path approach (how to do quick but high
  quality partial materialization and computation)
• Lots of exciting issues in further study
• A promising one Multi-level, multi-dimensional
  analysis and mining of stream data

55
References

• B. Babcock, S. Babu, M. Datar, R. Motawani, and
  J. Widom, Models and issues in data stream
  systems, PODS'02 (tutorial).
• S. Babu and J. Widom, Continuous queries over
  data streams, SIGMOD Record, 30109--120, 2001.
• Y. Chen, G. Dong, J. Han, J. Pei, B. W. Wah, and
  J. Wang. Online analytical processing stream
  data Is it feasible?, DMKD'02.
• Y. Chen, G. Dong, J. Han, B. W. Wah, and J. Wang,
  Multi-dimensional regression analysis of
  time-series data streams, VLDB'02.
• P. Domingos and G. Hulten, Mining high-speed
  data streams, KDD'00.
• M. Garofalakis, J. Gehrke, and R. Rastogi,
  Querying and mining data streams You only get
  one look, SIGMOD'02 (tutorial).
• J. Gehrke, F. Korn, and D. Srivastava, On
  computing correlated aggregates over continuous
  data streams, SIGMOD'01.
• S. Guha, N. Mishra, R. Motwani, and L.
  O'Callaghan, Clustering data streams, FOCS'00.
• G. Hulten, L. Spencer, and P. Domingos, Mining
  time-changing data streams, KDD'01.

56
www.cs.uiuc.edu/hanj

• Thank you !!!
