Mining from Data Streams - Competition between Quality and Speed

1

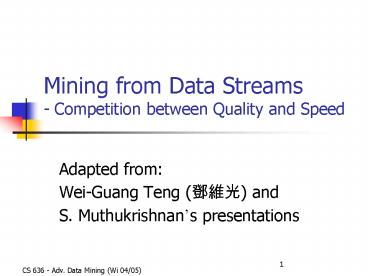

Mining from Data Streams - Competition between
Quality and Speed

• Adapted from
• Wei-Guang Teng (???) and
• S. Muthukrishnans presentations

2
Streaming Finding Missing Numbers

• Paul permutes numbers 1n, and shows all but one
  to Carole, in the permuted order, one after the
  other.
• Carole must find the missing number.
• Carole can not remember all the numbers she has
  been shown.

3
Streaming Finding Missing Numbers

• Carole cumulates the sum of all the numbers that
  she has been shown. At the end she can subtract
  this sum from
• n(n1)/2
• Analysis
• Takes O(log n) bits to store the partial sum
• Performs one addition each time a new number is
  shown (takes O(log n) time per number)
• Performs one subtraction at the end (takes O(log
  n time)

4
Data Streams (1)

• Traditional DBMS data stored in finite,
  persistent data sets
• New Applications data input as continuous,
  ordered data streams
• Network monitoring and traffic engineering
• Telecom call detail records (CDR)
• ATM operations in banks
• Sensor networks
• Web logs and click-streams
• Transactions in retail chains
• Manufacturing processes

5
Data Streams (2)

• Definition
• Continuous, unbounded, rapid, time-varying
  streams of data elements
• Application Characteristics
• Massive volumes of data (can be several
  terabytes)
• Records arrive at a rapid rate
• Goal
• Mine patterns, process queries and compute
  statistics on data streams in real-time

6
Data Stream Algorithms

• Streaming involves
• Small number of passes over data. (Typically 1?)
• Sublinear space (sublinear in the universe or
  number of stream items?)
• Sublinear time for computing (?)
• Similar to dynamic, online, approximation or
  randomized algorithms, but with more constraints.

7
Data Streams Analysis Model
User/Application
Query/Mining Target
Results
Stream Processing Engine
Scratch Space (Memory and/or Disk)
8
Motivation

• 3 Billion Telephone Calls in US each day
• 30 Billion emails daily, 1 Billion SMS, IMs
• Scientific data NASA's observation satellites
  generate billions of readings each day.
• IP Network Traffic up to 1 Billion packets per
  hour per router. Each ISP has many hundreds) of
  routers!
• Compare to human scale data "only" 1 billion
  worldwide credit card transactions per month.

9
Network Management Application

• Monitoring and configuring network hardware and
  software to ensure smooth operation

Network Operations Center
Measurements Alarms
Network
10
IP Network Measurement Data

• IP session data
• ATT collects 100 GBs of NetFlow data each day!

11
Network Data Processing

• Traffic estimation/analysis
• List the top 100 IP addresses in terms of traffic
• What is the average duration of an IP session?
• Fraud detection
• Identify all sessions whose duration was more
  than twice the normal
• Security/Denial of Service
• List all IP addresses that have witnessed a
  sudden spike in traffic
• Identify IP addresses involved in more than 1000
  sessions

12
Challenges in Network Apps.

• 1 link with 2 Gb/s. Say avg packet size is 50
  bytes.
• Number of pkts/sec 5 Million.
• Time per pkt 0.2 µsec.
• If we capture pkt headers per packet src/dest
  IP, time, no of bytes, etc. at least 10 bytes.
  Space per second is 50 Mb. Space per day is 4.5
  Tb per link. ISPs have hundreds of links.

13
Data Streaming Models

• Input data a1, a2, a3,
• Input stream describes a signal Ai, a
  one-dimensional function (value vs. index)
• There is mapping from the input stream to the
  signal
• This is the data stream model

14
Time-Series Model

• ais are form Ais.

15
Cash-Register Model

• ais are increments to Aj
• ai (j, Ii) Ii gt 0
• Aij Ai-1j Ii

16
Turnstile Model

• ais are updates to Aj
• ai (j, Ui)
• Aij Ai-1j Ui
• Strict turnstile model
• Aij gt at all i

17
Data Stream Algorithms

• Compute various functions on the signal A at
  various times
• Performance measures
• Processing time per item ai in the stream
• Space used to store the data structure on At at
  time t
• Time needed to compute the functions on A

18
Outline

• Introduction Motivation
• Issues Techs. of Processing Data Streams
• Sampling
• Histogram
• Wavelet
• Data Streaming Systems System
• Example Algorithms for Frequency Counting
• Lossy Counting
• Sticky Sampling

19
Data Stream Algorithms

• Stream Processing Requirements
• Single pass each record is examined at most once

• Bounded storage limited memory for storing
  synopsis
• Real-time per record processing time (to
  maintain synopsis) must be low
• Generally, algorithms compute approximate answers
• Difficult to compute answers accurately with
  limited memory

20
Approximation in Data Streams

• Approximate Answers - Deterministic Bounds
• Algorithms only compute an approximate answer,
  but bounds on error
• Approximate Answers - Probabilistic Bounds
• Algorithms compute an approximate answer with
  high probability
• With probability at least , the computed
  answer is within a factor of the actual answer

• Data Streaming Systems System

21
Sliding Window Approximation
0 1 1 0 0 0 0 1 1 1 0 0 0 0 0 1 0 1 0 1
0

• Why?
• Approximation technique for bounded memory
• Natural in applications (emphasizes recent data)
• Well-specified and deterministic semantics
• Issues
• Extend relational algebra, SQL, query
  optimization
• Algorithmic work
• Timestamps?

22
Timestamps

• Explicit
• Injected by data source
• Models real-world event represented by tuple
• Tuples may be out-of-order, but if near-ordered
  can reorder with small buffers
• Implicit
• Introduced as special field by DSMS
• Arrival time in system
• Enables order-based querying and sliding windows
• Issues
• Distributed streams?
• Composite tuples created by DSMS?

23
Time

• Easiest global system clock
• Stream elements and relation updates timestamped
  on entry to system
• Application-defined time
• Streams and relation updates contain application
  timestamps, may be out of order
• Application generates heartbeat
• Or deduce heartbeat from parameters stream skew,
  scrambling, latency, and clock progress
• Query results in application time

24
Sampling Basics

• A small random sample S of the data often
  well-represents all the data
• Example select agg from R where R.e is odd
  (n12)
• If agg is avg, return average of odd elements in
  S
• If agg is count, return average over all elements
  e in S of
• n if e is odd
• 0 if e is even

Data stream 9 3 5 2 7 1 6 5 8
4 9 1
Sample S 9 5 1 8
answer 5
answer 123/4 9
Unbiased!
25
Histograms

• Histograms approximate the frequency distribution
  of element values in a stream
• A histogram (typically) consists of
• A partitioning of element domain values into
  buckets
• A count per bucket B (of the number of
  elements in B)
• Long history of use for selectivity estimation
  within a query optimizer (Koo80, PSC84, etc)

26
Types of Histograms

• Equi-Depth Histograms
• Select buckets such that counts per bucket are
  equal
• V-Optimal Histograms IP95 JKM98
• Select buckets to minimize frequency variance
  within buckets

Count for bucket
Domain values
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18 19 20
Count for bucket
Domain values
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18 19 20
27
Answering Queries using Histograms
IP99

• (Implicitly) map the histogram back to an
  approximate relation, apply the query to the
  approximate relation
• Example select count() from R where
  4ltR.elt15
• For equi-depth histograms, maximum error

Count spread evenly among bucket values
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
18 19 20
4 ? R.e ? 15
28
Wavelet Basics

• For hierarchical decomposition of
  functions/signals
• Haar wavelets
• Simplest wavelet basis gt Recursive pairwise
  averaging and differencing at different
  resolutions

Resolution Averages
Detail Coefficients
2, 2, 0, 2, 3, 5, 4, 4
----
3
2, 1, 4, 4
0, -1, -1, 0
2
1
0
Haar wavelet decomposition
2.75, -1.25, 0.5, 0, 0, -1, -1, 0
29
Haar Wavelet Coefficients

• Hierarchical decomposition structure (error
  tree)

Coefficient Supports



-

-

-




-
-
-
2 2 0 2 3
5 4 4
-
Original frequency distribution
30
Wavelet-based Histograms MVW98

• Problem range-query selectivity estimation
• Key idea use a compact subset of Haar wavelet
  coefficients for approximating frequency
  distribution
• Steps
• Compute cumulative frequency distribution C
• Compute Haar wavelet transform of C
• Coefficient thresholding only mltltn coefficients
  can be kept

31
Using Wavelet-based Histograms

• Selectivity estimation count(alt R.elt b)
  Cb - Ca-1
• C is the (approximate) reconstructed
  cumulative distribution
• Time O(minm, logN), where m size of wavelet
  synopsis (number of coefficients), N size of
  domain
• Empirical results over synthetic data shows
  improvements over random sampling and histograms

• At most logN1 coefficients are needed to
  reconstruct any C value

Ca
32
Data Streaming Systems

• Low-level application specific approach
• DBMS approach
• Generic data stream management systems

33
DBMS Vs. DSMS Meta-Questions

• Killer-apps
• Application stream rates exceed DBMS capacity?
• Can DSMS handle high rates anyway?
• Motivation
• Need for general-purpose DSMS?
• Not ad-hoc, application-specific systems?
• Non-Trivial
• DSMS merely DBMS with enhanced support for
  triggers, temporal constructs, data rate mgmt?

34
DBMS versus DSMS

• Persistent relations
• One-time queries
• Random access
• Access plan determined by query processor and
  physical DB design

• Transient streams (and persistent relations)
• Continuous queries
• Sequential access
• Unpredictable data characteristics and arrival
  patterns

35
(Simplified) Big Picture of DSMS
Stored Result
Streamed Result
DSMS
Scratch Store
Stored Relations
36
(Simplified) Network Monitoring
Intrusion Warnings
Online Performance Metrics
Register Monitoring Queries
DSMS
Network measurements, Packet traces
Scratch Store
Lookup Tables
37
Using Conventional DBMS

• Data streams as relation inserts, continuous
  queries as triggers or materialized views
• Problems with this approach
• Inserts are typically batched, high overhead
• Expressiveness simple conditions (triggers), no
  built-in notion of sequence (views)
• No notion of approximation, resource allocation
• Current systems dont scale to large of
  triggers
• Views dont provide streamed results

38
Query 1 (self-join)

• Find all outgoing calls longer than 2 minutes
• SELECT O1.call_ID, O1.caller
• FROM Outgoing O1, Outgoing O2
• WHERE (O2.time O1.time gt 2
• AND O1.call_ID O2.call_ID
• AND O1.event start
• AND O2.event end)
• Result requires unbounded storage
• Can provide result as data stream
• Can output after 2 min, without seeing end

39
Query 2 (join)

• Pair up callers and callees
• SELECT O.caller, I.callee
• FROM Outgoing O, Incoming I
• WHERE O.call_ID I.call_ID
• Can still provide result as data stream
• Requires unbounded temporary storage
• unless streams are near-synchronized

40
Query 3 (group-by aggregation)

• Total connection time for each caller
• SELECT O1.caller, sum(O2.time O1.time)
• FROM Outgoing O1, Outgoing O2
• WHERE (O1.call_ID O2.call_ID
• AND O1.event start
• AND O2.event end)
• GROUP BY O1.caller
• Cannot provide result in (append-only) stream
• Output updates?
• Provide current value on demand?

41
Data Model

• Append-only
• Call records
• Updates
• Stock tickers
• Deletes
• Transactional data
• Meta-Data
• Control signals, punctuations
• System Internals probably need all above

42
Related Database Technology

• DSMS must use ideas, but none is substitute
• Triggers, Materialized Views in Conventional DBMS
• Main-Memory Databases
• Sequence/Temporal/Timeseries Databases

• Realtime Databases
• Adaptive, Online, Partial Results
• Novelty in DSMS
• Semantics input ordering, streaming output,
• State cannot store unending streams, yet need
  history
• Performance rate, variability, imprecision,

43
Outline

• Introduction Motivation
• Data Stream Management System
• Issues Techs. of Processing Data Streams
• Sampling
• Histogram
• Wavelet
• Example Algorithms for Frequency Counting
• Lossy Counting
• Sticky Sampling

44
Problem of Frequency Counts

• Identify all elements whose current frequency
  exceeds support threshold s 0.1

Stream
45
Algorithm 1 Lossy Counting

• Step 1 Divide the stream into windows
• Is window size a function of support s? Will fix
  later

46
Lossy Counting in Action ...
Empty
At window boundary, decrement all counters by 1
47
Lossy Counting (contd)
Frequency Counts

Next Window
At window boundary, decrement all counters by 1
48
Error Analysis

• How much do we undercount?
• If current size of stream
  N
• and window-size
  1/e
• then
  windows eN

frequency error ?
Rule of thumb Set e 10 of support
s Example Given support frequency s
1, set error frequency e 0.1
49
Analysis of Lossy Counting

• Output
• Elements with counter values exceeding sN eN
• How many counters do we need?
• Worst case 1/e log(eN) counters

Approximation guarantees Frequencies
underestimated by at most eN No false negatives
False positives have true frequency at least sN
eN
50
Algorithm 2 Sticky Sampling

• Create counters by sampling
• Maintain exact counts thereafter

What rate should we sample?
51
Sticky Sampling (contd)

• For finite stream of length N
• Sampling rate 2/Ne log 1/(s ?)
• (? probability of failure)
• Output
• Elements with counter values exceeding sN eN

Same Rule of thumb Set e 10 of support
s Example Given support threshold s 1,
set error threshold e 0.1 set
failure probability ? 0.01
Same error guarantees as Lossy Counting
but probabilistic!
52
Sampling rate?

• Finite stream of length N
• Sampling rate 2/Ne log 1/(s?)
• Infinite stream with unknown N
• Gradually adjust sampling rate
• In either case,
• Expected number of counters 2/elog 1/s?

Independent of N!
53
New Directions

• Functional approximation theory
• Data structures
• Computational geometry
• Graph theory
• Databases
• Hardware
• Streaming models
• Data stream quality monitoring

54
References (1)

• AGM99 N. Alon, P.B. Gibbons, Y. Matias, M.
  Szegedy. Tracking Join and Self-Join Sizes in
  Limited Storage. ACM PODS, 1999.
• AMS96 N. Alon, Y. Matias, M. Szegedy. The space
  complexity of approximating the frequency
  moments. ACM STOC, 1996.
• CIK02 G. Cormode, P. Indyk, N. Koudas, S.
  Muthukrishnan. Fast mining of tabular data via
  approximate distance computations. IEEE ICDE,
  2002.
• CMN98 S. Chaudhuri, R. Motwani, and V.
  Narasayya. Random Sampling for Histogram
  Construction How much is enough?. ACM SIGMOD
  1998.
• CDI02 G. Cormode, M. Datar, P. Indyk, S.
  Muthukrishnan. Comparing Data Streams Using
  Hamming Norms. VLDB, 2002.
• DGG02 A. Dobra, M. Garofalakis, J. Gehrke, R.
  Rastogi. Processing Complex Aggregate Queries
  over Data Streams. ACM SIGMOD, 2002.
• DJM02 T. Dasu, T. Johnson, S. Muthukrishnan, V.
  Shkapenyuk. Mining database structure or how to
  build a data quality browser. ACM SIGMOD, 2002.
• DH00 P. Domingos and G. Hulten. Mining
  high-speed data streams. ACM SIGKDD, 2000.
• EKSWX98 M. Ester, H.-P. Kriegel, J. Sander, M.
  Wimmer, and X. Xu. Incremental Clustering for
  Mining in a Data Warehousing Environment. VLDB
  1998.
• FKS99 J. Feigenbaum, S. Kannan, M. Strauss, M.
  Viswanathan. An approximate L1-difference
  algorithm for massive data streams. IEEE FOCS,
  1999.
• FM85 P. Flajolet, G.N. Martin. Probabilistic
  Counting Algorithms for Data Base Applications.
  JCSS 31(2), 1985

55
References (2)

• Gib01 P. Gibbons. Distinct sampling for
  highly-accurate answers to distinct values
  queries and event reports, VLDB 2001.
• GGI02 A.C. Gilbert, S. Guha, P. Indyk, Y.
  Kotidis, S. Muthukrishnan, M. Strauss. Fast,
  small-space algorithms for approximate histogram
  maintenance. ACM STOC, 2002.
• GGRL99 J. Gehrke, V. Ganti, R. Ramakrishnan,
  and W.-Y. Loh BOAT-Optimistic Decision Tree
  Construction. SIGMOD 1999.
• GK01 M. Greenwald and S. Khanna.
  Space-Efficient Online Computation of Quantile
  Summaries. ACM SIGMOD 2001.
• GKM01 A.C. Gilbert, Y. Kotidis, S.
  Muthukrishnan, M. Strauss. Surfing Wavelets on
  Streams One Pass Summaries for Approximate
  Aggregate Queries. VLDB 2001.
• GKM02 A.C. Gilbert, Y. Kotidis, S.
  Muthukrishnan, M. Strauss. How to Summarize the
  Universe Dynamic Maintenance of Quantiles. VLDB
  2002.
• GKS01b S. Guha, N. Koudas, and K. Shim. Data
  Streams and Histograms. ACM STOC 2001.
• GM98 P. B. Gibbons and Y. Matias. New
  Sampling-Based Summary Statistics for Improving
  Approximate Query Answers. ACM SIGMOD 1998.
• GMP97 P. B. Gibbons, Y. Matias, and V. Poosala.
  Fast Incremental Maintenance of Approximate
  Histograms. VLDB 1997.
• GT01 P.B. Gibbons, S. Tirthapura. Estimating
  Simple Functions on the Union of Data Streams.
  ACM SPAA, 2001.

56
References (3)

• HHW97 J. M. Hellerstein, P. J. Haas, and H. J.
  Wang. Online Aggregation. ACM SIGMOD 1997.
• HSD01 Mining Time-Changing Data Streams. G.
  Hulten, L. Spencer, and P. Domingos. ACM SIGKD
  2001.
• IKM00 P. Indyk, N. Koudas, S. Muthukrishnan.
  Identifying representative trends in massive time
  series data sets using sketches. VLDB, 2000.
• Ind00 P. Indyk. Stable Distributions,
  Pseudorandom Generators, Embeddings, and Data
  Stream Computation. IEEE FOCS, 2000.
• IP95 Y. Ioannidis and V. Poosala. Balancing
  Histogram Optimality and Practicality for Query
  Result Size Estimation. ACM SIGMOD 1995.
• IP99 Y.E. Ioannidis and V. Poosala.
  Histogram-Based Approximation of Set-Valued
  Query Answers. VLDB 1999.
• JKM98 H. V. Jagadish, N. Koudas, S.
  Muthukrishnan, V. Poosala, K. Sevcik, and T.
  Suel. Optimal Histograms with Quality
  Guarantees. VLDB 1998.
• JL84 W.B. Johnson, J. Lindenstrauss. Extensions
  of Lipshitz Mapping into Hilbert space.
  Contemporary Mathematics, 26, 1984.
• Koo80 R. P. Kooi. The Optimization of Queries
  in Relational Databases. PhD thesis, Case
  Western Reserve University, 1980.

57
References (4)

• MRL98 G.S. Manku, S. Rajagopalan, and B. G.
  Lindsay. Approximate Medians and other Quantiles
  in One Pass and with Limited Memory. ACM SIGMOD
  1998.
• MRL99 G.S. Manku, S. Rajagopalan, B.G. Lindsay.
  Random Sampling Techniques for Space Efficient
  Online Computation of Order Statistics of Large
  Datasets. ACM SIGMOD, 1999.
• MVW98 Y. Matias, J.S. Vitter, and M. Wang.
  Wavelet-based Histograms for Selectivity
  Estimation. ACM SIGMOD 1998.
• MVW00 Y. Matias, J.S. Vitter, and M. Wang.
  Dynamic Maintenance of Wavelet-based
  Histograms. VLDB 2000.
• PIH96 V. Poosala, Y. Ioannidis, P. Haas, and E.
  Shekita. Improved Histograms for Selectivity
  Estimation of Range Predicates. ACM SIGMOD
  1996.
• PJO99 F. Provost, D. Jenson, and T. Oates.
  Efficient Progressive Sampling. KDD 1999.
• Poo97 V. Poosala. Histogram-Based Estimation
  Techniques in Database Systems. PhD Thesis,
  Univ. of Wisconsin, 1997.
• PSC84 G. Piatetsky-Shapiro and C. Connell.
  Accurate Estimation of the Number of Tuples
  Satisfying a Condition. ACM SIGMOD 1984.
• SDS96 E.J. Stollnitz, T.D. DeRose, and D.H.
  Salesin. Wavelets for Computer Graphics.
  Morgan-Kauffman Publishers Inc., 1996.

58
References (5)

• T96 H. Toivonen. Sampling Large Databases for
  Association Rules. VLDB 1996.
• TGI02 N. Thaper, S. Guha, P. Indyk, N. Koudas.
  Dynamic Multidimensional Histograms. ACM SIGMOD,
  2002.
• U89 P. E. Utgoff. Incremental Induction of
  Decision Trees. Machine Learning, 4, 1989.
• U94 P. E. Utgoff An Improved Algorithm for
  Incremental Induction of Decision Trees. ICML
  1994.
• Vit85 J. S. Vitter. Random Sampling with a
  Reservoir. ACM TOMS, 1985.
