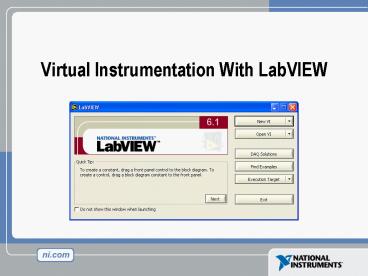

Virtual Instrumentation With LabVIEW

1
Virtual Instrumentation With LabVIEW
2
Course Goals

• Understand the components of a Virtual Instrument
• Introduce LabVIEW and common LabVIEW functions
• Build a simple data acquisition application
• Create a subroutine in LabVIEW

3
Section I

• LabVIEW terms
• Components of a LabVIEW application
• LabVIEW programming tools
• Creating an application in LabVIEW

4
LabVIEW Programs Are Called Virtual Instruments
(VIs)
Front Panel Controls Inputs Indicators Outputs
Block Diagram Accompanying program for front
panel Components wired together
5
VI Front Panel
Panel Toolbar
Boolean Control
Double Indicator
Waveform Graph
6
VI Block Diagram
Thermometer Terminal
Call to subVI
Temperature Graph
Knob Terminal
Numeric Constant
While Loop
Stop Button Terminal
Stop Loop Terminal
7
Controls and Functions Palettes
Controls Palette (Panel Window)
Functions Palette (Diagram Window)
Graphical, floating palettes Used to place
controls indicators on the front panel, or to
build the block diagram
8
Tools Palette

• Floating Palette
• Used to operate and modify front panel and block
  diagram objects.

• Operating Tool
• Positioning/Resizing Tool
• Labeling Tool
• Wiring Tool
• Shortcut Menu Tool

Scrolling Tool Breakpoint Tool Probe Tool Color
Copy Tool Coloring Tool

9
Status Toolbar
Run Button Continuous Run Button Abort
Execution Pause/Continue Button Text
Settings Align Objects Distribute
Objects Reorder
Additional Buttons on the Diagram Toolbar
Execution Highlighting Button Step Into
Button Step Over Button Step Out Button
10
Do Not Delete This Slide
11
Open a Virtual Instrument
Signal Generation and Processing.vi
12
Creating a VI
Front Panel Window
Block Diagram Window
Indicator Terminals
Control Terminals
13
Creating a VI Block Diagram
14
Do Not Delete This Slide
15
Dataflow Programming

• Block diagram does NOT execute left to right
• Node executes when data is available to ALL input
  terminals
• Nodes supply data to all output terminals when
  done

16
Exercise 1
Students build a VI that converts C to F
17
Section II

• What is a subVI?
• Making an icon and connector for a subVI
• Using a VI as a subVI

18
SubVIs

• A SubVI is a VI that can be used within another
  VI
• Advantages
• Modular
• Easier to debug
• Dont have to recreate code
• Require less memory

19
Icon and Connector

• An icon represents a VI in other block diagrams
• A connector shows available terminals for data
  transfer

20
SubVIs
SubVIs
21
Steps to Create a SubVI

• Create the Icon
• Create the Connector
• Assign Terminals
• Save the VI
• Insert the VI into a Top Level VI

22
Create the Icon

• Right-click on the icon in the diagram or front
  panel

23
Create the Connector
Right click on the icon pane (front panel only)
24
Assign Terminals
25
Insert the SubVI into a Top Level VI
Accessing user-made subVIs Functions gtgt Select a
VI Or Drag icon onto target diagram
26
Section III Data Acquisition

• Data acquisition (DAQ) basics
• Connecting Signals
• Simple DAQ application

27
DAQ Data Acquisition

• Plug-in board for a computer with
• Analog input channels
• Analog output channels
• Counters
• Digital I/O
• Controlled by a suite of LabVIEW VIs
• FunctionsgtgtData Acquisition

28
DAQ Data Acquisition

• Simple Temperature Acquisition Example
• Two parameters
• Device 1
• Channel 0

29
Hardware Connections
BNC-2120
SC-2075
SCB-68
30
Exercise 2

• Complete Convert C to F.vi, then create
  Thermometer.vi.

31
Do Not Delete This Slide
32
Section IV Loops and Charts

• For Loop
• While Loop
• Charts
• Multiplots

33
Loops

• While Loops
• Have Iteration Terminal
• Always Run Once
• Run According to Continue Terminal

• For Loops
• Have Iteration Terminal
• Run According to input N

34
Loops (cont.)

• Select the loop
• Enclose Code to Repeat

While Loop
35
Charts

• Waveform chart special numeric indicator that
  can display a history of values
• Controls gtgt Graphs gtgt Waveform Chart

36
Wiring Data into Charts

• Single Plot Charts

• Multiplot Charts

37
Exercise 3

• Students build Temperature Monitor.vi.

38
Section V Arrays File I/O

• Build arrays manually
• Have LabVIEW build arrays automatically
• Write to a spreadsheet file
• Read from a spreadsheet file

39
Adding an Array to the Front Panel

• From the Controls gtgt Array and Cluster
  subpalette, select the Array Shell

Drop it on the screen.
40
Adding an Array (cont.)

• Place data object into shell (digital control,
  for example).

41
Creating an Array with a Loop

• Loops accumulate arrays at their boundaries

42
Creating 2D Arrays
43
File I/O

• File I/O passing data to and from files
• - Files can be binary, text, or spreadsheet

Write to a spreadsheet file
Read from a spreadsheet file
44
File I/O
Easy File I/O VIs

• Read/write to spreadsheet file
• Read/write characters to file (ASCII)
• Read lines from file
• Read/write binary file

45
Do Not Delete This Slide
46
File I/O Example
Writing a 2D Array to File
47
File I/O Example
Reading a 2D Array from a File
48
Exercise 4
Students build Temperature Logger.vi
49
Where Do I Go From Here?

• Example programs (Help Find Examples)
• LabVIEW Student Edition (www.ni.com/labviewse)
• Web resources (ni.com)
• NI Developer Zone (zone.ni.com)
• Application Notes
• Info-labview newsgroup (www.info-labview.org/)
• Instrument Driver Library (www.ni.com/idnet)
