The Plasma Membrane

1

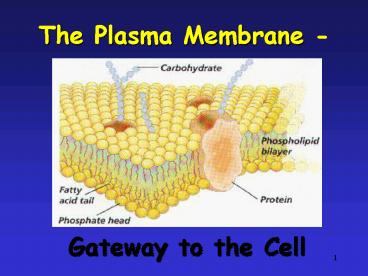

The Plasma Membrane -
Gateway to the Cell
2
Photograph of a Cell Membrane
3
Cell Membrane

• The cell membrane is flexible and allows a
  unicellular organism to move

4
Functions of Plasma Membrane

• separates and protects the cell from its
  surroundings
• provides some shape
• Contains the cytoplasm (fluid in cell)
• Regulates transport in out of cell
  (selectively permeable)
• Maintains Homeostasis
• (Balanced internal condition of cells
• Also called equilibrium)

5
Why is movement of molecules into and out of
cells necessary?

• All cells require nourishment for energy
  production
• All cells must eliminate toxic waste products

6
Functions of Plasma MembraneMore

• Provide a binding site for enzymes
• Allows cell recognition (surface structures
  are like fingerprints)
• Provide attachment sites for filaments of
  Cytoskeleton
• Interlocking surfaces bind cells together
  (junctions)

7
So how do molecules move ACROSS the cell membrane?

• To answer that we must first take a look at the
  structure of the cell membrane.

8
Structure of the Cell Membrane
9
PhospholipidsPrimary component of the membrane

• Make up the cell membrane

Contains 2 fatty acid chains that are nonpolar
Head is polar contains a PO4 group
10
Cell Membrane
The cell membrane is made of 2 layers of
phospholipids called the lipid bilayer
Hydrophobic molecules pass easily hydrophillic
DO NOT
11
Phospholipids

• glycerol backbone 2 fatty acids a phosphate
  group
• Phosphate Glycerol is hydrophilic
• Fatty acids are Hydrophobic

12
Cell Membrane

• Polar heads are hydrophilic water loving
• Nonpolar tails are hydrophobic water fearing
• Makes membrane Selective in what crosses

13
(No Transcript)
14
Solubility

• Materials that are soluble in lipids can pass
  through the cell membrane easily

15
Semipermeable Membrane
Small molecules and larger hydrophobic molecules
move through easily. e.g. O2, CO2, H2O
16
Fluid Mosaic Model

• http//www.susanahalpine.com/anim/Life/memb.htm

17
Fluid mosaic model
FLUID MOSAIC MODEL

• FLUID- because individual phospholipids and
  proteins can move around freely within the layer,
  like its a liquid.
• MOSAIC- because of the pattern produced by the
  scattered protein molecules when the membrane is
  viewed from above.

18
Membrane Components
Proteins(peripheral and integral)
Phospholipids
Cholesterol
Carbohydrates (glucose)
19
Semipermeable Membrane
Ions, hydrophilic molecules larger than water,
and large molecules such as proteins do not move
through the membrane on their own.
20
Membrane Proteins

• Control which particles can pass through the
  membrane.
• Act as markers so that cells can be recognized
  (the immune system).
• Serve as enzymes (may speed reactions).

21
Membrane Proteins

• Thousands are found throughout the cell
  membrane.
• A special few cross the cell membrane.
• Each type of protein has a specific purpose.
• Two major types (Integral and peripheral)

22
(No Transcript)
23
Integral Proteins

• Permanently connected to the cell membrane
• Large sections embedded in the middle layer of
  the membrane
• Known as the hard workers of the membrane
• pathway for ions and molecules (channels) and
  carriers)
• Very few integral proteins compared to peripheral

24
Proteins Are Critical to Membrane Function
25
Types of Transport Proteins

• Channel proteins are embedded in the cell
  membrane have a pore for materials to cross
• Carrier proteins can change shape to move
  material from one side of the membrane to the
  other

26
A look at integral and peripheral proteins
27
Peripheral Proteins

• Not bonded as strongly to the membrane
• Sit on the surface of the membrane, anchored by
  Hydrogen bonds

28
Membrane Components
Proteins(peripheral and integral)
Phospholipids
Cholesterol
Carbohydrates (glucose)
29

• Cell Processes
• Part I
• Transport Across Cell Membranes

30
Transporting Molecules across the membrane

• There are two major ways that substances pass
  through a membrane.
• Passive transport- requires no energy
• Active transport- requires energy

31
Passive Transport

• Type 1 Simple Diffusion
• Doesnt require energy
• Moves from high concentration
• to low concentration
• Example Oxygen or diffusing into a cell and
  carbon dioxide diffusing out.

32
Simulation of Diffusion

• http//www.biosci.ohiou.edu/introbioslab/Bios170/
  diffusion/Diffusion.html

33
Diffusion through a Membrane

Cell membrane
Solute moves DOWN concentration gradient (HIGH to
LOW)
34
Simple Diffusion

• Requires NO energy
• Molecules move from area of HIGH to LOW
  concentration

34
35
DIFFUSION

• Why are the molecules moving?
• The molecules
• have a natural
• KINETIC ENERGY
• Brownian Motion molecules vibrating

35
36
Diffusion of Liquids
36
37
Diffusion across the membrane - various routes

• http//www.coolschool.ca/lor/BI12/unit4/U04L03/dif
  fusion.swf

38
Passive transport type 2Osmosis A special
case of Diffusion Diffusion of Water across a
membrane
Diffusion across a membrane

• Water is moving from HIGH water potential (few
  solutes) to LOW water potential (many solutes)

Semipermeable membrane
39
Diffusion of H2O Across A Membrane OSMOSIS
High H2O potentialLow solute concentration
Low H2O potentialHigh solute concentration
40
Passive Transport Type 3

• Facilitated diffusion
• Doesnt require energy
• Uses transport proteins to move high to low
  concentration
• Examples Glucose or amino acids moving from
  blood into a cell.

41
Facilitated Diffusion

• Substances diffuse across a cell membrane by
  using a special protein channel

42
Facilitated diffusion animation

• http//highered.mcgraw-hill.com/sites/0072495855/s
  tudent_view0/chapter2/animation__how_facilitated_d
  iffusion_works.html

43

• http//www.d.umn.edu/sdowning/Membranes/diffusion
  animation.html
• http//www.microbiologytext.com/index.php?moduleB
  ookfuncdisplayarticleart_id48
• http//www.coolschool.ca/lor/BI12/unit4/U04L03.htm

• http//highered.mcgraw-hill.com/sites/0072495855/s
  tudent_view0/chapter2/animation__how_facilitated_d
  iffusion_works.html

44
Osmosis Close Up

• In any solution there is something dissolved and
  a fluid that the material is dissolved into.
• Solutes - A substance that is dissolved in a
  solvent (salt, sugar, protein etc)
• Solvent The liquid the solute dissolves in
• (water , alcohol, etc)
• In Osmosis, it is the solvent moves!

45

• Hypertonic Solutions (Hyper more)
• high concentration of solute in a solution
  compares to another nearby solution (e.g. the
  cell's cytoplasm).

46
Hypotonic vs. Hypertonic

• Hypotonic Solutions ( hypo low)
• low concentration of solute in a solution
  compares to another nearby solution (e.g. the
  cell's cytoplasm).

47
Osmosis

• If solutes cannot move across a membrane, then
• Water will move across the membrane to balance
  the concentration of solute.

48
Cell in Hypotonic Solution
What is the direction of water movement?
49
Cell in Hypertonic Solution
What is the direction of water movement?
50
Hypotonic and Hypertonic are Relative terms.

• If a solution is identified as hypertonic (
  having more dissolved solutes when compared to
  another solution),
• then there must be a hypotonic solution to
  compare it to.

51
Cell in Isotonic Solution
10 NaCL90 H2O
ENVIRONMENT
CELL
NO NET MOVEMENT
10 NaCL 90 H2O
What is the direction of water movement?
equilibrium
The cell is at _______________.
52
Isotonic

• Iso same
• Solute concentration is the same inside and out

53
Cells in Solutions
54
Isotonic Solution
Hypotonic Solution
Hypertonic Solution
NO NET MOVEMENT OF H2O (equal amounts entering
leaving)
CYTOLYSIS
PLASMOLYSIS
55
Cytolysis Plasmolysis
Plasmolysis
Cytolysis
56
(No Transcript)
57
Osmosis in Red Blood Cells
Isotonic
Hypertonic
Hypotonic
58

• Types of Solutions
• HYPERTONIC High solute concentration compares
  to neighbor Water moves in
• HYPOTONIC Low solute concentration compared to
  neighbor Water moves out
• ISOTONIC concentration of water is same on each
  side
• No net (overall) movement of water

59
hypotonic
hypertonic
isotonic
hypertonic
isotonic
hypotonic
60
Osmotic Pressure

• the pressure created when water moves by osmosis

• without some means of controlling osmotic
  pressure, the cell will burst.
• Just like higher air pressure in a tire can cause
  it to burst

61
(No Transcript)
62
Three (3) ways organisms control osmotic pressure

• 1) Cell walls- prevent cells from expanding
• 2 )Water pumps- single celled animals have
  contractile vacuoles that pump water out of the
  cell
• 3) Bathe cells- in fluid with nearly the same
  concentrations as the cells themselves( same
  solutes inside and out
