Executing SQL over Encrypted Data in Database-Service-Provider Model

1

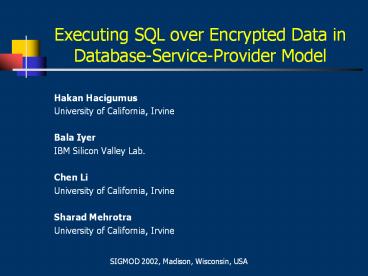

Executing SQL over Encrypted Data in
Database-Service-Provider Model

• Hakan Hacigumus
• University of California, Irvine
• Bala Iyer
• IBM Silicon Valley Lab.
• Chen Li
• University of California, Irvine
• Sharad Mehrotra
• University of California, Irvine
• SIGMOD 2002, Madison, Wisconsin, USA

2
What do we want to do?
User Data
Encrypted User Database
Distrusted

• We want to store the data on a server

Server

• But the problem is we do not trust the server
  for sensitive information!
• encrypt the data and store it
• but still be able to run queries over the
  encrypted data
• do most of the work at the server
• If the server is trusted, ICDE 2002

3
Why is it important anyway?
User Data
Encrypted User Database
Distrusted Server
(Distrusted) Application Service Provider

• Application Service Provider (ASP) Model for
  Database
• DB management transferred to service provider for
• backup, administration, restoration, space
  management, upgrades etc.
• use the database as a service provided by an
  ASP
• use SW, HW, human resources of ASP, instead of
  your own

4
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

5
Service Provider Architecture
Server Site
Client Site
Encrypted Results
Client Side Query
?
Server Side Query
Service Provider
Original Query
?
Actual Results
?
6
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

7
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

8
Relational Encryption
etuple N_ID S_ID P_ID
fErf!Q!!vddfgtgtlt/ 50 1 10
F3wgfErf! 65 2 10
gfsdf343vltl 50 2 20
33wgfs! 65 2 20
NAME SALARY PID
John 50000 2
Marry 110000 2
James 95000 3
Lisa 105000 4
Server Site

• Store an encrypted string etuple for each
  tuple in the original table
• This is called row level encryption
• Any kind of encryption technique can be used
• Blowfish encryption algorithm is used for this
  work
• Create an index for each (or selected)
  attribute(s) in the original table

9
Building the IndexPartition and Identification
Functions

• Partition function divides domain values into
  partitions (buckets)
• Partition (R.A) 0,200, (200,400,
  (400,600, (600,800, (800,1000
• partitioning function has an impact on
  performance as well as privacy

10
Mapping Functions

• Mapping function maps a value v in the domain of
  attribute A to the id of the partition which
  value v belongs to
• e.g. MapR.A( 250 ) 7, MapR.A( 620 ) 1

11
Storing Encrypted Data

• R lt A, B, C gt ? RS lt etuple, A_id, B_id,
  C_id gt
• etuple encrypt ( A B C )
• A_id MapR.A( A ), B_id MapR.B( B ), C_id
  MapR.C( C )

Table EMPLOYEES
Table EMPLOYEE
Etuple N_ID S_ID P_ID
fErf!Q!!vddfgtgtlt/ 50 1 10
F3wgfErf! 65 2 10
gfsdf343vltl 50 2 20
33wgfs! 65 2 20
NAME SALARY PID
John 50000 2
Marry 110000 2
James 95000 3
Lisa 105000 4
12
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

13
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

14
Mapping Conditions

• Q SELECT name, pname FROM emp, proj
• WHERE emp.pidproj.pid AND salary gt 100k
• Server stores attribute indices determined by
  mapping functions
• Client stores metadata and utilizes that to
  translate the query
• Conditions
• Condition ? Attribute op Value
• Condition ? Attribute op Attribute
• Condition ? (Condition ? Condition) (Condition
  ? Condition)
• (not Condition)

15
Mapping Conditions (2)

• Example
• Attribute Value
• Mapcond( A v ) ? AS MapA( v )
• Mapcond( A 250 ) ? AS 7

16
Mapping Conditions (3)

• Attribute1 Attribute2
• Mapcond( A B ) ? ?N (AS identA( pk ) ? BS
  identB( pl ))
• where N is pk ? partition (A), pl ? partition
  (B), pk ? pl ? ?

Partitions A_id
0,100 2
(100,200 4
(200,300 3
Partitions B_id
0,200 9
(200,400 8

• C A B ? C (AS 2 ? BS 9)
• ? (AS 4 ? BS 9)
• ? (AS 3 ? BS 8)

17
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

18
Relational Operators over Encrypted Relations

• Partition the computation of the operators across
  client and server
• Compute (possibly) superset of answers at the
  server
• Filter the answers at the client
• Objective minimize the work at the client and
  process the answers as soon as they arrive
  without requiring storage at the client
• Operators studied
• Selection
• Join
• Grouping and Aggregation
• Sorting
• Duplicate Elimination
• Set Difference
• Union
• Projection

19
Selection Operator
?c( R ) ?c( D (?SMapcond(c)( RS ) )
Example
20
Join Operator
R c T ?c( D ( RS SMapcond(c) TS )
Example
C A B ? C (A_id 2 ? B_id 9) ?(A_id
4 ? B_id 9) ?(A_id 3 ? B_id 8)
Partitions A_id
0,100 2
(100,200 4
(200,300 3
Partitions B_id
0,200 9
(200,400 8
21
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

22
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

23
Query Decomposition

• Q SELECT name, pname FROM emp, proj
• WHERE emp.pidproj.pid AND salary gt 100k

Client Query
24
Query Decomposition (2)
Client Query
?name,pname
Client Query
?name,pname
e.pid p.pid
?salary gt100k
D
e.pid p.pid
?salary gt100k
D
D
E_PROJ
D
?s_id 1 v s_id 2
E_PROJ
E_EMP
E_EMP
Server Query
Server Query
25
Query Decomposition (3)
Client Query
Client Query
?name,pname
?name,pname
?salary gt100k ? e.pid p.pid
e.pid p.pid
?salary gt100k
D
D
D
e.p_id p.p_id
?s_id 1 v s_id 2
E_PROJ
?s_id 1 v s_id 2
E_PROJ
E_EMP
E_EMP
Server Query
Server Query
26
Query Decomposition (4)
Client Query
?name,pname

• Q SELECT name, pname FROM emp,
  proj
• WHERE emp.pidproj.pid AND salary gt
  100k
• QS SELECT e_emp.etuple, e_proj.etuple FROM
  e_emp, e_proj
• WHERE e.p_idp.p_id AND
  s_id 1 OR s_id 2
• QC SELECT name, pname FROM temp

• WHERE emp.pidproj.pid AND
  salary gt 100k

?salary gt100k ? e.pid p.pid
D
e.p_id p.p_id
E_PROJ
?s_id 1 v s_id 2
E_EMP
Server Query
27
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

28
Talk Outline

• Service Provider Architecture
• How to create Metadata Relational Encryption and
  Storage Model
• Query Decomposition and Relational Operators
• Query Decomposition Examples
• Experimental Results
• Conclusion

29
Experimental Evaluation

• Data
• TPC-H database, scale factor 0.1
• Queries
• TPC-H Queries, versions of Q6 and Q3
• Partitioning Strategy
• Equi-depth histograms for the first set of
  experiments
• Equi-width histograms for the second set of
  experiments

30
Effect of Number of Buckets in Non-Join Query

• Client and communications costs decreases with
  increasing number of buckets due to better
  filtering at the server
• Server cost doesnt decrease as much, table scan
  remains best choice in the optimizer

31
Effect of Number of Buckets in Non-Join Query

• Single Server Server is trusted and performs all
  operations including decryption on site
• Shows that proposed query execution protocol
  doesnt introduce significant overhead

32
Effect of Number of Buckets in Join Query

• Sharp decrease in query response time with
  increase in the number of buckets due to better
  filtering at the server
• Client side query response time is greater than
  server side query response time due to dominant
  decryption cost on the query (second graph)

33
Effect of Number of Buckets in Join Query

• Single Server Server is trusted and performs all
  operations including decryption on site
• Consistent with the previous results showing
  proposed communication protocol doesnt introduce
  significant overhead

34
Conclusion

• ASP model is a promising solution for enterprise
  computing in Internet era
• We studied data privacy problem
• in the context of ASP model
• when the ASP is not trusted
• Proposed solution
• encrypts data, creates coarse indexes and
  stores the data at ASP
• allows only data owner to decrypt the data
• With query decomposition
• most of query execution performed at ASP
• client only performs filtering and continues to
  benefit from ASP model
