Visual%20

1

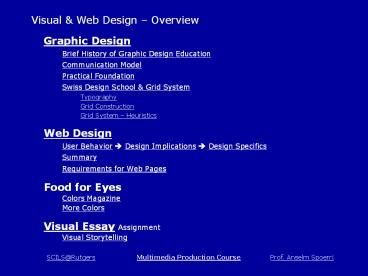

Visual Web Design Overview

• Graphic Design
• Brief History of Graphic Design Education
• Communication Model
• Practical Foundation
• Swiss Design School Grid System
• Typography
• Grid Construction
• Grid System Heuristics
• Web Design
• User Behavior ? Design Implications ? Design
  Specifics
• Summary
• Requirements for Web Pages
• Food for Eyes
• Colors Magazine
• More Colors
• Visual Essay Assignment
• Visual Storytelling

2
Graphic Design

• Graphic Design
• Brief History of Graphic Design Education
• Communication Model
• Practical Foundation
• Swiss Design School Grid System
• Sources
• Katherine McCoy, Education in an Adolescent
  Profession
• Josef Mueller-Brockmann, Grid Systems in graphic
  design

3
Brief History of Graphic Design Education

• Pre-Modernism
• Focus on Image Associations
• Lack of Formalized Method early luminaries
  self-taught
• Premium on Creativity BIG IDEA
• Learn from Samples and Examples
• Functional Modernism
• "Swiss School" of Graphic Design
• Based on Bauhaus
• Focus on Formal Purity rather than Content
• Post-Modernism
• Influenced by French Literary Theory
• Variety of Cultural Contexts and Personal
  Experiences
• Possibility of Multiple Interpretations
• Question Rigidity, Minimalism of Graphic
  Modernism
• Subjective, Personal Layers of Meaning
  Complexity

4
Communication Model - Sender
Sender Transmitter Receiver
Design School Pre-Modernism Functional Modernism Post-Modernism
Guiding Discipline Art Science Language
Focus on
Personal content and creativity Systematic presentation of objective information Audience's response due to different cultures and subjective experiences
5
Communication Model - Transmitter
Sender Transmitter Receiver
Design School Pre-Modernism Functional Modernism Post-Modernism
Guiding Discipline Art Science Language
Focus on
Personal content and creativity Systematic presentation of objective information Audience's response due to different cultures and subjective experiences
6
Communication Model - Receiver
Sender Transmitter Receiver
Design School Pre-Modernism Functional Modernism Post-Modernism
Guiding Discipline Art Science Language
Focus on
Personal content and creativity Systematic presentation of objective information Audience's response due to different cultures and subjective experiences
7
Communication Model
Sender Transmitter Receiver
Design School Pre-Modernism Functional Modernism Post-Modernism
Guiding Discipline Art Science Language
Focus on
Personal content and creativity Systematic presentation of objective information Audience's response due to different cultures and subjective experiences
8
Future of Graphic Design

• Digital Communications Design
• Different Design Strategy than Perfectionist
  Graphic Design
• Less Control, More Conceptual, More Interaction
• Users Co-Creators
• Requires Deeper Understanding of the
  Communications Process
• Combines Art, Science and Language
• Needed Expertise
• Multimedia Design Visual Art, Music, Film
• Communications Theory
• Cognitive Perceptual Psychology
• Social Sciences Cultural Anthropology
• Computer Science

9
Practical Graphic Design

• Graphic Design Organic Process
• Cultural, Contextual, Personal
• Client Designer Interaction
• Good Design is Stolen
• Emulate what speaks to you
• Need Practical Foundation
• Functional Swiss Design School
• Grid Systems

10
Swiss Design School

• Based on Bauhaus
• Form follows Function
• Minimalism, Universality, Rationality,
  Abstraction and Structure
• Focus on Formal Purity rather than Content
• Grid System
• Divide 2-D plane or 3-D space into Smaller Fields
• Intermediate Space so that Captions and Pictures
  Dont Touch

11
Grid System 8 Fields Example




12
Grid System 8 Fields Example
Swiss Design School




The great Swiss innovators of the 1950s and 1960s
can be seen as representing the classic phase of
modernism, the heirs to Bauhaus graphic design
and other early modern European graphic
designers. These Swiss innovators applied the
Bauhaus functionalist ethic to a systematic
graphic method that shared the Bauhaus values of
minimalism, universality, rationality,
abstraction and structural expressionism. This
fresh and highly professional graphic design was
first transmitted beyond Switzerland to the rest
of Europe and the U.S. through Swiss design
magazines and a few books, notably Graphis and
the "Swiss" bibles by Muller-Brockmann, Gertsner,
Hoffmann and Ruder. Then, in the late 1960s,
several professional offices began to practice
these ideas to solve the needs of large corporate
clients in Holland, Great Britain, Canada and the
U.S.
Caption Text
The method, symbolized by the typeface Helvetica,
was enthusiastically adopted by several corporate
and institutional design groups, including
Container Corporation, Ciba-Geigy, Herman Miller,
IBM and Massachusetts Institute of Technology.
Montreal's Expo '67 was a feast of Helvetica and
systematic environmental signage, as well as
advanced architecture. Eventually, American
corporate culture embraced "Swiss" school graphic
design as the ideal corporate style. Although
"Swiss" graphic design was first adopted in U.S.
by professionals in their design practices, soon
several leading U.S. graphic design schools
followed suit, going directly to the source.
13
Grid System 8 Fields Example
Swiss Design School
The great Swiss innovators of the 1950s and 1960s
can be seen as representing the classic phase of
modernism, the heirs to Bauhaus graphic design
and other early modern European graphic
designers. These Swiss innovators applied the
Bauhaus functionalist ethic to a systematic
graphic method that shared the Bauhaus values of
minimalism, universality, rationality,
abstraction and structural expressionism. This
fresh and highly professional graphic design was
first transmitted beyond Switzerland to the rest
of Europe and the U.S. through Swiss design
magazines and a few books, notably Graphis and
the "Swiss" bibles by Muller-Brockmann, Gertsner,
Hoffmann and Ruder. Then, in the late 1960s,
several professional offices began to practice
these ideas to solve the needs of large corporate
clients in Holland, Great Britain, Canada and the
U.S.
Caption Text
The method, symbolized by the typeface Helvetica,
was enthusiastically adopted by several corporate
and institutional design groups, including
Container Corporation, Ciba-Geigy, Herman Miller,
IBM and Massachusetts Institute of Technology.
Montreal's Expo '67 was a feast of Helvetica and
systematic environmental signage, as well as
advanced architecture. Eventually, American
corporate culture embraced "Swiss" school graphic
design as the ideal corporate style. Although
"Swiss" graphic design was first adopted in U.S.
by professionals in their design practices, soon
several leading U.S. graphic design schools
followed suit, going directly to the source.
14
Grid System - Motivation

• Solve Visual Problems with Greater Speed
  Confidence
• Maintain Consistency
• Title Location
• Annotations Location
• Image Rhythm
• Create Visual Hierarchy Rhythm
• Invisible Guiding Hand
• Information Presented Clearly Logically
• Read More Quickly
• Understood Better
• Better Recall

15
Typography

• Readability - how easy it is to read a lot of
  text
• Serif Typeface Better if a Lot of Text
• Type Size 10 14pt
• Line Length
• Leading or Space between Lines
• Legibility - how easy it is to recognize short
  bursts of text
• Sans Serif Typeface is Better and Easier to Read
  on Screen
• 7 - 10 Words Per Line
• Overlong or Overshort Lines Tire
• Column Width Proportional to Type Size
• Bold and italic used for small blocks of text
• Enough Contrast between Type and Background

16
Grid Construction

• Need to Know How Much Text and How Many Images
  to Be Placed
• Each Work Raises Many Questions
• How Many Columns?
• White Space and Margins Have Visual Function?
• Annotations, Footnotes, Captions?
• Large and Small Images? How Many?
• Each Work Requires its Own Specific Grid
• Create Small Sketch
• Number of Columns Depends on Type Size
• Wider Columns Need Larger Type Size than Narrow
  Columns

17
Grid System 8 Fields




18
Grid System 8 Fields




19
8 Fields Grid - Image Size Options




20
8 Fields Grid - Image Size Options




21
8 Fields Grid - Image Size Options




22
8 Fields Grid - Image Size Options




23
8 Fields Grid - Image Size Options




24
8 Fields Grid - Image Size Options




25
Grid System 20 Fields





26
Grid System 20 Fields





27
Grid System 20 Fields





28
Grid System 20 Fields





29
20 Fields Grid - Example 1
Swiss Design School





Although "Swiss" graphic design was first adopted
in U.S. by professionals in their design
practices, soon several leading U.S. graphic
design schools followed suit, going directly to
the source. A number of Swiss teachers and their
graduates, from Armin Hoffman's Basel school in
particular, put down roots in schools including
Philadelphia College of Art, University of
Cincinnati and Yale. (The Swiss influence seems
to have been particularly strong in U.S. and
Canadian schools Europeans have often expressed
a certain mystification at this North American
reverence for the Basel method.) Manfred Maier's
book, Basic Principles of Design, on the Basel
foundation program, was finally available in the
U.S. in 1977, spreading this method farther.
Under the influence of this highly structured
educational method and its emphasis on the
prolonged study of abstract design and
typographic form, these American schools began to
carefully structure their curricula. Based on
objectivity and rationalism, this educational
system produced a codified method that was easy
to communicate to students, giving them a
foundation for a visual design process and
composition ..
This classic modernist graphic aesthetic is
distinctly different from the predominantly
semantic imagery of the "big idea". It stresses
the grammar of design and is rather neutral to
content. Regrettably, this language of structural
geometry has often resulted in a sameness of form
that is more the look of function than truly
communicative function-- an emphasis on formal
purity rather than content. As this aesthetic
spread, however, a number of Europeans,
particularly in conjunction with the Ulm school
in West Germany, began to apply semiotics to
visual communications problems. Related
explorations in the science of signs were taking
place in structuralist philosophy, linguistics,
literature and film theory. Other efforts to
develop scientific design processes through
communication theory and computer design method
began in Great Britain and at the Illinois
Institute of Technology during this period.
Although the Swiss never embraced these
communication theories, some of the sounder
graphic design schools outside Switzerland have
gradually begun to incorporate theory into their
curricula
30
20 Fields Grid - Example 2
Swiss Design School





Poster Designs by Josef Muller-Brockmann Caption
describing the poster designs. When they were
created. Who the client was and their
effectiveness.
Although "Swiss" graphic design was first adopted
in U.S. by professionals in their design
practices, soon several leading U.S. graphic
design schools followed suit, going directly to
the source. A number of Swiss teachers and their
graduates, from Armin Hoffman's Basel school in
particular, put down roots in schools including
Philadelphia College of Art, University of
Cincinnati and Yale.
(The Swiss influence seems to have been
particularly strong in U.S. and Canadian schools
Europeans have often expressed a certain
mystification at this North American reverence
for the Basel method.) Manfred Maier's book,
Basic Principles of Design, on the Basel
foundation program, was finally available in the
U.S. in 1977, spreading this method farther.
Under the influence of this highly structured
educational method and its emphasis on the
prolonged study of abstract design and
typographic form, these American schools began to
carefully structure their curricula. Based on
objectivity and rationalism, this educational
system produced a codified method that was easy
to communicate to students, giving them a
foundation for a
visual design process and composition that went
far beyond the superficial emulation of their
heroes. This classic modernist graphic aesthetic
is distinctly different from the predominantly
semantic imagery of the "big idea". It stresses
the grammar of design and is rather neutral to
content.
31
20 Fields Grid - Example 2a
Swiss Design School
Poster Designs by Josef Muller-Brockmann Caption
describing the poster designs. When they were
created. Who the client was and their
effectiveness.
Although "Swiss" graphic design was first adopted
in U.S. by professionals in their design
practices, soon several leading U.S. graphic
design schools followed suit, going directly to
the source. A number of Swiss teachers and their
graduates, from Armin Hoffman's Basel school in
particular, put down roots in schools including
Philadelphia College of Art, University of
Cincinnati and Yale.
(The Swiss influence seems to have been
particularly strong in U.S. and Canadian schools
Europeans have often expressed a certain
mystification at this North American reverence
for the Basel method.) Manfred Maier's book,
Basic Principles of Design, on the Basel
foundation program, was finally available in the
U.S. in 1977, spreading this method farther.
Under the influence of this highly structured
educational method and its emphasis on the
prolonged study of abstract design and
typographic form, these American schools began to
carefully structure their curricula. Based on
objectivity and rationalism, this educational
system produced a codified method that was easy
to communicate to students, giving them a
foundation for a
visual design process and composition that went
far beyond the superficial emulation of their
heroes. This classic modernist graphic aesthetic
is distinctly different from the predominantly
semantic imagery of the "big idea". It stresses
the grammar of design and is rather neutral to
content.
32
Grid System Heuristics

• One Column
• Little Freedom for Pictures in Small, Medium and
  Large Size
• Two Columns
• Text can go in First Column
• Illustrations, Images in the Second Column
• Text and Images can be Placed in Same Column
• Three Columns
• Variety of Ways of Placing Text and Graphics
• Four Columns
• If a lot of Text or Images Need to be Placed
• Statistics with Copious Figures and Graphs
• Can be Subdivided into 8 or 16 columns

33
Web Guiding Principles

• Diversity of Users Rapid Change
• Diverse users, diverse computers, diverse skills,
  diverse
• Rapid evolution of technology and expectations
• Short attention span
• Common Sense
• No right way to design
• Make it short
• More likely to be used and remembered
• Cut in ½ and cut in ½ again
• Don't make me think
• Get rid of question marks - each item has clear
  purpose
• Make it work at a glance
• People have little time
• Support intented task - manage expectations

34
Basic Design Principles

• Alignment
• Don't Mix Alignment Styles - Simplicity
• Create Sufficient Left Margin
• Constrain Total Width of Page
• Proximity
• Related Things Close Together
• Spatial Separation Conceptual Separation
• Repetition Consistency
• Grid Layout, Navigation, Graphics Color Coding,
  Typeface
• Creates Ease of Use
• Contrast
• Bigger, Bolder, Color, Spatial Distance
• Guide the Eye and Create Visual Hierarchy

35
User Behavior
Scan pages - don't read them
Look for anything Search Interest Decide
quickly Choose first reasonable item
Muddle through Don't figure out how things work
Resist forming models
Stick to what works
36
Design Implications
Scan pages - don't read them

• Design for Scanning Make text short - cut
  words
• Make page work at a glance Sufficient left
  margin, 640x480 main message
• Create Visual Hierarchy

Look for anything Search Interest Decide
quickly Choose first reasonable item

• Make obvious what you can do on a page
• Make obvious what is clickable

Muddle through Don't figure out how things work
Resist forming models

• Don't make users think Get rid of question
  marks Each item clear purpose

• Stick to what works

• Repetition Consistency Grid Layout, Easy
  Navigation, Graphics,
• Color Coding, Typography

37
User Behavior ? Design Implications ? Design
Specifics

• 1 Use Grid System
• Maintain ConsistencyHelps you decide location
  of primary secondary navigation location and
  sizes of images location of headlines, main
  text, annotations etc.
• Create Visual Hierarchy Rhythm
• Present Information Clearly LogicallyUsers can
  read info more quickly.Facilitates understanding
  and recall.
• Invisible Hand guiding users and creating sense
  of place

38
User Behavior ? Design Implications ? Design
Specifics

• 2 Create Visual Hierarchy Guide Eye
• Important Things Visually Prominent(More
  Important Larger / Sharp Contrast)Use
  headlines to guide the eye
• Visual ContrastUse sharp changes in size
  (headline), light intensity (bold), color,
  texture, motion to create contrast.
• Proximity related things spatially closeSpatial
  separation conceptual separation.Don't mix
  alignment styles.
• Use Grouping Nesting to Increase Information
  Density (Short-term Memory 3-7)Use bounding
  shapes.

39
User Behavior ? Design Implications ? Design
Specifics

• 3 Typography Heuristics
• Sans Serif type is easier to read on screen
• Type size 10 -14 points
• 7 - 10 words per line
• Column width proportional to type size
• Bold and italic for small blocks of text
• Enough contrast between type background

40
User Behavior ? Design Implications ? Design
Specifics

• 1 Use Grid System
• Maintain ConsistencyHelps you decide location
  of primary secondary navigation location and
  sizes of images location of headlines, main
  text, annotations etc.
• Create Visual Hierarchy Rhythm
• Present Information Clearly LogicallyUsers can
  read info more quickly.Facilitates understanding
  and recall.
• Invisible Hand guiding users and creating sense
  of place

• 2 Create Visual Hierarchy Guide Eye
• Important Things Visually Prominent(More
  Important Larger / Sharp Contrast)Use
  headlines to guide the eye
• Visual ContrastUse sharp changes in size
  (headline), light intensity (bold), color,
  texture, motion to create contrast.
• Proximity related things spatially
  close.Spatial separation conceptual
  separation.Don't mix alignment styles.
• Use Grouping Nesting to Increase Information
  Density (Short-term Memory 3-7)Use bounding
  shapes.

• 3 Typography Heuristics
• Sans Serif type is easier to read on screen
• Type size 10 -14 points
• 7 - 10 words per line
• Column width proportional to type size
• Bold and italic used for small blocks of text
• Enough contrast between type and background

41
Requirements for Web Pages
? Layout Presents Info Clearly
LogicallyFacilitates Understanding Recall

• What can I do here?

? Visual Hierarchy Guides Eye to Important Things

• Where do I start?

• What site is this?

? Site ID logo, image, text

• What page am I on?

? Page name

• Major sections of site?

? Primary Navigation Top Row or Left Column
Simple text hyperlinks, icons, rollovers,
image-maps, pull-downs

• Options at this level?

? Secondary Navigation Below Top Line or Left
Column
? Expanding / Nesting Hierarchies Static or
Dynamic Outlines

• Where I am? Go higher or home?

? Color Coding, BreadcrumbsPrimary / Secondary
Navigation
42
Food for Eyes Colors Magazine
43
Color Magazine
44
Colors Magazine
45
Colors Magazine
46
Colors Magazine
47
Colors Magazine
48
Colors Magazine
49
Colors Magazine
50
Colors Magazine
51
Colors Magazine
52
Colors Magazine
53
Colors Magazine
54
Colors Magazine
55
Colors Magazine
56
Colors Magazine
57
More Colors

• Colors Magazine Select Archive
• Initial Designer Tibor Kalman
• 2 Immigration placement of text on image
  background
• 3 Evolution placement of text along image
  contour
• 14 War effective imagery and good copy
• 20 Marriage simple, effective image and good
  copy
• 24 Death simple, effective image and
  excellent copy
• 25 Fat simple, effective image and good copy
• 47 Madness simple image and good copy
  website animation

58
Visual Essay - Goal

• Visual Storytelling
• Visualize idea you want to communicate
• Create Layout of images limited text that
  "tells visual story
• Create layouts with clear Visual Hierarchy good
  rhythm
• Ask What is most important?
• Images "adjectives in story
• Close ups, Faces, Detail, Shows action, Matching
  reaction
• Make sure that key idea is visible above the
  fold (640x480 area)
• Introduce pauses in your animated GIFs.Can use
  several animated GIFs to guide the eye across page

59
Visual Essay - How

• Find Images to Support Storyline
• Scan from Books or Magazines
• Scan at high enough resolution
• Web Images
• Save As in the Browser saves images in
  supporting folder
• Mouse Right Click on image and use Save Target
  As
• Fireworks / Photoshop
• Resize or Crop original image
• Create Selections (rectangle or polygon)
• Create Collages by combining layers
• Export / Save for Web JPEG if rich in color,
  GIF if limited colors
• Create Grid Layout
• Resize images if needed (via image handles
  SHIFT key) or Crop image
