Introduction to the Pittsburgh Supercomputing Center Computing Systems

1

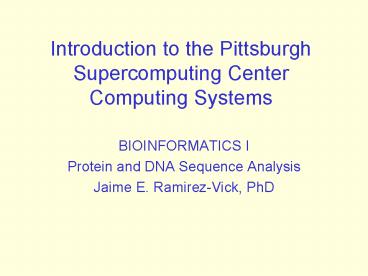

Introduction to the Pittsburgh Supercomputing
Center Computing Systems

• BIOINFORMATICS I
• Protein and DNA Sequence Analysis
• Jaime E. Ramirez-Vick, PhD

2
Computers Available for Biomedical Use

• PSC operates two platforms exclusively for
  biomedical use
• A 20 compute node Opteron cluster
• Contains one dual-cpu 1.4 Ghz AMD Opteron
  processor per node
• 4 Gbytes of memory per node.
• Two front ends CODON and BIOINFORMATICS.
• A 64 processor SMP machine
• 64 1.15 GHz EV7 processors
• 256 Gbytes of shared memory.
• Machine is called JONAS

3
Computers Available for General Use (Including
Biomedical)

• bigben, a Cray XT3 MPP machine with 2068
  compute processors.
• lemieux, an HP Alphaserver Cluster comprising
  750 4-processor compute nodes.
• rachel, an SMP machine. Each machine has 64 1.15
  GHz EV 7 processors and 256 Gbytes of shared
  memory.
• ben, an HP Alphaserver cluster comprising 64
  4- processor, 4-Gbyte compute nodes.
• Front end machines running Linux and VMS
• A file archiver

4
Consulting

• All active PSC users have access to PSC
  consulting resources
• 800-221-1641
• Phones are staffed Monday - Friday, 9 a.m. to 8
  p.m. and Saturday, 9 a.m. to 4 p.m. (EST).
• For best service, call for critical problems.
• remarks_at_psc.edu
• There is also documentation available at
  www.psc.edu

5
General Policies

• The PSC has policies on computing related topics
  such as
• Passwords
• File retention after grant expiration
• Email addresses
• To review these policies please see
• http//www.psc.edu/general/policies/policyovervie
  w.html

6
Passwords

• Computer security depends heavily on maintaining
  secrecy of passwords
• Most machines use a common Kerberos password
• Must be at least 6 characters long.
• Longer than 8 characters can prevent you from
  logging in certain machines.

7
Selecting Secure Passwords

• Do NOT
• simply add numbers to words that can be found in
  a dictionary, such as "helper01", "amoeba1",
  "1license"
• simply substitute "1" for "L" or "0" for "o" or
  "1" for "I" in common words to get passwords like
  "he1per" or "am0eba" or "11cense"
• Creating good passwords
• use first letter from an uncommon sentence/phrase
  that you can easily remember
• I married Sandie on July 2nd in Greentree
  (ImSoJ2iG)
• My 4th grade teacher was Sister Cyrilla
  (M4gtwSC)

8
Connecting and Transferring Files

• Connect to the PSC machines using ssh
• http//www.psc.edu/general/net/ssh/ssh.html
• Transfer files between PSC and your home
  institution using kftp, scp or sftp

9
Opteron Cluster

• Contains bioinformatics software and databases
• To log into the cluster, ssh to
• bioinformatics.psc.edu
• codon.psc.edu
• The cluster uses a UNIX operating system
• SLURM is used to run serial and parallel programs
  on the clusters nodes

10
SLURM scripts

• A file containing a series of instructions for
  the computer
• SLURM scripts are submitted by the user and run
  when the system has resources available to run
  the script
• SLURM scripts can run parallel programs or serial
  programs
• A SLURM script will be created for you for
  sequence analysis codes when you run the program
  makseq

11
SLURM commands

• srun submit a script file to the SLURM
  scheduling queue
• squeue show status of the SLURM scheduling
  queue
• scancel remove a running

12
SLURM - srun
srun b o test.log test.d srun jobid 3197
submitted squeue JOBID PARTITION NAME
USER ST TIME NODES NODELIST(REASON)
2773 all pgy347_t jshen3 R 3-021343
1 operon20 3194 all test.a ropelews
R 221 1 operon11 3195 all
test.b ropelews R 221 1 operon13
3196 all test.c ropelews R 221
1 operon14 3197 all test.d
ropelews R 210 1 operon16
13
SLURM - scancel
squeue JOBID PARTITION NAME USER ST
TIME NODES NODELIST(REASON) 2773
all pgy347_t jshen3 R 3-021343 1
operon20 3194 all test.a ropelews R
221 1 operon11 3195 all
test.b ropelews R 221 1 operon13
3196 all test.c ropelews R 221
1 operon14 3197 all test.d
ropelews R 210 1 operon16
scancel 3195 squeue JOBID PARTITION NAME
USER ST TIME NODES NODELIST(REASON)
2773 all pgy347_t jshen3 R 3-021435
1 operon20 3194 all test.a
ropelews R 313 1 operon11 3196
all test.c ropelews R 313 1
operon14 3197 all test.d ropelews R
302 1 operon16
14
UNIX

• To use UNIX, for sequence analysis one needs to
  become familiar with three basic areas
• General information on UNIX
• UNIX commands and syntax
• Text editor (such as vi, emacs, pico)
• This talk presents the minimum that one needs to
  know in those areas

15
General Information

• Commands are organized into shells
• sh, csh, ksh, tcsh
• Shells can have different commands and different
  command syntax
• Core UNIX commands work the same regardless of
  shell
• Commands are case sensitive
• General command syntax is command -options
  parameters
• Some commands can be listed in special files,
  which are executed when conditions warrant such
  as .login and .cshrc and .profile

16
UNIX File and Directory Structure

• Hierarchical (absolute)
• No Special Filename Format
• Filenames are case sensitive
• Single dot . refers to the current directory
• Double dots .. refers to the parent directory
• HOME refers to the login directory

17
Special Characters

• Wildcard characters ? letters
• Home/user Directory user
• IO Redirection lt stdin gt stdout gt
  stdinstderr
• Concatenate gtgt
• Place job in background
• Redirect output from a command as input into
  another command (pipe)
• Stop a job control z
• Stop executing control c

18
Basic UNIX Commands

• kpasswd (passwd) - Change your password
• ls - List files in a directory
• more - Display contents of a file
• cp - Duplicate files
• rm, rmdir - Remove a file or directory
• mkdir - Create a directory
• cd - Change directory
• pwd - Show directory
• man - Find Unix command usage information

19
Basic UNIX commands - kpasswd

• kpasswd (passwd) Change Kerberos Password

bioinformatics.psc.edugt kpasswd ramirezv_at_PSC.EDU's
Password New password Verifying password -
New password Success Password
changed bioinformatics.psc.edugt
20
Basic UNIX commands - ls

• ls - List files in a directory
• -l Long format
• -a Show hidden files
• -F Tag files with "/", "", or "_at_"

ls a.doc a.cpr a.out FILE
21
Basic UNIX commands - more

• more - View contents of file by page

more file.f program intro integer I, J, K real
rr,vv,cc parameter (I 5)
22
Basic UNIX commands - cp

• cp - Duplicate files.

ls a.dat x.dat cp x.dat xcopy.dat
ls a.dat x.dat xcopy.dat
23
Basic UNIX commands - rm

• rm, rmdir - Remove a file or a directory
• -i inquire before remove
• -r recursive remove

ls x.dat xcopy.dat z.file rm .dat
ls z.file
24
Basic UNIX commands - directory

• Directory navigation commands
• mkdir - Create a directory
• cd - Change directory
• pwd - Show directory

mkdir sub1 mkdir HOME/sub2 cd sub1
pwd /usr/ue/2/ropelews/sub1 cd HOME/sub2
pwd /usr/ue/2/ropelews/sub2
25
Basic UNIX commands - man

• man - Find Unix command information
• man -k ltkeywordgt - Find topics available
• man ltcommandgt - Show command information

man -k directory mkdir (1) -
make directories rm (1) -
remove files or directories rmdir
(1) - remove empty directories man
rmdir RMDIR(1) User
Commands RMDIR(1) NAME
rmdir - remove empty directories SYNOPSIS
rmdir OPTION... DIRECTORY... DESCRIPTION
Remove the DIRECTORY(ies), if they are
empty.
26
UNIX Text Editors

• emacs GNU UNIX editor
• vi Traditional UNIX editor
• pico A simple editor
• To use full-screen capabilities, terminal type
  usually needs to be a set to a vt100
• setenv TERM vt100 tset vt100

27
Which Editor Should You Use?

• Use the editor that you are most familiar with!
• emacs
• Powerful, works on Unix and some non Unix systems
• Moderately easy to master
• vi
• Powerful, will be on every Unix system
• Not intuitive, fairly difficult to master.
• pico
• Simple, intuitive, easy to learn

28
emacs

• To Edit a file named ltfilenamegt enter
• emacs ltfilenamegt
• To navigate
• ltarrows keysgt - Move cursor 1 space
• ltdeletegt - Delete character
• To quit with or without saving
• ltcntrlgt X ltcntrlgt C
• Then answer Y or N
• For more information see
• http//www.gnu.org/software/emacs/

29
vi

• To Edit a file named ltfilenamegt enter
• vi ltfilenamegt
• vi has two modes navigation mode (default) and
  insertion mode
• To insert text, one must be in insertion mode.
  Several keys (i,a,o) will place you into
  insertion mode.
• To leave the insertion mode, hit esc key.

30
vi (continued)

• Commonly used vi keys

arrows - Move cursor dd - delete line h - Move
cursor left dl - delete letter l - Move cursor
right dw - delete word k - Move cursor up
esc - stop insertion j - Move cursor down
wq - write then quit i - insert at cursor q!
- quit a - insert after cursor o - insert below
line
31
pico

• Based on editor in the Pine email program
• To edit a file named ltfilenamegt enter
• pico ltfilenamegt
• To navigate
• ltarrows keysgt - Move cursor 1 space
• ltdeletegt - Delete character
• To quit with or without saving
• ltcntrlgt X
• Then answer Y or N
