20-755: The Internet Lecture 1: Introduction

1

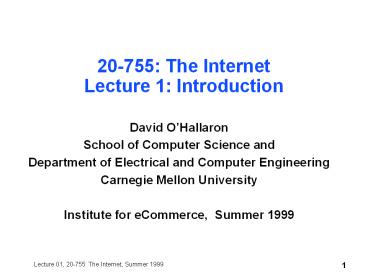

20-755 The InternetLecture 1 Introduction

• David OHallaron
• School of Computer Science and
• Department of Electrical and Computer Engineering
• Carnegie Mellon University
• Institute for eCommerce, Summer 1999

2
Todays lecture

• Course overview (25 min)
• Internet history (25 min)
• break (10 min)
• Research overview (50 min)

3
Course Goals

• Understand the basic Internet infrastructure
• review of basic computer system and
  internetworking concepts, TCP/IP protocol suite.
• Understand how this infrastructure is used to
  provide Internet services
• client-server programming model
• existing Internet services
• building secure, scalable, and highly available
  services
• Understand how to write Internet programs
• Use DNS and HTTP to map a part of the CMU
  Internet
• Build a server that provides an interesting
  Internet service.

4
Teaching approach

• Approach the Internet from a host-centric
  viewpoint
• How the Internet is used to provide services.
• Complements the network-centric viewpoint of
  20-770 Communications and Networking.
• Students learn best by doing
• In our case, this means programming.

5
Course organization

• 14 lectures
• Readings from the textbook and supplementary
  readings are posted beforehand.
• Guest lecture Bruce Maggs, SCS Assoc Prof and VP
  for Research at Akamai, a Boston-based Internet
  startup.
• Evaluation
• Class participation (10)
• Two programming homeworks (20) (groups of up to
  2)
• Programming project (50) (groups of up to 2)
• Final exam (20)
• Office Hours
• Mon 200-330
• These are nominal times. Visit anytime my door is
  open.

6
Programming assignments

• Will be done on euro.ecom.cmu.edu
• Pentium-class PC server running Linux
• Homeworks will use Perl5.
• Project can use language of your choice.
• Question
• Does the class need additional tutoring in
  editing and running Perl5 programs on a Unix box?

7
Scheduling issues

• Well need to double up on lectures (1030-1220
  and 130-320) on three different days
• Mon July 12
• Fri July 16
• Fri July 23
• No class Fri Aug 6.

8
Course coverage

• Intro to computer systems (2 lectures)
• Review of internetworking (2 lectures)
• Client-server computing (1 lecture)
• Web technology (2 lectures)
• Other Internet applications (1 lecture)
• Secure servers (1 lecture)
• Scalable and available servers (2 lectures)
• RPC-based computing (1 lecture)
• Internet startup guest lecture

9
Internet history

• Sources
• Leiner et. al, A brief history of the Internet,
  www.isoc.org/internet-history/brief.html
• R. H. Zakon, Hobbes Internet Timeline, v4.1,
  www.isoc.org/guest/zakon/Internet/History/HIT.html

• D. Comer, The Internet Book, Sec. Edition,
  Prentice-Hall, 1997.

10
ARPANET Origins

• 1962
• J.C.R. Licklider (MIT) describes Galactic
  Network.
• Licklider becomes head of computer research at
  Defense Advanced Research Program (DARPA) and
  convinces eventual successor, Lawrence Roberts
  (MIT), among others, of the importance of the
  concept.
• 1964
• Leonard Kleinrock (MIT) publishes first book on
  packet switching.
• 1965
• Roberts and Thomas Merrill build first wide-area
  network (using a dial-up phone line!) between MA
  and CA.
• 1967
• Roberts (now at DARPA) publishes plan for
  ARPANET, running at a blistering rate of 50
  kbps.

11
ARPANET Origins (cont)

• 1968
• DARPA issues RFQ for the packet switch component.
• BBN (led by Frank Heart) wins contract and
  designs switch called an Interface Message
  Processor (IMP)
• Bob Kahn (DARPA) works on overall ARPANET arch.
• Roberts and Howard Frank (Network Analysis Corp)
  work on network topology and economics.
• Kleinrock (UCLA) builds network measurement
  system.
• 1969
• First IMP installed at UCLA (first ARPANET node).
• Nodes added at SRI, UCSB, and Utah.
• By the end of the year the 4-node ARPANET is
  working, with 56kbps lines supplied by ATT

12
ARPANET Origins (cont)

• 1970
• BBN, RAND, and MIT added to ARPANET.
• Network Working Group (NWG), under Steve Crocker,
  designed initial host-to-host protocol (NCP).
• 1971
• 15 hosts UCLA, SRI, UCSB, Utah, BBN, MIT, RAND,
  SDC, Harvard, Lincoln Labs, UIUC, CWRU, CMU,
  NASA/Ames.
• Ray Tomlinson (BBN) writes first ARPANET email
  program (origin of the _at_ sign).
• email becomes the first Internet killer app.

13
Birth of Internetworking

• 1972
• Kahn (DARPA) introduces idea of open
  architecture networking
• Each network must stand on its own, with no
  internal changes allowed to connect to the
  Internet.
• Communications would be on a best-effort basis.
• black boxes (later called gateways and
  routers would be used to connect the networks)
• No global control at the operations level.
• 1973
• Metcalf and Boggs (Xerox) develop Ethernet.
• 1974
• Kahn and Vint Cerf (Stanford) publish first
  details of TCP, which is later split into TCP and
  IP in 1978.

14
Birth of Internetworking

• 1980
• Berkeley releases open source BSD Unix with a
  TCP/IP.
• 1982
• DARPA establishes TCP/IP as the protocol suite
  for ARPANET, offering first definition of an
  internet.
• 1983
• Jan 1 ARPANET switches from NCP to TCP/IP.
• 1984
• Mockpetris (USC/ISI) invents DNS.
• Number of ARPANET hosts surpasses 1,000.
• 1985
• symbolics.com becomes first registered domain
  name.
• other firsts cmu.edu, purdue.edu, rice.edu,
  ucla.edu, css.gov, mitr.org

15
Birth of Internetworking

• 1986
• NSFNET backbone created (56Kbps) between 5
  supercomputing sites (Princeton, Pittsburgh, San
  Diego, Ithica, Urbana), allowing explosion of
  University sites.
• 1988
• Internet worm attack
• NSFNET backbone upgraded to T1 (1.544 Mbps).
• 1989
• Number of hosts breaks 100,000.
• 1990
• ARPANET ceases to exist.
• world.std.com becomes first commercial dial-up
  ISP.

16
The Web changed everything...

• 1991
• Tim Berners-Lee (CERN) invents the World Wide Web
  (HTTP server and text-based Lynx browser)
• NSFNET backbone upgraded to T3 (44.736 Mbps).
• 1993
• Mosaic WWW browser developed by Marc Andreessen
  (UIUC)
• 1995
• WWW traffic surpasses ftp as the source of
  greatest Internet traffic.
• Netscape goes public.
• NSFNET decommissioned and replaced by
  interconnected commercial network providers.
• 1999
• MCI/Worldcom upgrades its US backbone to 2.5Gbps.

17
Internet Domain Survey(www.isc.org)
18
Summary

• The Internet has had an enormous impact on the
  world economy and day-to-day lives.
• mechanism for world-wide information
  dissemination.
• medium for collaboration and interaction without
  regard to geographic location.
• One of the most successful examples of
  government, university, and business partnership.
• Possible only because of sustained government
  investment and commitment to research and
  development.
• Successful because of commitment by passionate
  researchers to rough consensus and working code
  (David Clarke, MIT)

19
Break time!
20
Dv A toolkit for visualizing massive remote
datasets

• David OHallaron
• School of Computer Science and
• Department of Electrical and Computer Engineering
• Carnegie Mellon University
• Institute for eCommerce, Summer 1999

21
Internet service models
request
client
server
response

• Traditional lightweight service model
• small to moderate amount of computation to
  satisfy requests
• e.g. serving web pages, stock quotes, online
  trading, search engines
• Proposed heayweight service model
• massive amounts of computations to satisfy
  requests
• scientific visualization, data mining, medical
  imaging

22
(No Transcript)
23
Quake Project

• Carnegie Mellon
• David OHallaron (CS and ECE)
• Jacobo Bielak PI and Omar Ghattas (CivE)
• University of California Berkeley
• Jonathan Shewchuk (EECS)
• Southern California Earthquake Center
• Steve Day and Harold Magistrale (San Diego State)
• Kogakuin University, Tokyo
• Yoshi Hisada

24
Teora, Italy 1980
25
San Fernando Valley
26
San Fernando Valley (top view)
Hard rock
epicenter
x
Soft soil
27
San Fernando Valley (side view)
Soft soil
Hard rock
28
San Fernando Valley (side view)
Soft soil
Hard rock
29
Initial node distribution
30
Unstructured mesh
31
Unstructured mesh (top view)
32
Partitioned unstructured finite element mesh of
San Fernando
nodes
element
33
Communication graph
Vertices processors Edges communications
34
Quake solver code
NODEVECTOR3 disp3, M, C, M23 MATRIX3 K
/ matrix and vector assembly / FORELEM(i)
... / time integration loop / for
(iter 1 iter lt timesteps iter)
MV3PRODUCT(K, dispdispt, dispdisptplus)
dispdisptplus - IP.dt IP.dt
dispdisptplus 2.0 M dispdispt -
(M - IP.dt / 2.0 C)
dispdisptminus - ...) dispdisptplus
dispdisptplus / (M IP.dt / 2.0 C) i
disptminus disptminus dispt dispt
disptplus disptplus i
35
Archimedes
www.cs.cmu.edu/quake
MVPRODUCT(A,x,w)
Problem
Finite element
DOTPRODUCT(x,w,xw)
Geometry (.poly)
algorithm (.arch)
r r/xw
.c
.node, .ele
a.out
.part
parallel system
.pack
36
Northridge quake simulation

• 40 seconds of an aftershock from the Jan 17, 1994
  Northridge quake in San Fernando Valley of
  Southern California.
• Model
• 50 x 50 x 10 km region of San Fernando Valley.
• 13,422,563 nodes, 76,778,630 linear tetrahedral
  elements, 1 Hz frequency resolution, 20 meter
  spatial resolution.
• Simulation
• 0.0024s timestep
• 16,666 timesteps (40M x 40M SMVP each timestep).
• 15 GBytes of DRAM.
• 6.5 hours on 256 PEs of Cray T3D (150 MHz 21064
  Alphas, 64 MB/PE).
• Comp 16,679s (71) Comm 575s (2) I/O
  5995s(25)
• 80 trillion (1012) flops (sustained 3.5 GFLOPS).
• 800 GB/575s (burst rate of 1.4 GB/s).

37
Kobe 2/2/95 aftershock
38
Kobe 2/2/95 aftershock
39
(No Transcript)
40
Visualization of 1994 Northridge aftershock
41
Visualization of 1994 Northridge aftershock
42
Typical Quake viz pipeline
local display and input
resolution
contours
ROI
scene
interpolation
isosurface extraction
scene synthesis
reading
rendering
remote database
vtk library routines
FEM solver engine
materials database
43
Heavyweight grid service model
WAN
Local compute hosts (allocated once per
request by the service user)
Remote compute hosts (allocated once per service
by the service provider)
44
Active frames
Active Frame Server
Input Active Frame
Output Active Frame
Active frame interpreter
Frame data
Frame data
Frame program
Frame program
Application libraries e.g, vtk
Host
45
Overview of a Dv visualization service
User inputs
Display
Remote dataset
Local Dv client
Request frame
Response frames
...
Dv Server
Dv Server
Dv Server
Dv Server
Resp. frames
Resp. frames
Resp. frames
(Request Server)
Remote DV Active Frame Servers
Local DV Active Frame Servers
46
Grid-enabling vtk with Dv
request frame request server, scheduler,
flowgraph, data reader
local Dv client
status
result
request server
local Dv server
...
...
reader
scheduler
response frames (to other Dv servers) native
data, scheduler, flowgraph,control
remote machine (Dv request server)
local machine (Dv client)
47
Scheduling Dv programs

• Scheduling at request frame creation time
• all response frames use same schedule
• performance portability (i.e. adjusting to
  heterogeneous resources) is possible.
• no adaptivity (i.e., adjusting to dynamic
  resources)
• Scheduling at response frame creation time
• performance portability and limited adaptivity.
• Scheduling at response frame delivery time
• performance portability and greatest degree of
  adaptivity.
• per-frame scheduling overhead a potential
  disadvantage.

48
Scheduling scenarios
Ultrahigh Bandwidth Link
powerful local server
low-end remote server
49
Scheduling scenarios
High Bandwidth Link
high-end remote server
powerful local workstation
50
Scheduling scenarios
Low Bandwidth Link
high-end remote server
local PC
51
Scheduling scenarios
Low Bw Link
High Bandwidth Link
high-end remote server
low-end local PC or PDA
powerful local proxy server
52
Summary

• Heavyweight grid service model
• service providers can constrain resources
  allocated to a particular service
• service users can contribute resources to improve
  response time of throughput
• Active frames
• general software framework for providing
  heavyweight Internet services
• framework can be specialized for a particular
  service type
• Dv
• specialized version of active frame server for
  vizualization
• grid-enables existing vtk toolkit
• flexible framework for experimenting with
  scheduling algs
