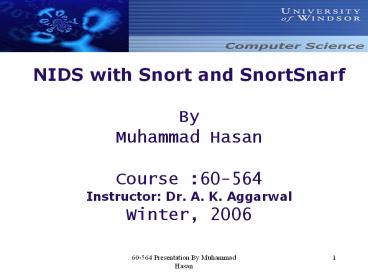

NIDS with Snort and SnortSnarf

1
NIDS with Snort and SnortSnarf By Muhammad
Hasan Course 60-564 Instructor Dr. A. K.
Aggarwal Winter, 2006
2
H/W and S/W Used (for Implementing and Testing
the NIDS) Testing System ( with root
privilege) Dell Dimension 4400 Pentium 4
machine with 1 NIC ,O/S WinXP Pro S/W WinPcap
3.1 MySQL Server 5.0 Microsoft IIS Web
Server 5.1 ActivePerl 5.6.1.638 WinDump
3.93 Snort 2.43 Win32 Binaries SnortSnarf
-050314.1 Attack Generation System (with root
privilege) Sony VAIO Pentium 4 Laptop with
Wireless NIC O/S WinXP Pro S/W WinPcap
3.04a Packet Excallibur 1.0.2 Ethereal
0.10.14 Router NETGEAR WGR614 v5 Router in
default promiscuous mode.
3

• Environment Variable Settings
• The Following paths are included in the PATH
  variable
• C\MySQL\bin
• C\Perl\bin.
• C\Windump
• C\Snort\bin

4

• Configuring Snort
• Snort Installation Directory C\Snort
• Install Snort Rules from Snort
• Make a customized rule file name pro.rules
• And place it in C\Snort\rules
• Made the following changes in snort.conf file in
  C\Snort\etc
• Original var RULE_PATH ../rules
• Change var RULE_PATH c\Snort\rules (The
  Absolute location of the rules)Note Find the
  entry for 'Preprocessor sfportscan' Original
  sense_level low Change sense_level low
  \

5
Configuring Snort (Cont.) Just below the changed
line above add logfile portscan.log Note
Just below ' output log_tcpdump tcpdump.log'
insert this next line output alert_fast
alert.ids Original include classification.confi
g Change include c\Snort\etc\classification.con
fig
6

• Configuring Snort (Cont.)
• Original include reference.config Change
  include c\Snort\etc\reference.config Original
  include threshold.conf Change include
  c\Snort\etc\threshold.conf
• Uncomment the following line for database logging

• output database log, mysql, userroot
  dbnamesnort hostlocalhost
• Delete all the included default rules and include
  the following
• include RULE_PATH/pro.rules
• Now save the file.

7

• Configuring Snort (Cont.)
• To Install Snort as a Windows Service type in
  Command Prompt
• snort /SERVICE /INSTALL -c c\snort\etc\snort.conf
  -l c \Inetpub\wwwroot\log -U -K ascii i2
• To Run Snort
• Go to Control Panel -gt Administrative Tools -gt
  Services.
• From Service List select Snort and click
  start.
• To Stop Snort
• Go to Control Panel -gt Administrative Tools -gt
  Services.
• From Service List select Snort and click stop.

8

• Configuring Active Perl
• Perl Installation Directory C\Perl
• Download Perl Time Modules from
  http//search.cpan.org/muir/Time-modules-2003.112
  6/
• And install them in c\perl\lib\time\
• Installing Perl Database Supports
• In the command prompt run the Perl Package
  Manager by executing PPM command. This will be
  the console screen while running ppm
• C\Documents and Settings\Administratorgtppm

9
Configuring Active Perl ( Cont. ) PPMgt PPMgt
install DBI Install package 'DBI?' (y/N)
y . PPMgt install DBD-mysql Install
package 'DBD-mysql?' (y/N) y . PPMgt
install NET-MySQL Install package 'NET-MySQL?'
(y/N) y .
10

• Configuring IIS
• Default installation location c\Inetpub
• Create a new directory named log under
  c\Inetpub\wwwroot\
• Create a new directory named cgi under
  c\Inetpub\wwwroot\
• Go to the Control Panel - gt 'Administrative
  Tools', double click 'Internet
  Information Services' applet.
• Expand 'Servername (local computer),
• Expand 'Web Sites' (if exists),
• Left-click 'Default Web Site',
• Right-click the 'cgi' folder (in the window on
  the right),
• Highlight and left-click 'Properties',
• Left-click the 'Directories' tab, in the 'Local
  Path' section
• Left-click the Read and Write radio boxes making
  them checked, in the 'Application Settings'

11

• Configuring IIS ( Cont. )
• Use the down arrow to set the 'Execute
  Permissions' to 'Scripts and Executables',
• Left-click the 'Yes' if a 'Security Warning' is
  displayed, left-click 'Apply', left-click 'OK',
  and finally
• Exit the 'Internet Information Services' applet.

12

• Configuring MySQL and Snort
• MySQL installation Directory is C\MySQL
• Start the Server
• Open Command Prompt and type
• mysqld console
• Start the MySQL Command Interpreter
• Open Command Prompt and type
• mysql --userroot mysql

13

• Configuring MySQL and Snort ( Cont. )
• mysqlgt
• Now create a database named snort using the
  following SQL
  command
• mysqlgt CREATE DATABASE snort
• Then open another console and run the following
  command
• C\Documents and Settings\Administratorgt mysql -D
  snort -u root lt C\Snort\schemas\create_mysql

14

• Configuring SnortSnarf
• SnortSnarf installation Directory is
  C\SnortSnarf-050314.1\
• To Process the Snort Logs from the alert.ids
  file create a batch file named 'starti.bat' and
  place a shortcut to the desktop.
• starti.bat
• _at_ECHO OFF
• c\snortsnarf-050314.1\snortsnarf.pl -win -d
  c\inetpub\wwwroot\log -dns -db
  c\snortsnarf-050314.1\ann-dir\annotation-base.xml
  -cgidir http//localhost/cgi c\inetpub\wwwroot\l
  og\alert.ids

15
Configuring SnortSnarf ( Cont. ) To Process the
Snort Logs from the mysql database create a batch
file named 'startdb.bat' and place a shortcut
to the desktop. startdb.bat _at_ECHO
OFF c\snortsnarf-050314.1\snortsnarf.pl
root_at_snort_at_localhost -win -d c\inetpub\wwwroot\
log -dns -db c\snortsnarf-050314.1\ann-dir\annota
tion-base.xml -cgidir http//localhost/cgi
16

• Preparing the Attack
• Used Packet Excalibur
• Installation directory C\PackEx\
• Very Easy to Use Graphical Interface for packet
  generation.
• Constructed the packets according to snort
  signatures and rules for the 10 selected
  signatures.
• 10 crafted packets are then added to a script
  called pro located in C\PackEx\scripts\
• Load the script and then run it.

17

• Testing the NIDS
• Do the following steps sequentially
• On the Testing Machine
• Run the database server
• Run Snort
• Run WinDump as sniffer with the following
  command
• windump i 2
• On the Attacking Machine
• Run Ethereal to sniff
• Initiate Attack from Packet Excallibur

18

• Testing the NIDS ( Cont.)
• On the Testing Machine
• Run either starti.bat if we want to generate
  html from the alert.ids file
• Or Run startdb.bat if we want to generate html
  from the database logging
• Open a browser and at the addressbar type
• http//localhost/log/index.html

19
