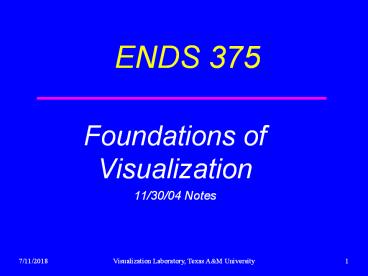

ENDS 375

• Foundations of Visualization
• 11/30/04 Notes

2
Image Synthesis

• Aliasing
• Anti-Aliasing

3
Aliasing

• Basically an under sampling problem (for point
  sampling)
• Example artifacts
• jagged edges
• pixel scintillations

4
Nyquist Sampling Theorem

• Point sample at a rate at least twice that of
  the highest signal frequency
• Either
• increase sampling rate OR
• decrease signal frequency

5
Decreasing Scene Frequency

• Low pass filter environment
• area sampling
• convolution
• ideal filter kernel - sin x/x

6
Increase sampling rate

• super sampling
• average the super samples for each pixel
• stochastic super sampling
• shifts aliasing artifacts into visual noise
