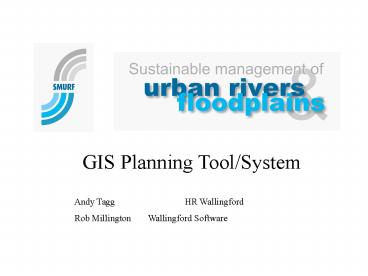

GIS Planning ToolSystem

1
GIS Planning Tool/System Andy Tagg HR
Wallingford Rob Millington Wallingford Software
2
Overview of Presentation

• Introduction
• Development of the system methodology
• GIS basics
• Key features
• System description - Rob
• Issues
• The future

3
How have we got here?

• Partner meetings/internal brainstorms
• April 03 Workshop to discuss proposals
• Benchmark Report - July 03
• Methodology Report - July 03
• Data/model gathering (SIMCAT, GW model results)
• Development of InfoWorks RS model
• SMURF software development
• Representation of sewer system

4
Local Authority (1)Planning application process
30 tests
New GIS layers
Planning application
SMURF
Constraints assessment
GIS
MapInfo
National, regional local planning policies
Consider issues
Access D/B
Potential testing of issues (by other groups)
SMURF
Assess issues
External links
Consultation responses
Recommendation to Planning Committee
Decision
Planning conditions e.g. SUDS
Section 106
5
SMURF System
Agency
Council
MapInfo
ArcView ArcGIS
Agency / Severn Trent
SMURF
Severn Trent
MapInfo
WIMS
River model
Sewer model
WISKI
6
Expected components

• Demonstration of latest IT techniques (GIS,
  modelling)
• Integration of land use, flood risk, ecological
  and chemical status
• Catchment-wide models
• Assessment of impact of future development
  options (land or river)
• Inclusion of Citizen and Stakeholder views

7
(No Transcript)
8
Key elements of Proposed SMURF system

• Display of information from different databases
• Simplified catchment routing model (flows,
  levels, water quality)
• Linking of existing river and sewer models
• User interface with DSS (what-if questions)

9
Issues

• NO linking to existing live databases
• Planning tool - so fixed data set (updated as
  necessary)
• Must conform to IT standards of Partner
  Organisations
• Demonstration of techniques and approaches,
  rather than marketable product
• Major links to other research/projects (e.g.
  CityNet, PURE, Flood Risk MRC, WFD CIS, EcoFlood,
  Harmoni-CA)

10
GIS Concepts
Geographical Information Systems represent
electronic models of the world. They help us to
understand, manage and analyse resources and the
environment.
11
GIS Concepts

They combine spatial information (graphical
features used to represent real world objects)
with database information (properties relating to
those objects)
12
GIS Concepts
Data can be input from a variety of sources and
in many different formats.

Grids
Images
Tables
N3B3 02/10/96 National Grid OS Newlyn 40 107 -20.3
5638559.622330877.41410.893 -2.75638570.93133
0890.89210.681 -2.75638570.933330890.89410.681
-2.75638570.934330890.89511.481 -2.45638571.1
23330891.12111.481
CAD
Vector files
Photos
Databases
text files
G.I.S.
13
Components of the SMURF system

• GIS (land use, river network, monitoring sites,
  DTM, SUDS suitability)
• Data - timeseries (river flows and quality, fish
  numbers, invertebrate scores)
• Models - InfoWorks RS, SIMCAT
• Tools - flow path
• Land use/rainfall-runoff process
• Photographs/textual information

14
Key features

• SUDS suitability
• Sewer representation (PDM modelling land use
  layer)
• Add development question
• Flow path tool
• Habitat tools (physical fish)
• Citizen aspirations

15
(No Transcript)
16
SUDS layer
17
(No Transcript)
18
Rainfall-runoff processes
19
Sewer catchments
50,000 node CS models simplified down to 36 sewer
catchments (9 surface catchments)
20
1km2 grid
The land use layer
21
Link between PDM parameters and land use
22
Add development question
3
1
2
LUP 1 to 3
DS 1 to 3
Change land use parameters
Calculate new runoff parameters
Run model
23
Flow path tool (1)
24
Flow path tool (2)
25
Habitat characteristics
26
Fisheries logic rules

• Habitat preferences for coarse fish in British
  rivers - 4 species groups.
• Habitat parameters
• velocity
• depth
• substrate
• suspended solids
• temperature
• dissolved oxygen

27
Fisheries logic rules

• Habitat preference defines limits of logic rules

28
Citizen information
29
Overall software concept

• Capture, display and disseminate catchment
  information for use by stakeholders
• Catchment specialists
• Catchment managers
• Urban planners
• Citizens

30
Catchment Manager
Urban Planner
Citizen
31
(No Transcript)
32
(No Transcript)
33
(No Transcript)
34
Target software users

• Normal (Catchment managers, Specialists)
• Everyday user, data review, scenario testing
• Expert (Specialists)
• Incorporates new models and data
• External user (Planners, citizens)
• Limited / occasional user - receive outputs

35
Software design issues

• GIS functionality
• Existing GIS platforms
• Existing software systems
• Modelling systems
• Architecture
• Single / multi-user

36
Multi-user architecture

37
Single user architecture
38
Core functionality

• Display of existing GIS data
• Data Manager
• Scenario Manager
• Indicator results Display

39
Data manager

• All data imported and stored in JET (Access)
  database
• Concept of a superset network, providing data
  connectivity
• Range of viewing tools

40
Node/reach superset
GQA1
GQA2
GQA Reaches
SI1
SI2
Sustainability Indicator Reaches
SIM1
Simcat Reach
1
2
3
4
7
5
6
River Model Reaches
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
Data sources

• ArcView GIS
• MapInfo GIS
• Water quality data (WIMS)
• Water resource data (WISKI)
• Habitat data
• Model results (InfoWorks SIMCAT)

47
Scenario manager

• A scenario tests one or more What if questions
• Habitat characteristics
• Add development
• Add new discharge point
• Effluent discharge change
• Pollution event
• Abstraction change
• Add or remove river structure
• Add or remove wetland

• Rule based
• Automatic
• Manual

48
Scenario test cases

• Normal year (1992/93)
• Wet year (2000/01)
• Dry year (1995/96)
• Flood events
• Climate change (2020 horizon)

49
(No Transcript)
50
Integrated models

• InfoWorks RS
• High level deterministic catchment model
• Flows, levels water quality
• Encapsulates InfoWorks CS outputs via PDM
  conceptual model
• SIMCAT
• Stochastic water quality

51
Indicators results

• Existing data
• Outputs from integrated models
• Catchment indicators
• GQA grades
• Habitat indicator
• Fish suitability indicator
• Citizen indicator

52
(No Transcript)
53
Issues/lessons learnt

• Sharing/viewing of data for the whole catchment -
  has to be the way forward
• BUT obtaining/licensing/updating the data can be
  problematic
• Citizen/stakeholder aspirations are important for
  long-term success - how to include as indicators
• Run-times for the water quality model are still
  too long for a planning tool - challenge to
  simplify and reduce
• Current limitations of the science - need for
  better links to ecology

54
The future

• Completion of system to agreed specification
  (plus comments from the Workshop)
• User training and delivery of system
• Use of system to select and design SMURF test
  sites
• Demo of system on CD and web site
• Extend and test system for other councils (West
  Midlands and elsewhere in UK)
• Discussion on ways to develop into a generally
  applicable software application
