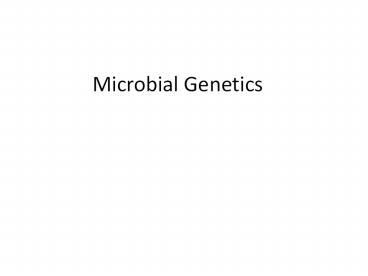

Microbial Genetics

1
Microbial Genetics
2
Chromosomes

• Chromosome discrete cellular structure composed
  of a neatly packaged DNA molecule
• Eukaryotic chromosomes
• DNA wound around histones
• located in the nucleus
• diploid (in pairs) or haploid (single)
• linear appearance
• Prokaryotic chromosomes
• DNA condensed into a packet by means of
  histone-like proteins
• single, circular chromosome

3
(No Transcript)
4
Genes Related to Obesity in the Human Genome
5
Map of E. colis 5000 Genes

• Notice it is single circular
• Does E. coli have 1 or 2 alleles of each gene?
  How do you know?
• Humans were first thought to function with
  100,000 genes and now the number has dropped to
  35,000 genes although this is still a hot topic
  in research

6
Genome

• Genome sum total of genetic material of an
  organism
• most of the genome exists in the form of
  chromosomes
• some appears as plasmids or in certain organelles
  of eukaryotes
• genome of cells composed entirely of DNA
• genome of viruses can contain either DNA or RNA

E. coli cell disrupted to release its DNA
molecule.
7
Gene

• A gene is a segment of DNA that contains the
  necessary code to make a protein or RNA molecule
• Three categories of genes
• structural genes code for proteins
• genes that code for RNA machinery used in
  protein production
• regulatory genes control gene expression

8
Genetic Terms

• Genotype
• an organisms genetic makeup its entire
  complement of DNA
• Phenotype
• is the expression of the genes the proteins of
  the cell and the properties they confer on the
  organism.
• Size, shape, color, environment

9
The DNA Code
Hydrogen bond
H
H
H
N
O
HN

• Nucleotide basic unit of DNA structure
• phosphate
• deoxyribose sugar
• nitrogenous base
• Nucleotides covalently bond to each other in a
  sugar-phosphate linkage

N
C
N
G
H
NH
N
N
H
O
N
Sugar
3'
H
OH
P
D
5'
4'
D
1'
5'
P
C
D
2'
G
P
D
3'
P
P
P
O
O
T
A
D
D
O
P
O
P
O
C
G
D
D
O
O
P
P
C
G
D
D
O
P
P
T
A
D
D
O
P
O
P
O
C
G
D
D
O
O
P
P
T
A
P
D
D
P
5'
D
D
3'
5'
H
OH
CH3
H
O
N
NH
N
A
T
N
H
N
H
N
N
O
H
Sugar
(a)
10
Nitrogenous Bases and Base Pairing

• Pairing dictated by the formation of hydrogen
  bonds between bases
• Complementary Base Pairing if sequence of one
  strand known, sequence of other strand inferred
• Try it

TAC GTA ACG
ATG CAT TGC
Hydrogen bond
11
Nature of the Double Helix

• Antiparallel arrangement one side of the helix
  runs in the opposite direction of the other
• One side runs from 5 to 3, and the other side
  runs 3 to 5
• This is a significant factor in DNA synthesis and
  protein production

12
DNA Replication

• DNA ? DNA

13
DNA Replication

• DNA replication involves unwinding a DNA double
  helix and using each strand as a template for a
  new, complementary strand
• DNA polymerase and over a dozen other enzymes and
  proteins are required to successfully replicate a
  single strand of DNA
• DNA replication is semi-conservative since each
  new chromosome will have one old and one new
  strand
• When does this occur??

14
DNA Replication

• What is needed to replicate DNA
• Original DNA template
• Nucleotides
• a pool of nucleotides is free floating in the
  cytoplasm
• Enzymes
• DNA polymerase, ligase
• Energy
• ATP

15
DNA Replication Prokaryotes

• Certain enzymes unwind the DNA.
• Then, DNA polymerase can read the parent strand
  and attach a complementary nucleotide to the new
  strand of DNA.
• Nucleotides are free in the cytoplasm.

16
Transcription

• DNA ? RNA

17
DNA vs. RNA

• Contains ribose rather than deoxyribose
• RNA is single stranded
• There is no T in RNA. Instead it is a U
• AU in RNA
• Can assume secondary and tertiary levels of
  complexity, leading to specialized forms of RNA
  (tRNA and rRNA)

18
Transcription RNA Synthesis

• What you need to synthesize RNA
• Original DNA template
• chromosome with a promoter site (DNA sequence
  indicating start site) and a terminator site
• 2. Nucleotides
• G, C, A, U Uracil is substituted for thymine
• 3. Enzymes
• RNA polymerase
• 4. Energy
• ATP

19
Transcription

• RNA polymerase large, complex enzyme that
  directs the conversion of DNA into RNA
• Template strand only one strand of DNA that
  contains meaningful instructions for synthesis of
  a functioning polypeptide

20
Transcription

• Many types of RNA can be transcribed
• Messenger RNA (mRNA)
• RNA molecule that serves as a message of the
  protein to be produced
• Transfer RNA(tRNA)
• Transfers amino acids to ribosome
• Ribosomal RNA (rRNA)
• Forms the ribosome
• Regulatory RNA
• micro RNAs, anti-sense RNAs, riboswitches, small
  interfering RNAs

21
Transcription Initiation

• RNA polymerase recognizes promoter region
• RNA polymerase begins its transcription at a
  special sequence called the initiator
• As the DNA helix unwinds it moves down the DNA
  synthesizing RNA molecule

22
Transcription Elongation
Direction of transcription
Early mRNA transcript
Nucleotide pool

• During elongation the mRNA is built, which
  proceeds in the 5 to 3direction (you do not
  need to know the direction of elongation for this
  class)
• The mRNA is assembled by the adding nucleotides
  that are complementary to the DNA template.
• As elongation continues, the part of DNA already
  transcribed is rewound into its original helical
  form.

23
Transcription Termination
Elongation
Late mRNA transcript
At termination the polymerases recognize another
code that signals the separation and release of
the mRNA strand,or transcript.
24
Practice Transcription

• DNA
• GCGGTACGCATTAAGCGCCC
• RNA

25
Translation

• mRNA ? Protein

26
Translation

• Decoding the language of nucleotides and
  converting/translating that information into the
  language of proteins.
• The nucleic acid language is in the form of
  codons, groups of three mRNA nucleotides.
• The protein language is in the form of amino
  acids

27
Translation

• Translation occurs at the ribosome
• The green mRNA strand is threaded through the
  ribosome.
• The ribosome reads the mRNA strand codons with
  the help of the genetic code and tRNA

28
tRNA

• Decoder molecule which serves as a link to
  translate the RNA language into protein language
• One site of the tRNA has an anticodon which
  complements the codon of mRNA
• The other site of the tRNA has an amino acid
  attachment site corresponding to a specific amino
  acid as noted in the genetic code

29
Translation and the Genetic Code

• Triplet code that specifies a given amino acid
• We use the genetic code (at right) to translate
  mRNA nucleotide sequence (codons) into amino acid
  sequence which make up proteins.
• The genetic code is degenerate which allows
  for a certain amount of mutation. I.e. UUU and
  UUC both code for Phe

30
Translation and the Genetic Code

• There is one start codon, AUG, that codes for the
  amino acid methionine.
• There are 3 stop codons, UAA, UAG and UGA that
  signal the ribosome to stop translation and let
  go of the polypeptide chain (protein).

31
Practice Translation

• RNA
• CGCCAUGCGUAAUUCGCGGG
• 1st Step Find the start of the gene which is
  always indicated by AUG. Everything upstream
  from that can be ignored.

32
Practice Translation

• RNA
• CGCCAUGCGUAAUUCGCGGG
• 1st Step Find the start of the gene which is
  always indicated by AUG. Everything upstream from
  that can be ignored.

33
Practice Translation

• RNA
• AUG/CGU/AAU/UCG/CGG/G
• 2nd Step To make it easier to track the codons I
  separate each with a slash

34
Practice Translation

• RNA
• AUG/CGU/AAU/UCG/CGG/G
• 3rd Step Use genetic code to translate mRNA
  message into amino acid language

35
Translation at the Molecular Level Initiation

• Ribosomes bind mRNA near the start codon (ex.
  AUG)
• tRNA anticodon with attached amino acid binds to
  the start codon

36
Translation at the Molecular Level Elongation

• Ribosomes move to the next codon, allowing a new
  tRNA to bind and add another amino acid

37
Translation at the Molecular Level Elongation

• Two amino acids form peptide bonds

38
Translation at the Molecular Level Termination

• Stop codon terminates translation

39
Videos

• https//www.youtube.com/watch?v41_Ne5mS2ls
• https//www.youtube.com/watch?v5bLEDd-PSTQlistP
  L1AD35ADA1E93EB6Findex2

40
Polyribosomal Complex

• A single mRNA is long enough to be fed through
  more than one ribosome
• Permits the synthesis of hundreds of protein
  molecules from the same mRNA transcript
• Would you see this in Eukaryotes?

41
Transcription and Translation in Eukaryotes and
Prokaryotes

• Similar to prokaryotes except
• AUG encodes for a different form of methionine
• Transcription and translation are not
  simultaneous in eukaryotes
• Eukaryotes must splice out introns to achieve a
  mature mRNA strand ready to go to the ribosome.

42
Operons and Gene Regulation

• Only found in bacteria
• Coordinated set of genes to make proteins that
  are needed at the same time
• all regulated as a single unit
• either inducible or repressible

43
lac Operon

• Most studied operon
• When lactose is absent the repressor blocks RNA
  Polymerase from binding to the operator and
  transcribing downstream genes.
• When lactose is present it binds to the repressor
  and it falls off the operator allowing RNA
  Polymerase to bind.
• The downstream genes are responsible for
  digesting lactose and are only on when lactose is
  present.

44
Phase Variation

• Bacteria turn on or off a complement of genes
  that leads to obvious phenotypic changes
• New environment new phenotype!
• Most often traits affecting the bacterial cell
  surface
• Examples
• Neisseria gonorrhoeae production of attachment
  fimbriae
• Streptococcus pneumoniae production of a capsule

45
Mutations

• A change in the sequence of DNA
• Possible effects of mutations
• No effect--gtno change in a.a. sequence
• Good--gtnew aa. Seq
• Increases variability in the gene pool, this is
  evolution!
• Bad--gtnew aa. Seq
• Cancer can be the product of a combination of bad
  mutations.

46
Types of Mutations

• Point Mutation
• put the cat out---gtpuc the cat out
• put the cat out---gtput
• Frameshift (reading frame of mRNA shifts)
• put the cat out---gtput hec ato ut
• Deletion
• Addition
• Duplication

47
The Effects of a Point Mutation

• When a base is substituted in DNA the mutation
  may have 2 effects
• Changes the amino acid
• Does not change the amino acid
• Why doesnt a mutation always change the amino
  acid sequence?

48
The Effects of Frameshift Mutations

• The addition, deletion or insertion of one or
  more nucleotides drastically changes the amino
  acid sequence.

49
Mutation Rates

• Normal Mutation Rate- 1/1 million per gene
• Mutations are constantly occurring since our
  enzymes are not 100 perfect.
• Mutagen- chemical or radiation that bring about
  mutations.
• Mutagen Mutation Rate 1/1000-1/100,000 per gene
  (10-1000X the normal rate)

50
Mutagen Examples

• 5-Bromouracil and acridine are 2 mutagen examples
  that can insert themselves in DNA and cause
  errors in DNA replication, transcription and
  translation.
• Notice how similar in structure mutagens can be.
  There is just one change to thymine that can have
  dire consequences

51
Thymine Dimers Caused by Radiation

• Radiation, such as X-rays and UV rays, can cause
  dimers to form in DNA.
• Thymine dimers can interfere with DNA
  replication, transcription and translation.

52
What is the connection to cancer?

• Cancer is a genetic disease. It is the
  consequence of a change in DNA sequence.
• Carcinogensubstance that causes cancer
• Are mutagens also carcinogens? Yes
• Are all carcinogens also mutagens? No, alcohol
  and estrogen are carcinogens that speed up
  mitosis but do not directly cause mutations.

53
Ames Test
The Ames Test uses bacteria to identify possible
carcinogens by looking for mutations to occur.
Once a mutagen is identified, it is tested in
animals to test if it is a carcinogen.
54
Genetic Recombination

• During meiosis of human gametes
• In bacteria, occurs when DNA is transferred
  between bacteria.
• Increases diversity in gene pool
• End result is a new strain different from both
  the donor and the original recipients
• Vertical gene transfer-
• Genes/DNA passed from an organism to its
  offspring
• Horizontal gene transfer-
• Genes/DNA transferred between organisms

55
Genetic Recombination

• Depends on the fact that bacteria have plasmids
  and are adept at interchanging genes
• Provide genes for resistance to drugs and
  metabolic poisons, new nutritional and metabolic
  capabilities, and increased virulence and
  adaptation to the environment

56
Plasmids

• Self-replicating circular pieces of DNA
• 1-5 the size of bacterial chromosome
• mini-chromosome
• Bacteria can store up many different plasmids for
  their use can transfer these to other bacteria.

• They can contain any gene that the bacteria dont
  require but are useful to the survival of the
  bacteria. For example antibiotic resistance
  genes, toxin production, etc.

57
Antibiotic Resistance (R) Plasmids

• Some plasmids can carry many antibiotic
  resistance genes.
• When bacteria collect many plasmids and these
  plasmids have many antibiotic resistance genes, a
  superbug may originate.

58
Three Types of Genetic Transfer (Recombination)
in Bacteria

• Conjugation
• Transformation
• Transduction

59
Conjugation

• A donor cell contains a F (fertility) plasmid
  making it F.
• A conjugation pilus (genes for which are on the
  F plasmid) forms and the donor cell transfers a
  copy of the F plasmid to the recipient.
• Now, both cells have a F plasmid
• F plasmids can have other genes on them too, for
  example antibody resistance containing genes

60
Hfr Conjugation

• High frequency recombination (Hfr) donors contain
  the F factor in the chromosome
• Donor gives part of its chromosome to the
  recipient
• This transfers more genes to the recipient
  bacteria
• Very fast evolution for the recipient!

Donor Hfr cell
Partial copy of donor chromosome
Bridge broken
Integration of F factor into chromosome
Pilus
Donated genes
61
Transformation

• Occurs when naked DNA fragments of one bacteria
  are close to another living cell.
• Some bacteria have the ability to pick up naked
  DNA fragments and recombine the DNA into their
  own DNA
• The new recombinant cell now has some new DNA
  from the disintegrating cell.
• The now transformed bacteria could have just
  picked up a new virulence factor or antibody
  resistance

62
Griffiths Classic Experiment to Test
Transformation Principle
63
Mechanism of Transduction

• Virus mediated gene transfer
• The virus injects its genetic material into the
  bacteria
• The bacterial DNA is fragmented

64
Mechanism of Transduction

• Viral particles are produced by the bacteria
• When the cell lyses, the viral particles which
  have picked up DNA from the original bacterial
  cell now insert that DNA into a new cell.
• The new cell may or may not insert the new DNA
  sequence into its chromosome.
• Transduction can be a problem when the inserted
  DNA codes for an antibiotic resistance gene.

65
Transformation and Transduction in Research
A way to get the genes you want to work with into
bacteria. Used in all types of molecular
genetics research
Electroporation
66
Transposons

• Transposons-
• Small segments of DNA that can move (be
  transposed) from one region of a DNA molecule to
  another.
• jumping genes
• Involved in
• Changes in traits such as colony morphology,
  pigmentation, and antigenic characteristics
• Replacement of damaged DNA
• Intermicrobial transfer of drug resistance (in
  bacteria)

67
Genes Evolution

• Genes are continually altered due to mutation,
  recombination, and transposition
• These changes increase genetic diversity of the
  gene pool and then through natural selection
  adventitious genes may be selected for to ensure
  survival in many different habitats.
• For pathogens that means they are more virulent!
