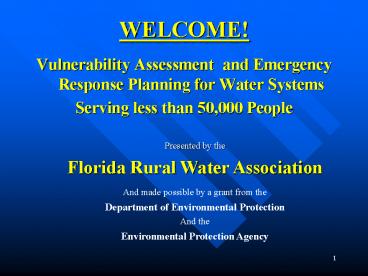

1- WELCOME!
- Vulnerability Assessment and Emergency Response
Planning for Water Systems - Serving less than 50,000 People
Presented by the Florida Rural Water
Association And made possible by a grant from
the Department of Environmental Protection And
the Environmental Protection Agency
2INTRODUCTIONS
- FRWA SECURITY STAFF
- Coy Donaldson
- Ken Klos
- SPEAKER
- Ken Klos
-
- ATTENDEES
3ADMINISTRATIVE INFORMATION
- Restroom locations
- Emergency exits
- Sign attendance sheet
- Security
- Breaks
- Lunch
4VULNERABLE ?????
5Background Information
- PDD-63
- PL 107-188
- EPA Overview
- FRWA Training Booklet
6PDD-63 Protecting Americas Critical
Infrastructure
- Signed by President Clinton in 1998
- An attack on any of these (8) infrastructures
(water wastewater included) may significantly
harm the health and economic well being of the
United States.
7PL 107 188BIOTERRORISM ACT
- Signed by President Bush in June, 2002
- Amended the Federal Safe Drinking Water Act
- Conduct formal Vulnerability Assessments
- Develop/revise Emergency Response Plans
8US EPA
- PDD-63 assigned responsibility to EPA (AMWA
AWWA) for developing plans to improve water
infrastructure security. - EPA formed Water Protection Task Force with the
mission to - Conduct Security Training for utilities
- Provide Technical Financial assistance
- Establish an Information Sharing System
- Improve Security Technology thru research
9(EPA Contd)
- PL 107 188 appointed EPA as lead federal agency
for Water Sector - EPA 810-R-02-001 Guidance for Water Utility
... April 2002 (p. 77) - EPA 810-B-02-001 Instructions to assist CWS.
January 2003 (p. 53)
10FRWA TRAINING BOOK
- Central Reference Document
- Table of Contents
11INTRODUCTION TOVULNERABILITY ASSESSMENT
What is the Purpose of Vulnerability Assessment?
Vulnerability assessments help water systems
evaluate susceptibility to potential threats and
identify corrective actions that can reduce or
mitigate the risk of serious consequences from
adversarial actions. EPA fact sheet
www.epa.gov/ogwdw/security/index.html
12INTRODUCTION TOVULNERABILITY ASSESSMENTDefiniti
on
- Vulnerability is the risk that a water utility
will be damaged to some extent by a specific
threat. - For example The City's water utility is highly
vulnerable to vandals painting graffiti on the
ground storage tank because it is located in a
secluded area of the community, and doesn't have
a fence.
13INTRODUCTION TOVULNERABILITY ASSESSMENTCritical
Assets, Vulnerable?
Pumps
Storage
WTP
SCADA
Distribution System
Well Field Pumps
14INTRODUCTION TOVULNERABILITY ASSESSMENT
- Are Threats to Water Utilities Real?
- The history of terrorism has been to attack
innocents where there is no security and trained
assistance is distant. - Water/wastewater assets are easy targets and are
not well protected, yet - Hazardous chemicals delivered,
stored, used on site
15INTRODUCTION TOVULNERABILITY ASSESSMENT
- Distribution System provides
access to EVERYONE - Water plants are upstream
of significant
economic activities - Our lives depend on
- a reliable supply of
- safe water
16VULNERABILITY ASSESSMENT METHODS
- SIX METHODS discussed briefly
17VULNERABILITY ASSESSMENT METHODS
- NONE OF THE METHODS PROVIDE
- A utility-specific blueprint for a VA.
- Specific threats for water utilities to protect
against. - Specific security solutions for identified
vulnerabilities. - THE RESULTS ARE CONTROLLED BY YOU, THE VA TEAM!
- NO CERTIFICATION IS REQUIRED!
18VULNERABILITY ASSESSMENT METHODS
- Risk Assessment Methodology for Water Utilities
RAM-W. 3 days tuition - Complex methodology, good for large utilities.
- Labor intensive decision-making process.
- Extensive terminology to be learned and applied
correctly.
19VULNERABILITY ASSESSMENT METHODS
- Vulnerability Self-Assessment Tool VSAT
- 1 or 2 days optional training TREEO offers 1
day training - Software limited only method that requires
use of a computer - Very flexible to fit needs of large or small
utility
20VULNERABILITY ASSESSMENT METHODS
- Security Vulnerability Self-Assessment Guide for
Small Drinking Water Systems Serving Populations
Between 3,300 and 10,000 - www.vulnerabilityassessment.org
21VULNERABILITY ASSESSMENT METHODS
- NETCSC National Environmental Training Center
for Small Water Systems -
- Preparing for the Unexpected Security for
Small Water Systems - www.netc.wvu.edu
- Addresses the unique security needs of small
water systems (those serving fewer than 10,000
people).
22VULNERABILITY ASSESSMENT METHODS
- KDHE Kansas Department of Health and
Environment method - Available at http//www.ruralwater.org/ksva.pdf
- Uses a simple matrix to evaluate vulnerability.
- User friendly with or without a computer
- Not fully stand-alone
23VULNERABILITY ASSESSMENT METHODS
- FRWA METHOD
- Focuses on accomplishing PL 107-188s 6
required elements of a vulnerability
assessment. - Uses best of RAM-W, NRWA/ASDWA, and KDHE
methods. - Intended for use by water utilities serving
less than 50,000 people.
24VULNERABILITY ASSESSMENT METHODS
- FRWA METHOD relies on your teams ability to
agree on (a consultant will also) - Your utilitys mission and to prioritize its
objectives. - The threats that should be protected against.
- The methods to be used to protect your utility.
25SECURE
26INSECURE
27SECURITY ISSUES
- Culture of Security
- All employees aware that Security is an important
part of THEIR job - Include in Performance Review
- Operational security practices
- Facility physical security
- Increase Community Awareness of Security
- Community Watchdogs in Rural/Isolated areas
- Work with Sheriff/Police and Fire Dept.
28SECURITY ISSUES contd
CONFIDENTIAL FOR OFFICIAL USE ONLY
- Classification of Vulnerability Assessment
Documents - CONFIDENTIAL FOR OFFICIAL USE ONLY
- BOLD, RED LETTERS
- Upper Left Lower Right of each page
- Pages numbered 1 of 1, 1 of 2, etc.
CONFIDENTIAL FOR OFFICIAL USE ONLY
29SECURITY ISSUES contd
- Control Accountability of VA Documents
- Should Be Serialized (Copy 1 of 2, etc.)
- Issue Sheet (Record recipients of document)
- Record of Changes
- Safekeeping (safe or vault)
30SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts
- Assess likelihood of malevolent acts
- Identify and prioritize adverse consequences
- Evaluate existing countermeasures
- Develop prioritized plan for risk reduction
31SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts
- Assess likelihood of malevolent acts
- Identify and prioritize adverse consequences
- Evaluate existing countermeasures
- Develop prioritized plan for risk reduction
32CHARACTERIZE THE UTILITYTHE VA TEAM
- Performs the VA
- Involves/uses senior management for some
decisions - Has a variety of education and experience
- Is trusted with sensitive information
- Communicates effectively
- Documents decisions and entire VA process.
33CHARACTERIZE THE UTILITY
- POTENTIAL TEAM MEMBERS (5-8 is ideal)
- Utilities Director/Superintendent
- Chief/Lead Water Plant Operator
- Distribution System Manager
- Law Enforcement Representative
- City/County Engineer
- Maintenance Manager
- Emergency Management Representative
- Human Resources Manager
- Secretary
34CHARACTERIZE THE UTILITY
- ADDITIONAL SPECIALIZED TEAM RESOURCES
- (provide specific information as needed)
- Mayor or City/County Manager
- OIT staff and/or a SCADA expert
- City/County budget/accounting staff
- Security Equipment Suppliers
- Human Resources Manager
- City/County Attorney
35CHARACTERIZE THE UTILITY PRODUCE A MISSION
STATEMENT PRIORITIZED OBJECTIVES
OVERALL MISSION
FOCUS ON CRITICAL ASSETS
36CHARACTERIZE THE UTILITY PRODUCE A MISSION
STATEMENT PRIORITIZED OBJECTIVES
- Mission Statement is CRUCIAL for good VA
- Whats most critical function of the water
utility? - Which assets must be protected first?
- Which assets can be lost and still achieve the
mission? - What do we do in a time of crisis?
37CHARACTERIZE THE UTILITY PRODUCE A MISSION
STATEMENT PRIORITIZED OBJECTIVES
- Mission Statement Brief and Clear
- Example water utilitys mission is to
provide an ample supply of safe drinking water
with good pressure to all customers.
38CHARACTERIZE THE UTILITY PRODUCE A MISSION
STATEMENT PRIORITIZED OBJECTIVES
- We will accomplish our mission by achieving the
following prioritized objectives - 1. Protect public health by distributing safe,
potable water to all customers. - 2. Maintain adequate pressure and volume to meet
fire protection requirements. - 3. Keep utility system costs as low as possible
while complying with all applicable regulations. - (use p. 14 to draft mission stmts)
39CHARACTERIZE THE UTILITY DESCRIBE YOUR EXISTING
ASSETS
- VA REPORT should include a listing of all of the
following - All physical facilities (see pages 65 66)
- Computer equipment and software
- Position descriptions and responsibilities
- Existing security equipment
- Customers, some more critical than others
- Plans, record drawings, files, etc.
40CHARACTERIZE THE UTILITY DESCRIBE YOUR EXISTING
ASSETS
- INCLUDE INTERDEPENDENCIES
- Electrical Power
- Natural Gas
- Fuels, diesel and gasoline
- SCADA
- Communications
- Transportation
41CHARACTERIZE THE UTILITY DESCRIBE YOUR EXISTING
ASSETS
- Evaluate CRITICAL assets for vulnerability
- Describe, list location, note where shown on
drawings and process diagram, as appropriate. - List each assets vulnerability to attack.
Examples - ASSETS CAPACITIES LOCATION VULNERABLTS
- Pump/motor 800 gpm 229 Palm Ave electrical power
- make/model 25 hp Sheet B3 physical
damage - SCADA control
- Chlorine gas 2000 lbs 229 Palm Ave physical
damage - tanks Sheet C7
- Well 1 1000 gpm 416 River Way electrical power
- Sheet B1 physical damage
- SCADA control
-
42SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts (threats)
- Assess likelihood of malevolent acts
- ID and prioritize adverse consequences
- Evaluate existing countermeasures
- Develop prioritized plan for risk reduction
43THREAT ASSESSMENT
- Is a JUDGMENT, based on available intelligence,
law enforcement, and open source information, of
the actual or potential threats to your utility. - Local law enforcement is your best resource for
outsider information. - See Security Information Websites, p. 50, item
9, for additional outsider information.
44THREAT ASSESSMENT
- Identify potential adversaries
- Insiders employees, present, former and future
anyone with approved access. - Outsiders everyone else from vandals to
criminals and terrorists (see p. 17-20). - Document assessment of both insiders and
outsiders in VA report.
45THREAT ASSESSMENT
- INSIDERS ARE SPECIAL AND COMMON THREATS
- Potential for active or passive roles in planning
and/or carrying out an attack. - Trusted access to critical assets, as well as the
SCADA and security systems. - They know whats critical how to disable it.
46THREAT ASSESSMENT
- SOURCES OF INFORMATION REGARDING INSIDERS
- Personnel policies and practices
- Staff morale/personal knowledge
- Human resources staff
- Employee background checks, prior to employment
47THREAT ASSESSMENT
- Prepare List of POTENTIAL Threats
THREAT NO. CRITICAL ASSET SOURCE OF THREAT THREAT TYPE
1 _at_ well vandals Contamination
2 _at_ well vandals Power loss
3 _at_ well vandals Physicl damge
4 _at_ wells emply sabtge Contamination
5 _at_ wells emply sabtge Power loss
6 _at_ wells emply sabtge Physicl damge
7 _at_ wells terror Contamination
8 _at_ wells terror Power loss
9 _at_ wells terror Physicl damge
48THREAT ASSESSMENT
THREAT NO. CRITICAL ASSET SOURCE OF THREAT THREAT TYPE
10 _at_ WTP vandals Contamination
11 _at_ WTP vandals Power loss
12 _at_ WTP vandals Physicl damge
13 _at_ WTP vandals Chlorine release
14 _at_ WTP emply sabotage Contamination
15 _at_ WTP emply sabotage Power loss
16 _at_ WTP emply sabotage Physicl damge
17 _at_ WTP emply sabotage Chlorine release
18 _at_ WTP terror Contamination
49SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts (threats)
- Assess likelihood of malevolent acts (Probability
of occurrence) - ID and prioritize adverse consequences
- Evaluate existing countermeasures
- Develop prioritized plan for risk reduction
50Risk Equation
The following equation determines relative risk
of each threat actually being carried out Risk
Probability of occurrence, P times
Consequence severity, C times
Effectiveness of deterrents, E
51PROBABILITY OF OCCURENCE
- Risk is a function of
- Probability (P) of a threat being carried out
- Probability of occurrence
- Consequences (C) if threat is carried out
- Loss of supply how long
- Loss of pressure how much
- Loss of capital how expensive
- Loss of public confidence how to regain
- Effectiveness of Deterrents (E)
- Deterrents are those things done to prevent
- threats from occurring (fences, locks, etc.)
-
52PROBABILITY of OCCURRENCE
Threat Multiplier
Threat exists, but very improbable Saboteur, terrorist could threaten 1
Threat exists, but improbable 2
Threat exists, somewhat probable Authorities know of threat, no target 3
Threat exists, probable 4
Threat exists, highly probable Authorities know of threat of vandalism, and typical targets 5
53PROBABILITY of OCCURRENCE
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE PROBABILITY OF OCCURRENCE, P
1 _at_ well vandals Contmntn 1
2 _at_ well vandals Powr loss 3
3 _at_ well vandals Phys dmg 5
4 _at_ wells empl. sab. Contmntn 2
5 _at_ wells empl. sab. Powr loss 2
6 _at_ wells empl. sab. Phys dmg 2
7 _at_ wells terror Contmntn 1
8 _at_ wells terror Powr loss 1
9 _at_ wells terror Phys dmg 1
54PROBABILITY of OCCURRENCE
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE PROBABILITY OF OCCURRENCE, P
10 _at_ WTP vandals Contamntn 1
11 _at_ WTP vandals Power loss 1
12 _at_ WTP vandals Physcl dmg 1
13 _at_ WTP vandals CL release 1
14 _at_ WTP emply sabtg Contamntn 1
15 _at_ WTP emply sabtg Power loss 3
16 _at_ WTP emply sabtg Physcl dmg 1
17 _at_ WTP emply sabtg CL release 2
18 _at_ WTP terror Contamntn 2
55SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts (threats)
- Assess likelihood of malevolent acts (Probability
of occurrence) - ID and prioritize adverse consequences
- Evaluate existing countermeasures
- Develop prioritized plan for risk reduction
56CONSEQUENCE PRIORITIZATION CONSEQUENCE PRIORITIZATION
Consequence Multiplier
Normal supply of potable water available All demands met 1
Minimum supply of potable water available Emergency demands met 2
Inadequate supply of potable water available Parts of system may be without water 3
No potable water available Contaminated fire and sanitary wtr available 4
No water available 5
One or more people killed 7
57CONSEQUENCE PRIORITIZATION
THREAT NUMBER CHARACTER THREAT TYPE CONSEQUENCE PRIORTZTN, C
1 _at_ well, vandals Contamination 2
2 _at_ well, vandals Power loss 2
3 _at_ well, vandals Physical damage 1
4 _at_ wells, emply sabotage Contamination 7
5 _at_ wells, emply sabotage Power loss 5
6 _at_ wells, emply sabotage Physical damage 5
7 _at_ wells, terror Contamination 7
58CONSEQUENCE PRIORITIZATION
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE CONSEQUENCE PRIORTZTN, C
1 _at_ well vandals Contmntn 2
2 _at_ well vandals Powr loss 2
3 _at_ well vandals Phys dmg 1
4 _at_ wells empl. sab. Contmntn 7
5 _at_ wells empl. sab. Powr loss 5
6 _at_ wells empl. sab. Phys dmg 5
7 _at_ wells terror Contmntn 7
8 _at_ wells terror Powr loss 5
9 _at_ wells terror Phys dmg 5
59CONSEQUENCE PRIORITIZATION
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE CONSEQUENCE PRIORTZTN, C
10 _at_ WTP vandals Contamntn 2
11 _at_ WTP vandals Power loss 3
12 _at_ WTP vandals Physcl dmg 1
13 _at_ WTP vandals CL release 7
14 _at_ WTP emply sabtg Contamntn 7
15 _at_ WTP emply sabtg Power loss 5
16 _at_ WTP emply sabtg Physcl dmg 5
17 _at_ WTP emply sabtg CL release 7
18 _at_ WTP terror Contamntn 7
60SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts (threats)
- Assess likelihood of malevolent acts (Probability
of occurrence) - ID and prioritize adverse consequences
- Evaluate existing countermeasures (deterrents)
- Develop prioritized plan for risk reduction
61DETERRENT EFFECTIVENESS
Effectiveness Factor
Highly effective Means to detect, delay, respond stop attack in place. Addtnl supply redundant units available emply vendor backgrd chks and key cards used. 1
Generally effective Means to detect delay attack spare parts spare units avail emply vendor backgrd chks. 2
Moderately effective Vandals substntlly deterred partl alt suply key spare parts available emply backgrd chks 3
Slightly effective Means to delay vandals no alt. supply but some spare parts avail no emply backgrnd chks. 4
Ineffective No physical means to detect or delay vandals. No alternate source of supply, or spare parts available. 5
62DETERRENT EFFECTIVENESS
assessment
Time of Intrusion
Time
Attack Completed
63DETERRENT EFFECTIVENESSList Existing Deterrents
Asset Protected Type of Deterrent Deterrent
Wells Detection Emply bckgrd chks
Wells Delay Chain link fence
Wells Delay Locked doors
Wells Response Emplymnt practcs
Wells Redundancy Spare parts motrs, extra wells
Treatment Plant Detection Motion detectors Emply bckgrd chks
Treatment Plant Delay Chain link fence
Treatment Plant Delay Locked doors
64DETERRENTS EFFECTIVENESS
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE DETERRENTS EFFECTVNESS, E
1 _at_ well vandals Contmntn 3
2 _at_ well vandals Powr loss 3
3 _at_ well vandals Phys dmg 4
4 _at_ well empl. sab. Contmntn 3
5 _at_ well empl. sab. Powr loss 3
6 _at_ well empl. sab. Phys dmg 3
7 _at_ well terror Contmntn 5
8 _at_ well terror Powr loss 5
9 _at_ well terror Phys dmg 5
65DETERRENTS EFFECTIVENESS
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE DETERRENTS EFFECTVNESS, E
10 _at_ WTP vandals Contmntn 4
11 _at_ WTP vandals Powr loss 4
12 _at_ WTP vandals Phys dmg 4
13 _at_ WTP vandals CL release 4
14 _at_ WTP empl. sab. Contmntn 3
15 _at_ WTP empl. sab. Powr loss 3
16 _at_ WTP empl. sab. Phys dmg 3
17 _at_ WTP empl. sab. CL release 3
18 _at_ WTP terror Contmntn 2
66SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts (threats)
- Assess likelihood of malevolent acts (Probability
of occurrence) - ID and prioritize adverse consequences
- Evaluate existing countermeasures (deterrents)
- Develop prioritized plan for risk reduction
67DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
- Risk, R Probability of occurrence, P
- times
- Consequence severity, C
- times
- Effectiveness of deterrents, E
- R P x C x E
68DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
Threat P C E Relative Risk Priority
1 1 2 3 6
2 3 2 3 18
3 5 1 4 20
4 2 7 3 42
5 2 5 3 30
6 2 5 3 30
7 1 7 5 35
8 1 5 5 25
9 1 5 5 25
69DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
Threat P C E Relative Risk Priority
10 1 2 2 4
11 1 3 2 6
12 3 1 2 6
13 1 7 2 14
14 2 7 3 42
15 2 5 3 30
16 2 5 3 30
17 2 7 3 42
18 1 7 2 14
70DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
Threat P C E Relative Risk Priority
1 1 2 3 6 8
2 3 2 3 18 6
3 5 1 4 20 5
4 2 7 3 42 1
5 2 5 3 30 3
6 2 5 3 30 3
7 1 7 5 35 2
8 1 5 5 25 4
9 1 5 5 25 4
71DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
Threat P C E Relative Risk Priority
10 1 2 2 4 9
11 1 3 2 6 8
12 3 1 2 6 8
13 1 7 2 14 7
14 2 7 3 42 1
15 2 5 3 30 3
16 2 5 3 30 3
17 2 7 3 42 1
18 1 7 2 14 7
72DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
Threat P C E Relative Risk Priority
4 2 7 3 42 1
14 2 7 3 42 1
17 2 7 3 42 1
7 1 7 5 35 2
5 2 5 3 30 3
6 2 5 3 30 3
15 2 5 3 30 3
16 2 5 3 30 3
8 1 5 5 25 4
73DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
Threat P C E Relative Risk Priority
9 1 5 5 25 4
3 5 1 4 20 5
2 3 2 3 18 6
13 1 7 2 14 7
18 1 7 2 14 7
1 1 2 3 6 8
11 1 3 2 6 8
12 3 1 2 6 8
10 1 2 2 4 9
74DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE DESCRIPTION OF ACTIONS, YEAR 1
4 _at_ well empl. sab. Contamntn Install card key ID system.
14 _at_ WTP emply sabtg Contamntn Install card key ID system.
17 _at_ WTP emply sabtg CL release Install card key ID system.
75DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
THREAT NO. CRIT. AST. SOURCE OF THREAT THREAT TYPE DESCRIPTION OF ACTIONS, YEAR 2
7 _at_ wells terror Contamntn Join WaterISAC harden locks doors.
5 _at_ wells empl. sab. Powr loss Installed card key ID system last year.
6 _at_ wells empl. sab. Phys dmg Installed card key ID system last year.
76DEVELOP PRIORITIZED PLANFOR RISK
REDUCTIONSimple Security Measures
- Employee background checks
- Talk to police
- Tour all PWS facilities
- Explain importance of PWS to community
- Ask for security suggestions
- Ask to include PWS facilities on routine patrols
- Place bars or grates on windows
- Use tamperproof padlocks
77DEVELOP PRIORITIZED PLANFOR RISK
REDUCTIONSimple Security Measures
- Talk to residents near facilities
- Explain who should/should not be at the
facilities - Provide a 24-hour telephone number to call if
suspicious activity is observed - Post signs
- No Trespassing/Violators Will Be Prosecuted
and NRWA Warning sign - Follow through and prosecute
- Limit remote SCADA system access
- Unplug modem on SCADA system when not in use
- Require person to give remote access to system
78DEVELOP PRIORITIZED PLANFOR RISK
REDUCTIONSimple Security Measures
- Work with chemical suppliers/other vendors
- Get photo copies of DLs of drivers/salesmen
before they arrive - Check photo copy against the DL
79DEVELOP PRIORITIZED PLANFOR RISK REDUCTION
- Use your staffs own ingenuity
- Contact security equipment professionals
suggested guidelines - Offer equipment from a variety of manufacturers.
- Offer an integrated approach which includes
design, installation and monitoring. - Consider procurement options that
- maintain security of your system information
- are not based on low bids.
80DEVELOP PRIORITIZED PLANFOR RISK REDUCTIONUSE
INGENUITY
Water Treatment Facility
Entrance Gate
Perimeter Fence
Install Cattle Gate And 1 SS Cable
Protect Sides from Drive Around
Public road
81DEVELOP PRIORITIZED PLANFOR RISK REDUCTIONUSE
INGENUITY
1 SS Cable, ends looped over poles, middle wired
to gate, slack at opening.
Telephone poles set in concrete
Std. cattle gate
Gate latched with SS chain secure padlock
Entrance Road
82DEVELOP PRIORITIZED PLANFOR RISK REDUCTIONUSE
INGENUITY
- INEXPENSIVE OPTIONS
- Hardened door hinges, spot weld or purchase.
- Replace cylindrical locks with MORTISED locks,
purchase locks hinges 1,000/dr. - New doors with mortised locks 3 to 4,000.
- Install guard plates above below striker
plates. - Harden gates Spot weld hinge bolts, or use SS
cable around gate posts use hardened latches. - Add lighting/motion sensing lighting.
- Install warning signs.
83SIX ELEMENTS OF VULNERABILITY ASSESSMENTS
REQUIRED BY PL 107-188
- Characterize the water system, including its
mission and objectives - Determine malevolent acts (threats)
- Assess likelihood of malevolent acts (Probability
of occurrence) - ID and prioritize adverse consequences
- Evaluate existing countermeasures (deterrents)
- Develop prioritized plan for risk reduction
84VULNERABILITY ASSESSMENT REPORT
- INTRODUCTION
- Should contain background information, including
why a vulnerability assessment was performed. - Should include the scope of the report and its
organization. - USE PL 107-188S 6 ELEMENTS OF A VA AS CHAPTER
HEADINGS
85VULNERABILITY ASSESSMENT REPORT
- SUGGESTIONS FOR REPORT
- Report each step/decision of the process.
- List EACH ASSUMPTION.
- Include EVERY threat and system response
considered, and if some threats were not
evaluated, why they werent. - List as many steps to be taken to reduce
vulnerability as possible (not just upgrades). - Follow EPAs instructions for VA submission.
86(No Transcript)
87WHOS IN CHARGE HERE, ANYWAY?
88EMERGENCY PLANS
- What is an Emergency ?
- Unanticipated event that calls for an immediate
response - Natural Flood, Hurricane, Tornado
- Manmade Vandalism, Sabotage, Terrorism
89EMERGENCY PLANS
- Emergency Management Community
- Fire, Police, Medical (First Responders)
- Disaster Response, Civil Defense
- EOC Emergency Operations Center
- ICS Incident Command System
- Water Utility
- Component of the EM Community
- Partner train with other components
90Response
Recovery
Mitigation
4 Phasesof EmergencyManagement
Preparedness
- Priority concerns Life safety issues
protection of property - One simple rule Meet the needs of the victims
91EMERGENCY MANAGEMENT PHASES
- Preparedness
- Research, Plan Exercise
- Response
- Actions taken to address the emergency
- Recovery
- Return system to normal operations
- Mitigation Always on-going thru Preparedness,
Response, Recovery - Reduce impact of emergency
92ERP ACTIVATION LEVELS
- EMCON I - Warning Condition review
requirements of ERP check inventory - EMCON II - Alert Condition check EM
communications work assignments - EMCON III - Imminent Threat Condition
- activate ERP
- EMCON IV - Declared State of Emergency follow
guidance of ERP - EMCON V - Recovery Condition restore system
complete reports update ERP
93HOMELAND SECURITY ADVISORY SYSTEM
- Threat Condition LOW GREEN
- Threat Condition GUARDED BLUE
- Threat Condition ELEVATED YELLOW
- Threat Condition HIGH ORANGE
- Threat Condition SEVERE RED
94Condition GREENLow Threat
- Refine/exercise as appropriate Preplanned
Protective Measures - Ensure personnel trained on HSAS specific
dept/agency Protective Measures - Institutionalize process for regular VA to
terrorist attacks mitigation implemented
95Condition BLUEGuarded
- Check communications as identified in Emergency
Response Plan - Review/update Emergency Response Procedures
- Communicate to public any info. that will
strengthen its ability to act appropriately
96Condition YELLOWElevated-Significant risk of
terrorist attack
- Increase surveillance of critical locations
- Coordinate with nearby jurisdictions
- Assess precise characteristics of the threat
- Further refine Preplanned Protective Measures
- Implement, as appropriate, contingency and
Emergency Response Plans
97Condition ORANGEHigh Risk of terrorist attacks
- Coordinate security with local, State Federal
law enforcement - Additional precautions at public events
- Prepare to execute contingency procedures-move to
alternate site disperse workforce - Restrict facility access to essential personnel
only
98Condition REDSEVERE risk of terrorist
attacksNot intended to be sustained for ext.
period
- Increase/redirect personnel to address emergency
needs - Pre-position mobilize specially trained teams
or resources - Monitor, redirect, or constrain transportation
systems - Close public government facilities
99EMERGENCY RESPONSE PLANS (ERP) WHY ???
- Required by PL 108-188 Bio-terrorism Act
- DEP rule 62-555 being amended to require ERPs
- Makes Good Sense to have a guide ready to use
when an emergency arises
100DEP 62-555 RULE CHANGESProbably effective this
summer
- CWS serving 350 or more persons
- ERP in accordance with AWWAs M19
- Due by December 31, 2004
- Minimum Components
- Communications Chart
- Written agreements with other agencies (Mutual
Aid)
101RULE CHANGES, contd
- Minimum Components, contd
- Disaster-Specific ERPs for
- Vandalism/Sabotage
- Drought
- Hurricane
- Structure Fire
- And if applicable, for
- Flood
- Wildfire
- Hazardous Material Release
102RULE CHANGES, contd(see p. 39)
- Minimum Components, contd
- Standby Power Requirements
- Details of how system meets
- Fuel to maintain requirements
- Drinking Water Treatment Chemicals
- Inventory requirements
103ERP PLANNING
- Invest in the first 12 hours
- Maximum chaos, minimum info
- Something will happen without a plan
- Make sure you have a script
104- Planning
- When preparing for battle I have
- always found that plans are
- useless, but planning is
- indispensable.
- Dwight D.
Eisenhower
105EMERGENCY RESPONSE PLANS(ERP) Whats In Them?
- Details of notification procedures
- Assign responsibilities to individuals/groups
- Guidance for appropriate response actions
- Control the negative effect of a critical
incident, prevent incident from escalating,
enhance recovery process
106IMPORTANT POINTS of ERP
- Working document that should be used before,
during after a disaster - Plan is an outgrowth of and should be developed
from the completed VA and actions taken to
mitigate risks
107IMPORTANT POINTS contd
- Identifies Resources, Responsibilities and
Contingencies - Must comply with applicable state local
ordinances requirements - Key personnel must know the plan
- All personnel must know their individual roles
108IMPORTANT POINTS contd
- KISS (as simple as possible)
- Living Document review revise regularly
- Living Document Exercise the plan
- Coordinate with Emergency Management Community,
Regulatory authorities local government
officials
109ESSENTIAL COMPONENTSof Emergency Response Plan
- Describes all anticipated emergencies
- Provides detailed corrective actions for all
defined emergencies - Prescribes specific performance actions
- Defines Chain of Command
- Describes coordination with other agencies
- Lists Emergency Equipment Spare Parts
Inventories
110COMPONENTS contd(see p. 44)
- List points of contact phone numbers
- State Warning Point 800-329-0519
- Members of Emergency Mgmt Community
- System personnel
- Customer Notification Protocol
- Service, Supply equipment vendors
- Laboratories
- Media
111COMPONENTS contd
- Provides system information
- Source water supply
- Treatment information
- Finished water storage information
- Location of maps, manuals and plans
- Areas of potential collaboration with other
utilities and government agencies
112EPA GUIDANCE(April 2002) (Incident Types)
- Threat of or Actual Intentional Contamination of
the Water System - Threat of Contamination at a Major Event
- Notification from Health Officials of Potential
Water Contamination - Intrusion through the SCADA system
- Significant Structural Damage Resulting from an
Intentional Act - (see
pages 87-95)
113OTHER CONSIDERATIONS
- Mutual aid agreements
- Emergency Procurement Procedures
- Training
- Table Top Exercises
- Functional Field Drills
- Full Scale Drills (Hurricane ZEKE
- New employee orientation ERP training
114- General Steps for Emergency Response
- Immediate notification
- Conduct Preliminary Assessment
- Establish Command Control Structure
- A. Define Emergency Status
- B. Activate Communications Plan
- C. Conduct Full Assessment
- Implement Countermeasures
- Activate Recovery Plan
115- General Steps, contd
- 1. Immediate Notification
- Call 911
- Call Utility Management
- Communications Tree
- Call State Warning Point
- 2. Conduct Preliminary Assessment
- Nature
- Extent
- Severity
116- General Steps, contd
- 3. Establish Command Control Structure
- Establish Chain of Command
- Identify Tech Specialists
- A. Define ERP Activation
- EMCON I
- to
- EMCON V
117- General Steps, contd
- 3. Establish Command Control Structure
- B. Establish Communications with
Appropriate Groups - Emergency Management Cmty
- Critical or Priority Customers
- Media
- C. Conduct Full Assessment (use Technical
Specialist Team) - Nature
- Extent
- Severity
118- General Steps, contd
- 4. Implement Countermeasures
- Isolate affected portion of system
- Emergency repairs based on priority
- Continue to provide non-potable water
- Customer notifications
- Boil Water Notices
- Emergency water supplies
- Tank trucks
- Interconnection
- Bottled water
119- General Steps, contd
-
- 5. Recovery Phase
- Restore service fully
- Prepare reports
- Mitigation requirements rate review
- Lessons learned
- Review update ERP
-
120SUGGESTED FORMS
- (see p. 122) excerpts from www.asdwa.org
- AWWA Water System Security A Field Guide
Appendixes (on disk) - www.calwarn.org/warn/warn_news.htm
- (sample ERP from Calif.)
- Google search for emergency response for water
utilities
121- Emergency Response a self-assessment
- Of the phases of emergency management, emergency
response receives the most attention because it
deals with events as they occur, in real time.
For water utilities, the important issue is how
well they respond to, and recover from, disasters
so that the water supply remains available, safe,
and reliable. The basic nature of the water
utility emergency plan and process is described
in AWWA Manual M19. Preparation for emergencies
is the key to success and survival.
122- Self-assessment checklist
- Managers are committed to readiness improvement
- An established Emergency Response Program
- EOC/ICS authority identified authorized for all
emergencies - Roles of Elected Officials have been identified
- Management admin systems in place for emergency
ops - Admin Operations .functions clearly assigned
for emergencies - Organizational structures are similar for routine
disaster operations - Emergency procedures similar to normal procedures
- Able to maintain records during a disaster
- Crew assignments have been preplanned
123- Self-assessment checklist
- Emergency management planning is an ongoing
activity - Vulnerability Assessment has been conducted
- Agreements for mutual aid, authority
organization, incident management
communications completed - Alternate transport for supplies, repair crews,
equipment available - Standard Operating Procedures decision
protocols have been prepared - Water conservation plans are ready
- Comprehensive security/safety programs in place
- Methods are implemented to monitor for
contaminants on an ongoing basis to identify
confirm contamination
124- Self-assessment Check list
- Protocol in place to treat or contain water, or
to warn the public not to use it - Operators are trained to monitor for physical
threats - A comprehensive HAZMAT program in place
- Access to critical facilities is controlled
- Law enforcement personnel have toured the
facilities to assist in identifying threats
vulnerabilities - Only appropriate info is available on the Web
site or via the Freedom of Information Act (FOIA) - Potential threats, including from employees and
vendors, are monitored
125- Self-assessment Check list
- Funding strategies for disaster preparedness are
addressed - The financial strategy includes a 5 to 20 year
Capital Program for emergency preparedness - Secure Communication systems have been
established - Internal alerting procedures are established
- The public information function for emergencies
is clearly defined - Stakeholders to notify are listed, and the
ability to alert the public is maximized - The utility has joined InfraGard and participates
in national security networking activities
126- Self-assessment Check list
- Active intergovernmental coordination is
practiced - Partners in emergencies know one another before
a disaster strikes - Training programs on threats, security, safety
emergencies for all staff in place periodically
assessed - Twice per year training/exercises are conducted
for all levels of the response organization - Motivation is provided for employee involvement
in emergency management programs - Performance audits for preparedness conducted
127(No Transcript)
