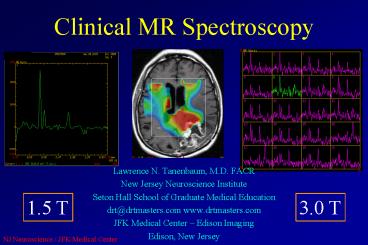

Clinical MR Spectroscopy

1
Clinical MR Spectroscopy

• Lawrence N. Tanenbaum, M.D. FACR
• New Jersey Neuroscience Institute
• Seton Hall School of Graduate Medical Education
• drt_at_drtmasters.com www.drtmasters.com
• JFK Medical Center Edison Imaging
• Edison, New Jersey

1.5 T
3.0 T
2
What is MR Spectroscopy?

• EM energy impinges on a sample which then absorbs
  or emits energy that can be measured.
• Energy distribution and intensity provides
  information about the samples physical and
  chemical properties.
• Functional (chemical) MRS information complements
  structural MRI information.

3
Functional MRtechniques

• Spectroscopy
• single voxel
• MRSI
• Diffusion
• DWI
• anisotropy
• Perfusion
• CBV, MTT, CBF
• Activation
• BOLD

4
MRS techniquesmetabolites

• Proton (H)
• 1.5-3T scanner with routine hardware
• clinical software widely available
• Phosphorus, other nuclei
• requires specialized hardware
• RF amps, coils, receivers

New Orleans 2001
5
MRS techniques

• Single voxel
• PROBE
• 2D multi-voxel
• PROBE SI
• chemical shift imaging/ MRSI
• 3D CSI
• 3D focal CSI

6
PROBEsingle voxel proton MRS
X
PhD

• fully automated prescan, scan
• shimming
• water suppression
• 4 5 minute complete acquisition
• Short (PRESS, STEAM) and long TE (PRESS)

7
single voxel MRS localization
8
MRS acquisition modes

• STEAM
• stimulated echo acquisition mode
• short TE single voxel acquisition
• PRESS
• point resolved spectroscopy
• Twice the SNR of STEAM
• Short and long TE single voxel techniques now
  possible
• Long TE MRSI

9
Proton MRS
10
Lactate
Cho
NAA
Cr
Lipid
Cr
MI
11
(No Transcript)
12
Short TE PRESS

• 1500 / 35
• probe-p, scan mode 1
• 96 nex scans
• 256 x 128
• FOV 21, fAP
• 20 mm thick
• 8 nex, 254

13
NAAN-acetyl aspartate

• putative neuronal marker
• decreased concentration seen in focal and
  regional brain lesions
• infarction, ischemia, hypoxia, hemorrhage
• neoplasm, multiple sclerosis,
• abscess, herpes encephalitis
• epilepsy, DAT, NPH, TBI
• Canavans disease elevated NAA

14
NAA
15
Choline (Cho)

• marker of membrane synthesis
• high concentration seen in
• neoplasm
• developing brain
• low concentration seen in
• stroke
• liver disease
• dementia

16
Creatine (Cr)

• supplier of phosphate to convert ADP to ATP
• gray matter concentration 20 gt WM
• high concentration
• increases with age
• head trauma
• hyperosmolar states
• low concentration
• neoplasm, stroke, hypoxia
• infant brain

17
Lactate (Lac)

• end product of anaerobic glycolysis
• nonspecific accumulation in
• hypoxia, anoxia, infarction, hemorrhage
• neoplasm
• infection
• demyelinating disease
• hydrocephalus
• inborn errors of metabolism

Kuala Lumpur 2000
lactate
18
Lactate
TE 35
TE 144
19
(No Transcript)
20
Glxglutamate, glutamine

• glutamate is an excitatory neurotransmitter
• glutamine is a product of the reaction of
  glutamate with NH3
• elevated concentration
• hepatic encephalopathy
• hypoxia
• low concentration
• ? Alzheimers disease

21
Ross B, Michaelis T Clinical Applications of MRS.
Magnetic Resonance Quarterly, Vol 10, No 4, 1994
22
Myoinositol (mI)

• ? astrocyte marker, myelin breakdown product
• high concentration
• DAT
• developing brain
• multiple sclerosis
• HIV infection
• low concentration
• infarction, neoplasm
• hepatic encephalopathy

23
DAT
24
single voxel MRSclinical utility

• focal lesion characterization
• characteristic lesion signature
• Ddx tumor from abscess, infarction, etc.
• global / regional lesions
• hepatic encephalopathy
• dementia, epilepsy

Las Vegas 2000
NYC 2001
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
Cerebral neoplasmMRS findings
Cho

• NAA decreased
• most lack neurons
• lactate accumulation
• high activity regions, cysts, necrosis
• lipid increased
• necrosis, metastatic adenoCA
• choline elevated
• accelerated membrane synthesis

New Orleans 2001
29
(No Transcript)
30
Short TE
long TE
New Orleans 2002
31
35 yo female seizures
32
New Orleans 2000
33
(No Transcript)
34
(No Transcript)
35
Taipei 2002
Vail 2004
36
(No Transcript)
37
Cerebral neoplasmrole of MRS / MRSI

• characterization
• mass lesion DDx
• extent
• tumor infiltration vs. edema
• primary vs. metastasis
• surveillance
• post op enhancement vs. residual tumor
• recurrent tumor vs. radiation necrosis
• non-enhancing lesions

Snowmass 2004
38
Vail 2003
Snowmass 2004
39
(No Transcript)
40
(No Transcript)
41
(No Transcript)
42
Vail 2003
43
(No Transcript)
44
H. Mahendran, M.D., Delhi
45
H. Mahendran, M.D., Delhi
46
Clinical MRSlesion characterization

• neoplasm
• infarction
• infection
• multiple sclerosis
• lesions in HIV patients
• tumor vs. radiation necrosis

Mardi Gras NO 2001
47
post partum seizures
Vail 2003
48
Palos Verdes 2000
49
New Orleans 2000
50
AIDS r/o infection
Stockholm 2002
51
New Orleans 2002
52
pre-op brain tumor
Glasgow 2001
R. Tien, M.D. Duke Univ
53
Glasgow 2001
54
(No Transcript)
55
(No Transcript)
56
Snowmass 2004
57
(No Transcript)
58
30 yo male with tumor
59
(No Transcript)
60
Indian patient with seizures
Istanbul 2000
61
(No Transcript)
62
(No Transcript)
63
Jerusalem 2000
64
Cerebral abscessMRS findings

• NAA, Cho, Cr decreased
• may see resonances from microorganism and
  proteolysis end-products
• lactate
• succinate (2.4 ppm), acetate (1.9)
• alanine (1.5), amino acids (0.9)

65
Lac
abscess
Suc
AA
Acetate
Ala
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
Nantucket 2000
70
Chang L In Vivo MRS in HIV and HIV-related
Brain Diseases
71
Chang L In Vivo MRS in HIV and HIV-related
Brain Diseases
72
AIDS
Nantucket 2000
73
New Orleans 2000
74
Chang L In Vivo MRS in HIV and HIV-related
Brain Diseases
75
3T MRSI
76
AIDS
77
Chang L In Vivo MRS in HIV and HIV-related
Brain Diseases
78
Chang L, Miller B, McBride D, et. al. Proton MR
Spectroscopy of Brain Lesions in AIDS
79
Multi-voxel spectroscopyMRSI

• multiple spectra in single acquisition
• matrix of spectra
• gray (color) scale metabolite display
• integrate with structural data
• overlay on structural images with variable
  opacity
• simultaneous evaluation of large areas of brain
• contralateral comparison information

Hermosa Beach 2000
80
Long TE PRESS 2D CSI

• 1000 / 144 PRESS
• 256 x 128, FOV 21, fAP
• 10 mm thick, 1 nex
• fast
• 12 x 12, 144 voxels, 228
• 16 x 16, 256 voxels, 420
• 24 x 24, 576 voxels, 940
• preset or optimized water suppression

81
(No Transcript)
82
NAA
Choline
Chronic MS plaque
83
(No Transcript)
84
Cho
85
Meningioma
NAA
Cho
86
lesion characterization
brainstem glioma
NAA
Cho/NAA
Choline
87
extent
88
FLAIR
NAA
Cho/NAA
89
FLIR T1
NAA
Cho/NAA
90
Choline
NAA
Lactate - lipid
91
Cho / NAA
Pelican Hill
92
(No Transcript)
93
Multi-voxel MRSI
256 voxels 5 minutes
94
Multi-voxel MRSI
256 voxels 5 minutes
Cho / NAA
95
Multi-voxel MRSI
edema
96
Cho/NAA
97
Cho / NAA
NAA
Choline
98
(No Transcript)
99
Multi-voxel MRSI TE 144
256 voxels 5 minutes
100
(No Transcript)
101
(No Transcript)
102
3T MRSI
tumor vs. radiation necrosis
103
3D CSI
104
3D focal CSI

• 1000 / 144 (288) PRESS
• 50 (3-100) mm voxel thickness
• 8 (8-16) locs (slices) per slab (volume)
• 8 mm spacing (thickness)
• 8 x 8, 512 voxels (64 / slice), 832
• very selective spatial saturation
• 6 defaults at edge VOI
• 4 explicitly prescribed
• 256 x 128, FOV CSI volume, fAP, 1 nex

105
(No Transcript)
106
(No Transcript)
107
(No Transcript)
108
(No Transcript)
109
(No Transcript)
110
glioma
111
(No Transcript)
112
Cho
Lac Lipid
Cho / NAA
NAA
113
8 channel NV coil
114
3D CSI 3T
115
(No Transcript)
116
(No Transcript)
117
(No Transcript)
118
TwinSpeed 3D focal CSI
119
(No Transcript)
120
(No Transcript)
121
(No Transcript)
122
(No Transcript)
123
(No Transcript)
124
acetate
NAA
Lac
125
Multi-voxel MRSI

• thorough lesion characterization
• lesion mapping
• nature, extent
• multiple biopsies
• edema, wall, center
• reduce sampling error
• complex lesions
• radiation necrosis / post operative change vs.
  tumor

126
Multi-voxel MRSI

• regional lesions
• epilepsy
• dementia
• traumatic brain injury

Steamboat 2001
127
(No Transcript)
128
NAA
Choline
mesial temporal sclerosis
129
MTS
130
L
MTS
R
L
R
131
PSIR
NAA
Cho
132
Traumatic brain injury
133
Clinical MRScost / clinical benefits

• refine lesion characterization
• facilitate early diagnosis, treatment
• decrease invasive diagnostic and therapeutic
  procedures
• reduce need for follow-up, ancillary studies
• impact workup / Rx of global brain lesions
• facilitate diagnosis DAT, TBI
• lateralize TLE

NYC 2001
134
Prostate MRSI
Citrate
Cho
Cho
CA
normal
135
(No Transcript)
136
(No Transcript)
137
3D PROBE SI
Citrate
ChoCr
Cho
Cr
138
Metabolic Identification Of Prostate Cancer
Cancer
Healthy
Axial T2 Weighted MRI
0.24 cc in vivo proton spectrum from a 3D array
of spectra
University of California San Francisco
139
Prostate MRSIimpact

• traditional role for imaging is staging
• poor clinical acceptance
• insufficient accuracy?
• reduced surgery?
• MRSI improves specificity
• differentiate benign SI changes from malignancy
• allows identification and localization of cancer

140
Prostate MRSIclinical role

• high PSA, negative biopsy
• options
• repeat biopsy blindly
• repeat biopsy blindly
• repeat biopsy blindly
• identify and localize cancer with MRSI
• perform directed biopsy for characterization

141
Prostate MRSIclinical role

• positive biopsy
• guide super selective radiation therapy to
  cancerous portion of prostate gland

142
Outcome studies

• HIV
• About 20 of MRI- patients have significant MRS
  changes (Marseilles, France)
• Adrenoleukodystrophy
• 25 of MRI- boys with affected sib have
  significant MRS abnormalities (Gottingen,
  Germany)
• Near drowning
• MRS defined 5/5 good and 11/12 poor outcome
  between days 2 and 4 after rescue (Pasadena,
  California)
• Temporal lobe epilepsy
• 55/60 patients successfully lateralized (London,
  UK)

143
Moats, Watson, Shonk, et al. SMRM 1993.
144
Case study
new onset seizures
145
(No Transcript)
146
Case study Diagnosis Infarction
147
Final exam
New Orleans 2000
148
Dyslexia
149
Schizophrenia
150
Depression
151
(No Transcript)
152
Mardi Gras NO 2001
153
Clinical MRSI

• Lawrence N. Tanenbaum, M.D. FACR
• New Jersey Neuroscience Institute
• Seton Hall School of Graduate Medical Education
• JFK Medical Center Edison Imaging
• Edison, New Jersey
