Canaan Valley Tucker County, West Virginia

1

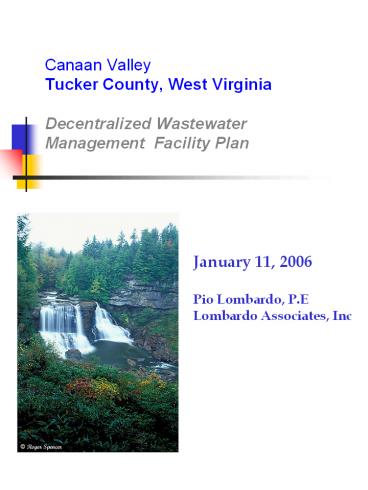

Canaan Valley Tucker County, West Virginia
 Decentralized Wastewater Management Facility
Plan

• January 11, 2006
• Pio Lombardo, P.E
• Lombardo Associates, Inc

2
Project Status

• Existing conditions assessment
• Planning period projections
• Needs analysis
• Alternatives identification evaluation
• Capital budget user charges
• Management, legal, institutional issues
• Preferred Plan

3
Existing Development
4
Potential Development

• Area of parcels outside of sewer service areas
  that is not developed Area within wetlands
  Developable onsite area
• Exclude State Federal lands
• Approximately 3,200 developable acres
• Subtract 20 for slopes, roads, etc. results in
  2,500 acres available for development

5
Future Wastewater Flows

• With development density of 1 EDU/acre 2.6
  capita/EDU Buildout population of 6,640
• Using 70 gpd per capita, future wastewater flow
  is estimated at 465,000 gpd
• Consistent with previous buildout estimates

6
WWTF Needs Analysis

• I/I issues
• Physical condition
• System deficiencies

7
I/I Evaluation

• Excessive
• CVSP Cabins
• CVSP Campground
• LOCHOA
• Moderate
• Black Bear
• Some observed
• Beaver Ridge
• Blackwater Center
• CVSP Ski Area
• Deerfield Village
• None observed
• Wildlife Refuge
• CVSP Lodge
• CVSP Golf Clubhouse
• Unknown
• Canaan Village
• North Point/North Lake
• Timberline

8
WWTF Assessment
9
WWTF Deficiencies
10
Treatment Alternatives

• Recirculating Media Filter (RMF)
• Recirculating Sand Filter using Black Beauty or
  other locally available filter media
• RMF using high-rate synthetic filter media
• Membrane bioreactor

11
RSF System - Fayette County, WV
12
RMF (Orenco AdvantexTM System) - Malibu, CA
13
WWTF Permitted Flows
14
Beaver Ridge Water Use
15
Deerfield Water Use
16
Windwood Water Use
17
Draft Capital Costs
18
Draft OM Costs
19
Draft Life Cycle Costs
20
Wastewater Management Scenarios

• Base Scenario upgrade/ replace existing WWTFs
• Develop others based on following criteria
• Permitted flow
• Existing flow
• Distance to nearby WWTFs
• Topography
• Acceptance to consolidation
• Ease of implementation

21
What is necessary to adopt Preferred Plan?

• Association agreements to be part of PSD
• Existing PSD adoption of Facilities Plan or
• New PSD formation adoption of Facilities Plan

22
What is necessary to Secure EPA Grant?

• Grant Application to and acceptance by EPA with
  all technical reports legal agreements time
  is of the essence to secure funds

23
Questions / Answers
