Title: PacketLight%20Optical%20solutions


1

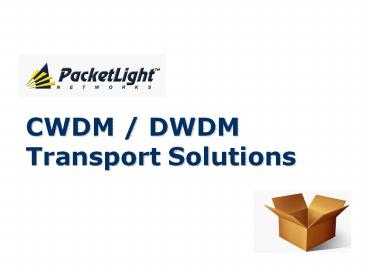

CWDM / DWDM Transport Solutions
2
RAD Data Communication group
3
PacketLight Product Line
PacketLight Product Line
Network Type SONET/ SDH C/DWDM Dark Fiber IP
Market Segment Carriers Carriers Enterprise Enterprises Carriers
PL-10 PL-20 PL-100
PL-400 PL-1000 PL-300
PL-200
4
C/DWDM Dark Fiber Family
PL-400 8 Multi Protocol Services, 2Mbps up to
4Gbps
PL-1000 4 Multi Protocol Services of 10Gbps
PL-300 Multi Purpose Passive Solution
5
C/DWDM Dark Fiber Solution
  • The best 1U 8-Channel DWDM or CWDM solution
  • Flexible Interfaces Supports
  • FC/FICON100/200/400, ESCON
  • GbE / iSCSI, 100/1000 BaseT
  • STM1/4/16, OC3/12/48, OTN 2.667G
  • DVB-ASI, HD-SDI, SD-SDI
  • Dual AC/DC Pluggable Power Supply
  • Protocol level Performance Monitoring (FC, GbE)

6
C/DWDM Dark Fiber Solution
  • The best 1U 8-Channel DWDM or CWDM solution
  • Dual Optical Embedded Management Channels (OSC)
  • Optical Protection and Redundancy capabilities
  • Integrated Passive Optics and Optical Amplifier
  • Pay as you grow architecture (Pluggable SFPs and
    PS)
  • Support Multi-Chassis growth to 32 Wavelengths
  • Web based, easy to operate management tool and
    SNMP

7
Wrapping Optical Solutions in 1U Box
8
PL-1000 - 10G Solution
  • 4 channels up to 120Km 10G DWDM 1U CPE solution
  • Flexible Interfaces Supports
  • 10G Eth WAN/LAN
  • STM64/OC192, OTN 10.7G
  • 10G FC
  • Optional Protocol level Performance Monitoring
    for STM-64 and 10G Eth
  • Two embedded OSC for Management
  • Facility protection redundancy capabilities
  • Integrated passive optics, optical amplifier
    (EDFA)
  • Pay as you grow architecture (Pluggable XFPs and
    PS)
  • Support Multi-Chassis growth and integrated
    solution together with PL-4xx family

9
PL-300 Passive Optics BOX
  • 1U passive solution, no power supply
  • Supporting up to 32 DWDM channels according to
    ITU grid (channels 20-51)
  • Supported configuration
  • 32WL Mux/Demux, and single OSC
  • Single set of 16WL Mux/Demux, and single OSC
  • Two sets of 16WL Mux/Demux, and single OSC
  • Two sets of 16WL Mux/Demux and two OSC for 16
    Services over single fiber
  • End to end insertion loss (Mux DeMux) 6dB
  • Total Optical Budget for Point-2-Point is
  • For rates up to 2.7G 22dB
  • For 4G rate 18dB

10
  • Examples

11
CWDM-Belgrade Stock Exchange
  • The PL-400 Solution Offers
  • High Bandwidth
  • Multi Service multiplexer
  • Transparent Interoperability

HP System Storage 4G FC SAN Switch
HP System Storage 4G FC SAN Switch
StorageZone
StorageZone
2x 4G FC
2x 4G FC
PL-400
PL-400
CWDM 25Km
3x GBE
3x GBE
GbESwitch
GbESwitch
  • PL-400 chosen due to
  • High Capability ( up to 32Gb) per unit
  • High Performance (MTBF 19.2 Years)
  • Easy to configure and support
  • Low cost solution

12
SDH- Vodafone Romania
  • The PL-20 Solution Offers
  • Internal backup between offices
  • Protect data base against earthquake
  • STM-64 SDH ring

HP System Storage 4G FC SAN Switch
HP System Storage 4G FC SAN Switch
170km
StorageZone
StorageZone
PL-20
PL-20
SDH
  • The PL-20 chosen due to
  • Fast implementation
  • Immediate ROI low-cost maintenance and support
  • Covering the distance at full throughput
  • Best price performance ratio

13
FCIP-Northgate Installation
  • The PL-200 Solution Offers
  • High Bandwidth
  • True Redundancy
  • Load Balancing

PL-200
PL-200
Brocade FC Switch
Brocade FC Switch
Redundant IP Links
StorageZone
StorageZone
GbESwitch
GbESwitch
  • PL-200 chosen due to
  • High Capability (370Mb throughput) per unit
  • High Performance (MTBF 23 Years)
  • Easy to configure and support
  • Budget
  • Scalable Solution Max throughput of 740Mb

14
PacketLight Certifications
Storage vendor Products Certification name
IBM DS4000, DS6000, DS8000, SVC SSP System Storage Proven
Brocade Brocade Fabrics Brocade Data Center Ready
Qlogic Qlogic Fabrics SAN Interoperability - Network
McData McData Fabrics OPENReady
SUN Microsystems Storage Subsystems Sparc and X86/x64 SUN Solaris Ready
PacketLight has also certification with McData
which is now Brocade and is under Brocade web site
15
Selected Customers
  • Alcatel-Lucent Thailand
  • Telecomputing Norway
  • IBM Israel
  • NÆT AS Norway
  • Global Connect Denmark
  • NEC Japan Thailand
  • Fujitsu Japan
  • US Army USA
  • Agarik France
  • Vodafone Romania
  • HP UK
  • BELEX Serbia
  • BT Australia, Sweden

16
Good Things Come in Small Packages
17
Thank you!
