Title: FPGA Controlled Amplifier Module May 06-14


1

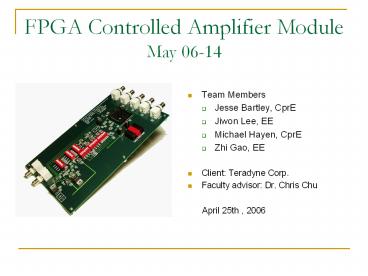

FPGA Controlled Amplifier ModuleMay 06-14
  • Team Members
  • Jesse Bartley, CprE
  • Jiwon Lee, EE
  • Michael Hayen, CprE
  • Zhi Gao, EE
  • Client Teradyne Corp.
  • Faculty advisor Dr. Chris Chu
  • April 25th , 2006

2
Presentation Outline
  • Introductory Materials
  • Project Activity Description
  • Design Overview
  • Implementation
  • Testing
  • Resources and Schedules
  • Closing Materials

May 06-14
3
List of Terms and Definitions
  • Bill of Materials List of Components and their
    cost
  • DAC Conversion of a digital signal to an analog
    sampled signal
  • DC-offset given signal source does not have the
    correct 0-crossing but shifted down or up.
  • FPGA Field programmable gate arrays, allows us
    to control some the circuits automatically
  • Gain The ratio of the output amplitude to the
    input amplitude
  • HDL Hardware Description Language
  • Noise Undesired interference in signals
  • Spectrum Analyzer A computer-based tool that
    analyzes signals in the frequency domain
  • THD Total harmonic distortion, the ratio
    between the powers of all harmonic frequencies
    above the fundamental frequency

May 06-14
4
Acknowledgement
  • Teradyne Corporation
  • Jacob Mertz
  • Ramon De La Cruz
  • Steven Miller
  • Additional Help
  • Jason Boyd
  • Dr. Robert Weber

May 06-14
5
Problem Statement Approach
  • Problem statement
  • To build and test the FPGA controlled Amplifier
    for PC based Spectrum Analyzer developed by
    previous team
  • Approach
  • Understand existing design
  • Board assembly and bring-up
  • Make detailed test plan
  • Perform and document tests

May 06-14
6
Users, Uses Operating Environment
  • Primary users
  • Engineers at the Teradyne Corporation
  • Product function
  • As a pre-amplifier for the signal input to a PC
    based spectrum analyzer device.
  • PC based spectrum analyzer was designed by
    previous phase
  • Climate-controlled laboratory (low humidity)
  • ESD (Electro Static Discharge)

May 06-14
7
Assumptions and Limitations
  • Assumptions
  • The end product will not be sold to other
    companies.
  • The design provided by the previous team is
    valid.
  • Necessary equipment will be available.
  • Limitations
  • Equipment must be available on campus
  • The design must meet specifications

May 06-14
8
Previous Accomplishments
  • General Design
  • Untested FPGA code
  • Design Schematic
  • Bill of Materials
  • Partial assembly of board

May 06-14
9
Present Accomplishments
  • Ordered parts and assembled board
  • Researched and verified design
  • Re-vamped FPGA code
  • Made detailed test plans
  • Developed automated tests
  • Identified and resolved board errors

May 06-14
10
End Product Other Deliverables
  • An assembled board
  • Updated design
  • Completed test plans
  • Automated LabVIEW tests
  • Documentation of all activities

May 06-14
11
Approaches Considered and one used
  • Approaches considered
  • Manual testing and calculation
  • LabVIEW automated testing and Excel calculation
  • Choice LabVIEW automated testing
  • Repeatability
  • Self documentation
  • Speed/efficiency
  • Extra research required

May 06-14
12
Project Definition Activities
  • Goals of this project
  • Research verify the previous design
  • Meet the specifications
  • Board Assembly
  • Make a detailed test plan
  • Testing
  • Document all processes

May 06-14
13
Research Activities
  • Study previous teams design
  • Pspice simulation
  • Test methodologies
  • Noise
  • THD
  • LabVIEW

May 06-14
14
Design Activities
  • Verification of design
  • DC Offset Correction
  • Operational Amplifier
  • Tests design
  • DC Offset Correction verification tests
  • Amplifier performance tests

May 06-14
15
Circuit Overview
May 06-14
16
Implementation Activities
  • Errors on the PCB were fixed
  • New Pspice Simulation was developed
  • Trouble shoot for unexpected oscillation
  • Specifications were adjusted
  • Test strategy was developed according to Client
    suggestions

May 06-14
17
PCB Board Adjustments
  • New parts purchased and soldered
  • Pins of voltage regulators switched
  • Pins of op-amps switched
  • Fixed incorrect supply voltage
  • FPGA code fixed

May 06-14
18
Unexpected Oscillation
  • Frequency 32 60MHz
  • Amplitude 5-10Vpp
  • Potential causes
  • External Noise
  • Error in assembly
  • Parasitic capacitances
  • Unstable amplifier design

May 06-14
19
Unexpected Oscillation
May 06-14
20
Cause of Oscillations
  • External Noise
  • Twisted wires at inputs
  • Tested in alternate location/alternate equipment
  • Error in assembly
  • Corrected error with voltage regulators in layout
  • All essential parts replaced
  • Parasitic capacitances
  • PSPICE models also showed oscillations (without
    capacitors)
  • Other debugging
  • DC offset correction adjusted
  • Comparator circuit disconnected
  • Both current feedback and voltage feedback amps
  • Conclusion - Unstable amplifier design

May 06-14
21
Pspice Simulation
  • Developed in Orcad Student 9.1
  • Purposes
  • Help determine new specifications
  • Help find new resistor values
  • Help troubleshooting

May 06-14
22
PSPICE Model
May 06-14
23
PSPICE Simulation
  • New resistors
  • Maximize the bandwidth
  • Achieve best response flatness

R1 R2 R3 R4
6dB 100 100 221 221
20dB 221 2k 158 4.99k
40dB 10 1k 10k 4.99k
60dB 10 10k 7.15k 20k
May 06-14
24
Changed Specification
May 06-14
25
Testing
  • Goal verify compliance with specifications
  • Important considerations
  • Documentation
  • Usability
  • Repeatability
  • Automated Testing
  • LabVIEW
  • Data stored in Excel

May 06-14
26
Testing (Cont.)
  • Tests
  • DC gain test
  • Gain flatness and bandwidth test
  • Total harmonic distortion test
  • Circuit noise test
  • VHDL code behavior test
  • DAC control test
  • Offset calibration test
  • Offset correction verification test

Amplifier Tests

DC Offset Tests
May 06-14
27
Amplifier Tests
  • DC Gain Test
  • Pure measure of DC gain
  • No AC effects
  • Gain Flatness and Bandwidth Test
  • AC input across 0-100MHz range
  • Verify flatness is within specification
  • Ensures consistent gain
  • Total Harmonic Distortion
  • THD Distortion at multiples of input frequency
  • Performed with spectrum analyzer
  • Noise Test
  • Ambient noise created by op-amps
  • Also measured by spectrum analyzer

May 06-14
28
DC Offset Tests
  • VHDL Behavior Test
  • Tests just behavior of algorithm
  • Simulated on PC in ModelSim
  • DAC Control Test
  • Custom FPGA code
  • Ensures DAC produces correct offsets
  • Performed in circuit
  • Offset Calibration
  • Artificially inject range of offsets
  • Calibrate for each, verify correction
  • Offset Correction Verification Test
  • Ensure calibration holds when AC signal is
    applied
  • Final assurance individual systems work well
    together

May 06-14
29
LabVIEW Code
30
(No Transcript)
31
(No Transcript)
32
(No Transcript)
33
Personnel Effort Requirements
Task 1 Problem definition Task 2 Research
previous phases to understand the designs project
Task 3 Identify errors and documentation Task
4 Test plan design Task 5 Assemble board and
bring up Task 6 LabVIEW development and
Testing Task 7 Final report and presentation
Personnel Name Task 1 (hours) Task 2 (hours) Task 3 (hours) Task 4 (hours) Task 5 (hours) Task 6 (hours) Task 7 (hours) Totals (hours)
Jesse Bartley 20 20 30 35 32 35 17 189
Jiwon Lee 17 16 25 45 15 38 18 174
Michael Hayen 18 18 20 20 27 13 21 137
Zhi Gao 25 28 22 26 36 25 16 178
Totals (hours) 80 82 97 126 110 111 72 678
May 06-14
34
Financial Requirement
Item Without Labor With Labor(11.00/hour)
Components 72.32 72.32
Project Poster 30 30
Project Plan 0 0
Labor at 11.00/hour
Jesse Bartley 0 2,079
Jiwon Lee 0 1,914
Michael Hayen 0 1,507
Zhi Gao 0 1,958
Total Cost 102.32 7,560.32
May 06-14
35
Project Evaluation
Number Milestone Importance Progress
1 Understand previous project High Met
2 FPGA code High Met
3 Assemble board High Met
4 Test plan development High Met
5 Document all progress High Met
6 Identify problems High Met
7 Tests Medium Partially Met
May 06-14
36
Project Schedules
May 06-14
37
Project Archive Folder
May 06-14
38
Additional Work
  • Recommended work
  • Correct design to eliminate oscillations
  • Re-build prototype board accordingly
  • Verify specifications with LabVIEW tests
  • FPGA control of gain
  • Frequency response calibration
  • Future integration with Spectrum Analyzer
  • Once above recommendations are met

May 06-14
39
Commercialization
  • Recommended additional work required
  • Packaged with PC based spectrum analyzer
  • Price to be determined
  • Potential Market
  • Small technology companies

May 06-14
40
Lessons Learned
  • Experience gained
  • Documentation methods
  • Team Work
  • Working with an outside client
  • Following schedules
  • Test procedures
  • Test implementation
  • LabVIEW development

May 06-14
41
Risk and Management
  • Unexpected test results
  • Conduct proper trouble shooting
  • Loss of a team member (Did not encounter)
  • Work cooperatively
  • Good communication
  • Keep updating all processes on the website
  • Hardware Damage
  • Quick replacement and backup board
  • Design Problem
  • Identify the problem and suggest for the next
    phase
  • Specifications not practical
  • Define new specifications (with client input)

May 06-14
42
Closing Summary
  • Teams Accomplishments
  • Assembled the prototype
  • Developed FPGA code
  • Developed Test plans and LabVIEW programs
  • Documented and organized work
  • Debugged the product and identified problems
  • Project will make contribution
  • Teradyne
  • PC-Based Spectrum Analyzer Product
  • The team received the following benefits
  • Technical knowledge
  • Team work
  • Real industry project
  • Overall, project benefits both the client and the
    team

May 06-14
43
Questions?
