Company

1

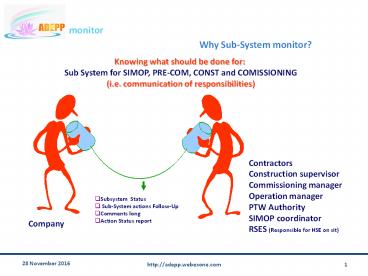

Why Sub-System monitor?

• Knowing what should be done for
• Sub System for SIMOP, PRE-COM, CONST and
  COMISSIONING
• (i.e. communication of responsibilities)

Contractors Construction supervisor
Commissioning manager Operation manager PTW
Authority SIMOP coordinator RSES (Responsible for
HSE on sit)

• Subsystem Status
• Sub-System actions Follow-Up
• Comments long
• Action Status report

Company
2
What is Sub-System monitor?
Location A

• PTW monitor is a secure online monitoring system
  which
• UTILISES
• PID, SLD, Layout and by Company, vendors,
  Contractors, and Third party to
• Generate list of Sub-systems
• Generate related Sub-system activities
• Generate Sub-System related tasks
• Help the Follow-UP
• Print the updated Sub-System comments report at
  any time
• Sub-System) monior uses the friendly interfaces
  with expert support for traceability and audit
  purpose by Company, Contractors, Contractors and
  Verification Party
• Sub-System data and documents can be exported
  easily to Company, consultant or Contractors
  Intranet via Access datasbase

Location C
Location B
Location D
3
ADEPP monitor ( Login)
Login Name demo Password adepp2009
4
Sub-System monitor
Click on New Enter Sub-System Save
Click on View
5
Sub-System monitor
Insert Your name, your title, Sub-System,
etc. Save
6
Sub-System monitor
Click on Send a Link
7
Sub-System monitor
Send the link to SIMOP Group , Commissioning Etc.
8
Sub-System monitor
To give your comments Click on Search Icon
9
Sub-System monitor
To give your comments Click on COPY
10
Sub-System monitor
Insert your name, your comments Save
11
Sub-System monitor
Click on View Click on PTW comments
12
Sub-System monitor
Click on Print Or Export to Excel, etc
13
Sub-System monitor
Click on Activity-Tasks For Validation
14
Sub-System monitor
Click on Activity-Task Icon
15
Sub-System monitor
Click on 1day week Reminder will be give by
Email
Click on Validation to Edit Assign the task to
other person
16
Sub-System monitor
Click on Edit
17
Sub-System monitor
Assign Task to others
18
Sub-System monitor
Click on Follow-Up Then click on Export Note
The follow-up status will be exported as excel
file
19
Terms of Us of ADEPP monitor.

• ADEPP monitor will be built based on requirement
  of project.
• HSE Manger or his representative can Edit the
  HSE actions register
• Others have access to Read Add ( Project to
  advise)
• Projects can use ADEPP monitors if they sign the
  Terms of Us of ADEPP monitor.
• All SIMOP register can be exported to company
  intranet at any time. ( It is recommended to
  transfer data weekly to company intranet)
• ADEPP monitor uses the secure web server to
  allow project team members to view, add, modify
  and delete only the specific information they
  need.
• Secure Sockets Layer (SSL), is an extra level of
  security for ADEPP monitor. It requires the
  project team remember to log on through a secure
  server, which prevents hackers from accessing
  their information. SSL uses technology known as
  encryption. This is software that scrambles the
  data with secret code.
• Company, Contractors, Sub-contractors, Vendors
  are required to log in to the site with SSL
  encryption enabled, so the project can share very
  sensitive, confidential data through ADEPP
  monitor site.

20
Thank your for your kind attention! Fabienne. F.
SALIMI Director ADEPP Ltd. ( UK) www.adepp.webexon
e.com
