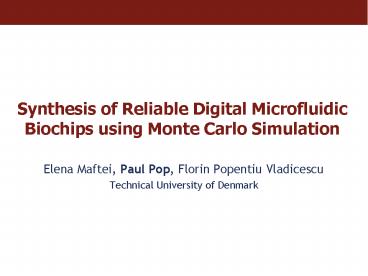

Title: Synthesis of Reliable Digital Microfluidic Biochips using Monte Carlo Simulation


1
Synthesis of Reliable Digital Microfluidic
Biochips using Monte Carlo Simulation
  • Elena Maftei, Paul Pop, Florin Popentiu
    Vladicescu
  • Technical University of Denmark

2
Background Motivation
Test tubes
Robotics
Microfluidics
Slide soruce Krish Chakrabarty, Duke University
3
Microfluidics
Droplet-based biochips
Continuous-flow biochips
(Duke University) 2002
(University of Michigan) 1998
Slide soruce Krish Chakrabarty, Duke University
4
Biochip Architecture
5
Electrowetting on Dielectric
6
Synthesis Main Design Tasks

Binding
Allocation
Scheduling
Placement
7
Fault Model
  • Types of faults
  • Permanent
  • Parametric
  • Causes
  • Particle contamination
  • Excessive voltage
  • Coating failure
  • Assumption
  • Same probability for all cells

8
Fault Tolerance
9
Design Automation
  • ILP-based syntehsis
  • Constraints
  • Scheduling and precedence
  • Resource
  • Placement
  • Optimization objective
  • Minimize the completion time of the application
  • Evaluation of a design alternative using MCS
  • Generate a set of faulty cells
  • Try to reconfigure the biochip such that the
    execution time remains the same as for the case
    with no faults
  • Reconfiguration done using ILP-based synthesis

10
Experimental Evaluation
  • Real-life application
  • Mixing stage of polymerase chain reaction (PCR)?
  • Assay completion time 13 s
  • Experimental setup
  • ILP GAMS 21.5, CPLEX 9.130
  • SunFire v440 4, UltraSPARC IIIi CPUs, 1,062 MHz
    and 8 GB RAM
  • MCS 5,000 runs with a cell failure probability
    of 0.999

11
Contributions and Message
  • Contributions
  • ILP-based synthesis of digital microfluidic
    biochips
  • Considered permanent cell faults
  • Message
  • Labs-on-a-chip can be implemented with digital
    microfluidics
  • CAD tools are essential for the design of such
    biochips
