Title: Chapter 13 Renewable Energy and Conservation


1

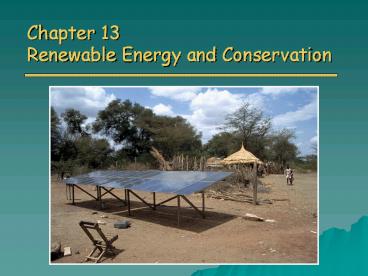

Chapter 13Renewable Energy and Conservation
2
Overview of Chapter 13
  • Direct Solar Energy
  • Heating Buildings and Water
  • Solar Thermal Electric Generation
  • Photovoltaic Solar Cells
  • Indirect Solar Energy
  • Biomass Energy
  • Wind Energy
  • Hydropower
  • Other Renewable Energy Sources
  • Geothermal Energy
  • Tidal Energy
  • High and Low Technology Energy Solution
  • Hydrogen and Fuel Cells
  • Energy Efficiency

3
Net Energy Yield
  • Net Energy Yield the total useful energy
    derived from a resource minus the energy required
    to obtain the resource and make it available.
  • Low Nuclear Energy
  • High passive solar

4
Cogeneration
  • Production of two useful forms of energy from the
    same fuel

5
Electrical Grids
  • Electrical plants are attached to a grid
    connected to each other and to their customers.
  • Peak demand time of day when electricity is
    most needed (dinner time)
  • Brownout power not sufficient to meet demand,
    grid does not completely fail
  • Blackout malfunction in power plant/grid

6
August 14 2003 Blackout
  • Affected several cities in the North East,
    including ours.
  • High demand, high temperatures, and faulty
    powerlines were to blame.

7
(No Transcript)
8
(No Transcript)
9
Going off the grid
  • Benefits.
  • Cons.

10
Increasing Efficiency
  • Cogeneration
  • Simultaneous production of both electricity and
    steam in the same plant.
  • Take waste heat from one process and use it in
    another process

11
Increasing Efficiency
  • Energy efficient appliances are more costly, but
    over the lifetime of appliance save money.

12
(No Transcript)
13
Increasing Efficiency
  • Regular lightbulbs much less efficient than
    compact fluorescent bulbs
  • Negative mercury

14
Increasing Efficiency
  • Make automobiles more efficient
  • US Car companies complain about cost efficiency
  • US standards are far below those of other
    developed countries
  • Personal options
  • Drive more efficiently
  • Keep car in shape
  • Plan/combine trips
  • Buy efficient car

15
Hybrids
16
Hybrids
17
Hybrids
  • Internal combustion engine and a rechargeable
    battery
  • Battery charged by regenerative breaking or by
    plugging in
  • Smart meter system allow for recharge during off
    peak hours
  • Energy source should come from renewable
    source, otherwise its just a shift in point
    source pollution

18
  • http//videos.howstuffworks.com/science-channel/50
    67-invention-nation-super-hybrid-video.htm

19
Direct Solar Energy
  • Varies with latitude, season, time of day, and
    cloud cover

20
Heating Buildings and Water
  • Passive solar energy
  • system of putting the suns energy to use without
    requiring mechanical devices to distribute the
    collected heat
  • Certain design features can enhance passive solar
    energys heating potential
  • South facing windows (in N. hemisphere)
  • Well insulated buildings
  • Attic vents
  • Overhangs and solar sunspaces

21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
Window placement
25
Tree Placement
26
(No Transcript)
27
(No Transcript)
28
Solar Cooker
29
Solar sunspace
  • Utilizes passive solar energy to heat and cool
    homes
  • Can be added to existing homes

30
Heating Buildings and Water
  • Active Solar Energy
  • System of collecting and absorbing the suns
    energy, and using pumps or fans distribute the
    collected heat
  • Most common
  • Series of collection devices on roofs or in
    fields
  • Typically a black panel or plate
  • Used to heat water

31
(No Transcript)
32
Heating Buildings and Water
  • Solar Thermal Electric Generation
  • Means of producing electricity in which the suns
    energy is concentrated by mirrors or lenses to
    either heat a fluid filled pipe or drive a
    Stirling engine
  • More efficient than other solar technologies
  • Benefits
  • No air pollution
  • No contribution to global warming or acid
    precipitation

33
Solar Thermal Electric Generation
34
Photovoltaic Solar Cells
  • Thin cells are treated with certain metals so
    that they generate electricity when they absorb
    solar energy
  • Convert sunlight directly into energy
  • No pollution and minimal maintenance
  • Used on any scale
  • Lighted road signs
  • Entire buildings

35
Photovoltaic Solar Cells
  • Can be incorporated into building materials
  • Roofing shingles
  • Tile
  • Window glass

36
Cost of Electrical Power Plants
37
Indirect Solar Energy
  • Biomass
  • Plant materials used as fuel
  • Ex wood, crop wastes, sawdust, and animal wastes
  • Contains energy from sun via photosynthesizing
    plants
  • Renewable when used no faster than it can be
    produced
  • Can convert to biogas or liquids
  • Ethanol and methanol

38
Advantages and Disadvantages of Biomass
  • Advantages
  • Reduces dependence on fossil fuels
  • Often uses waste materials
  • If trees are planted at same rate biomass is
    combusted, no net increase in atmospheric CO2
  • Disadvantages
  • Requires land, water and energy
  • Can lead to
  • Deforestation
  • Desertification
  • Soil erosion

39
Indirect Solar Energy
  • Wind Energy
  • Electric or mechanical energy obtained from
    surface air currents caused by solar warming of
    air
  • Worlds fastest growing source of energy
  • Wind results from sun warming the atmosphere
  • Varies in direction and magnitude
  • New wind turbines harness wind efficiently

40
Wind Energy
  • Most profitable in rural areas with constant wind
  • Few environmental problems
  • Kills birds and bats
  • No waste- clean source of energy
  • Biggest constraints
  • Cost
  • Public resistance

41
Indirect Solar Energy
  • Hydropower
  • Form of renewable energy reliant on flowing or
    falling water to generate mechanical energy or
    electricity
  • Suns energy drive hydrologic cycle
  • Most efficient energy source (90)

42
Hydropower
  • Generates 19 of worlds energy
  • Traditional hydropower
  • Only suited for large dams
  • New technology
  • May be able to utilize low flow waterways
  • Problems with Dams
  • Changes natural flow of rivers
  • Disrupts migratory fish patterns
  • Potential dam breaks

43
Other Indirect Solar Energy
  • Ocean waves
  • Produced by winds
  • Has potential to turn a turbine- and create
    electricity
  • Ocean Temperature Gradients
  • Use difference in temperature of surface and deep
    water to create electricity

44
Other Renewable Energy Sources
  • Geothermal Energy
  • Energy from the Earths interior for either space
    heating or generation of electricity
  • From Hydrothermal Reservoirs (left)
  • Created by volcanoes
  • Reservoirs used directly for heat or to generate
    electricity

45
Geothermal Energy
  • From hot, dry rock
  • Geothermal heat pumps
  • Use difference in temperature between surface and
    subsurface
  • Great for heating buildings
  • Expensive installation

46
  • http//www.eia.doe.gov/kids/energy.cfm?pagegeothe
    rmal_home-basics

47
Other Renewable Energy Sources
  • Tidal Energy
  • Form of renewable energy that relies of the ebb
    and flow of the tides to generate electricity
  • Typical difference between high and low tide is
    1-2 ft
  • Narrow bays may have greater variation
  • Energy can be captured with
  • A dam across the bay
  • A turbine similar to a wind turbine

48
Hydrogen as a Fuel Source
  • Advantages to Hydrogen as a fuel source
  • Very high energy density
  • Can be produced from any electrical source
  • Electrolysis (see illustration on next slide)
  • No greenhouse gases and few other pollutants
  • Can be use in vehicles
  • Disadvantages to Hydrogen as a fuel source
  • Highly volatile (requires special storage)
  • Relatively inefficient

49
Hydrogen as a Fuel Source-Electrolysis
50
Hydrogen Fuel Cell
  • Fuel cell
  • Device that directly converts chemical energy
    into electricity
  • Requires hydrogen from a tank and oxygen from the
    air
  • Similar to a battery, only the reactants are
    supplied from outside source

51
Future Applications of Fuel Cells
  • Vehicles
  • Not yet commonly available
  • Hydrogen is not yet readily available as a fuel
    source
  • Batteries in cells phones or laptops

52
Energy Consumption Trends and Economics
53
Energy Efficient Technologies
  • Compact Fluorescent light bulbs
  • Condensing furnaces
  • Super-insulated buildings (right)
  • Energy efficient appliances
  • Automobiles
  • Aircraft technology

54
Energy Savings in Commercial Buildings
55
Saving Energy at Home
56
(No Transcript)
