Title: NIST FPD Lab Test Patterns for Laboratory Testing

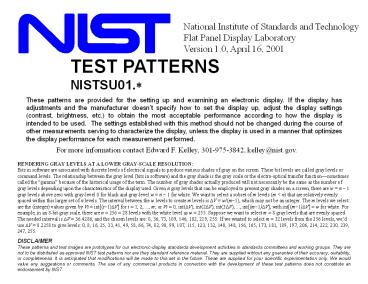

1
National Institute of Standards and
Technology Flat Panel Display Laboratory Version
1.0, April 16, 2001
TEST PATTERNS NISTSU01.
These patterns are provided for the setting up
and examining an electronic display. If the
display has adjustments and the manufacturer
doesnt specify how to set the display up, adjust
the display settings (contrast, brightness,
etc.) to obtain the most acceptable performance
according to how the display is intended to be
used. The settings established with this method
should not be changed during the course of other
measurements serving to characterize the display,
unless the display is used in a manner that
optimizes the display performance for each
measurement performed.
For more information contact Edward F. Kelley,
301-975-3842, kelley_at_nist.gov.
RENDERING GRAY LEVELS AT A LOWER GRAY-SCALE
RESOLUTION Bits in software are associated with
discrete levels of electrical signals to produce
various shades of gray on the screen. These bit
levels are called gray levels or command levels.
The relationship between the gray level (bits in
software) and the gray shade is the gray scale or
the electro-optical transfer functionsometimes
called the gamma because of the historical
usage of the term. The number of gray shades
actually produced will not necessarily be the
same as the number of gray levels depending upon
the characteristics of the display used. Given n
gray levels that can be employed to present gray
shades on a screen, there are w  n - 1 gray
levels above zero with gray-level 0 for black and
gray-level w  n - 1 for white. We want to select
a subset of m levels (m lt n) that are relatively
evenly spaced within this larger set of n levels.
The interval between the w levels to create m
levels is DV  w/(m-1), which may not be an
integer. The m levels we select are the (integer)
values given by Vi  int(i-1)DV for
i  1, 2, ..., m or Vi  0, int(DV), int(2DV),
int(3DV), ..., int(m-1)DV, with
int(m-1)DV  w for white. For example, in an
8-bit gray scale, there are n  256  28 levels
with the white level as w  255. Suppose we want
to select m  8 gray levels that are evenly
spaced. The needed interval is DV  36.4286, and
the chosen levels are 0, 36, 73, 109, 146, 182,
219, 255. If we wanted to select m  32 levels
from the 256 levels, wed use DV  8.2258 to give
levels 0, 8, 16, 25, 33, 41, 49, 58, 66, 74, 82,
90, 99, 107, 115, 123, 132, 140, 148, 156, 165,
173, 181, 189, 197, 206, 214, 222, 230, 239, 247,
255.
DISCLAIMER These patterns and test images are
prototypes for our electronic-display standards
development activities in standards committees
and working groups. They are not to be
distributed as approved NIST test patterns nor
are they standard reference material. They are
supplied without any guarantee of their accuracy,
suitability, or completeness. It is anticipated
that modifications will be made to this set in
the future. These are supplied for your
scientific experimentation only. We would value
any suggestions or comments. The use of any
commercial products in connection with the
development of these test patterns does not
constitute an endorsement by NIST.
2
Large circle diameters are 5 of diagonal.
Small circle diameters are 3 of diagonal.
3
(No Transcript)
4
(No Transcript)
5
(No Transcript)
6
32 Gray Levels
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
TEXT SAMPLES
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps. 0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
13
TEXT SAMPLES
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps. 0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
The quick brown fox jumps over the lazy dog.
0123456789
14
(No Transcript)
15
(No Transcript)
16
50 Gray (127/255)
17
Dark Gray (66/255)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
(No Transcript)
24
7 (255/255)
25
6 (219/255)
26
5 (182/255)
27
4 (146/255)
28
3 (109/255)
29
2 (73/255)
30
1 (36/255)
31
0 (0/255)
32
(No Transcript)
33
(No Transcript)
34
Large circle diameters are 5 of diagonal.
Small circle diameters are 3 of diagonal.
35
(No Transcript)
36
(No Transcript)
37
0, 5, 10, 15 (0, 13, 25, 38) 85, 90,
95, 100 (216, 229, 242, 255)
38
0, 5, 10, 15 (0, 13, 25, 38) 85, 90,
95, 100 (216, 229, 242, 255)
39
0, 5, 10, 15 (0, 13, 25, 38) 85, 90,
95, 100 (216, 229, 242, 255)
40
(No Transcript)
41
(No Transcript)
42
(No Transcript)
43
(No Transcript)
44
(No Transcript)
45
(No Transcript)
46
(No Transcript)
47
(No Transcript)
48
(No Transcript)
49
(No Transcript)
50
(No Transcript)
51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
(No Transcript)
55
(No Transcript)
56
(No Transcript)
57
(No Transcript)
58
(No Transcript)
59
(No Transcript)
60
(No Transcript)
61
(No Transcript)
62
(No Transcript)
63
(No Transcript)
64
(No Transcript)
65
(No Transcript)
66
(No Transcript)
67
(No Transcript)
68
(No Transcript)
69
(No Transcript)
70
(No Transcript)
71
(No Transcript)
72
(No Transcript)
73
(No Transcript)
74
2x2
75
2x2
76
2x2
77
2x2
78
(No Transcript)
79
(No Transcript)
80
3x3
81
3x3
82
3x3
83
3x3
84
4x4
85
4x4
86
4x4
87
4x4
88
5x5
89
5x5
90
5x5
91
5x5
92
(No Transcript)
93
6x6
94
7x7
95
7x7
96
8x8
97
12x12
98
16
99
24
100
32
101
32
102
32
103
32
104
32
105
64
106
128
107
256
108
64
109
64
110
64
64
111
(No Transcript)
112
(No Transcript)
113
(No Transcript)
114
(No Transcript)
115
(No Transcript)
116
(No Transcript)
117
(No Transcript)
118
(No Transcript)
119
(No Transcript)
120
(No Transcript)
121
(No Transcript)
122
(No Transcript)
123
(No Transcript)
124
(No Transcript)
125
(No Transcript)
126
(No Transcript)
127
(No Transcript)
128
(No Transcript)
129
(No Transcript)
130
(No Transcript)
131
(No Transcript)
132
(No Transcript)
133
(No Transcript)
134
32 Gray Levels
135
Large circle diameters are 5 of diagonal.
Small circle diameters are 3 of diagonal.
136
(No Transcript)
137
(No Transcript)
