Title: Software Testing and Quality Assurance

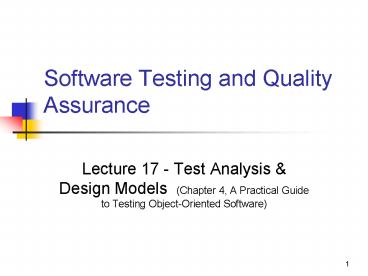

1
Software Testing and Quality Assurance
  • Lecture 17 - Test Analysis Design Models
    (Chapter 4, A Practical Guide to Testing
    Object-Oriented Software)

2
Lecture Outline
  • Evaluation Criteria Organization of the guided
    inspection activities.
  • Preparing for the guided inspection.

3
Guided inspection evaluation criteria
  • Correctness is a measure of the accuracy of the
    model
  • In analysis it is the accuracy of the problem
    description.
  • In design it is how accurately the model
    represents the solution of the problem
  • The model is correct with respect to a set of
    test cases if every test case produces the
    expected result.

4
Guided inspection evaluation criteria
  • Completeness is a measure of the inclusiveness
    of the model (are any necessary, or at least
    useful, elements missing from the model)?
  • In iterative incremental process, completeness is
    considered relative to how mature the current
    increment is expected to be.
  • Do all objects needed for the sequence diagram
    come from classes in the class diagram?
  • The model is complete if the result of executing
    the test cases can be adequately represented
    using only the content of the model.

5
Guided inspection evaluation criteria (cont...)
  • Consistency is a measure of whether there are
    contradictions within the model or between the
    current model and the model upon which it is
    based.
  • Consistency can determine whether there are
    contradictions or conflicts present either
    internal to a single diagram or between two
    diagrams.
  • The model is inconsistent if there are different
    representations within the model for similar test
    cases.

6
Guided inspection evaluation criteria (cont...)
  • Other qualities like performance goals define a
    number of system attributes that the development
    team might wish to verify.
  • The guided inspection test cases can be used as
    scenarios for testing performance.

7
Organization of the guided inspection activity
  • Basic roles
  • Domain expert the source of the expected results
  • Tester conduct the analysis necessary to select
    effective test cases.
  • Developer the creators of the models under test.
  • Individual inspections testers complete a
    checklist specific to the type of model being
    inspected.
  • This process can be automated.

8
Preparing for the guided inspection specifying
the inspection
  • Scope of an inspection is defined by specifying a
    set of use cases, a set of packages, or abstract
    classes/interfaces.
  • Depth of an inspection is defined by specifying
    layers in aggregation hierarchies under which
    messages are not sent.

9
Preparing for the guided inspection realistic
models
  • Layered approach more individual diagrams but
    each diagram is sufficiently modular to fit
    within the scope of a specific inspection

10
Preparing for the guided inspection realistic
models layered approach
11
Preparing for the guided inspection realistic
models layered approach (cont)
12
Preparing for the guided inspection selecting
test cases for the inspection
  • Test cases can be selected to ensure that
    specific types of coverage are achieved or to
    find specific type of defects.

13
Preparing for the guided inspection selecting
test cases for the inspection
  • Test case selection methods
  • Orthogonal defect classification most likely to
    identify defects by covering the different
    categories of system actions that trigger
    defects.
  • Use profiles give confidence in the reliability
    of the product by identifying which parts of the
    program are used the most,
  • Risk Analysis

14
Preparing for the guided inspection selecting
test cases for the inspection (cont...)
  • Orthogonal defect classification (ODC)
  • The activities that caused a defect to be
    detected are classified as triggers.
  • The guided inspection technique uses several of
    these triggers as a guide to select test cases.

15
Preparing for the guided inspection selecting
test cases for the inspection (cont...)
  • By structuring the guided inspection process so
    that
  • as many of these triggers as possible are
    encountered,
  • you ensure that the tests that guide the
    inspection are more likely to trigger as many
    failures as possible.

16
Preparing for the guided inspection selecting
test cases for the inspection (cont...)
  • Use profiles
  • A use profile for a system is an ordering of the
    individual test cases based on a combination of
    the frequency and criticality values for the
    individual use cases.

17
Preparing for the guided inspection selecting
test cases for the inspection (cont...)
  • Risk as a test case selector
  • Risk can be used as the basis for test case
    selection
  • It is useful during the development
  • It is not appropriate after development when we
    are trying to achieve some measure of reliability
    of the software,
  • at that time the use of profile technique is
    better because it supports the way software will
    be used.

18
Preparing for the guided inspection creating
test cases
  • Use case scenario the path taken
  • The alternative paths several scenarios that
    differ from the use scenario but represent valid
    execution
  • Exceptional paths scenarios that result in error
    conditions

19
Preparing for the guided inspection an example
of a use case
  • Use case 1
  • Actor Player
  • Use Scenario The user selects the play option
    from the menu. The system responds by starting
    the game.
  • Alternate Paths If a match is already in
    progress, the selection is ignored.
  • Exceptional Cases If the match cannot open the
    display, an error message is displayed and the
    game aborts.
  • Frequency Low
  • Criticality High
  • Risk Medium

20
Testing specific types of models
  • The level of detail in the model becomes greater
    as development proceeds.
  • The amount of information also increases as
    development proceeds.
  • The exact interpretation of the evaluation
    criteria can be made more specific for a specific
    model.
  • The membership of the inspection team changes for
    different models.

21
Key points
  • Evaluation criteria
  • Correctness
  • Completeness
  • Consistency
  • Other qualities
  • Test case selection methods
  • Orthogonal defect classification
  • Use profiles
  • Risk

22
Announcement
  • Homework 1
  • December 14, 2008 (5 PM)
  • Quiz 3
  • Wednesday November 19, 2008
