GENETIC MODIFICATIONS

1

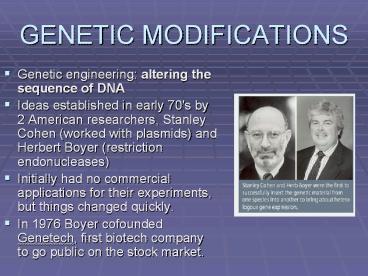

GENETIC MODIFICATIONS

• Genetic engineering altering the sequence of DNA
• Ideas established in early 70's by 2 American
  researchers, Stanley Cohen (worked with plasmids)
  and Herbert Boyer (restriction endonucleases)
• Initially had no commercial applications for
  their experiments, but things changed quickly.
• In 1976 Boyer cofounded Genetech, first biotech
  company to go public on the stock market.

2

• 1978 somatostatin became the first human hormone
  produced by this technology
• Other examples
• Insulin over 90 diabetics are reliant on human
  insulin supplied by bacteria.
• Somatropin used to treat human growth
  deficiency, from dwarfism, Turner's syndrome,
  also used for AIDS-associated wasting syndrome now

3
BIOTECHNOLOGY

• Biotechnology involves the manipulation of DNA
  and protein synthesis.
• Molecular biologists analyze and alter genes and
  their respective proteins

4
Examples

• Genetic screening scanning for genetic mutations
• Gene therapy the alteration of a genetic
  sequence in an organism to prevent or treat a
  genetic disorder by creating working proteins.
• Transgenic plants inserting genes to provide new
  proteins, giving plants new properties
• DNA fingerprinting analyzing pattern of bands
  that are unique to an individual.
• Human Genome Project...

5
Biotech Tools

• The tools the scientists use are very specific to
  DNA and its environment.
• The DNA first has to be cut out of the source
  organism
• The DNA has to be isolated
• DNA can then be introduced into host DNA

6
Recombinant DNA

• Recombinant DNA is DNA from one source organism
  being put into the DNA of a host organism.

7
1) Cutting Out DNA

• Restriction Endonucleases / Enzymes are naturally
  occurring enzymes that act like a pair of
  molecular scissors to cut DNA in a predictable
  and precise manner, at a specific nucleotide
  sequence called a recognition site.

8
Discovery

• Hamilton Smith, John Hopkins University, won the
  Nobel Prize in 1978 for discovering restriction
  enzymes in bacteria.
• He found their main purpose was to cut foreign
  DNA that tried to invade a bacterial cell (ie DNA
  from a virus).

9
Naming System

• Restriction enzymes are named according to the
  bacteria from which they originate.
• BamHI is from Bacillus amyloliquefaciens, strain
  H. The I indicates it was the first endonuclease
  isolated from that strain.

EcoRI -  from Escherichia coli BamHI - from
Bacillus amyloliquefaciens HindIII - from
Haemophilus influenzae (the one H. Smith
found)PstI -  from Providencia stuartii Sau3AI
- from Staphylococcus aureus AvaI -  from
Anabaena variabilis
10
Recognition sites

• 4 8 base pairs in length.
• Palindromic both strands have the same sequence
  when read in the 5' to 3' direction.
• Ex. HincII recognizes the following sequences
• 5'-G T C GA C-3'      5'-G T T G A C-3'      5'-G
  T C A A C-3'      5'-G T T A A C-3'
• 3'-C A G C T G-5'   3'-C A A C T G-5'      3'-C
  A G T T G-5'     3'-C A A T T G-5'

11

• The restriction enzyme EcoRI binds to
  5'-GAATTC-3' 3'-CTTAAG-5'
• EcoRI breaks the phosphodiester bond between G
  and A,
• then it pulls apart the two strands by breaking
  the H-bonds between the complementary base pairs.
• Produces what are called sticky ends (unpaired
  nucleotides at each end).

12
Sticky vs. Blunt

• Other restriction enzymes like AluI produce blunt
  ends, or ends with no overhang.
• Sticky ends are usually more helpful to molecular
  biologists as they can easily be joined with
  other DNA fragments cut by the same restriction
  enzyme.
• Blunt ends are harder to fuse to a foreign DNA
  molecule.

• p281 1-5

13

• A host must protect its own DNA from
  endonucleases.
• Methylases are enzymes that place a methyl group
  (CH3) on recognition sites
• This prevents the restriction enzyme from
  cleaving the DNA at that spot.
• Host DNA is methylated, but foreign DNA is not,
  so it can be cut by the host cell's restriction
  enzymes.

14
2)Isolating DNA Fragments

• Scientists make use of restriction endonucleases
  to cleave DNA into smaller fragments
• Gel electrophoresis is used to isolate the
  required gene segment from the rest of the DNA

15
Gel Electrophoresis

• The fragments of DNA will be run through a porous
  agarose gel using electricity.
• The fragments of DNA are pulled through pores in
  the gel due to their negative charge.
• Smaller fragments will move faster than larger
  because they can fit through the pores better.

16
http//www.stanford.edu/group/hopes/diagnsis/gente
st/f_s02gelelect.gif
17
Steps

• Solutions of fragments are placed in wells
  (depressions at one end of the gel)
• The DNA is mixed with a dye so it will be seen as
  it moves through the gel.
• Markers are usually put in the first well, These
  are pieces of DNA whose size is known. They help
  determine the length of the unknown DNA
  fragments.

18

• The gel is submerged in a buffer solution and
  connected to a power source.
• The anode will be at the top and the cathode at
  the bottom. DNA is negatively charged, it will
  move away from the anode to the cathode.
• The power source is only left on for a set amount
  of time, so the fragments dont move all to the
  end or run off the gel, you want them separated
  on the gel.

19
VIEWING THE GEL
http//www.mcps.k12.md.us/departments/intern/stp/i
mages/gel_electrophorsis.jpg
http//www.life.uiuc.edu/molbio/geldigest/fullsize
/geldraw.jpg

• The gel is stained with ethidium bromide which
  will cause the gel to fluoresce under UV light.
• The band of the DNA fragments can be seen and the
  researcher is able to compare samples from
  various sources or isolate a DNA fragment they
  want to purify.

20
3) INTRODUCING FOREIGN DNA INTO A HOST PLASMIDS
and TRANSFORMATION

• Plasmids are
• small (1000 to 200 000bp in length),
• circular DNA molecule
• independent of the bacterial chromosome.
• Plasmid DNA can be replicated using the bacterial
  cells machinery.

http//www.rpgroup.caltech.edu/courses/PBL/images_
dnascience/pZ20Plasmid.gif
21
Plasmids

• Beneficial because they often contain important
  genes such as antibiotic resistance, heavy metal
  protection.
• Plasmids are used by biologists to incorporate
  genes they want replicated or transcribed/translat
  ed in vast amounts in little time into bacterial
  cells.
• Vector vehicle used to introduce DNA into a host
  cell, ie a plasmid or virus.

22
3) INTRODUCING FOREIGN DNA INTO A HOST

• If we can cut genes out, we must be able to join
  them to foreign DNA.
• When sticky ends join together, DNA ligase
  recreates the phosphodiester bonds.
• Blunt ends cannot be joined by our own DNA
  ligase, they must be joined by ,
  an enzyme from the T4 bacteriophage (virus).

23
STEPS

• Restriction enzymes are used to cut out the gene
  from the original cell AND to open the bacterial
  plasmid.
• Once the foreign gene is isolated it can then be
  inserted into the plasmid. The plasmid is now
  considered recombinant DNA.

http//employees.csbsju.edu/hjakubowski/classes/ch
331/dna/plasmid.gif
24
TRANSFORMATION

1. The recombinant DNA is then introduced into a
   bacterial cell. Sometimes a host cell must be
   manipulated to take up the foreign DNA plasmid.

25

• Transformation introduction of foreign DNA
  (usually by plasmid or virus) into a bacterial
  cell.
• Host cell cell that has taken up foreign plasmid
  or virus and whose cellular machinery is being
  used to express the foreign DNA.
• Competent cell cell that readily takes up
  foreign DNA.

26
4) Selection and Cloning

• Cells that have been successfully transformed
  must be isolated (usually by antibiotic
  resistance)
• The vectors used for cloning usually carry an
  antibiotic-resistance gene. Growth of colonies
  on media containing the antibiotic indicates
  successful transformation.

27
Cloning

• Colonies are isolated from media and grown in
  culture to produce multiple copies (clones) of
  the recombinant DNA
• When the bacteria replicates the recombinant DNA
  plasmid, the new gene product will be formed
  multiple times (ie. the gene is cloned).

28
PCR another means of copying DNA in large
numbers

• stands for Polymerase Chain Reaction,
• developed in the late 1980's by Kary Mullis
  awarded Nobel Prize in Chemistry in 1992.
• Does not require a plasmid. The fragment is
  copied directly.
• Useful for forensic criminal investigations,
  medical diagnosis, genetic research. Only small
  amounts of DNA are needed.

29
PCR Process

• PCR is amplification of a DNA sequence by
  repeated cycles of strand separation and
  replication in the laboratory (DNA photocopying).
• After about 30 cycles more than 1 billion copies
  of the targeted area will exist (230).

http//users.ugent.be/avierstr/principles/pcrcopi
30
Steps of PCR

• Strands are separated using heat
• DNA primers, synthesized in the lab, are created
  to complement the start of the target area to be
  copied.
• Temp is decreased and the primers anneal
• Taq polymerase (from bacteria) creates new
  strands of target area
• Sequence is repeated over and over on each of the
  new strands built

31
Restriction Fragment Length Polymorphism (RFLP)

• Entire genome is subjected to restriction enzyme
  digestion
• DNA run on an agarose gel, using gel
  electrophoresis
• Single stranded DNA transferred to a membrane

http//homepage.smc.edu/HGP/images/rflp.gif
32
RFLP

• ssDNA hybridized with radioactive probes for
  specific regions (such as alleles or areas known
  as variable number tandem repeats, that lead to a
  specific disease).
• An X-ray film is developed, called an
  autoradiogram, and the pattern can then be used
  to identify a suspect, or detect a genetic
  mutation.

33
SEQUENCING DNA

• Sanger dideoxy method uses DNA replication and
  dideoxy nucleotides to determine the
  complementary strand.
• Developed by Frederick Sanger and colleagues at
  Cambridge University in Great Britain in 1977.
  They used it to sequence the genome of a
  bacteriophage (viral DNA) 5386 base pairs long.

34
Sanger dideoxy method

• Dideoxy nucleotides are missing the -OH group on
  carbon 3 and therefore inhibit the process of
  replication.
• Every time one is added, the process stops and
  only small sequences are created.

35

• These sequences can be run on a gel, and since
  they will run from shortest to longest, you can
  actually read the sequence by knowing which
  dideoxy nucleoside was used and therefore stopped
  replication at each point.

36
Fluorescent Detection of Oligonucleotides

• The Human Genome Project used a similar method,
  but also included fluorescence on each dideoxy
  nucleoside, so the A, G, T and C's lit up as
  different colours.

37

• A computer reads the sequence from gel
  electrophoresis.
• Thousands of sequencers worked 24 hours a day, 7
  days a week to decipher 3 billion base pairs.
