Title: Database Programming (using ADO)


1

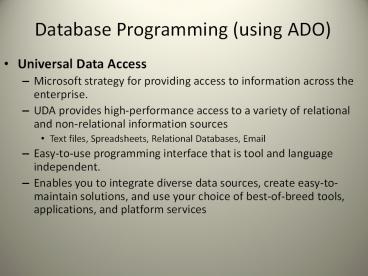

Database Programming (using ADO)
  • Universal Data Access
  • Microsoft strategy for providing access to
    information across the enterprise.
  • UDA provides high-performance access to a variety
    of relational and non-relational information
    sources
  • Text files, Spreadsheets, Relational Databases,
    Email
  • Easy-to-use programming interface that is tool
    and language independent.
  • Enables you to integrate diverse data sources,
    create easy-to-maintain solutions, and use your
    choice of best-of-breed tools, applications, and
    platform services

2
UDA
  • does not require expensive and time-consuming
    movement of data into a single data store,
  • nor does it require commitment to a single
    vendors products
  • based on open industry specifications with broad
    industry support, and works with all major
    established database platforms

3
Microsoft Data Access Components
  • the key technologies that enable UDA
  • Data-driven client/server applications deployed
    over the Web or a LAN can use these components to
    easily integrate information from a variety of
    sources, both relational (SQL) and non-relational
  • These components include ActiveX Data Objects
    (ADO), OLE DB, and Open Database Connectivity
    (ODBC)

4
ActiveX Data Objects (ADO)
  • The strategic application programming interface
    (API) to data and information.
  • ADO provides consistent, high-performance access
    to data and supports a variety of development
    needs, including the creation of front-end
    database clients and middle-tier business objects
    that use applications, tools, languages, or
    Internet browsers.
  • ADO is designed to be the one data interface
    needed for single and multi-tier client/server
    and Web-based data-driven solution development

5
ActiveX Data Objects (ADO)
  • ADO provides an easy-to-use interface to OLE DB,
    which provides the underlying access to data.
  • ADO implements a minimal number of layers between
    the front end and data sourceall to provide a
    lightweight, high-performance interface
  • ADO uses the Component Object Model (COM)
    automation interface - a language-neutral way of
    implementing objects that can be used in
    environments different from the one they were
    created in, even across machine boundaries
  • VB.NET uses XML-based SOAP messaging instead of
    COM

6
OLE DB
  • The Microsoft strategic system-level programming
    interface to data across the organisation
  • Standardized interface that allows programmers to
    use a standard set of programming tools to refer
    to data from any source
  • OLE DB is designed for relational and
    non-relational information sources, including
    mainframe and hierarchical databases e-mail and
    file system stores text, graphical, and
    geographical data custom business objects, etc.

7
OLE DB
  • OLE DB defines a collection of COM interfaces
    that encapsulate various database management
    system services.
  • These interfaces enable the creation of software
    components that implement such services.
  • OLE DB components consist of data providers,
    which contain and expose data data consumers,
    which use data and service components, which
    process and transport data (such as query
    processors and cursor engines).

8
Database Programming (using ADO)
  • ActiveX Data Objects (ADO 2.0)
  • Enables your client applications to access and
    manipulate data in a database server through
    any OLE DB provider
  • Benefits are ease of use, high speed, low memory
    overhead

9
How to Reference ADO 2.0 in Visual Basic
  • To gain access to the ADO 2.0 objects in Visual
    Basic, set a reference to the appropriate ADO
    type library
  • There are two ADO type libraries. One is called
    ADODB and is contained in MSADO15.DLL
  • It appears in the References dialog box
    (available from the Project menu) as "Microsoft
    ActiveX Data Objects 2.0 Library
  • The other is called ADOR and is contained in
    MSADOR15.DLL
  • It appears in the References dialog as "Microsoft
    ActiveX Data Objects Recordset 2.0 Library"

10
Database Programming (using ADO)
  • The first type library (ADODB) is the larger and
    more feature-rich of the two
  • It contains the main ADO objects and is the one
    used in most circumstances
  • The second is a "lightweight" subset of the ADODB
    type library that supports only recordsets

11
Database Programming (using ADO)
12
Connecting an ADO Data Control to a Database
  • Place an ADO Data Control on the form
  • Properties of the ADO Data Control that must be
    set
  • ConnectionString specifies the database file
    that the data control will communicate with
  • RecordSource specifies the table that will be
    accessed

13
Database Programming (using ADO)
  • ActiveX Data Objects (ADO)

This is the ADO control added to the toolbox
14
Database Programming (using ADO)
15
Database Programming (using ADO)
Sample Data Model represented in Microsoft Access
16
Database Programming (using ADO)
  • Student Table

17
Database Programming (using ADO)
  • Create an instance of the ADO control on a form

The control is named adoStudent
18
Database Programming (using ADO)
  • Set the CONNECTIONSTRING property

19
Database Programming (using ADO)
20
Database Programming (using ADO)
21
Database Programming (using ADO)
22
Database Programming (using ADO)
  • Set the RECORDSOURCE property

23
Database Programming (using ADO)
  • Set the RECORDSOURCE property

Select adCmdTable
Select a Table from the DB
The RECORDSOURCE property is now set to tblStudent
24
Database Programming (using ADO)
  • Add Data-Aware (Bound) controls to the form which
    are used to display the fields of data in the DB
    table (tblStudent)

Name txtID
Name txtName
Name txtAddress
25
Database Programming (using ADO)
  • Set the DATASOURCE and DATAFIELD properties of
    each of the Text Boxes
  • DATASOURCE name of the ADO control (adoStudent)
  • DATAFIELD name of the required field in the DB
    table (tblStudent)

26
Database Programming (using ADO)
  • The DATASORCE property

27
Database Programming (using ADO)
  • The DATAFIELD property

28
Database Programming (using ADO)
  • VB Front-End connected to a DB Back-End

MoveLast
MoveFirst
MoveNext
MovePrevious
29
Data Control with two bound text boxes
First
Last
Previous
Next
