Title: Ischemic%20Heart%20Disease%20CVS3


1

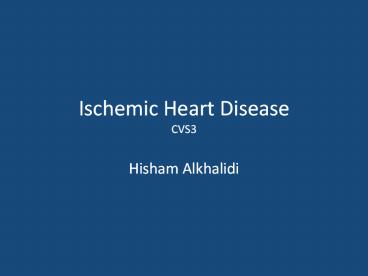

Ischemic Heart DiseaseCVS3
  • Hisham Alkhalidi

2
(No Transcript)
3
Ischemic Heart Disease
  • A group of related syndromes resulting from
    myocardial ischemia

4
Ischemic Heart Disease
  • The vast majority of ischemic heart disease is
    due to coronary artery atherosclerosis
  • Less frequent contributions of
  • vasospasm
  • vasculitis
  • Is it exactly the same as coronary artery disease
    (CAD)?
  • Frequently yes

5
(No Transcript)
6
(No Transcript)
7
Ischemic Heart Disease Angina pectoris
  • Chest pain
  • Can radiate down the left arm or to the left jaw
    (referred pain)
  • Due to inadequate perfusion
  • Duration and severity is not sufficient for
    infarction

8
Ischemic Heart Disease Stable angina
  • Occurring reliably after certain levels of
    exertion
  • Typically due to atherosclerotic disease with
    75 (critical stenosis) fixed chronic stable
    stenosis

9
Ischemic Heart Disease Unstable angina
  • Unstable (occurring with progressively less
    exertion or even at rest)
  • Results from a small fissure or rupture of
    atherosclerotic plaque triggering
  • Platelet aggregation
  • Vasoconstriction
  • Formation of a mural thrombus that may not be
    occlusive
  • Usually proceed MI

10
Ischemic Heart Disease Variant angina
  • Vessel spasm or Prinzmetal angina
  • Without fixed atherosclerotic disease
  • The etiology is not clear

11
Ischemic Heart Disease Myocardial infarction
  • The severity or duration of ischemia is enough to
    cause cardiac muscle death
  • Typically results from acute thromboses that
    follow plaque disruption

12
(No Transcript)
13
(No Transcript)
14
Ischemic Heart Disease MI types
  • Transmural
  • Full thickness (gt50 of the wall)
  • Subendocardial
  • Inner 1/3 of myocardium
  • Two mechanisms
  • Fixed atherosclerosis but with increased demand,
    vasospasm or hypotension OR
  • Evolving transmural with relieve of the
    obstruction (often multifocal)

15
Ischemic Heart Disease MI, common locations
  • In Right dominent coronary artery heart (90 of
    population)
  • 2 cm proximal LAD (up to 50)
  • anterior left ventricle
  • anterior septum
  • apex circumferentially
  • Left circumflex ( up to 20)
  • infarct involves lateral left ventricle except
    the apex.
  • 1st and last thirds of RCA (up to 40)
  • posterior left ventricle
  • posterior septum
  • right ventricular free wall, sometime

16
(No Transcript)
17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
(No Transcript)
22
(No Transcript)
23
Ischemic Heart Disease
  • Ischemia to myocardium rapidly (minutes) leads to
    loss of function and causes necrosis after 20 to
    40 minutes

24
(No Transcript)
25
Ischemic Heart Disease Clinical picture of MI
  • Severe, crushing substernal chest pain or
    discomfort that can radiate to the neck, jaw,
    epigastrium, or left arm
  • Diaphoresis
  • Nausea
  • Dyspnea
  • Can be silent (DM, old age)

26
Ischemic Heart Disease ECG
  • Changes such as
  • Q waves (indicating transmural infarcts)
  • ST-segment abnormalities
  • T-wave inversion
  • Arrhythmias

27
Ischemic Heart Disease Laboratory evaluation
  • Cardiac troponins T and I (TnT, TnI)
  • Creatine kinase (CK, and more specifically the
    myocardial-specific isoform, CK-MB)
  • Lactate dehydrogenase
  • Myoglobin
  • Troponins and CK-MB have high specificity and
    sensitivity for myocardial damage

28
Ischemic Heart Disease Laboratory evaluation
  • TnI and TnT are not normally detectable in the
    circulation
  • After acute MI both troponins
  • Become detectable after 2 to 4 hours
  • Peak at 48 hours
  • Their levels remain elevated for 7 to 10 days

29
Ischemic Heart Disease Laboratory evaluation
  • CK-MB is the second best marker
  • CK-MB activity
  • Begins to rise within 2 to 4 hours of MI
  • Peaks at 24 to 48 hours
  • Returns to normal within approximately 72 hours

30
Ischemic Heart Disease Complications of MI
  • At least 80 will suffer
  • Cardiogenic shock (gt40 infarct of LV)
  • Congestive heart failureCHF
  • Arrhythmia
  • Rupture of ventricle, free wall, septum, or
    papillary muscle
  • Aneurysm formation,
  • Mural thrombus, potentially soursce of emboli
  • Pericarditis

31
Ischemic Heart Disease MI death and
complications rates
  • 25 die, presumably due to arrythmia
  • 10 of the rest will die within a month
  • 80-90 will develop complications
  • Overall 30 die in the 1st year and then 10 per
    year

32
(No Transcript)
33
(No Transcript)
34
(No Transcript)
35
(No Transcript)
36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
Chronic ischemic heart disease
  • Progressive heart failure due to ischemic injury,
    either from
  • prior infarction(s) (most common)
  • chronic low-grade ischemia

40
Ischemic Heart Disease Sudden cardiac death
  • Unexpected death from cardiac causes either
    without symptoms or within 1 to 24 hours of
    symptom onset (different authors use different
    time points)
  • Results from a fatal arrhythmia, most commonly in
    patients with severe coronary artery disease

41
Ischemic Heart Disease Acute coronary syndrome
  • is applied to three catastrophic manifestations
    of IHD
  • Unstable angina
  • Acute MI
  • Sudden cardiac death

42
(No Transcript)
