Title: Crystals

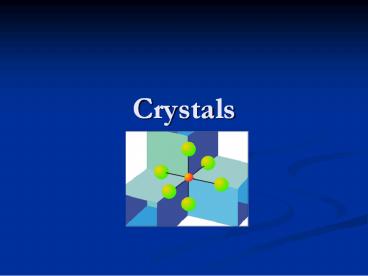

1
Crystals
2
Crystal Structures
  • Metal kernels are viewed as hard spheres.
  • The packing pattern adopted provides the greatest
    energy stability.
  • Ions in salts are also hard spheres
  • The packing pattern is the same as metals, now
    the larger ion is the sphere.
  • The smaller ion is placed in the holes of the
    structure instead of electrons.

3
Unit Cells
  • Crystals consist of repeating units which may be
    atoms, ions or molecules.
  • The space lattice is the pattern formed by the
    points that represent these repeating structural
    units.

4
Metallic Crystals
5
Packing types
  • Body Centered
  • 8 nearest neighbors coordination .
  • Alkali metals pack this way, most malleable
  • Close Packed
  • - Hexagonal cubic
  • - Face centered cubic
  • 12 nearest neighbors or coordination .

6
Hexagonal Close Packing
  • Alternating planes of hcp spheres
  • Those in the 3rd plane pack directly above those
    in the 1st plane ABA pattern
  • 74 of the space is filled by metal kernals, the
    rest is filled by electrons.
  • used by Be, Co, Mg, Zn, Sc, Ti, Cd Zr
  • Least malleable packing

7
Face Centered Packing
  • Identical to hexagonal packing, EXCEPT the 3rd
    spheres are in the holes that were not used to
    form the 2nd plane
  • The 4th plane is above the 1st plane ABCA
  • Used for Ag, Al, Au, Ca, Cu, Ni, Pb and Pt
  • More malleable than hexagonal packing

8
Alloys
  • are solid solutions of metals.
  • They are usually prepared by mixing molten
    components.
  • They may have a regular or irregular array of
    different atoms.

9
Substitutional Alloys
  • have a structure in which sites of the solvent
    metal are occupied by solute metal atoms.
  • An example is brass, an alloy of zinc and copper.

10
Interstitial Alloys
  • are solid solutions in which the solute atoms
    occupy holes (interstices) within the solvent
    metal structure.
  • An example is steel - iron and carbon.

11
Ionic Crystals
12
  • Ionic crystal structures are based on the metal
    lattices.
  • The kernel positions are either the anion or
    cation, usually whichever one is larger in size.
  • The opposite ions take the place of electrons in
    the metal structure.
  • The ions are not mobile so they sit in a fixed
    position, called holes, in the crystal lattice.

13
Holes in Close Packed Crystals
  • Tetrahedral holes are formed by a planar triangle
    of atoms, with a 4th atom covering the
    indentation in the center.
  • Coordination number 4.

14
Tetrahedral Holes
  • These holes are used when one ion is very small
    relative to the opposite ion.
  • n atoms 2n tetrahedral holes.

15
Example
16
Holes in Close Packed Crystals
  • Octahedral holes lie within two staggered
    triangular planes of atoms.

17
  • The coordination number 6
  • n atoms n octahedral holes.

18
Example
19
Body Centered Ionic crystal
  • Occurs when the ion sizes are very similar.
  • The smaller ion fits in the center of a cube
    formed by 8 opposite ions.

20
Predicting Crystal Structures
  • General rules have been developed, to predict
    crystal structures using ionic radii.
  • Radius ratios, (radius of the anion)/(radius of
    the cation) are used.
  • CN r-/r Hole/packing
  • 8 1.0 1.37 body centered packing
  • 6 1.37 2.44 octahedral holes
  • 4 2.44 4.55 tetrahedral holes

21
Common Ionic Crystals
22
1. Rock Salt (NaCl)
  • Is viewed as a face-centered cubic array of the
    anions, with the cations in all of the octahedral
    holes, or
  • The other way around!
  • The coordination number is 6 for both ions.

23
2. The CsCl structure
  • Chloride ions occupy the corners of a cube, with
    a cesium ion in the center (called a cubic hole)
    or vice versa.
  • Both ions have a coordination number of 8, with
    the two ions fairly similar in size.

24
3. The Zinc-blende or Sphalerite structure-
  • Anions (S2-) ions are in a face-centered cubic
    arrangement, with cations (Zn2) in half of the
    tetrahedral holes.

25
4. The Fluorite (CaF2) and Antifluorite
structures
  • A face-centered cubic arrangement of Ca2 ions
    with F- ions in all of the tetrahedral holes.

26
4. The Fluorite (CaF2) and Antifluorite
structures
  • The antifluorite structure reverses the
    positions of the cations and anions. An example
    is K2O.
