Machines and Mechanical Advantage

1
Machines and Mechanical Advantage

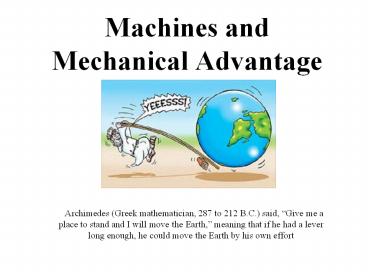

   Archimedes (Greek mathematician, 287 to 212
B.C.) said, Give me a place to stand and I will
move the Earth, meaning that if he had a lever
long enough, he could move the Earth by his own
effort
2
Mechanical Advantage (M.A.)

• the number of times a machine multiplies the
  input force (FI )
• the more times the machine multiplies the input
  force, the easier the job (requires less force
  by us)

3
(No Transcript)
4
Mechanical Advantage formula
MA FO FI
MA Mechanical Advantage FO Output Force or
Load FI Input Force
5
Example problem using forces

• What is the mechanical advantage of a machine
  where an input force of 20 N will put out a force
  of 180 N?

given formula
set up problem answer w/ unit
of measurement
FO 180N MA FO 180N/20N
9 FI 20N FI
There is no unit of measurement on mechanical
advantage, it is simply a ratio
6
Six Types of Simple Machines
The Inclined Plane Family
1. Inclined Plane

• basically a ramp
• has no moving parts
• decreases the input force needed to move an
  object but increases the distance necessary to
  move it

7
(No Transcript)
8
2. Wedge

• an incline plane that moves through something
• normally made up of two inclined planes

9
3. Screw

• an inclined plane that is wrapped around to form
  a spiral
• multiplies the input force by increasing the
  distance

10
4. Lever
The Lever Family

• a rigid bar that is free to pivot on a fulcrum
• Three classes of levers
• First Class

11

• Second class

12

• Third class
• the only lever that does NOT multiply the input
  force
• but does increase speed and distance of what you
  are moving

13
(No Transcript)
14
(No Transcript)
15
5. Pulley

• a rope, belt, chain wrapped around a grooved
  wheel
• may change the direction of the force
• may multiply the effort force to lift heavy loads
  when using many pulleys

16
(No Transcript)
17
(No Transcript)
18
6. Wheel and Axle or Gears

• a lever or pulley connected to a shaft
• the wheel/gear is the larger circle/lever/pulley
• the axle is the smaller circle/shaft/axle

19
Compound Machines

• a combination of two or more simple machines

http//www.youtube.com/watch?vhSI5HjHOiiYfeature
related
