Technical Drawing History

1
Technical Drawing History

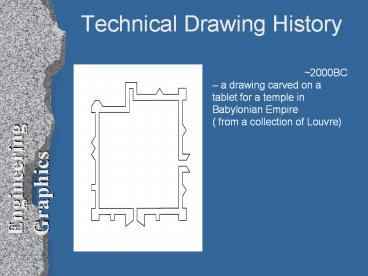

2000BC
a drawing carved on a tablet for a temple in
Babylonian Empire ( from a collection of Louvre)
Engineering Graphics
2
Perspective drawing technique was invented during
the Renaissance period (1300-1500)
Engineering Graphics

3
Parallel projection technique was invented during
the Industrial Revolution period (1750-1850)

Engineering Graphics
4
2-D CAD systems were developed in the 1980s

Engineering Graphics
5
3-D CAD systems were developed in the 1990s

Engineering Graphics
The Boeing 777 is the first jetliner to be 100
percent digitally designed using
three-dimensional computer graphics. Throughout
the design process, the airplane was
"pre-assembled" on the computer, eliminating the
need for a costly, full-scale mock-up.
Dodge Neon was designed using 3-D CAD system CATIA
6
Concurrent Engineering is the 21th century star
Engineering Graphics
