ACM Symposium on Applied Computing (ACM SAC) 2004 1

1

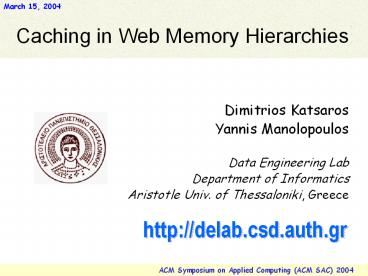

Caching in Web Memory Hierarchies

• Dimitrios Katsaros
• Yannis Manolopoulos
• Data Engineering Lab
• Department of Informatics
• Aristotle Univ. of Thessaloniki, Greece

http//delab.csd.auth.gr
2
Web performance the ubiquitous content cache
proxy caches
cooperating
hierarchical
3
Web caching benefits

• Caching is important because by reducing the
  number of requests
• the network bandwidth consumption is reduced
• the user-perceived delay is reduced (popular
  objects are moved closer to clients)
• the load on the origin servers is reduced
  (servers handle fewer requests)

4
Content caching is still strategic

• Is the optimization of fine tuning of cache
  replacement a moot point due to the ever
  decreasing prices of memory?
• Such a conclusion is ill guided for several
  reasons
• First, studies have shown that the cache HR and
  BHR grow in a log-like fashion as a function of
  cache size 3. Thus, a better algorithm that
  increases HR by only several percentage points
  would be equivalent to a several-fold increase in
  cache size
• Second, the growth rate of Web content is much
  higher than the rate with which memory sizes for
  Web caches are likely to grow
• Finally, the benefit of even a slight improvement
  in cache performance may have an appreciable
  effect on network traffic, especially when such
  gains are compounded through a hierarchy of caches

5
Web cache performance metrics

• Replacement policies aim at improving cache
  effectiveness by optimising two performance
  measures
• the hit ratio
• the cost savings ratio
• where
• hi is the number of references to object i
  satisfied by the cache,
• ri is the total number of references to I, and
• ci is the cost of fetching object i in cache.
• The cost can be defined as
• the object size si. Then, CSR coincides with
  BHR (byte hit ratio)
• the downloading latency ci. Then, CSR coincides
  with DSR (delay savings ratio)

6
Challenges for a caching strategy

• Several factors distinguish Web caching from
  caching in traditional computer architectures
• the heterogeneity in objects' sizes,
• the heterogeneity in objects' fetching costs,
• the depth of the Web caching hierarchy, and
• the access patterns, which are not generated by a
  few programmed processes, but mainly originate
  from large human populations with diverse and
  varying interests

7
What has been done to address them? (1)

• The majority of the replacement policies proposed
  so far fail to achieve a balance between (or
  optimize both) HR and CSR
• The recency-based policies, favour the HR, e.g.,
  the family of GreedyDualSize algorithms 3, 7
• The frequency-based policies, favour the CSR (BHR
  or DSR), e.g., LFUDA 5
• Exceptions are the LUV 2 and GD 7, which
  combine recency and frequency.
• The drawback of LUV is the existence of a
  manually tunable parameter ?, used to select
  the recency-based or frequency-based behaviour of
  the algorithm.
• GD has a similar drawback, since it requires
  manual tuning of the parameter ß

8
What has been done to address them ? (2)

• Regarding the depth of the caching hierarchy
• Carey Williamson 15
• Proved an alteration in the access pattern,
  which is characterized by weaker temporal
  locality
• Proposed the use of different replacement
  policies (LRU, LFU, GD-Size) in different levels
  of the caching hierarchies
• This solution though is not feasible and/or
  acceptable
• the caches are administratively independent
• the adoption of a replacement policy (e.g., LFU)
  at any level of the hierarchy favours one
  performance metric (CSR) over the other (HR)

9
What has been done to address them ? (3)

• The origin of the request streams received little
  attention
• It is (in combination with the caching hierarchy
  depth) responsible for the large number of
  one-timers, objects requested only once
• Only SLRU 1 deals explicitly with this factor
• Proposed the use of a small auxiliary cache to
  maintain metadata for past evicted objects
• This approach
• needs to heuristically determine the size of the
  auxiliary cache
• precludes some objects from entering into the
  cache. Thus, it may result in slow adaptation of
  the cache in a changing request pattern

10
Why do we need a new caching policy?

• Need to optimize not only one of the two
  performance metrics in a heterogeneous
  environment, like the Web. We would like a
  balance between HR and CSR (balance between the
  average latency that the user sees and the
  traffic performance)
• Need to deal with the weak temporal locality in
  Web request streams
• Need to eliminate any administratively tunable
  parameters. The existence of parameters whose
  value is derived from statistical information
  extracted from Web traces (e.g., LNC-R-W3 14 or
  LRV 12) is not desirable due to the difficulty
  of tuning these parameters
• Our contribution CRF, a new caching policy
  dealing with all the particularities of the Web
  environment

11
CRF s design principles BHR vs. DSR

• The delay savings ratio is affected very much by
  the transient network and Web server conditions
• Two more reasons bring about significant
  variation in the connection time for identical
  connections
• The persistent HTTP connections, which avoid
  reconnection costs, and
• Connection caching 4, which reduces connection
  costs
• We favour the size (BHR) instead of the latency
  (DSR) of fetching an object as a measure of the
  cost

12
CRF s design principles One-timers

• We partition the cache space
• Cache partitioning has been followed by prior
  algorithms, e.g. FBR 13, but not for the
  purpose of the isolation of one-timers
• Only Segmented LRU 8 adopted partitioning for
  isolating one-timers. Experiments showed that (in
  the Web) it suffers from cache pollution
• The cache has two segments R-segment and
  I-segment
• The cache segments are allowed to grow and shrink
  deliberately depending on the characteristics of
  the request stream
• The one-timers are accommodated into the
  R-segment. We do not further partition the
  I-segment since it makes very difficult to decide
  the segment from which the victim will be
  selected and it incurs maintenance cost for
  moving the objects from one segment to the other

13
CRF s design principles Ranking (1)

• A couple of decisions must be made, which regard
• the ranking of objects within each segment, and
• the selection of replacement victims
• These decisions must assure 3 constraints/targets

• balance between hit and byte hit ratio,
• protect the cache from one-timers, but without
  preventing the cache from adapting to a changing
  access patterns, and
• because of the weak temporal locality, exploit
  frequency-based replacement criteria

14
CRF s design principles Ranking (2)

• Aim for the R-segment (one-timers)
• accommodate as many objects as possible
• exploit any short-term temporal locality of the
  request stream
• the ranking function for the R-segment the
  ratio of objects entry time over its size

15
CRF s design principles Ranking (3)

• Aim for the I-segment (heart of the cache)
• provide a balance between HR and BHR
• deal with the weak temporal locality
• the ranking function for the I-segment the
  product of the last inter-reference time of an
  object times the recency of the object
• the inter-reference time stands for the
  steady-state popularity (frequency of reference)
  of an object
• the recency stands for a transient preference to
  an object

16
CRF s design principles Replacement victim (1)

• R-victim the candidate victim from R-segment
• I-victim the candidate victim from the
  I-segment
• tc the current time
• R1 the reference time of the R-victim
• I1 the time of the penultimate reference to the
  I-victim
• I2 the time of the last reference to it
• d1 ( tc - I2) the reference recency of the
  I-victim
• d2 ( tc- R1) the reference recency of the
  R-victim
• d3 ( I2-I1) the last inter-reference time of
  the I-victim
• Estimate whether or not the I-victim loses its
  popularity and also the potential of the R-victim
  to get a second reference

17
CRF s design principles Replacement victim (2)
R-victim
I-victim
R-victim
R-victim
R-victim
R-victim
I-victim
18
CRF s pseudocode (1)
19
CRF s pseudocode (2)
20
CRF s performance evaluation

• Examined CRF against LRU, LFU, Size, LFUDA, GDS,
  SLRU, LUV, HLRU, LNCRW3
• GDS be the representative of the family which
  includes GDS, GDSF
• HRLU(6) be the representative of the HLRU family
• LNCRW3 implemented so as to optimise the BHR
  instead of DSR
• LUV tuning we tried several values for the ?
  parameter, and we selected the value 0.01,
  because it gave the best performance for small
  caches and the best performance in most cases
• Generated synthetic Web request streams with the
  ProWGen tool 15

21
CRF s performance evaluation
Input parameters to ProWGen tool
22
Sensitivity to one-timers recency-based
Left Hit Rate Right Byte Hit Rate
23
Sensitivity to one-timers frequency-based
Left Hit Rate Right Byte Hit Rate
24
Sensitivity to one-timers (aggregate)
CRFs gain-loss wrt one-timers
25
Sensitivity to Zipfian slope recency-based
Left Hit Rate Right Byte Hit Rate
26
Sensitivity to Zipfian slope frequency-based
Left Hit Rate Right Byte Hit Rate
27
Sensitivity to Zipfian slope (aggregate)
CRFs gain-loss wrt Zipfian slope
28
Conclusions

• We proposed a new replacement policy for Web
  caches, the CRF policy
• CRF was designed to address all the
  particularities of the Web environment
• The performance evaluation confirmed that CRF is
  a hybrid between recency and frequency-based
  policies
• CRF depicts a stable and overall improved
  performance

29

• Thank you for your attention

30
References (1)

1. C. Aggrawal, J. Wolf and P.S. Yu. Caching on the
   World Wide Web. IEEE Transactions on Knowledge
   and Data Engineering, 11(1)94107, 1999.
2. H. Bahn, K. Koh, S.H. Noh and S.L. Min. Efficient
   replacement of nonuniform objects in Web caches.
   IEEE Computer, 35(6)6573, 2002.
3. L. Breslau, P. Cao, L. Fan, G. Phillips and S.
   Shenker. Web caching and Zipf-like distributions
   Evidence and implications. Proceedings IEEE
   INFOCOM Conf, pp.126-134, 1999.
4. P. Cao and S. Irani. Cost-aware WWW proxy caching
   algorithms. Proceedings USITS Conf, pp.193206,
   1997.
5. E. Cohen, H. Kaplan and U. Zwick. Connection
   caching model and algorithms. Journal of
   Computer and System Sciences, 67(1)92126, 2003.
6. J. Dilley and M. Arlitt. Improving proxy cache
   performance analysis of three replacement
   policies. IEEE Internet Computing, 3(6)4450,
   1999.
7. S. Jiang and X. Zhang. LIRS an efficient low
   inter-reference recency set replacement policy to
   improve buffer cache performance. Proceedings ACM
   SIGMETRICS Conf, pp.3142, 2002.
8. S. Jin and A. Bestavros. GreedyDual Web caching
   algorithm exploiting the two sources of temporal
   locality in Web request streams. Computer
   Communications, 24(2)174183, 2001.

31
References (2)

1. R. Karedla, J.S. Love and B.G. Wherry. Caching
   strategies to improve disk system performance.
   IEEE Computer, 27(3)3846, 1994.
2. N. Megiddo and D. S. Modha. ARC a self-tuning
   low overhead replacement cache. Proceedings
   USENIX FAST Conf, 2003.
3. A. Nanopoulos, D. Katsaros and Y. Manolopoulos. A
   data mining algorithm for generalized Web
   prefetching. IEEE Transactions on Knowledge and
   Data Engineering, 15(5)11551169, 2003.
4. L. Rizzo and L. Vicisano. Replacement policies
   for a proxy cache. IEEE/ACM Transactions on
   Networking, 8(2)158170, 2000.
5. J. Shim, P. Scheuermann and R. Vingralek. Proxy
   cache algorithms design, implementation and
   performance. IEEE Transactions on Knowledge and
   Data Engineering, 11(4)549562, 1999.
6. A. Vakali. Proxy cache replacement algorithms a
   history-based approach. World Wide Web Journal,
   4(4)277297, 2001.
7. C. Williamson. On filter effects in Web caching
   hierarchies. ACM Transactions on Internet
   Technology, 2(1)4777, 2002.
