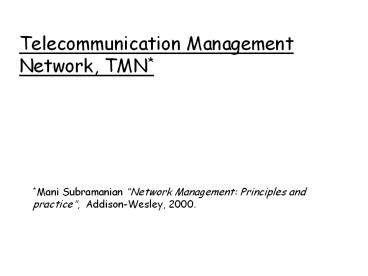

Telecommunication Management Network, TMN
Mani Subramanian Network Management Principles
and practice, Addison-Wesley, 2000.
2
Background
  • Based on OSI CMIP/CMIS
  • Address the interoperability of multi-vendor
    equipment used by different service providers and
    define standard interfaces
  • Provide a framework for telecommunications
    network and service management
  • Management goes beyond networks and network
    element to include managing services provided by
    service providers as well as business management

3
Trends In Telecommunications
  • Globalizations and Deregulation
  • End-to-end service involves multiple providers
  • Demand for standards based network and service
    management (interoperability)
  • Merge of telecom and datacom
  • Need for Inter-working between management
    protocols to provide end-to-end management
  • Evolution in protocols
  • Need for flexible management architecture
  • Competition
  • Time-to market for new services
  • Need for sound (flexible) architecture
  • Focus on customer care (i.e., service quality)
  • Decreasing margins (do more with less)
  • Increase revenue (providing high quality
    services) while minimizing network operation
    costs

4
Example of Management (1)
  • Trunk Testing System
  • Trunk is a logical connection between two
    switching nodes
  • Periodic measurement of loss and S/N of all
    trunks
  • Failing threshold set for QoS failing trunks
    removed out of service before the customer
    complains

5
Example of Management (2)
  • Telephone Switch Traffic
  • Traffic monitored at switch appearance
  • Call blocking statistics obtained
  • Traffic and call-blocking statistics provide
    data for planning
  • Importance of Operations, administration,
    mainte- nance, and provisioning

6
TMN Conceptual Model
  • TMN is conceptually a separate network
  • Interfaces between the TMN and the
    Telecommunication network are formed by exchanges
    and transmission switches
  • OSs (Operations Systems) perform most of the
    management functions and they are connected to
    TMN through a Data Communication Network (DCN)
  • The DCN is used to exchange management
    information between OSs

7
TMN Objectives
  • The basic concept behind a TMN is to
  • provide an organized architecture to achieve the
    interconnection between various types of OSs
    and/or telecommunications equipment for the
    exchange of management information using an
    agreed architecture with standardized interfaces
    including protocols and messages
  • The M.3010 recommendation defines general
    architectural requirements for a TMN to support
    the management requirements of administration to
    plan, provision, install, maintain, operate and
    administer telecommunication networks and
    services

8
TMN Management Architectures
  • Functional Architecture
  • Describes a number of management functions
    (control, monitor, etc.)
  • Physical Architecture
  • Defines how management functions are implemented
    into physical equipment
  • Information Architecture
  • Describes concepts that have been adopted from
    OSI management
  • Logical Layer Architecture
  • A model that shows how management can be
    structured according to different responsibilities

9
TMN Functional Architecture
  • The TMN functional architecture explains the
    distribution of functionality within a TMN
  • The TMN functional architecture is defined by
  • TMN function blocks, being the roles in which
    functions operate (coordinate, mediate, etc.)
  • TMN function points, being the service boundary
    between two communication management function
    blocks

10
TMN Functional Architecture
  • Interfaces between function blocks are defined as
    reference points

q class between OSF, QAF, MF and NEF f class for
attachment of a WSF x class between OSFs of two
TMNs or between TMN OSF and OSF-like
function in other network g class between WSF
and users m class between QAF and non-TMN
managed entities
11
TMN Functional Architecture
  • Network Element Function, NEF
  • Exchanges, transmission systems, switches, etc.
  • NEs are subject to management and support the
    exchange of data between users
  • They include management functions (i.e., agents)
  • Operation Systems Functions, OSF
  • Operations and Notifications
  • Within a TMN, multiple OSFs may exist and they
    communicate through q3 interface
  • OSFs belonging to different administrative
    domains may also communicate through x reference
    point

CMIP CMIS
12
TMN Functional Architecture
  • Work Station Function, WSF
  • Interprets management information to a human user
    through g interface
  • Q Adapter Function, QAF
  • Non TMN entities (e.g. proprietary) can be
    connected to a TMN entity
  • Translate between q reference point and m
    reference point (similar to a proxy agent in
    SNMP)

13
TMN Functional Architecture
  • Mediation Function (MF)
  • Located within the TMN
  • Operations on the information between network
    elements e.g. storage, filtering, threshold
    detection, etc.
  • MF can be shared between multiple OSSs e.g. RMON

14
TMN Functional Architecture
  • Data Communication Function (DCF)
  • Provide the necessary physical connection with
    various network components
  • DCF implements layers 1-3 of OSI
  • Connect NEs, QAs, and MDs to the OSs at the
    standard q interface
  • Connect MDs to NEs and QAs using q interface

15
TMN Physical Architecture
16
TMN Information Architecture
  • TMN makes use of OSI Systems Management
    principles and is based on an object-oriented
    paradigm.
  • Management systems exchange information modeled
    in terms of managed objects (MO)
  • A managed object (MO) is defined by
  • the attributes visible at its boundary
  • the management operations which may be applied to
    it
  • The behavior exhibited by it in response to
    management operations or in reaction to other
    types of stimuli (e.g., threshold crossing)
  • The notifications emitted by it

17
TMN Information Architecture
Information Model based on Object-Oriented
Approach
Agent
Manager
management operations
M C F
M C F
R
R
application functions
Q I/F
R
notifications
TMN
MIT dynamic structure, unlike MIB which is static
MCF Message Communication Function R Network
Resource to be managed
18
OSI System Architecture
19
OSI System Architecture
20
OSI System Architecture
21
OSI System Architecture
M-GET Used to retrieve the values of one or more
attributes of one or more MOs Scoping/Filtering,
Linked Replies and Synchronization Confirmed
service only M-SET Used to replace the values of
one or more attributes of one or more
MOs Scoping/Filtering, Linked Replies and
Synchronization May be Confirmed or Unconfirmed
M-ACTION Conveys Object Class/Instance, Action
Type and optional action-specific
information Meaning dependent on MO action
specification Scoping/Filtering, Linked Replies
and Synchronization May be Confirmed or
Unconfirmed
22
OSI System Architecture
M-CANCEL-GET Permits a linked GET response to be
terminated Confirmed service only M-EVENT-REPORT C
onveys Object Class/Instance, Event Type and
optional event-specific information Meaning
dependent on MO notification specification May be
Confirmed or Unconfirmed
M-CREATE Permits creation of new instances of
object classes Permits specification of default
values (of attributes, explicitly and/or by
reference) Permits explicit or automatic instance
naming Confirmed service only M-DELETE Permits
deletion of object class instances Scoping/Filteri
ng, Linked Replies and Synchronization Confirmed
service only
23
OSI Communication Model
Application process
System-management application-service
element (SMASE)
  • SMASE services the following
  • applications
  • Configuration Management
  • Fault Management
  • Performance Management
  • Security Management
  • Accounting Management

A-Associate A-Release A-Abort
M-EVENT-REPORT M-GET M-SET M-ACTION M-CREATE
M-DELETE M-CALCEL-GET
Common management information service
element (CMISE)
handles the communication functions of SMASE
using CMIP
A-Associate A-Release A-Abort
RO-Invoke RO-Reject RO-Result RO-Error
Association-control-service element (ACSE)
Remote-operations-service element (ROSE)
Setup and coordinate the activities or setting
up/releasing association with the application
Once association is setup, data moves from CMISE
to the remote system via ROSE
P-Connect P-Release P-Abort
P-Data
Presentation layer
24
OSI Communication Model
A selection function to locate MO record
accessed by Get/Set/Action of CMISE
25
OSI Information Model
  • A managed object (MO) is defined in terms of
  • attributes it possesses
  • operations that may be performed upon it
  • notifications that it may issue
  • its relationships with other MOs
  • A managed-object class is a model or template for
    MO instances that share the same attributes,
    notifications, operations and behavior
  • A MO class can be created from other MO classes
    (called packages)
  • A MO has the properties associated with the
    mandatory package and may include properties of
    conditional packages
  • MO classes are obtained by using an inheritance
    tree
  • Other trees are naming tree and registration tree

26
OSI Information Model
Hub Managed Object Class hub id vendor
name model number serial number number of
interfaces type of interfaces speed of interfaces
Hub1 Instance hub id Hub1 vendor name
ABC model number abc serial number
123 number of interfaces 12 type of
interfaces 6 speed of interfaces 10000000
Hub2 Instance hub id Hub2 vendor name
XYZ model number xyz serial number
456 number of interfaces 12 type of
interfaces 6 speed of interfaces 10000000
Managed Object Class and Instances
27
OSI Information Model
  • Superclass vs. subclass
  • Attributes of a Superclass are maintained by a
    subclass and more are possibly added
  • Single inheritance,
  • multiple inheritance (polymorphic),
  • A subclass derives its property from more than
    one superclass
  • and allmorphic
  • A subclass derived from multiple superclasses
    takes the properties of one superclass

28
OSI Information Model
  • GDMO Guidelines for Definition of Managed Object
    Templates
  • Extensions to ASN.1 to handle the syntax of
    managed information definition
  • Template (similar to ASN.1 Macro) is introduced
    to combine definitions

Mandatory package and properties
MO name
Specifies a superclass
Templates used to combine definitions of
attributes, operations and notifications
Official registered name of the object class
under the ISO registration tree
29
OSI vs. SNMP
OSI Mgmt (CMIP)
Internet Mgmt (SNMP)
Features
Information Model
Object-Oriented
Scalar
GDMO
SNMP SMI
MIB Language
Manager-Agent, Manager-Manager
Manager-Agent, Manager-Manager
Mgmt Entity Interactions
Get, Set limited Create/Delete Trap
M-Get, M-Set, M-Action M-Create,
M-Delete M-Event-Report
Protocol Operations
MIT with OID Scoping/Filtering
MIT with OID at leaves of the tree
MO Addressing
Management
Not Specified
Five Functional Areas
Applications
Standardization Body
ITU-T, ISO
IETF
30
OSI vs. SNMP
  • OSI management uses connection-oriented transport
    and confirmed interactions. (reliability and bulk
    retrieval)
  • They require, however, complex communication
    environment and result in failure-sensitivity.
  • During network stress time, connections may not
    be sustainable over sufficiently long time to
    accomplish the management functions needed.
  • Management entities may need to spend significant
    time and resources in handling lost connections.
  • Connection-based transport may become an
    obstacle in accomplishing management interactions
    at a time when they are needed most
  • SNMP communications use a connectionless datagram
    transport (UDP) with confirmed GET/SET
    interactions and unconfirmed event notifications
    (TRAPs).
  • The responsibility to ensure reliable
    communications is passed to agent/manager
    applications.
  • During stress time, managers may flexibly adjust
    their computations to handle loss
  • A datagram model requires a simple communication
    environment that is easy to implement. Managers,
    however, can only retrieve information that fits
    within a single UDP frame. This limits bulk
    retrieval mechanisms.

31
Relation between TMN and OSI
Reference points interconnect different function
block ? comparable to underlying service
providers
32
TMN Information Architecture
Manager/Agent Interworking

Information Model B
Information Model c
system A
system B
system C

MIB
MIB
sees
sees
M
A
M
A
CMIS
CMIS
CMIS
CMIS
CMIP
Resource
Resource
Resource
CMIP
Resource
OSI protocol stack
OSI protocol stack
CMIP Common Management Information Protocol
MIB Management Information Base CMIS
Common Management Information System
33
Management Service Architecture
Vendor dependent
34
Management Service Architecture
  • Network Element Layer, NEL
  • Comprise NEs such as switches, routers,
    transmission facilities
  • Managed by the OSFs residing in the element
    management layer
  • Element Management Layer, EML
  • It deals with vendor specific management
    functions and hide these functions from the layer
    above
  • Functions performed
  • Detection of equipment errors
  • Measuring power consumption and the temperature
    of equipment
  • Measuring resource usage CPU, shared buffer,
    queue length, etc.
  • Logging of statistical data
  • Etc..
  • NOTE OSF in the element management layer and NEF
    may be implemented in the same piece of equipment

35
Management Service Architecture
  • Network Management Layer, NML
  • Managed functions related to interaction between
    multiple pieces of equipment (i.e., managing a
    network)
  • Internal structure of network elements is not
    visible (they are vendor specific)
  • Functions performed
  • Create the complete network view
  • Setup/provisioning dedicated paths (with QoS
    parameters) for end users through the network
  • Modifying routing table
  • Monitoring link utilization
  • Optimizing performance
  • Fault detection
  • The OSFs in NML interacts with the OSFs at the
    EML it uses information provided by the EML to
    implement its functions
  • Here OSFs in NML acts as a manager and OSFs at
    EML acts as an agent

36
Management Service Architecture
  • Service Management Layer, SML
  • Manage services provided by the network and seen
    by users
  • Users may be end users (customers) and/or service
    providers using the telecommunication network
  • Relies on management information provided by the
    Network Management Layer (NML)
  • The internal structure of the network (i.e.,
    network details) are hidden
  • Functions performed
  • QoS management (delay, jitter, etc)
  • Accounting/billing
  • Addition/removal of users, etc..
  • Example inter-operator management
  • Two interconnected networks may exchange
    management information (e.g., necessary for QoS
    negotiation) but both network operators keep
    their network structure hidden from each other,
    (Proprietary).

37
Management Service Architecture
  • Service Management Layer, Example
  • A transport network (e.g., ATM, SONET or WDM)
    that is used by service providers to connect end
    routers and provide services

38
Management Service Architecture
  • Two independent control planes isolated from each
    other
  • The IP routing, topology distribution, and
    signaling protocols are independent of the ones
    at the Optical Layer
  • Routers are clients of optical domain
  • The Optical Networks provides wavelength path to
    the electronic clients (IP routers, ATM switches)
  • Optical topology invisible to routers
  • Standard network interfaces are required such as
    UNI and NNI

?
Black Box for IP networks
39
Management Service Architecture
40
Management Service Architecture
  • Example IP over ATM example
  • IP service provider connects to the ATM provider
    through X-reference points
  • The details of the ATM backbone are hidden from
    the IP service provider
  • IP provider is not allowed to monitor/modify/etc.
    internal equipment of the ATM backbone rather,
    only high level information is communicated, such
    as QoS figures!
  • An ATM link is considered as a single element for
    the IP network, therefore the reference point at
    the EML of IP
  • Another reference point at the IP NML
  • Allows for fault detection, rerouting, load
    balancing, optimization, etc..
  • Finally, the IP network should monitor the ATM
    links for any degradation in network performance
    that may impact the QoS of the IP provider
  • Therefore another reference point at the service
    management layer

41
Management Service Architecture
  • Business Management Layer, BML
  • Includes all the functions necessary for the
    implementation of policies and strategies within
    the organization which owns and operates the
    services (and possibly the network)
  • interacts with the service management layer
  • Is influenced by high levels of control such as
    legislation or macro-economic factors (e.g.,
    tariffing policies, quality maintenance
    strategies)

42
TMN vs. Internet Management
  • TMN focuses on the specifications of management
    architectures whereas Internet focuses on the
    implementation of management protocols.
  • Integration between TMN and SNMP is obtained
    through Q Adapter Function (QAF)
  • QAF translates between q3 (OSI CMIP) reference
    point and m reference point (SNMP)
  • QAF Translating between OSI GDMO (Guidelines for
    the Definition of Managed Objects) and SNMP SMI
    is a critical task
  • TMN (unlike Internet management) defines a
    separate Network to exchange management
    information that is the DCN. (TMN is this sense
    resembles SS7 network)
  • Internet Service management Internet needs to be
    extended to allow exchange of management
    information between different operators..

43
Separating the Management from TN
  • Prevent potential problems with fault management
  • In case of failures, failed component may still
    be accessed through the separate management
    network
  • OSI and SNMP have collapsed management/data
    network
  • A separate management network requires additional
    equipment and transmission systems ? costs are
    higher! It may also require a separate network to
    manage the management network (meta management)
  • Telecommunication networks (e.g., telephony
    network) cannot/does not rely on asynchronous
    type of service provided by the data networks ? a
    separate management network for TN is essential
  • OSI and SNMP are aimed toward data networks
    therefore, the advantages of having a separate
    network for management should be weighed vs. the
    cost incurred by adding an additional separate
    network
Write a Comment
User Comments (0)
About PowerShow.com
