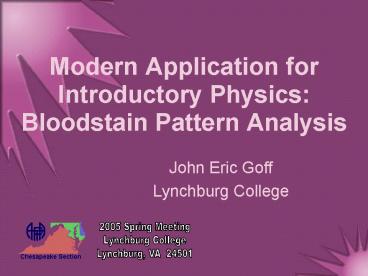

Modern Application for Introductory Physics: Bloodstain Pattern Analysis

1
Modern Application for Introductory Physics
Bloodstain Pattern Analysis

• John Eric Goff
• Lynchburg College

2005 Spring Meeting Lynchburg College Lynchburg,
VA 24501
2
New Field of InterestForensic Science

• Television shows and movies influence student
  interests.
• Forensic Science courses, minors, and majors are
  springing up around the country. (New course
  here at LC!)
• Watch for some very BAD science on TV and in
  movies!

3
Forensic Science isVERY Interdisciplinary!!!

• Biology
• Chemistry
• Physics
• Mathematics
• Law
• Psychology
• Sociology

• Biochemistry
• Biophysics
• Physical Chemistry
• Environmental Science
• Handwriting
• Medicine
• Hobbies???

4
I got help with this talk!

• http//www.bloodspatter.com/
• (The tutorial is great! However, beware of some
  poor physics in a few places!)

5
Bloodstain Patterns

• Physical Evidence
• Usually Found at Violent Crime Scenes
• Gives Clues as to WHAT Happened
• May Suggest Sequence of Events
• Analysis MUST be placed in context of all aspects
  of crime scene investigation in order to
  reconstruct (possible) criminal events.

6
Different Types of Bloodstain Patterns

• Passive Bloodstains (drops, pools, etc.)
• Transfer Bloodstains (wipe a weapon, etc.)
• Active (or Projected) Bloodstains (bullets,
  stepping in blood, etc.)

7
Active (or Projected) Bloodstains

• Rule of Thumb As impact angle goes down,
  bloodstain shape becomes more elongated.

8
Active (or Projected) Bloodstains

• Impact Spatter Blood source is smacked in
  some way and drops fly off in various directions.
• Divide category further by bloods impact speed.

9
Low Velocity

• velocity 5 ft/s
• stain size is (relatively) large diameter 4mm
• examples blood drops into blood and footstep
  spatters

10
Medium Velocity

• 5 ft/s velocity 25 ft/s
• stain size 1 mm diameter 4mm
• examples blood flicked off finger and blunt
  object used on victim

11
High Velocity

• velocity 100 ft/s (? 68 mph)
• stain size (relatively small) diameter 1mm
• examples gunshots and propellers

12
Time for Physics!

• Big Forensic Science Question From where did
  the blood come???

13
Try this!
one exception!
tail points in direction of travel
14
sin ? W / L
W
L
What does W L mean? sin ? 1 ? ? 90? Drop
is a circle!
15
Real World!

• What if blood drop is not a pretty oval?!?

Do the best you can!!!
16
Physics and Math

• Work backwards from blood spatter to determine
  launch position of blood.
• BE AWARE of all approximations that are used in
  analysis! (This is a great example for teaching
  students about approximations in physics.)

17
(No Transcript)
18
Look for Convergence!
19
Real Crime Scene
20
Get Computer Help(Software is available!)
Notice the top view!
21
Big Problem!!!

• Neither blood nor anything else travels unaided
  in a straight line through the air!

22
Example

• Consider medium velocity blood drop of diameter
  3 mm launched at a position 1 m off the ground.
• Numbers v 20 ft/s (6 m/s) ? -10?

23
What about gravity???
24
What about air resistance??? (Drops speed and
size are needed. Tough to know!)
What about gravity???
25
Moral of the Story

• Calculation using straight-line trajectory (no
  gravity and no air resistance) predicts a
  launch point higher than actual point.
• Straight-line trajectory is reasonable for high
  launch velocities and/or stain and launch
  points close together. (The idea is to keep
  the flight time as short as possible.)
• More accuracy requires a better model and more
  specialized work.

26
Forensic Science Literature

• The Directional Analysis of Bloodstain Patterns
  Theory and Experimental Validation by A. L.
  Carter
• Therefore, the best one can do here is to
  estimate an upper limit for the height of the
  source. (p. 181)
• Can. Soc. Forens. Sci. J. Vol. 34. No. 4 (2001)
  pp. 173-189
