Title: PCM-3363 PCI-104 SBC Sales Kit (Intel


1

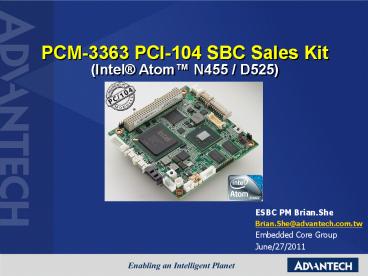

PCM-3363 PCI-104 SBC Sales Kit (Intel Atom N455
/ D525)
ESBC PM Brian.She Brian.She_at_advantech.com.tw Embed
ded Core Group June/27/2011
2
PCM-3363 Compelling Features
Intel Atom N455 / D525 Series PCI-104 SBC with
24-bit LVDS/ CRT /Onboard memory/ Gigabit
Ethernet/ 3 COM/ 1 SATA/ 4 USB2.0/ CFC
3
Product Position
MP date
EOL date
Intel Pineview D Dual Core D525 1.8GHz 1G DDR3
800 onboard Intel ICH8M
Intel 855 GME Pentium M /Celeron M DDR 333/ FSB
400MHz Intel ICH4
Performance
EOL
June 11
PCM-3380/86
PCM-3363D
Intel Pineview M Single Core N450 1.66GHz SODIMM
DDR2 667 Intel ICH8M
Intel Pineview M Single Core N455 1.66GHz 1G
DDR3 800 onboard Intel ICH8M
VIA Twister VIA Mark 533MHz SODIMM SDRAM VIA
VT82C686B
Value
2-Chip
EOL
June 11
PCM-3375 PCM-3362 PCM-3363N
4
Difference between PCM-3363 and PCM-3362
Model Name PCM-3362 PCM-3363
Chipset Intel Atom SC N450ICH8M Intel Atom SC N455/ DC D525ICH8M
Memory DDR2 _at_ 667MHz SO-DIMM up to 2G 1GB Soldered DDR3 _at_ 800MHz
Graphics VGA Support 18-bit LVDS VGA Support 24-bit LVDS
Connector Pin Header and Normal Housing 100 Locked Connector
Power input 5V AT/ATX 5V AT only
Rugged control none Lite-iManager
Expansion PC/104-PLUS PCI-104
End of Life Q1 2017 Q3 2017
  • Main reasons to have PCM-3363
  • DDR3 is a mainstream in the future
  • Support 24-bit LVDS to fulfill more of middle and
    small size LVDS panel
  • More features for Rugged application

5
Block Diagram
6
PCM-3363 Specification
7
Design for Ruggedize Solution
  • PCM-3363 is designed with 100 Solid Capacitors
  • Higher tolerance for high frequencies high
    temperature
  • With better MTBF compared with Electrolytic
    Capacitors
  • No more exploding capacitors
  • More reliable solution if using Solid capacitors
    than Electrolytic capacitors
  • High ESD Protection for RS-232 I/O Pins to 15kV
  • IEC61000-4-2 Air Gap Discharge 15kV
  • IEC61000-4-2 Contact Discharge 8kV
  • Human Body Model 15 kV
  • Rugged Design on Selected Components
  • Wide temperature design and test criteria Power/
    Clock generator/ Sequence
  • PCB Type TG-150 as PCB type, much reliable in
    high temperature environments.
  • Strict Testing Process
  • Strict signal intensity verification
  • HALT(Highly Accelerated Life Testing) applied

8
HALT (Highly Accelerated Life Testing)
- Cutting-Edge Technology Skill!
  • -- The newest design tool for reliability test
  • -- Quickly discover design process limitations

9
HALT Benefit
Not only Specification, but also Margin !
HALT help to verify the operational limits of the
system and find design and component weaknesses !
10
PCM-3363 Advanced Technology
  • Intel Atom N455/D525 Processor Global Power
    Management
  • Power reduction
  • N455 C0-C4 Power States with Enhanced C-states
    support, TDP of N455 kit is 6.5 2.4 Watts
  • D525 C0-C1 Power States with Enhanced C-states
    support, TDP of D525 kit is 13 2.4 Watts
  • Power reduction when the processor is executing
  • Throttling when processor is overheating
  • Hyper Threading- Targeted to deliver higher
    performance and control logic saving power
  • DDR3 Memory Support
  • Support main stream DDR3 memory technology,
    popular in market and lower power consumption.
  • Price is competitive in the near future.
  • Intel Integrated Graphics
  • Directx 9 compliant Pixel Shader v2.0
  • The 3rd generation graphics core
  • MPEG2 Hardware Acceleration
  • 24-bit LVDS Support
  • Support 24-bit LVDS on PCM-3363. The two display
    types were not supported in Intel N455/D525
    platforms
  • Lite-iManager
  • Extreme Cold Start Guaranteed
  • Voltage Dips a detection and recovery.

.
11
Lite-iManager --- Guaranteed Boot up at Extreme
Cold
Bootup
Start
BIOS
Reset
12
Lite-iManager --- Voltage Dips Interrupt
Detection Recovery
System Hanged
Voltage Dips
System Running
Voltage back to normal range
Reset
13
Board layout-TOP
Front Panel
Audio
PCI-104
RS422/485
Power in
Gigabit Ethernet
USB1
COM1/2
USB2
LVDS
SATA
Inverter
SATA power
Stronger than traditional connector!
GPIO
KB/MS
SMBus
FAN
14
Board layout-BOT
CFC
VGA
SPI BIOS
15
Power Consumption
Condition Power Consumption (A) Power Consumption (A) Power Consumption (A) Power Consumption (A) Power Consumption (A) Power Consumption (A)
Condition Voltage Power on - Boot procedure DOS Idle Mode Win. Idle Mode Win. HCT12 Hot CPU Max(A) Max Power(W)
CPU N455 5V 1.767 1.645 1.404 2.167 2.365 2.365(A) 11.825(W)
CPU D525 5V 2.281 1.736 1.85 2.552 2.695 2.695(A) 13.475(W)
Power on - Boot procedure Measure the maximum current value of between system power on and boot-up to O.S. Power on - Boot procedure Measure the maximum current value of between system power on and boot-up to O.S. Power on - Boot procedure Measure the maximum current value of between system power on and boot-up to O.S. Power on - Boot procedure Measure the maximum current value of between system power on and boot-up to O.S. Power on - Boot procedure Measure the maximum current value of between system power on and boot-up to O.S.
DOS Idle mode Measure the current value when system in DOS mode and without running any program
Win. Idle mode Measure the current value when system in windows mode and without running any program
Win. HCT12 Measure the current value when system in windows mode and running HCT12 system stress
Max. load Measure the maximum current value which system under maximum load (CPU Top speed ,RAM Graphic Full loading) and running Hot CPU pro 4.22 Max. load Measure the maximum current value which system under maximum load (CPU Top speed ,RAM Graphic Full loading) and running Hot CPU pro 4.22 Max. load Measure the maximum current value which system under maximum load (CPU Top speed ,RAM Graphic Full loading) and running Hot CPU pro 4.22
16
Max. Load Power Consumption
D525 1.8G
23 improvement
N455 1.6G
P-M 1.1G
N450 1.6G
17
CPU Arithmetic Benchmark
D525 1.8G
116 Enhance
N455 1.6G
P-M 1.1G
N450 1.6G
18
Processor MultiMedia Benchmark
D525 1.8G
117 Enhance
N455 1.6G
Same Performance
P-M 1.1G
N450 1.6G
19
Memory Bandwidth Benchmark
D525 1.8G
20 Enhance
N455 1.6G
Same performance
P-M 1.1G
N450 1.6G
20
Graphic Benchmark
D525 1.8G
50 Enhance
N455 1.6G
Same performance
N450 1.6G
21
Order Information
Part Number CPU Memory L2 Cache CRT LVDS USB 2.0 GbE RS-232 RS-422/ 485 Thermal Solution Operating Temp
PCM-3363N-1GS6A1E Atom N455 (1.6G) 1GB DDR3 onboard 512KB Yes 24-bit 4 1 2 1 Passive 060C
PCM-3363D-1GS8A1E Atom D525 (1.8G) 1GB DDR3 onboard 1MB Yes 24-bit 4 1 2 1 Active 060C
PCM-3363Z-1GS6A1E Atom N455 (1.6G) 1GB DDR3 onboard 512KB Yes 24-bit 4 1 2 1 Passive -2080C
PCM-3363Z2-1GS6A1E Atom N455 (1.6G) 1GB DDR3 onboard 512KB Yes 24-bit 4 1 2 1 Passive -4085C
Packing List
Part No. Description Quantity
1700000898 VGA cable D-SUB 15P(F)/12P-1.25 MM 15 cm X1
1700003491 AT power cable 18P-2.0/B4P-5.082 15 cm X1
1700060202 Cable 6P-6P-6P PS/2 KB Mouse 20cm X1
1703040157 RS-422/485 W/D-SUB COM 4P 15 cm X1
1703060053 PS2 Cable 6P (MINI-DIN)-6P (Wafer 2.0 mm) 6cm X1
1700019000 USB cable 2port 2.0 mm pitch w/ bracket 26 cm (w/ lock) X1
1700008941 SATA data cable 7p 32 cm (w/ lock) X1
1703150102 SATA power cable B4P-5.08/SATA 15P 10 cm X1
1700018999 RS232 x2 ports 2.0 mm 22 cm (w/ lock) X1
1700019001 LAN cable RJ45/25P-2.0 15 cm (w/ lock) X1
9660104000 PC/104 screw and copper post package X1
1960051405N001 Cooler for PCM-3363D X1
1960051403N001 Heatsink for PCM-3363N X1
22
Standard Thermal Solution
PCM-3363N-1GS6A1E Model PCM-3363D-1GS8A1E
1960051403N001 P/N 1960051405N001
79.6x78x9.22(mm) Dimension 79.6x78x17.22(mm)
24.2 (mm) Total Height with PCM-3363 29.2 (mm)
23
Optional Thermal Solution
  • Compact design and Better thermal result with
    custom chassis
  • Needs to attach it to a bigger surface on custom
    chassis
  • Tc of heatspreader should be remained at lt 60
    degree C
  • Total height including board component and
    solder sides is 22.5mm

More Compact
Fit your Chassis
Better Thermal Result
24
Optional peripheral
  • PCI-104 connector 1653130421
  • To increase the distance between the Add-On
  • card and the SBC
  • Audio Extension Module PCA-AUDIO-HDA1E
  • 7.1 Channel HD Audio Extension Module
  • Line-in, Mic-in, Lin-out, Front-out, Speaker-out,
  • Rear-out, Subcen-out, Side-out
  • Heat spreader 79.66 x 77.98 x 10.32 mm
  • Easy to integrate the thermal solution for system
  • P/N 1960051701N001

25
Rich PCI-104 I/O Module List
I/O Module PCI-104 (PCI) Description
Analog Input PCM-3813I 100 kS/s, 12-bit, 32-ch Isolated Analog Input PCI-104 Module
Multi-function  PCM-3810I 250 kS/s, 12-bit, 16-ch Multifunction PCI-104 Module
DIO PCM-3753I 96-ch Digital I/O PCI-104 Module
Isolation DIO PCM-3730I 32-ch Isolated Digital I/O PCI-104 Module
Relay PCM-3761I 8-ch Relay and 8-ch Isolated Digital Input PCI-104 Module
Storage  PCM-3621 4 SATA PC/104-Plus Module
ISA Bridge  PCM-3117 PCI to ISA Bridge Module
miniPCI  PCM-3116 PC/104-Plus 2 Slot mini PCI Module
Motion PCM-3202I 2-port AMONet RS-485 PCI-104 Master Card
USB / IEEE1394  PCM-3620 USB 2.0/IEEE 1394a PC/104-Plus Module
LAN PCM-3665 Dual GbE Module
PCMCIA  PCM-3115 2-slot CardBus PC/104-Plus Module
CAN Bus PCM-3680I 2-port CAN-bus PCI-104 Module with Isolation Protection
RS-232 PCM-3641I PCM-3642I 4-port RS-232 PCI-104 Module 8-port RS-232 PCI-104 Module
RS-232/485/422 PCM-3614I PCM-3618I PCM-3644 4-port RS-232/422/485 PCI-104 Module 8-port RS-232/422/485 PCI-104 Module RS-232/422/485 COM Port Module
Power Module PCM-3910 DC to DC Power Supply PC/104-plus Module
26
PCM-3363 Application
Outdoor Control
Military
Aerospace
Extra Temperature
Rugged
High Vibration
27
OS Support List
  • Full Compatibility Test
  • Windows 7
  • Windows XP
  • WES7
  • WES
  • OS Installation Only
  • WIN CE 6.0
  • Linux Ubuntu 10.04
  • QNX 6.5
  • VxWorks 6.8

Due to limited drivers supplied by chipset
vendors, we are unable to conduct full
validating of the functionality and
compatibility. Only OS installation and limited
I/O functionality are validated.
28
PCM-3363 Software APIs and Utility support
  • Note
  • eSOS support is required to modify BIOS
  • All Software API and Utility driver have been
    provided by PCM-3363 DVD driver and Advantech
    support web site

29
Rugged Service
  • Conformal Coating
  • Acrylic resin (AR) or Silicon (SR) materials
    selection
  • Follow IPC-610D regulation, and study for
    customized requirement as well
  • Water/Dust/Corrosion Resistance
  • 100 test after conformal coating
  • Provide standard 2years warranty
  • Industrial-grade Compact Flash
  • Software package
  • Software Protection
  • Life-Monitoring
  • Complete thermal simulation consulting services
  • Provide customized solutions for system cooling

30
Limitation
  1. The SATA power from PCM-3363 only can provide 5V
    (2.5 HDD)
  2. Memory capacity only can support to 1G
  3. PC/104 can only be achieved by using PCI-to-ISA
    PC/104 module

31
Intelligent Software API
32
Benefits to Customers
  • Faster Time to Market
  • SUSIs unified API helps developers write
    applications to control the hardware without
    knowing the hardware specs of the chipsets and
    driver architecture.
  • Reduces Project development Effort
  • When customers want to connect their own devices
    to the onboard bus, they can either write the
    driver API from scratch, or they can use SUSI
    to start the integration saving a huge amount of
    effort. Developers can reference the sample
    programs on the CD to see and learn more about
    the software development environment.
  • Enhances Hardware Platform Reliability
  • SUSI provides a set of trusted API which combines
    chipset and library function support controlling
    application development through SUSI enhances
    reliability.
  • Flexible Upgrade Possibilities
  • SUSI supports an easy upgrade solution for
    customers. Customers just need to install the new
    version SUSI that supports the new functions.

33
  • General Purpose Input/Output is a flexible
    parallel interface that allows a variety of
    custom connections. allows users to monitor the
    level of signal input or set the output status to
    switch on/off the device. Our API also provide
    Programmable GPIO, allows developers to
    dynamically set the GPIO input or output status
  • I2C is a bi-directional two wire bus that was
    developed by Philips for use in their televisions
    in the 1980s. The I2C API allows a developer to
    interface a embedded system environment and
    transfer serial messages using the I2C protocols,
    allowing multiple simultaneous device control.
  • A watchdog timer (WDT) is a device that performs
    a specific operation after a certain period of
    time if something goes wrong and the system does
    not recover on its own. A watchdog timer can be
    programmed to perform a warm boot (restarting the
    system) after a certain number of seconds.
  • The Hardware Monitor (HWM) API is a system health
    supervision API that inspects certain condition
    indexes, such as fan speed, temperature and
    voltage.

34
  • The Brightness Control API allows a developer to
    interface Embedded device to easily control
    brightness.
  • The Backlight API allows a developer to control
    the backlight (screen) on/off in Embedded Device.
  • Make use of Intel SpeedStep technology to save
    the power consumption. The system will
    automatically adjust the CPU Speed depend on the
    system loading.
  • Refers to a series of methods for reducing power
    consumption in computers by lowering the clock
    frequency. These API allow user to lower the
    clock from 87.5 to 12.5.

35
Successful Stories
36
Programmable GPIO APIs
  • Dynamic set the GPIO pin to input or output
    status
  • Case Study)
  • Required Need a special design Keypad.
  • API help to modify the GPIO from 4-in, 4-out to 5
    in, 3 out immediately.

37
Hardware Monitor APIs
  • HardWare Monitor (HWM) API is a system health
    supervision API that inspects certain condition
    indexes, such as fan speed, temperature and
    voltage.
  • Case Study
  • Required Need to monitor the temp and voltage
  • API help to provide APIs, customer integrate it
    into their application, to set alarm value and
    responding action.

38
Brightness APIs
  • Use new API and a Light Sensor IC, customer can
    have Auto-Brightness utility to auto adjust the
    brightness
  • Case Study
  • Required LCD auto-brightness
  • API help to provide this API and a service
    utility to auto-detect the environment lux

39
Power Saving API
  • The utility utilize the CPU SpeedStep and System
    Throttling technology
  • Easy for power setting
  • Case Study
  • 1. Select Power Scheme
  • 2. Set Power Events
  • 3. Set System Action Schedule

1
2
3
40
Software Utility
41
Software Utilities
42
Software Protection Secure your valuable
Application
Application START
Board ID
Yes
Vendor ID
Yes
Customer ID
Yes
Run
43
S/W Superiority Lock SQFlash with Platform
  • Lock SQFlash with corresponding platform
  • Lock with one or multi-platforms
  • Unlock by BIOS with password protected

Remove
A locked SQFlash cannot be read by card reader or
other platforms without unlock process
44
S/W Superiority Monitor SQFlash remain life
  • Monitor SQFlash health by utility or API
  • Early-warning mechanism can be performed

45
Monitoring Utility
  • Provides real-time temperature, fan and voltage
    monitoring, Watch Dog timer and custom alarm
    settings.

46
eSOS Rescue your system
47
Thank You Contact product manager for any
further information Brian.She_at_advantech.com.tw
About PowerShow.com
